IslandPathversion 1.0

IslandPath Analysis: Shigella sonnei Ss046

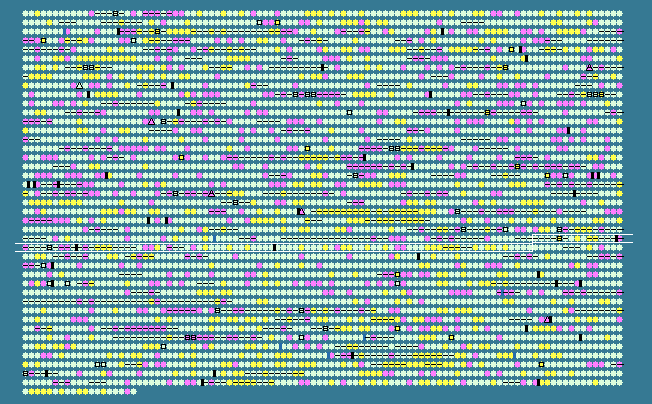

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 51.65 STD DEV: 4.20
Shigella sonnei Ss046, complete genome - 1..4825265
4219 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2586	 49.94	0	2923169..2924047	+	292	74313204	ppnK	SSON_2771	-	inorganic polyphosphate/ATP-NAD kinase
2587	 51.74	0	2924133..2925794	+	553	74313205	recN	SSON_2772	-	recombination and repair protein
2588	 49.71	0	2925943..2926284	+	113	161986469	smpA	SSON_2773	-	hypothetical protein
2589	 49.07	0	2926343..2926666	-	107	74313207	-	SSON_2774	-	IS4 orf
2590	 55.19	0	2927053..2927958	+	301	161986468	-	SSON_2775	-	insertion element IS2 transposase InsD
2591	 54.86	0	2927883..2929025	-	380	74313209	-	SSON_2776	-	IS4 orf
2592	 54.62	0	2929075..2930319	-	414	74313210	-	SSON_2777	-	putative portal protein
2593	 60.66	+2	2930231..2930413	-	60	74313211	ymfR	SSON_2778	-	hypothetical protein
2594	 54.21	0	2930425..2932158	-	577	74313212	ymfN	SSON_2779	-	hypothetical protein
2595	 58.59	+1	2932155..2932649	-	164	74313213	-	SSON_2780	-	hypothetical protein
2596	 57.55	+1	2932771..2933121	-	116	74313214	-	SSON_2781	-	putative DNase
2597	 52.04	0	2933164..2933628	-	154	74313215	ybcT	SSON_2782	-	endopeptidase-like protein
2598	 49.60	0	2933625..2934122	-	165	74313216	ybcS	SSON_2783	-	lysozyme-like protein
2599	 48.61	0	2934122..2934337	-	71	74313217	-	SSON_2784	-	lysis protein S
2600	 46.72	-1	2935518..2936279	-	253	74313218	-	SSON_2789	-	putative bacteriophage protein
2601	 47.03	-1	2936562..2936948	-	128	74313219	-	SSON_2790	-	antitermination protein Q-like protein
2602	 50.54	0	2936938..2937309	-	123	74313220	-	SSON_2791	-	putative endonuclease
2603	 48.45	0	2937309..2937566	-	85	74313221	-	SSON_2792	-	putative bacteriophage protein
2604	 52.64	0	2937563..2939095	-	510	74313222	-	SSON_2793	-	putative helicase
2605	 55.08	0	2939070..2939975	-	301	161986467	-	SSON_2794	-	insertion element IS2 transposase InsD
2606	 52.73	0	2939933..2940298	-	121	74313224	-	SSON_2795	-	insertion sequence 2 OrfA protein
2607	 44.44	-1	2942092..2942235	-	47	74313225	-	SSON_2797	-	hypothetical protein
2608	 34.42	-2	2942664..2944142	-	492	74313226	-	SSON_2798	-	hypothetical protein
2609	 54.37	0	2944845..2945348	+	167	74313227	-	SSON_2799	-	IS1 ORF
2610	 54.37	0	2945809..2946312	-	167	74313228	-	SSON_2801	-	IS1 ORF
2611	 38.22	-2	2946772..2948325	+	517	74313229	-	SSON_2802	-	putative enzyme
2612	 53.17	0	2948661..2949638	+	325	161986466	-	SSON_2803	-	hypothetical protein
2613	 57.15	+1	2949592..2950926	+	444	74313231	ygaF	SSON_2804	-	hypothetical protein
2614	 57.35	+1	2950949..2952397	+	482	74313232	gabD	SSON_2805	-	succinate-semialdehyde dehydrogenase I
2615	 59.25	+1	2952411..2953691	+	426	74313233	gabT	SSON_2806	-	4-aminobutyrate aminotransferase
2616	 51.94	0	2954002..2955318	+	438	74313234	gabP	SSON_2807	-	transport permease protein of gamma-aminobutyrate
2617	 53.39	0	2955339..2956001	+	220	161986465	ygaE	SSON_2808	-	DNA-binding transcriptional regulator CsiR
2618	 48.22	0	2956002..2956451	-	149	74313236	ygaU	SSON_2809	-	hypothetical protein
2619	 50.94	0	2956535..2956693	-	52	74313237	-	SSON_2810	-	hypothetical protein
2620	 52.67	0	2956876..2957175	+	99	74313238	-	SSON_2811	-	hypothetical protein
2621	 46.29	-1	2957185..2957709	+	174	74313239	ygaP	SSON_2812	-	hypothetical protein
2622	 48.15	0	2957756..2958160	-	134	74313240	stpA	SSON_2813	-	DNA binding protein, nucleoid-associated
2623	 57.73	+1	2958675..2959871	+	398	74313241	-	SSON_2814	-	ISSfl2 ORF
2624	 48.67	0	2960280..2960729	+	149	74313242	-	SSON_2815	-	hypothetical protein
2625	 46.09	-1	2960766..2961110	-	114	74313243	ygaC	SSON_2816	-	hypothetical protein
2626	 53.51	0	2961250..2961591	+	113	74313244	ygaM	SSON_2817	-	hypothetical protein
2627	 53.25	0	2961839..2962084	+	81	74313245	nrdH	SSON_2818	-	glutaredoxin-like protein
2628	 52.35	0	2962464..2964608	+	714	74313246	nrdE	SSON_2820	-	ribonucleotide-diphosphate reductase subunit alpha
2629	 48.12	0	2964618..2965577	+	319	74313247	nrdF	SSON_2821	-	ribonucleotide-diphosphate reductase subunit beta
2630	 48.79	0	2965933..2967135	+	400	74313248	proV	SSON_2822	-	glycine betaine transporter ATP-binding subunit
2631	 58.12	+1	2967128..2968192	+	354	74313249	proW	SSON_2823	-	glycine betaine transporter membrane protein
2632	 52.27	0	2968250..2969242	+	330	74313250	proX	SSON_2824	-	glycine betaine transporter periplasmic subunit
2633	 54.77	0	2969533..2970717	+	394	74313251	-	SSON_2825	-	permease
2634	 52.57	0	2970841..2971578	+	245	74313252	-	SSON_2826	-	hypothetical protein
2635	 55.36	0	2971568..2971903	+	111	74313253	ygaH	SSON_2827	-	hypothetical protein
2636	 49.15	0	2971994..2972524	+	176	74313254	emrR	SSON_2828	-	transcriptional repressor MprA
2637	 53.11	0	2972651..2973823	+	390	74313255	emrA	SSON_2829	-	multidrug resistance secretion protein
2638	 56.47	+1	2973840..2975378	+	512	74313256	emrB	SSON_2830	-	membrane translocase
2639	 51.55	0	2975442..2975957	-	171	74313257	ygaG	SSON_2831	-	S-ribosylhomocysteinase
2640	 51.25	0	2976107..2977663	-	518	74313258	gshA	SSON_2832	-	glutamate--cysteine ligase
2641	 49.18	0	2977736..2978164	-	142	74313259	-	SSON_2833	-	hypothetical protein
2642	 53.44	0	2978161..2978727	-	188	74313260	yqaB	SSON_2834	-	fructose-1-phosphatase
2643	 49.46	0	2980051..2980236	-	61	74313261	csrA	SSON_2840	-	carbon storage regulator
2644	 53.67	0	2980471..2983101	-	876	74313262	alaS	SSON_2841	-	alanyl-tRNA synthetase
2645	 50.70	0	2983229..2983729	-	166	74313263	recX	SSON_2842	-	recombination regulator RecX
2646	 53.86	0	2983957..2985018	-	353	74313264	recA	SSON_2843	-	recombinase A
2647	 56.63	+1	2985098..2985595	-	165	74313265	ygaD	SSON_2844	-	competence damage-inducible protein A
2648	 55.06	0	2985740..2986825	-	361	74313266	mltB	SSON_2845	-	murein hydrolase B
2649	 50.18	0	2987081..2987644	+	187	74313267	srlA	SSON_2846	-	PTS system, glucitol/sorbitol-specific IIC component, one of two
2650	 54.69	0	2987641..2988600	+	319	74313268	srlE	SSON_2847	-	PTS system, glucitol/sorbitol-specific IIB component and second of two IIC components
2651	 55.65	0	2988611..2988982	+	123	74313269	srlB	SSON_2848	-	glucitol/sorbitol-specific PTS system component IIA
2652	 54.44	0	2989859..2990218	+	119	74313270	gutM	SSON_2850	-	DNA-binding transcriptional activator GutM
2653	 47.93	0	2990285..2991058	+	257	74313271	srlR	SSON_2851	-	DNA-bindng transcriptional repressor SrlR
2654	 56.94	+1	2991051..2992016	+	321	161986464	gutQ	SSON_2852	-	D-arabinose 5-phosphate isomerase
2655	 56.90	+1	2992013..2993527	-	504	161986463	ygaA	SSON_2853	-	anaerobic nitric oxide reductase transcription regulator
2656	 53.19	0	2993714..2995153	+	479	74313274	-	SSON_2854	-	anaerobic nitric oxide reductase flavorubredoxin
2657	 54.23	0	2995150..2996283	+	377	74313275	ygbD	SSON_2855	-	nitric oxide reductase
2658	 57.92	+1	2996411..2998663	-	750	74313276	hypF	SSON_2856	-	transcriptional regulatory protein
2659	 52.08	0	2998816..2999343	-	175	74313277	hydN	SSON_2857	-	electron transport protein HydN
2660	 52.86	0	2999491..3000504	-	337	74313278	ascG	SSON_2858	-	ascBF operon repressor
2661	 56.38	+1	3000761..3002218	+	485	74313279	ascF	SSON_2859	-	cellobiose/arbutin/salicin-specific PTS system components IIBC
2662	 52.14	0	3002227..3003651	+	474	74313280	ascB	SSON_2860	-	cryptic 6-phospho-beta-glucosidase
2663	 46.43	-1	3003765..3004184	-	139	74313281	-	SSON_2861	-	hypothetical protein
2664	 42.31	-2	3004181..3004492	-	103	74313282	-	SSON_2862	-	putative cytoplasmic protein
2665	 50.65	0	3004654..3005427	-	257	74313283	-	SSON_2863	-	putative periplasmic or exported protein
2666	 53.08	0	3005452..3005922	-	156	74313284	hycI	SSON_2864	-	hydrogenase 3 maturation protease
2667	 52.80	0	3005915..3006325	-	136	74313285	hycH	SSON_2865	-	HycH
2668	 56.64	+1	3006322..3007089	-	255	74313286	hycG	SSON_2866	-	hydrogenase activity
2669	 55.99	+1	3007089..3007631	-	180	74313287	hycF	SSON_2867	-	formate hydrogenlyase complex iron-sulfur subunit
2670	 57.07	+1	3007641..3009338	-	565	74313288	hycE	SSON_2868	-	large subunit of hydrogenase 3
2671	 58.33	+1	3009356..3010279	-	307	74313289	hycD	SSON_2869	-	membrane-spanning protein of hydrogenase 3 (part of FHL complex)
2672	 57.74	+1	3010282..3012108	-	608	74313290	hycC	SSON_2870	-	formate hydrogenlyase subunit 3
2673	 56.37	+1	3012105..3012716	-	203	74313291	hycB	SSON_2871	-	small subunit of hydrogenase-3, iron-sulfur protein
2674	 49.78	0	3012841..3013302	-	153	74313292	hycA	SSON_2872	-	formate hydrogenlyase regulatory protein HycA
2675	 52.71	0	3013514..3013864	+	116	74313293	hypA	SSON_2873	-	hydrogenase nickel incorporation protein
2676	 55.56	0	3013868..3014740	+	290	74313294	hypB	SSON_2874	-	hydrogenase nickel incorporation protein HypB
2677	 54.95	0	3014731..3015003	+	90	74313295	hypC	SSON_2875	-	hydrogenase isoenzymes formation protein
2678	 55.17	0	3015003..3016124	+	373	74313296	hypD	SSON_2876	-	pleiotrophic effects on 3 hydrogenase isozymes
2679	 57.17	+1	3016163..3017131	+	322	74313297	hypE	SSON_2877	-	hypothetical protein
2680	 50.56	0	3019319..3019672	-	117	74313298	ygbA	SSON_2879	-	hypothetical protein
2681	 56.48	+1	3019959..3022520	+	853	74313299	mutS	SSON_2880	-	DNA mismatch repair protein
2682	 54.17	0	3023059..3023562	-	167	74313300	-	SSON_2882	-	IS1 ORF
2683	 51.50	0	3024110..3024907	-	265	74313301	ygbI	SSON_2883	-	putative DEOR-type transcriptional regulator
2684	 53.25	0	3025073..3025981	+	302	74313302	-	SSON_2884	-	putative dehydrogenase
2685	 54.87	0	3025978..3027240	+	420	74313303	-	SSON_2885	-	hypothetical protein
51.65	MEAN

4.20	STD DEV
