IslandPath Analysis: Shigella sonnei Ss046

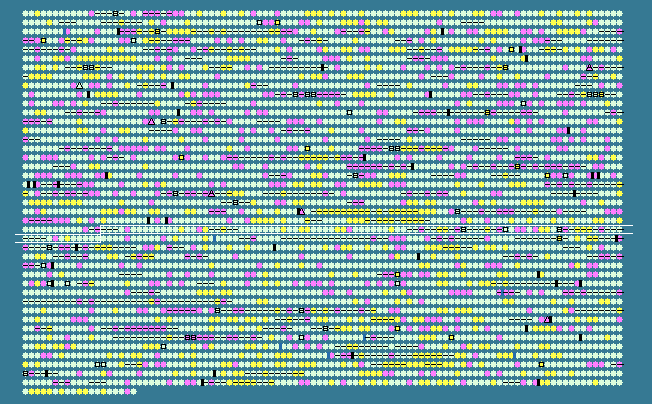

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 51.65 STD DEV: 4.20
Shigella sonnei Ss046, complete genome - 1..4825265
4219 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2414	 49.07	0	2733867..2734406	+	179	74313032	-	SSON_2588	-	hypothetical protein
2415	 54.25	0	2734501..2736078	-	525	74313033	guaA	SSON_2589	-	bifunctional GMP synthase/glutamine amidotransferase protein
2416	 54.46	0	2736147..2737613	-	488	74313034	guaB	SSON_2590	-	inositol-5-monophosphate dehydrogenase
2417	 53.32	0	2737775..2739145	+	456	74313035	xseA	SSON_2591	-	exodeoxyribonuclease VII large subunit
2418	 48.10	0	2739142..2739378	-	78	74313036	-	SSON_2592	-	hypothetical protein
2419	 51.80	0	2739426..2740898	-	490	161986480	engA	SSON_2593	-	GTP-binding protein EngA
2420	 53.18	0	2741016..2742194	-	392	74313038	-	SSON_2594	-	outer membrane protein assembly complex subunit YfgL
2421	 49.28	0	2742205..2742825	-	206	74313039	-	SSON_2595	-	hypothetical protein
2422	 54.51	0	2742843..2744117	-	424	74313040	hisS	SSON_2596	-	histidyl-tRNA synthetase
2423	 53.44	0	2744228..2745346	-	372	74313041	ispG	SSON_2597	-	4-hydroxy-3-methylbut-2-en-1-yl diphosphate synthase
2424	 54.24	0	2745373..2746386	-	337	74313042	yfgA	SSON_2598	-	hypothetical protein
2425	 53.16	0	2746671..2747825	-	384	74313043	yfgB	SSON_2599	-	hypothetical protein
2426	 53.01	0	2747975..2748406	-	143	74313044	ndk	SSON_2600	-	nucleoside diphosphate kinase
2427	 57.07	+1	2748555..2750867	-	770	74313045	pbpC	SSON_2601	-	penicillin-binding protein 1C
2428	 53.02	0	2750868..2755829	-	1653	74313046	-	SSON_2602	-	hypothetical protein
2429	 53.07	0	2756036..2756881	+	281	161986479	sseA	SSON_2603	-	3-mercaptopyruvate sulfurtransferase
2430	 47.10	-1	2757374..2758150	-	258	161986478	sseB	SSON_2604	-	enhanced serine sensitivity protein SseB
2431	 56.39	+1	2758292..2759575	-	427	161986477	pepB	SSON_2605	-	aminopeptidase B
2432	 49.75	0	2759753..2759953	-	66	74313050	yfhJ	SSON_2606	-	hypothetical protein
2433	 50.89	0	2759965..2760300	-	111	74313051	fdx	SSON_2607	-	[2FE-2S] ferredoxin, electron carrer protein
2434	 57.75	+1	2760302..2762152	-	616	74313052	hscA	SSON_2608	-	chaperone protein HscA
2435	 51.94	0	2762169..2762684	-	171	74313053	hscB	SSON_2609	-	co-chaperone HscB
2436	 51.23	0	2762780..2763103	-	107	74313054	iscA	SSON_2610	-	iron-sulfur cluster assembly protein
2437	 49.61	0	2763120..2763506	-	128	74313055	-	SSON_2611	-	scaffold protein
2438	 52.87	0	2763534..2764772	-	412	74313056	yfhO	SSON_2612	-	putative aminotransferase
2439	 53.17	0	2764989..2765477	-	162	74313057	-	SSON_2613	-	DNA-binding transcriptional regulator IscR
2440	 54.74	0	2765778..2766515	-	245	74313058	-	SSON_2614	-	putative ATP synthase beta subunit
2441	 54.23	0	2766634..2767437	+	267	74313059	suhB	SSON_2615	-	inositol monophosphatase
2442	 49.55	0	2767555..2768436	+	293	74313060	-	SSON_2616	-	putative enzyme
2443	 51.52	0	2768627..2769907	+	426	161986476	csiE	SSON_2617	-	stationary phase inducible protein CsiE
2444	 56.40	+1	2769899..2771038	-	379	74313062	hcaT	SSON_2618	-	putative 3-phenylpropionic acid transporter
2445	 52.72	0	2772224..2773585	+	453	74313063	hcaA1	SSON_2620	-	large terminal subunit of phenylpropionate dioxygenase
2446	 51.83	0	2773582..2774100	+	172	74313064	hcaA2	SSON_2621	-	3-phenylpropionate dioxygenase subunit beta
2447	 55.76	0	2774100..2774420	+	106	74313065	hcaC	SSON_2622	-	3-phenylpropionate dioxygenase ferredoxin subunit
2448	 56.21	+1	2774417..2775229	+	270	74313066	hcaB	SSON_2623	-	2,3-dihydroxy-2,3-dihydrophenylpropionate dehydrogenase
2449	 54.03	0	2775239..2776441	+	400	74313067	hcaD	SSON_2624	-	phenylpropionate dioxygenase ferredoxin reductase subunit
2450	 54.37	0	2776812..2777315	+	167	74313068	-	SSON_2625	-	IS1 ORF
2451	 54.98	0	2777794..2778666	-	290	74313069	yphB	SSON_2627	-	hypothetical protein
2452	 54.61	0	2778678..2779772	-	364	74313070	yphC	SSON_2628	-	putative oxidoreductase
2453	 55.66	0	2779805..2780803	-	332	74313071	yphD	SSON_2629	-	putative transport system permease protein
2454	 55.49	0	2780828..2782339	-	503	74313072	yphE	SSON_2630	-	putative ATP-binding component of a transport system
2455	 45.53	-1	2782362..2783345	-	327	74313073	yphF	SSON_2631	-	putative LACI-type transcriptional regulator
2456	 53.51	0	2788228..2789481	-	417	74313074	glyA	SSON_2634	-	serine hydroxymethyltransferase
2457	 52.56	0	2789809..2790999	+	396	74313075	hmpA	SSON_2635	-	nitric oxide dioxygenase
2458	 51.03	0	2791044..2791382	-	112	74313076	glnB	SSON_2636	-	nitrogen regulatory protein P-II 1
2459	 54.38	0	2791443..2792777	-	444	74313077	yfhA	SSON_2637	-	putative 2-component transcriptional regulator
2460	 54.20	0	2792767..2793480	-	237	74313078	yfhG	SSON_2638	-	hypothetical protein
2461	 52.58	0	2793645..2795135	-	496	74313079	yfhK	SSON_2639	-	putative 2-component sensor protein
2462	 57.00	+1	2795630..2799517	-	1295	74313080	purL	SSON_2640	-	phosphoribosylformylglycinamidine synthase
2463	 50.46	0	2799913..2801331	+	472	74313081	yfhD	SSON_2641	-	putative transglycosylase
2464	 54.38	0	2801328..2801864	-	178	74313082	yfhC	SSON_2642	-	tRNA-specific adenosine deaminase
2465	 52.36	0	2801889..2802524	-	211	161986475	yfhB	SSON_2643	-	hypothetical protein
2466	 51.83	0	2802733..2803581	+	282	161986474	yfhH	SSON_2644	-	putative DNA-binding transcriptional regulator
2467	 46.25	-1	2804968..2806794	+	608	74313085	ipaH_5	SSON_2646	-	invasion plasmid antigen
2468	 53.21	0	2806974..2807597	-	207	74313086	-	SSON_2647	-	hypothetical protein
2469	 53.73	0	2807548..2808714	-	388	74313087	-	SSON_2648	-	putative tail fiber protein
2470	 55.56	0	2808774..2809232	-	152	74313088	-	SSON_2649	-	putative protein encoded within IS
2471	 58.05	+1	2809282..2809629	-	115	74313089	-	SSON_2650	-	putative protein encoded within IS
2472	 52.10	0	2809868..2810581	-	237	74313090	-	SSON_2651	-	IS600 ORF2
2473	 46.53	-1	2810722..2811024	-	100	74313091	-	SSON_2652	-	IS600 ORF1
2474	 49.47	0	2811621..2812748	-	375	74313092	-	SSON_2653	-	putative transposase
2475	 54.48	0	2813123..2813770	-	215	74313093	-	SSON_2654	-	IS629 ORF2
2476	 54.09	0	2813990..2814331	-	113	74313094	-	SSON_2655	-	IS629 ORF1
2477	 50.57	0	2814429..2814689	+	86	74313095	yfdA	SSON_2656	-	hypothetical protein
2478	 64.47	+2	2814686..2815276	+	196	74313096	-	SSON_2657	-	hypothetical protein
2479	 54.31	0	2815296..2815643	-	115	74313097	-	SSON_2658	-	hypothetical protein
2480	 35.13	-2	2815829..2816107	+	92	74313098	-	SSON_2659	-	putative immunity protein for colicin IA
2481	 55.08	0	2817646..2818551	+	301	161986473	-	SSON_2660	-	insertion element IS2 transposase InsD
2482	 53.44	0	2819082..2819648	+	188	74313100	-	SSON_2661	-	Rep protein
2483	 46.41	-1	2819939..2820856	+	305	74313101	cjrA	SSON_2662	-	putative iron-regulated protein
2484	 45.83	-1	2821089..2821640	+	183	74313102	cjrB	SSON_2663	-	colicin Js-sensitive putative membrane protein
2485	 48.45	0	2821809..2824070	+	753	74313103	cjrC	SSON_2664	-	colicin Js-sensitive receptor protein
2486	 45.83	-1	2824139..2825314	+	391	74313104	senB	SSON_2665	-	putative enterotoxin
2487	 59.63	+1	2826339..2827730	-	463	74313105	-	SSON_2666	-	putative protein encoded within IS
2488	 58.05	+1	2827927..2828274	-	115	74313106	-	SSON_2667	-	putative protein encoded within IS
2489	 54.37	0	2828986..2829489	+	167	74313107	-	SSON_2668	-	IS1 ORF
2490	 49.91	0	2829779..2830954	-	391	74313108	-	SSON_2669	-	putative transposase
2491	 45.87	-1	2831037..2831339	+	100	74313109	-	SSON_2670	-	IS600 ORF1
2492	 52.10	0	2831480..2832193	+	237	74313110	-	SSON_2671	-	IS600 ORF2
2493	 56.33	+1	2832902..2833462	-	186	74313111	finO	SSON_2672	-	conjugal transfer fertility inhibition protein FinO
2494	 61.68	+2	2834284..2835486	-	400	74313112	-	SSON_2674	-	hypothetical protein
2495	 56.07	+1	2835585..2835971	-	128	74313113	trbI	SSON_2675	-	conjugal transfer protein TrbI
2496	 54.64	0	2835968..2837239	-	423	74313114	-	SSON_2676	-	hypothetical protein
2497	 47.12	-1	2837424..2837735	-	103	74313115	traL	SSON_2677	-	conjugal transfer pilus assembly protein TraL
2498	 48.94	0	2837750..2838031	-	93	74313116	traA	SSON_2678	-	conjugal transfer pilin subunit TraA
2499	 54.17	0	2838146..2839033	-	295	74313117	-	SSON_2679	-	IS629 ORF2
2500	 54.43	0	2839033..2839359	-	108	74313118	-	SSON_2680	-	IS629 ORF1
2501	 52.63	0	2839740..2840537	-	265	74313119	-	SSON_2681	-	IS21 ORF2
2502	 52.94	0	2840537..2841709	-	390	74313120	-	SSON_2682	-	IS21 ORF1
2503	 53.20	0	2841854..2842150	+	98	74313121	-	SSON_2683	-	putative protein encoded within IS
2504	 55.13	0	2842150..2843337	+	395	74313122	-	SSON_2684	-	IS91 orf
2505	 51.04	0	2843510..2844712	-	400	74313123	-	SSON_2685	-	hypothetical protein
2506	 44.06	-1	2844927..2845187	+	86	74313124	yfhL	SSON_2686	-	hypothetical protein
2507	 50.39	0	2845683..2846063	-	126	74313125	acpS	SSON_2687	-	4'-phosphopantetheinyl transferase
2508	 55.33	0	2846063..2846794	-	243	74313126	pdxJ	SSON_2688	-	pyridoxal phosphate biosynthetic protein PdxJ
2509	 54.18	0	2846806..2847534	-	242	74313127	recO	SSON_2689	-	DNA repair protein RecO
2510	 51.99	0	2847546..2848451	-	301	74313128	era	SSON_2690	-	GTP-binding protein Era
2511	 50.66	0	2848448..2849128	-	226	74313129	rnc	SSON_2691	-	ribonuclease III
2512	 51.69	0	2849401..2850375	-	324	74313130	lepB	SSON_2692	-	lsignal peptidase I
2513	 53.56	0	2850391..2852190	-	599	74313131	lepA	SSON_2693	-	GTP-binding protein LepA
51.65	MEAN

4.20	STD DEV
