IslandPath Analysis: Shigella sonnei Ss046

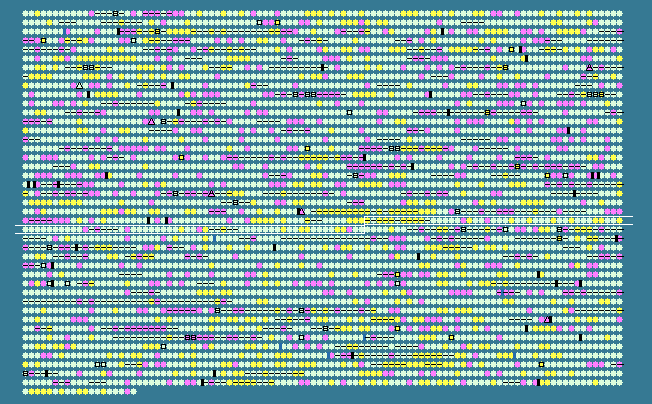

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 51.65   STD DEV: 4.20
Shigella sonnei Ss046, complete genome - 1..4825265
4219 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2358	 59.12	+1	2667447..2668850	-	467	74312976	-	SSON_2531	-	reactivating factor for ethanolamine ammonia lyase
2359	 55.01	0	2668847..2670073	-	408	74312977	eutH	SSON_2532	-	EutH
2360	 58.85	+1	2670390..2671604	-	404	74312978	eutG	SSON_2533	-	hypothetical protein
2361	 58.54	+1	2671567..2672403	-	278	74312979	eutJ	SSON_2534	-	EutJ
2362	 57.62	+1	2672414..2673817	-	467	74312980	eutE	SSON_2535	-	EutE
2363	 53.12	0	2673829..2674116	-	95	74312981	cchB	SSON_2536	-	detox protein
2364	 57.82	+1	2674223..2674516	-	97	161986484	cchA	SSON_2537	-	detox protein
2365	 58.01	+1	2674555..2675571	-	338	74312983	eutD	SSON_2538	-	phosphotransacetylase
2366	 58.83	+1	2675568..2676371	-	267	74312984	-	SSON_2539	-	hypothetical protein
2367	 55.56	0	2676368..2677069	-	233	74312985	-	SSON_2540	-	hypothetical protein
2368	 49.79	0	2677044..2677523	-	159	74312986	-	SSON_2541	-	hypothetical protein
2369	 48.53	0	2677536..2677943	-	135	74312987	-	SSON_2542	-	hypothetical protein
2370	 54.39	0	2678164..2680443	-	759	74312988	-	SSON_2543	-	malic enzyme
2371	 50.37	0	2680732..2681682	+	316	74312989	talA	SSON_2544	-	transaldolase A
2372	 54.74	0	2681702..2683705	+	667	74312990	tktB	SSON_2545	-	transketolase
2373	 55.08	0	2683801..2684844	-	347	74312991	-	SSON_2546	-
