IslandPath Analysis: Shigella sonnei Ss046

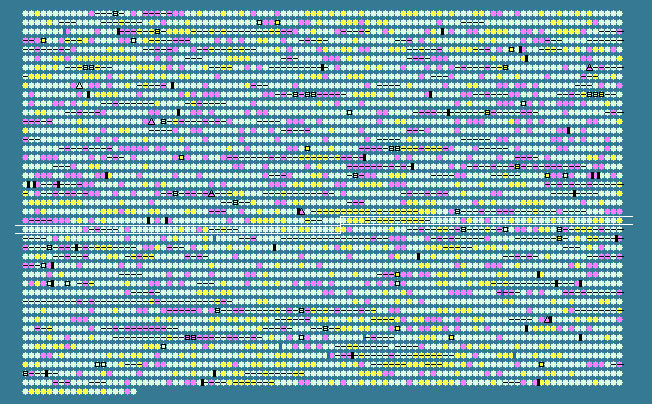

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 51.65 STD DEV: 4.20
Shigella sonnei Ss046, complete genome - 1..4825265
4219 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2354	 53.18	0	2662886..2663938	-	350	74312972	yfeG	SSON_2526	-	transcriptional regulator EutR
2355	 57.99	+1	2663984..2664490	-	168	74312973	-	SSON_2527	-	hypothetical protein
2356	 55.45	0	2664497..2665156	-	219	74312974	-	SSON_2528	-	ethanolamine utilization protein eutL
2357	 56.98	+1	2665166..2666053	-	295	74312975	eutC	SSON_2529	-	ethanolamine ammonia-lyase small subunit
2358	 59.12	+1	2667447..2668850	-	467	74312976	-	SSON_2531	-	reactivating factor for ethanolamine ammonia lyase
2359	 55.01	0	2668847..2670073	-	408	74312977	eutH	SSON_2532	-	EutH
2360	 58.85	+1	2670390..2671604	-	404	74312978	eutG	SSON_2533	-	hypothetical protein
2361	 58.54	+1	2671567..2672403	-	278	74312979	eutJ	SSON_2534	-	EutJ
2362	 57.62	+1	2672414..2673817	-	467	74312980	eutE	SSON_2535	-	EutE
2363	 53.12	0	2673829..2674116	-	95	74312981	cchB	SSON_2536	-	detox protein
2364	 57.82	+1	2674223..2674516	-	97	161986484	cchA	SSON_2537	-	detox protein
2365	 58.01	+1	2674555..2675571	-	338	74312983	eutD	SSON_2538	-	phosphotransacetylase
2366	 58.83	+1	2675568..2676371	-	267	74312984	-	SSON_2539	-	hypothetical protein
2367	 55.56	0	2676368..2677069	-	233	74312985	-	SSON_2540	-	hypothetical protein
2368	 49.79	0	2677044..2677523	-	159	74312986	-	SSON_2541	-	hypothetical protein
2369	 48.53	0	2677536..2677943	-	135	74312987	-	SSON_2542	-	hypothetical protein
2370	 54.39	0	2678164..2680443	-	759	74312988	-	SSON_2543	-	malic enzyme
2371	 50.37	0	2680732..2681682	+	316	74312989	talA	SSON_2544	-	transaldolase A
2372	 54.74	0	2681702..2683705	+	667	74312990	tktB	SSON_2545	-	transketolase
2373	 55.08	0	2683801..2684844	-	347	74312991	-	SSON_2546	-	hypothetical protein
2374	 48.09	0	2684970..2685545	-	191	74312992	yffH	SSON_2547	-	hypothetical protein
2375	 55.66	0	2685613..2687592	-	659	74312993	yffG	SSON_2548	-	putative oxidoreductase Fe-S binding subunit
2376	 51.62	0	2687798..2689498	+	566	74312994	narQ	SSON_2549	-	nitrate/nitrite sensor protein NarQ
2377	 54.37	0	2689662..2692775	+	1037	74312995	acrD	SSON_2550	-	aminoglycoside/multidrug efflux system
2378	 47.34	-1	2693315..2693671	+	118	74312996	yffB	SSON_2551	-	hypothetical protein
2379	 53.28	0	2693675..2694802	+	375	74312997	dapE	SSON_2552	-	succinyl-diaminopimelate desuccinylase
2380	 48.44	0	2694806..2695030	+	74	74312998	-	SSON_2553	-	hypothetical protein
2381	 53.93	0	2695140..2695838	-	232	161986483	ypfH	SSON_2554	-	esterase YpfH
2382	 55.75	0	2695912..2697927	-	671	74313000	ypfI	SSON_2555	-	hypothetical protein
2383	 53.24	0	2697942..2698790	-	282	74313001	-	SSON_2556	-	hypothetical protein
2384	 52.24	0	2698958..2699671	-	237	74313002	purC	SSON_2557	-	phosphoribosylaminoimidazole-succinocarboxamide synthase
2385	 55.30	0	2699884..2700921	-	345	74313003	nlpB	SSON_2558	-	lipoprotein
2386	 51.76	0	2700935..2701813	-	292	74313004	dapA	SSON_2559	-	dihydrodipicolinate synthase
2387	 50.26	0	2701959..2702531	+	190	161986482	gcvR	SSON_2560	-	glycine cleavage system transcriptional repressor
2388	 49.47	0	2702531..2703001	+	156	74313006	bcp	SSON_2561	-	thioredoxin-dependent thiol peroxidase
2389	 56.32	+1	2703215..2703871	+	218	74313007	hyfA	SSON_2562	-	hydrogenase 4 Fe-S subunit
2390	 55.03	0	2703871..2705889	+	672	74313008	hyfB	SSON_2563	-	hydrogenase 4 subunit B
2391	 53.87	0	2705879..2706847	+	322	74313009	hyfC	SSON_2564	-	hydrogenase 4 membrane subunit
2392	 55.20	0	2706986..2708302	+	438	74313010	hyfD	SSON_2565	-	hydrogenase 4 subunit D
2393	 53.46	0	2708314..2708964	+	216	74313011	hyfE	SSON_2566	-	hydrogenase 4 membrane subunit
2394	 54.08	0	2708969..2710549	+	526	74313012	hyfF	SSON_2567	-	hydrogenase 4 subunit F
2395	 54.25	0	2710539..2712254	+	571	74313013	hyfG	SSON_2568	-	hydrogenase 4 subunit
2396	 55.56	0	2712264..2712803	+	179	74313014	hyfH	SSON_2569	-	hydrogenase 4 subunit H
2397	 55.99	+1	2712800..2713558	+	252	74313015	hyfI	SSON_2570	-	hydrogenase 4 Fe-S subunit
2398	 52.62	0	2713488..2713964	+	158	74313016	-	SSON_2571	-	putative protein processing element
2399	 52.76	0	2714015..2716006	+	663	74313017	hyfR	SSON_2572	-	putative 2-component regulator, interaction with sigma 54
2400	 57.81	+1	2716935..2718131	+	398	74313018	-	SSON_2574	-	ISSfl2 ORF
2401	 53.58	0	2718362..2719423	-	353	74313019	perM	SSON_2575	-	putative permease
2402	 54.03	0	2719636..2721099	+	487	74313020	-	SSON_2576	-	hypothetical protein
2403	 52.22	0	2721120..2721479	+	119	74313021	-	SSON_2577	-	putative oxidoreductase
2404	 52.88	0	2721617..2722363	-	248	74313022	-	SSON_2578	-	DNA replication initiation factor
2405	 52.02	0	2722413..2723702	-	429	74313023	uraA	SSON_2579	-	uracil transporter
2406	 53.27	0	2723788..2724414	-	208	161986481	upp	SSON_2580	-	uracil phosphoribosyltransferase
2407	 53.18	0	2724739..2725776	+	345	74313025	purM	SSON_2581	-	phosphoribosylaminoimidazole synthetase
2408	 53.21	0	2725776..2726414	+	212	74313026	purN	SSON_2582	-	phosphoribosylglycinamide formyltransferase
2409	 48.57	0	2726585..2728651	+	688	74313027	ppk	SSON_2583	-	polyphosphate kinase
2410	 51.49	0	2728656..2730197	+	513	74313028	ppx	SSON_2584	-	exopolyphosphatase
2411	 46.52	-1	2730236..2732479	-	747	74313029	-	SSON_2585	-	putative cytochrome C-type biogenesis protein
2412	 49.48	0	2732831..2733022	+	63	74313030	-	SSON_2586	-	hypothetical protein
2413	 47.01	-1	2733333..2733851	+	172	74313031	-	SSON_2587	-	putative outer membrane lipoprotein
2414	 49.07	0	2733867..2734406	+	179	74313032	-	SSON_2588	-	hypothetical protein
2415	 54.25	0	2734501..2736078	-	525	74313033	guaA	SSON_2589	-	bifunctional GMP synthase/glutamine amidotransferase protein
2416	 54.46	0	2736147..2737613	-	488	74313034	guaB	SSON_2590	-	inositol-5-monophosphate dehydrogenase
2417	 53.32	0	2737775..2739145	+	456	74313035	xseA	SSON_2591	-	exodeoxyribonuclease VII large subunit
2418	 48.10	0	2739142..2739378	-	78	74313036	-	SSON_2592	-	hypothetical protein
2419	 51.80	0	2739426..2740898	-	490	161986480	engA	SSON_2593	-	GTP-binding protein EngA
2420	 53.18	0	2741016..2742194	-	392	74313038	-	SSON_2594	-	outer membrane protein assembly complex subunit YfgL
2421	 49.28	0	2742205..2742825	-	206	74313039	-	SSON_2595	-	hypothetical protein
2422	 54.51	0	2742843..2744117	-	424	74313040	hisS	SSON_2596	-	histidyl-tRNA synthetase
2423	 53.44	0	2744228..2745346	-	372	74313041	ispG	SSON_2597	-	4-hydroxy-3-methylbut-2-en-1-yl diphosphate synthase
2424	 54.24	0	2745373..2746386	-	337	74313042	yfgA	SSON_2598	-	hypothetical protein
2425	 53.16	0	2746671..2747825	-	384	74313043	yfgB	SSON_2599	-	hypothetical protein
2426	 53.01	0	2747975..2748406	-	143	74313044	ndk	SSON_2600	-	nucleoside diphosphate kinase
2427	 57.07	+1	2748555..2750867	-	770	74313045	pbpC	SSON_2601	-	penicillin-binding protein 1C
2428	 53.02	0	2750868..2755829	-	1653	74313046	-	SSON_2602	-	hypothetical protein
2429	 53.07	0	2756036..2756881	+	281	161986479	sseA	SSON_2603	-	3-mercaptopyruvate sulfurtransferase
2430	 47.10	-1	2757374..2758150	-	258	161986478	sseB	SSON_2604	-	enhanced serine sensitivity protein SseB
2431	 56.39	+1	2758292..2759575	-	427	161986477	pepB	SSON_2605	-	aminopeptidase B
2432	 49.75	0	2759753..2759953	-	66	74313050	yfhJ	SSON_2606	-	hypothetical protein
2433	 50.89	0	2759965..2760300	-	111	74313051	fdx	SSON_2607	-	[2FE-2S] ferredoxin, electron carrer protein
2434	 57.75	+1	2760302..2762152	-	616	74313052	hscA	SSON_2608	-	chaperone protein HscA
2435	 51.94	0	2762169..2762684	-	171	74313053	hscB	SSON_2609	-	co-chaperone HscB
2436	 51.23	0	2762780..2763103	-	107	74313054	iscA	SSON_2610	-	iron-sulfur cluster assembly protein
2437	 49.61	0	2763120..2763506	-	128	74313055	-	SSON_2611	-	scaffold protein
2438	 52.87	0	2763534..2764772	-	412	74313056	yfhO	SSON_2612	-	putative aminotransferase
2439	 53.17	0	2764989..2765477	-	162	74313057	-	SSON_2613	-	DNA-binding transcriptional regulator IscR
2440	 54.74	0	2765778..2766515	-	245	74313058	-	SSON_2614	-	putative ATP synthase beta subunit
2441	 54.23	0	2766634..2767437	+	267	74313059	suhB	SSON_2615	-	inositol monophosphatase
2442	 49.55	0	2767555..2768436	+	293	74313060	-	SSON_2616	-	putative enzyme
2443	 51.52	0	2768627..2769907	+	426	161986476	csiE	SSON_2617	-	stationary phase inducible protein CsiE
2444	 56.40	+1	2769899..2771038	-	379	74313062	hcaT	SSON_2618	-	putative 3-phenylpropionic acid transporter
2445	 52.72	0	2772224..2773585	+	453	74313063	hcaA1	SSON_2620	-	large terminal subunit of phenylpropionate dioxygenase
2446	 51.83	0	2773582..2774100	+	172	74313064	hcaA2	SSON_2621	-	3-phenylpropionate dioxygenase subunit beta
2447	 55.76	0	2774100..2774420	+	106	74313065	hcaC	SSON_2622	-	3-phenylpropionate dioxygenase ferredoxin subunit
2448	 56.21	+1	2774417..2775229	+	270	74313066	hcaB	SSON_2623	-	2,3-dihydroxy-2,3-dihydrophenylpropionate dehydrogenase
2449	 54.03	0	2775239..2776441	+	400	74313067	hcaD	SSON_2624	-	phenylpropionate dioxygenase ferredoxin reductase subunit
2450	 54.37	0	2776812..2777315	+	167	74313068	-	SSON_2625	-	IS1 ORF
2451	 54.98	0	2777794..2778666	-	290	74313069	yphB	SSON_2627	-	hypothetical protein
2452	 54.61	0	2778678..2779772	-	364	74313070	yphC	SSON_2628	-	putative oxidoreductase
2453	 55.66	0	2779805..2780803	-	332	74313071	yphD	SSON_2629	-	putative transport system permease protein
51.65	MEAN

4.20	STD DEV
