IslandPathversion 1.0

IslandPath Analysis: Shigella sonnei Ss046

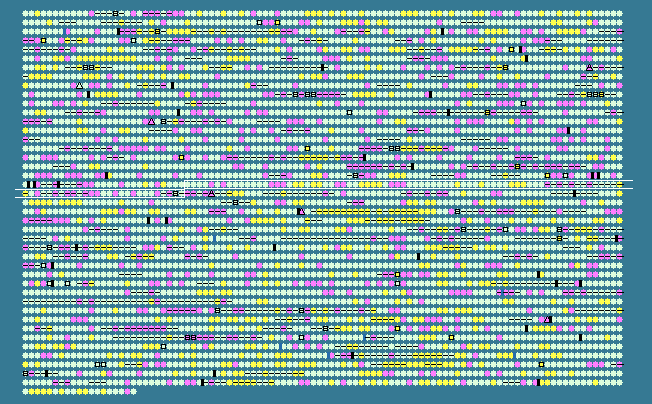

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 51.65 STD DEV: 4.20
Shigella sonnei Ss046, complete genome - 1..4825265
4219 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1928	 54.26	0	2168853..2169755	+	300	74312545	pduS	SSON_2073	-	putative propanediol utilization protein: ferredoxin
1929	 53.51	0	2170201..2170755	+	184	74312546	pduT	SSON_2074	-	putative propanediol utilization protein: polyhedral bodies
1930	 49.29	0	2170755..2171105	+	116	74312547	pduU	SSON_2075	-	putative propanediol utilization protein: polyhedral bodies
1931	 50.00	0	2171110..2171553	+	147	74312548	pduV	SSON_2076	-	putative propanediol utilization protein
1932	 46.72	-1	2171654..2172049	-	131	74312549	yeeX	SSON_2077	-	hypothetical protein
1933	 50.52	0	2172155..2173213	-	352	74312550	yeeA	SSON_2078	-	hypothetical protein
1934	 46.84	-1	2173411..2173884	-	157	74312551	sbmC	SSON_2079	-	DNA gyrase inhibitor
1935	 49.45	0	2174003..2175175	-	390	74312552	dacD	SSON_2080	-	D-alanyl-D-alanine carboxypeptidase
1936	 50.28	0	2175378..2176805	+	475	74312553	sbcB	SSON_2081	-	exonuclease I
1937	 51.32	0	2176848..2177075	-	75	74312554	yeeD	SSON_2082	-	hypothetical protein
1938	 50.24	0	2177089..2178147	-	352	74312555	yeeE	SSON_2083	-	putative transport system permease protein
1939	 52.31	0	2178326..2179690	-	454	74312556	yeeF	SSON_2084	-	putative amino acid/amine transport protein
1940	 51.21	0	2179951..2180901	-	316	74312557	yeeY	SSON_2085	-	putative transcriptional regulator LYSR-type
1941	 52.00	0	2180926..2181750	-	274	74312558	-	SSON_2086	-	putative enzyme of sugar metabolism
1942	 43.92	-1	2181833..2182087	-	84	74312559	-	SSON_2087	-	hypothetical protein
1943	 47.62	0	2182084..2182335	-	83	74312560	yefM	SSON_2088	-	antitoxin YefM
1944	 43.14	-2	2182618..2182668	+	16	74312561	hisL	SSON_2089	-	his operon leader peptide
1945	 54.44	0	2182814..2183713	+	299	74312562	hisG	SSON_2090	-	ATP phosphoribosyltransferase
1946	 57.39	+1	2183719..2185023	+	434	74312563	hisD	SSON_2091	-	histidinol dehydrogenase
1947	 55.18	0	2185020..2186090	+	356	74312564	hisC	SSON_2092	-	histidinol-phosphate aminotransferase
1948	 53.46	0	2186090..2187157	+	355	161986513	hisB	SSON_2093	-	imidazole glycerol-phosphate dehydratase/histidinol phosphatase
1949	 55.67	0	2187157..2187747	+	196	74312566	hisH	SSON_2094	-	imidazole glycerol phosphate synthase subunit HisH
1950	 57.05	+1	2187747..2188484	+	245	161986512	hisA	SSON_2095	-	1-(5-phosphoribosyl)-5-[(5-phosphoribosylamino)methylideneamino] imidazole-4-carboxamide isomerase
1951	 51.87	0	2188466..2189242	+	258	74312568	hisF	SSON_2096	-	imidazole glycerol phosphate synthase subunit HisF
1952	 53.27	0	2189236..2189847	+	203	74312569	hisI	SSON_2097	-	bifunctional phosphoribosyl-AMP cyclohydrolase/phosphoribosyl-ATP pyrophosphatase protein
1953	 45.76	-1	2189944..2190957	-	337	74312570	wzzB	SSON_2098	-	regulator of length of O-antigen component of lipopolysaccharide chains
1954	 43.44	-1	2191067..2192233	-	388	74312571	ugd	SSON_2099	-	UDP-glucose 6-dehydrogenase
1955	 50.82	0	2192483..2193889	-	468	74312572	gnd	SSON_2100	-	6-phosphogluconate dehydrogenase
1956	 54.56	0	2194053..2195423	-	456	74312573	cpsG	SSON_2101	-	phosphomannomutase
1957	 55.53	0	2195528..2196964	-	478	74312574	cpsB	SSON_2102	-	mannose-1-phosphate guanyltransferase
1958	 55.56	0	2196967..2198190	-	407	74312575	wcaI	SSON_2103	-	glycosyl transferase
1959	 56.11	+1	2198187..2198669	-	160	74312576	wcaH	SSON_2104	-	GDP-mannose mannosyl hydrolase
1960	 56.31	+1	2198669..2199634	-	321	74312577	wcaG	SSON_2105	-	putative nucleotide di-P-sugar epimerase or dehydratase
1961	 54.55	0	2199637..2200758	-	373	74312578	gmd	SSON_2106	-	GDP-D-mannose dehydratase
1962	 47.91	0	2200784..2201332	-	182	74312579	wcaF	SSON_2107	-	putative colanic acid biosynthesis acetyltransferase WcaF
1963	 45.38	-1	2201348..2202094	-	248	74312580	wcaE	SSON_2108	-	glycosyl transferase
1964	 42.69	-2	2202105..2203322	-	405	74312581	wcaD	SSON_2109	-	putative colanic acid biosynthesis protein
1965	 53.78	0	2203297..2204514	-	405	74312582	wcaC	SSON_2110	-	glycosyl transferase
1966	 53.78	0	2204511..2204999	-	162	74312583	wcaB	SSON_2111	-	putative colanic acid biosynthesis acetyltransferase WcaB
1967	 50.48	0	2205002..2205841	-	279	74312584	wcaA	SSON_2112	-	glycosyl transferase
1968	 53.35	0	2205934..2208096	-	720	161986511	-	SSON_2113	-	tyrosine kinase
1969	 53.83	0	2208099..2208542	-	147	74312586	wzb	SSON_2114	-	tyrosine phosphatase
1970	 53.25	0	2208548..2209687	-	379	74312587	wza	SSON_2115	-	putative polysaccharide export protein
1971	 52.42	0	2210280..2211929	+	549	74312588	yegH	SSON_2116	-	putative transport protein
1972	 52.79	0	2212191..2214056	-	621	74312589	asmA	SSON_2117	-	putative assembly protein
1973	 60.14	+2	2214078..2214659	-	193	74312590	dcd	SSON_2118	-	deoxycytidine triphosphate deaminase
1974	 48.91	0	2214751..2215392	-	213	161986510	udk	SSON_2119	-	uridine kinase
1975	 52.50	0	2215710..2219027	+	1105	74312592	yegE	SSON_2120	-	putative sensor protein
1976	 55.01	0	2219137..2219985	-	282	74312593	alkA	SSON_2121	-	3-methyl-adenine DNA glycosylase II
1977	 56.10	+1	2220119..2221471	+	450	161986509	yegD	SSON_2122	-	putative chaperone
1978	 51.11	0	2221484..2223424	-	646	74312595	-	SSON_2123	-	putative chaperonin
1979	 50.39	0	2223421..2224182	-	253	74312596	-	SSON_2124	-	hypothetical protein
1980	 52.88	0	2224179..2224838	-	219	74312597	-	SSON_2125	-	hypothetical protein
1981	 54.99	0	2226053..2227294	+	413	161986508	-	SSON_2126	-	multidrug efflux system subunit MdtA
1982	 56.39	+1	2227294..2230416	+	1040	74312599	yegN	SSON_2127	-	multidrug efflux system subunit MdtB
1983	 56.53	+1	2230417..2233494	+	1025	74312600	yegO	SSON_2128	-	multidrug efflux system subunit MdtC
1984	 55.51	0	2233495..2234910	+	471	74312601	yegB	SSON_2129	-	multidrug efflux system protein MdtE
1985	 53.42	0	2234907..2236310	+	467	74312602	baeS	SSON_2130	-	signal transduction histidine-protein kinase BaeS
1986	 53.94	0	2236307..2237029	+	240	74312603	baeR	SSON_2131	-	DNA-binding transcriptional regulator BaeR
1987	 54.56	0	2237365..2237868	+	167	74312604	-	SSON_2132	-	IS1 ORF
1988	 47.31	-1	2237958..2238329	+	123	74312605	yegP	SSON_2133	-	hypothetical protein
1989	 53.89	0	2238476..2239837	+	453	74312606	yegQ	SSON_2134	-	hypothetical protein
1990	 37.30	-2	2240167..2240544	-	125	74312607	-	SSON_2135	-	hypothetical protein
1991	 49.67	0	2240890..2241789	+	299	74312608	-	SSON_2136	-	lipid kinase
1992	 46.54	-1	2241871..2242650	-	259	74312609	gatR	SSON_2137	-	galactitol utilization operon repressor
1993	 48.32	0	2242750..2243790	-	346	74312610	gatD	SSON_2138	-	galactitol-1-phosphate dehydrogenase
1994	 50.96	0	2243838..2245193	-	451	74312611	gatC	SSON_2139	-	PTS system galactitol-specific enzyme IIC
1995	 42.46	-2	2245197..2245481	-	94	74312612	gatB	SSON_2140	-	galactitol-specific PTS system component IIB
1996	 54.37	0	2245853..2246356	-	167	74312613	-	SSON_2141	-	IS1 ORF
1997	 52.75	0	2248036..2248890	-	284	161986507	gatY	SSON_2144	-	tagatose-bisphosphate aldolase
1998	 51.28	0	2249209..2250261	-	350	161986506	-	SSON_2145	-	fructose-bisphosphate aldolase
1999	 50.08	0	2250518..2251795	+	425	74312616	yegT	SSON_2146	-	putative nucleoside permease protein
2000	 55.52	0	2251792..2252796	+	334	74312617	-	SSON_2147	-	hypothetical protein
2001	 56.83	+1	2252793..2253758	+	321	74312618	-	SSON_2148	-	putative kinase
2002	 51.54	0	2253732..2254478	-	248	74312619	yegW	SSON_2149	-	putative transcriptional regulator
2003	 47.58	0	2254530..2255357	-	275	74312620	yegX	SSON_2150	-	hypothetical protein
2004	 54.93	0	2255413..2256213	-	266	74312621	thiD	SSON_2151	-	phosphomethylpyrimidine kinase
2005	 54.75	0	2256210..2256998	-	262	74312622	thiM	SSON_2152	-	hydroxyethylthiazole kinase
2006	 47.99	0	2257221..2257493	-	90	74312623	yohL	SSON_2153	-	hypothetical protein
2007	 51.52	0	2257614..2258438	+	274	74312624	yohM	SSON_2154	-	nickel/cobalt efflux protein RcnA
2008	 45.66	-1	2258477..2258995	+	172	74312625	-	SSON_2155	-	hypothetical protein
2009	 38.45	-2	2259077..2260111	-	344	74312626	yehA	SSON_2156	-	putative type-1 fimbrial protein
2010	 54.37	0	2262212..2262715	-	167	74312627	-	SSON_2157	-	IS1 ORF
2011	 39.17	-2	2263400..2264119	-	239	74312628	yehC	SSON_2159	-	putative chaperone
2012	 40.52	-2	2264154..2264696	-	180	74312629	yehD	SSON_2160	-	putative fimbrial-like protein
2013	 44.33	-1	2264939..2265220	-	93	74312630	yehE	SSON_2161	-	hypothetical protein
2014	 53.87	0	2265465..2266574	-	369	161986505	mrp	SSON_2162	-	putative ATPase
2015	 52.95	0	2266706..2268739	+	677	74312632	metG	SSON_2163	-	methionyl-tRNA synthetase
2016	 45.74	-1	2268880..2269701	+	273	74312633	molR_1	SSON_2164	-	molybdate metabolism regulator, first fragment
2017	 54.37	0	2269636..2270139	-	167	74312634	-	SSON_2165	-	IS1 ORF
2018	 54.42	0	2272434..2274434	+	666	74312635	yehQ	SSON_2168	-	hypothetical protein
2019	 42.19	-2	2274544..2275017	+	157	74312636	yehR	SSON_2169	-	hypothetical protein
2020	 49.26	0	2275058..2275528	-	156	74312637	yehS	SSON_2170	-	hypothetical protein
2021	 49.66	0	2275575..2276309	-	244	74312638	yehT	SSON_2171	-	putative two-component response-regulatory protein YehT
2022	 50.95	0	2276291..2277976	-	561	74312639	yehU	SSON_2172	-	putative 2-component sensor protein
2023	 44.18	-1	2278491..2278739	+	82	74312640	-	SSON_2173	-	putative DNA damage-inducible protein
2024	 54.37	0	2278750..2279253	-	167	74312641	-	SSON_2174	-	IS1 ORF
2025	 47.66	0	2279897..2280259	-	120	74312642	-	SSON_2175	-	hypothetical protein
2026	 50.33	0	2280259..2281023	-	254	74312643	-	SSON_2176	-	putative transposase
2027	 49.26	0	2281150..2281419	-	89	74312644	-	SSON_2177	-	hypothetical protein
51.65	MEAN

4.20	STD DEV
