IslandPath Analysis: Shigella sonnei Ss046

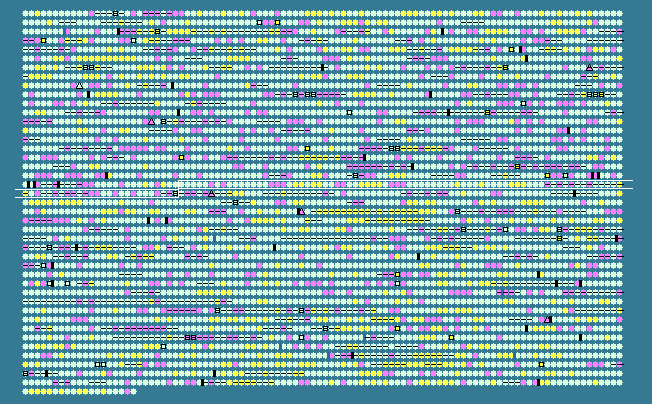

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 51.65 STD DEV: 4.20
Shigella sonnei Ss046, complete genome - 1..4825265
4219 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1927	 51.30	0	2167744..2168856	+	370	74312544	pduQ	SSON_2072	-	putative propanediol utilization protein: propanol dehydrogenase
1928	 54.26	0	2168853..2169755	+	300	74312545	pduS	SSON_2073	-	putative propanediol utilization protein: ferredoxin
1929	 53.51	0	2170201..2170755	+	184	74312546	pduT	SSON_2074	-	putative propanediol utilization protein: polyhedral bodies
1930	 49.29	0	2170755..2171105	+	116	74312547	pduU	SSON_2075	-	putative propanediol utilization protein: polyhedral bodies
1931	 50.00	0	2171110..2171553	+	147	74312548	pduV	SSON_2076	-	putative propanediol utilization protein
1932	 46.72	-1	2171654..2172049	-	131	74312549	yeeX	SSON_2077	-	hypothetical protein
1933	 50.52	0	2172155..2173213	-	352	74312550	yeeA	SSON_2078	-	hypothetical protein
1934	 46.84	-1	2173411..2173884	-	157	74312551	sbmC	SSON_2079	-	DNA gyrase inhibitor
1935	 49.45	0	2174003..2175175	-	390	74312552	dacD	SSON_2080	-	D-alanyl-D-alanine carboxypeptidase
1936	 50.28	0	2175378..2176805	+	475	74312553	sbcB	SSON_2081	-	exonuclease I
1937	 51.32	0	2176848..2177075	-	75	74312554	yeeD	SSON_2082	-	hypothetical protein
1938	 50.24	0	2177089..2178147	-	352	74312555	yeeE	SSON_2083	-	putative transport system permease protein
1939	 52.31	0	2178326..2179690	-	454	74312556	yeeF	SSON_2084	-	putative amino acid/amine transport protein
1940	 51.21	0	2179951..2180901	-	316	74312557	yeeY	SSON_2085	-	putative transcriptional regulator LYSR-type
1941	 52.00	0	2180926..2181750	-	274
