IslandPath Analysis: Shigella sonnei Ss046

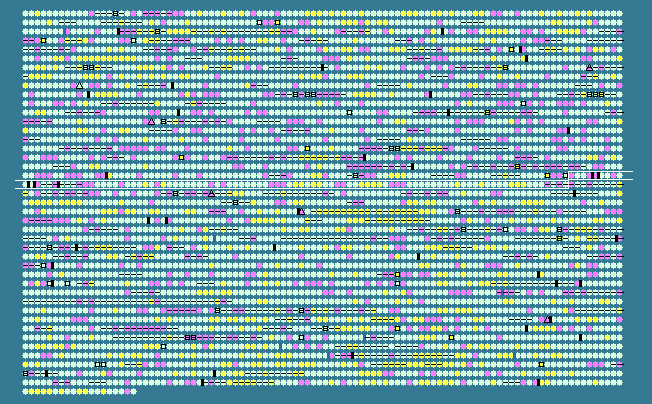

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 51.65 STD DEV: 4.20
Shigella sonnei Ss046, complete genome - 1..4825265
4219 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1892	 42.03	-2	2123020..2123433	+	137	74312509	yedX	SSON_2029	-	hypothetical protein
1893	 52.34	0	2123542..2124546	+	334	74312510	-	SSON_2030	-	putative sulfite oxidase subunit YedY
1894	 48.27	0	2124547..2125182	+	211	74312511	-	SSON_2031	-	putative sulfite oxidase subunit YedZ
1895	 37.94	-2	2125439..2126089	+	216	74312512	-	SSON_2032	-	hypothetical protein
1896	 45.88	-1	2127676..2128512	+	278	74312513	-	SSON_2035	-	hypothetical protein
1897	 54.52	0	2134963..2135802	-	279	74312514	-	SSON_2038	-	IS911 ORF2
1898	 52.91	0	2137314..2138345	+	343	74312515	-	SSON_2039	-	IS630 orf
1899	 40.98	-2	2138736..2139062	-	108	74312516	-	SSON_2040	-	hypothetical protein
1900	 54.37	0	2141363..2141866	+	167	74312517	-	SSON_2041	-	IS1 ORF
1901	 48.26	0	2142001..2142951	+	316	74312518	cbl	SSON_2042	-	transcriptional regulator Cbl
1902	 48.45	0	2143072..2144712	+	546	74312519	yeeO	SSON_2044	-	hypothetical protein
1903	 39.89	-2	2145341..2146057	-	238	74312520	-	SSON_2046	-	hypothetical protein
1904	 49.76	0	2146388..2147842	-	484	74312521	amn	SSON_2047	-	AMP nucleosidase
1905	 54.37	0	2148274..2148777	-	167	74312522	-	SSON_2048	-	IS1 ORF
1906	 48.08	0	2149000..2149935	-	311	74312523	nac	SSON_2049	-	nitrogen assimilation transcriptional regulator
1907	 52.41	0	2151391..2152470	-	359
