IslandPath Analysis: Shigella sonnei Ss046

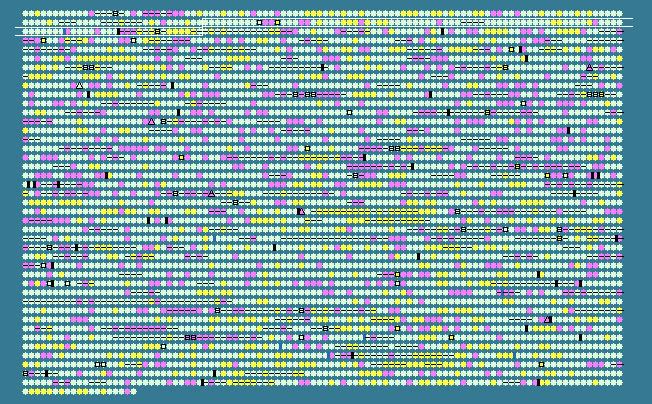

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 51.65   STD DEV: 4.20
Shigella sonnei Ss046, complete genome - 1..4825265
4219 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
131	 49.19	0	151755..152681	+	308	74310745	yadG	SSON_0135	-	putative ATP-binding component of a transport system
132	 50.71	0	152678..153448	+	256	74310746	yadH	SSON_0136	-	hypothetical protein
133	 49.66	0	153553..153993	+	146	74310747	yadI	SSON_0137	-	putative PTS system enzyme IIB component
134	 49.76	0	154057..155286	+	409	74310748	yadE	SSON_0138	-	hypothetical protein
135	 52.49	0	155290..155670	-	126	74310749	panD	SSON_0139	-	aspartate alpha-decarboxylase
136	 49.16	0	155887..156840	+	317	74310750	yadD	SSON_0140	-	hypothetical protein
137	 53.05	0	157132..157983	-	283	74310751	panC	SSON_0141	-	pantoate--beta-alanine ligase
138	 54.72	0	157995..158789	-	264	74310752	panB	SSON_0142	-	3-methyl-2-oxobutanoate hydroxymethyltransferase
139	 54.37	0	159623..160126	+	167	74310753	-	SSON_0143	-	IS1 ORF
140	 55.08	0	160653..161558	+	301	161986595	-	SSON_0144	-	insertion element IS2 transposase InsD
141	 42.04	-2	162339..162935	-	198	74310755	yadK	SSON_0145	-	putative fimbrial protein
142	 43.95	-1	162962..163564	-	200	74310756	yadL	SSON_0146	-	putative fimbrial protein
143	 55.19	0	164059..164964	-	301	161986594	-	SSON_0147	-	insertion element IS2 transposase InsD
144	 53.01	0	164922..165287	-	121	161986593	-	SSON_0148	-	insertion sequence 2 OrfA protein
145	 52.81	0	165337..166368	-	343	74310759	-	SSON_0149	-	IS630 orf
146	 54.37	0	167677..168180	-	167
