IslandPath Analysis: Shewanella sediminis HAW-EB3

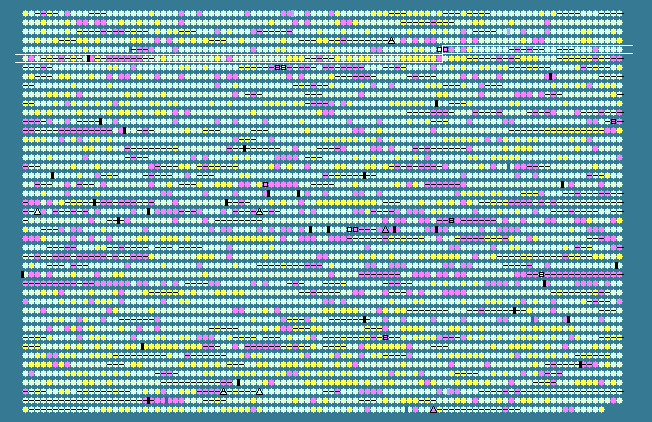

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 46.69 STD DEV: 3.68
Shewanella sediminis HAW-EB3, complete genome - 1..5517674
4497 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
471	 41.59	-1	583416..583730	-	104	157373612	-	Ssed_0471	-	transposase IS3/IS911
472	 37.90	-2	584339..585871	+	510	157373613	-	Ssed_0472	-	hypothetical protein
473	 49.74	0	586226..586804	-	192	157373614	-	Ssed_0473	-	hypothetical protein
474	 40.35	-1	586959..587186	-	75	157373615	-	Ssed_0474	-	hypothetical protein
475	 50.59	+1	587565..589082	+	505	157373616	-	Ssed_0475	-	Na+/H+ antiporter NhaC
476	 47.65	0	589131..591197	-	688	157373617	-	Ssed_0476	-	peptidase S9 prolyl oligopeptidase
477	 43.22	0	591383..591898	+	171	157373618	-	Ssed_0477	-	hypothetical protein
478	 47.42	0	591917..592129	+	70	157373619	-	Ssed_0478	-	XRE family transcriptional regulator
479	 46.87	0	592264..592854	-	196	157373620	-	Ssed_0479	-	thioredoxin, putative
480	 44.76	0	592835..593263	-	142	157373621	-	Ssed_0480	-	cytochrome c biogenesis protein
481	 49.01	0	593260..595230	-	656	157373622	-	Ssed_0481	-	cytochrome c-type biogenesis protein CcmF
482	 45.80	0	595777..597813	+	678	157373623	-	Ssed_0482	-	cytochrome c, putative
483	 37.94	-2	597859..598314	+	151	157373624	-	Ssed_0483	-	rhodanese domain-containing protein
484	 44.74	0	598369..599157	+	262	157373625	-	Ssed_0484	-	peptidylprolyl isomerase, FKBP-type
485	 35.17	-2	599191..599898	+	235	157373626	-	Ssed_0485	-	cytochrome c biogenesis factor-like protein
486	 45.82	0	599949..600653	+	234	157373627	-	Ssed_0486	-	4Fe-4S ferredoxin iron-sulfur binding domain-containing protein
487	 47.36	0	600656..601603	+	315	157373628	-	Ssed_0487	-	polysulphide reductase, NrfD
488	 49.50	0	601920..602420	+	166	157373629	-	Ssed_0488	-	NosL family protein
489	 47.12	0	602567..603799	+	410	157373630	-	Ssed_0489	-	periplasmic copper-binding
490	 47.74	0	603793..604701	+	302	157373631	-	Ssed_0490	-	ABC transporter-related protein
491	 45.95	0	604714..605553	+	279	157373632	-	Ssed_0491	-	copper ABC transporter, permease protein
492	 46.34	0	605844..607127	+	427	157373633	-	Ssed_0492	-	transcriptional regulator, CadC
493	 46.87	0	607731..609761	+	676	157373634	-	Ssed_0493	-	cytochrome c, putative
494	 45.45	0	609839..610267	+	142	157373635	-	Ssed_0494	-	hypothetical protein
495	 48.74	0	610330..611121	+	263	157373636	-	Ssed_0495	-	peptidylprolyl isomerase, FKBP-type
496	 40.66	-1	611182..611904	+	240	157373637	-	Ssed_0496	-	TPR repeat-containing protein
497	 47.82	0	611968..612678	+	236	157373638	-	Ssed_0497	-	4Fe-4S ferredoxin iron-sulfur binding domain-containing protein
498	 47.47	0	612681..613628	+	315	157373639	-	Ssed_0498	-	polysulphide reductase, NrfD
499	 48.67	0	613800..614288	+	162	157373640	-	Ssed_0499	-	NosL protein
500	 48.68	0	614295..615584	+	429	157373641	-	Ssed_0500	-	periplasmic copper-binding
501	 44.19	0	615611..616513	+	300	157373642	-	Ssed_0501	-	ABC transporter-related protein
502	 41.88	-1	616515..617345	+	276	157373643	-	Ssed_0502	-	copper ABC transporter, permease protein
503	 44.31	0	617625..618908	+	427	157373644	-	Ssed_0503	-	transcriptional regulator, CadC
504	 48.10	0	619041..619751	-	236	157373645	-	Ssed_0504	-	FMN reductase
505	 51.69	+1	619832..621313	-	493	157373646	-	Ssed_0505	-	UbiD family decarboxylase
506	 48.78	0	621781..622272	+	163	157373647	-	Ssed_0506	-	hypothetical protein
507	 37.60	-2	622689..622946	+	85	157373648	-	Ssed_0507	-	toxin secretion, membrane fusion protein
508	 46.18	0	623989..624969	+	326	157373649	-	Ssed_0508	-	putative CheW protein
509	 50.85	+1	625017..625547	-	176	157373650	-	Ssed_0509	-	GCN5-related N-acetyltransferase
510	 48.10	0	626137..626637	-	166	157373651	-	Ssed_0510	-	putative lipoprotein
511	 49.96	0	627002..628204	+	400	157373652	-	Ssed_0511	-	putative tyrosine-specific transport protein
512	 40.32	-1	629048..629992	+	314	157373653	-	Ssed_0512	-	transcriptional regulator-like protein
513	 50.49	+1	630551..631477	+	308	157373654	-	Ssed_0513	-	cytochrome c, putative
514	 47.25	0	631488..632033	+	181	157373655	-	Ssed_0514	-	hypothetical protein
515	 37.80	-2	633107..633397	-	96	157373656	-	Ssed_0515	-	hypothetical protein
516	 39.92	-1	633420..634361	-	313	157373657	-	Ssed_0516	-	formate-dependent nitrite reductase, nrfD protein
517	 42.61	-1	634358..635047	-	229	157373658	-	Ssed_0517	-	4Fe-4S ferredoxin iron-sulfur binding domain-containing protein
518	 38.64	-2	635060..635530	-	156	157373659	-	Ssed_0518	-	hypothetical protein
519	 33.54	-2	635613..636107	-	164	157373660	-	Ssed_0519	-	hypothetical protein
520	 34.58	-2	636590..637555	+	321	157373661	-	Ssed_0520	-	LysR family transcriptional regulator
521	 44.98	0	637776..638084	-	102	157373662	-	Ssed_0521	-	hypothetical protein
522	 44.44	0	638859..639029	+	56	157373663	-	Ssed_0523	-	hypothetical protein
523	 47.64	0	639199..640302	-	367	157373664	-	Ssed_0524	-	methyl-accepting chemotaxis protein
524	 52.31	+1	640603..641556	+	317	157373665	-	Ssed_0525	-	Nitrilase
525	 44.40	0	641660..642463	-	267	157373666	-	Ssed_0526	-	hypothetical protein
526	 48.01	0	642520..644379	-	619	157373667	-	Ssed_0527	-	hypothetical protein
527	 48.35	0	644770..645162	-	130	157373668	-	Ssed_0528	-	hypothetical protein
528	 48.87	0	645332..647365	-	677	157373669	-	Ssed_0529	-	methyl-accepting chemotaxis protein-like protein
529	 49.47	0	647610..648935	-	441	157373670	-	Ssed_0530	-	ATP-dependent protease ATP-binding subunit
530	 47.81	0	649009..649533	-	174	157373671	-	Ssed_0531	-	ATP-dependent protease peptidase subunit
531	 47.80	0	649764..650330	-	188	157373672	-	Ssed_0532	-	sporulation domain-containing protein
532	 48.28	0	650433..652178	-	581	157373673	-	Ssed_0533	-	arginyl-tRNA synthetase
533	 50.52	+1	652346..654574	-	742	157373674	-	Ssed_0534	-	primosomal protein N'
534	 45.72	0	654629..655435	+	268	157373675	-	Ssed_0535	-	hypothetical protein
535	 42.72	-1	655695..655907	+	70	157373676	-	Ssed_0536	-	50S ribosomal protein L31
536	 44.02	0	656060..656920	+	286	157373677	-	Ssed_0537	-	nuclease
537	 47.04	0	657089..658336	+	415	157373678	-	Ssed_0538	-	malate dehydrogenase
538	 46.21	0	658641..660551	+	636	157373679	-	Ssed_0539	-	regulatory protein CsrD
539	 46.23	0	660903..661817	+	304	157373680	-	Ssed_0540	-	biogenesis protein MshI
540	 48.20	0	661814..662425	+	203	157373681	-	Ssed_0541	-	fimbrial assembly family protein
541	 44.70	0	662422..663072	+	216	157373682	-	Ssed_0542	-	MSHA biogenesis protein MshJ
542	 46.44	0	663059..663409	+	116	157373683	-	Ssed_0543	-	MSHA biogenesis protein MshK
543	 47.89	0	663406..665109	+	567	157373684	-	Ssed_0544	-	pilus (MSHA type) biogenesis protein MshL
544	 49.06	0	665113..666021	+	302	157373685	-	Ssed_0545	-	MSHA biogenesis protein MshM
545	 50.24	0	666018..667259	+	413	157373686	-	Ssed_0546	-	TPR repeat-containing protein
546	 50.94	+1	667256..669010	+	584	157373687	-	Ssed_0547	-	type II secretion system protein E
547	 52.58	+1	669099..670319	+	406	157373688	-	Ssed_0548	-	type II secretion system protein
548	 48.08	0	670354..670875	+	173	157373689	-	Ssed_0549	-	hypothetical protein
549	 45.51	0	670947..671603	+	218	157373690	-	Ssed_0550	-	methylation site containing protein
550	 41.38	-1	671696..672217	+	173	157373691	-	Ssed_0551	-	MSHA pilin protein MshA
551	 45.00	0	672263..672742	+	159	157373692	-	Ssed_0552	-	MSHA pilin protein MshA
552	 48.50	0	672951..673418	+	155	157373693	-	Ssed_0553	-	MSHA pilin protein MshC
553	 55.61	+2	673408..674004	+	198	157373694	-	Ssed_0554	-	methylation site containing protein
554	 50.00	0	674004..674813	+	269	157373695	-	Ssed_0555	-	methylation site containing protein
555	 55.56	+2	674803..675288	+	161	157373696	-	Ssed_0556	-	MSHA biogenesis protein MshP
556	 47.85	0	675290..678010	+	906	157373697	-	Ssed_0557	-	MSHA biogenesis protein MshQ
557	 52.29	+1	678219..679268	+	349	157373698	-	Ssed_0558	-	cell shape determining protein MreB
558	 50.84	+1	679407..680303	+	298	157373699	-	Ssed_0559	-	rod shape-determining protein MreC
559	 48.88	0	680300..680788	+	162	157373700	-	Ssed_0560	-	rod shape-determining protein MreD
560	 49.75	0	680791..681387	+	198	157373701	-	Ssed_0561	-	maf protein
561	 47.11	0	681497..682999	+	500	157373702	-	Ssed_0562	-	ribonuclease G
562	 49.44	0	682999..687258	+	1419	157373703	-	Ssed_0563	-	hypothetical protein
563	 49.76	0	687182..688027	+	281	157373704	-	Ssed_0564	-	nitrilase/cyanide hydratase and apolipoprotein N-acyltransferase
564	 50.78	+1	688086..689558	+	490	157373705	-	Ssed_0565	-	peptidase U62, modulator of DNA gyrase
565	 50.63	+1	689688..691109	+	473	157373706	-	Ssed_0566	-	outer membrane efflux protein
566	 53.40	+1	691099..692070	+	323	157373707	-	Ssed_0567	-	secretion protein HlyD family protein
567	 53.78	+1	692089..693252	+	387	157373708	-	Ssed_0568	-	ABC-2 type transporter
568	 53.61	+1	693249..694397	+	382	157373709	-	Ssed_0569	-	ABC-2 type transporter
569	 51.72	+1	694715..697270	-	851	157373710	-	Ssed_0570	-	Ig domain-containing protein
570	 38.89	-2	697353..697892	-	179	157373711	-	Ssed_0571	-	hypothetical protein
46.69	MEAN

3.68	STD DEV
