IslandPathversion 1.0

IslandPath Analysis: Shewanella sediminis HAW-EB3

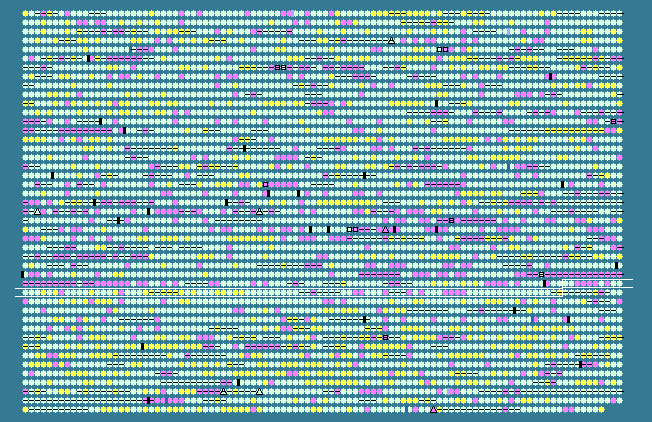

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 46.69 STD DEV: 3.68
Shewanella sediminis HAW-EB3, complete genome - 1..5517674
4497 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
3091	 46.46	0	3738062..3739135	+	357	157376232	-	Ssed_3100	-	N-acylneuraminate-9-phosphate synthase
3092	 44.93	0	3739146..3739766	+	206	157376233	-	Ssed_3101	-	sialic acid biosynthesis protein NeuD
3093	 42.97	-1	3739768..3740826	+	352	157376234	-	Ssed_3102	-	mannose-1-phosphate guanyltransferase
3094	 42.30	-1	3740823..3741803	+	326	157376235	-	Ssed_3103	-	dehydrogenase
3095	 42.17	-1	3741800..3742501	+	233	157376236	-	Ssed_3104	-	N-acylneuraminate cytidylyltransferase
3096	 41.63	-1	3742495..3743253	+	252	157376237	-	Ssed_3105	-	flagellin modification protein A
3097	 43.66	0	3743257..3743808	+	183	157376238	-	Ssed_3106	-	acetyltransferase
3098	 37.93	-2	3743957..3746482	+	841	157376239	-	Ssed_3107	-	hypothetical protein
3099	 45.21	0	3746590..3747069	+	159	157376240	-	Ssed_3108	-	hypothetical protein
3100	 48.26	0	3747287..3747862	+	191	157376241	-	Ssed_3109	-	hypothetical protein
3101	 46.32	0	3747999..3748922	-	307	157376242	-	Ssed_3110	-	hypothetical protein
3102	 46.13	0	3749078..3749710	-	210	157376243	-	Ssed_3111	-	TetR family transcriptional regulator
3103	 48.09	0	3749856..3750980	+	374	157376244	-	Ssed_3112	-	RND family efflux transporter MFP subunit
3104	 50.99	+1	3750984..3754076	+	1030	157376245	-	Ssed_3113	-	acriflavin resistance protein
3105	 49.25	0	3754341..3756344	+	667	157376246	-	Ssed_3114	-	methyl-accepting chemotaxis sensory transducer
3106	 53.33	+1	3756811..3756960	+	49	157376247	-	Ssed_3115	-	TfoX family regulatory protein
3107	 36.75	-2	3757120..3757236	-	38	157376248	-	Ssed_3116	-	cyd operon protein YbgT
3108	 46.05	0	3757252..3758391	-	379	157376249	-	Ssed_3117	-	alkaline phosphatase
3109	 45.34	0	3758407..3759963	-	518	157376250	-	Ssed_3118	-	cytochrome bd ubiquinol oxidase, subunit I
3110	 49.54	0	3761210..3765091	-	1293	157376251	-	Ssed_3119	-	phosphoribosylformylglycinamidine synthase
3111	 47.68	0	3765424..3766866	+	480	157376252	-	Ssed_3120	-	lytic transglycosylase, catalytic
3112	 53.75	+1	3767283..3767816	-	177	157376253	-	Ssed_3121	-	cytidine/deoxycytidylate deaminase family protein
3113	 44.52	0	3767927..3768856	+	309	157376254	-	Ssed_3122	-	GGDEF domain-containing protein
3114	 48.23	0	3768930..3770507	-	525	157376255	-	Ssed_3123	-	bifunctional GMP synthase/glutamine amidotransferase protein
3115	 47.93	0	3770634..3772106	-	490	157376256	-	Ssed_3124	-	inositol-5-monophosphate dehydrogenase
3116	 51.99	+1	3772228..3773556	+	442	157376257	-	Ssed_3125	-	exodeoxyribonuclease VII large subunit
3117	 43.14	0	3773632..3773988	-	118	157376258	-	Ssed_3126	-	DsrE family protein
3118	 47.92	0	3774013..3774588	-	191	157376259	-	Ssed_3127	-	methyltransferase type 11
3119	 46.88	0	3774674..3775345	+	223	157376260	-	Ssed_3128	-	ArsR family transcriptional regulator
3120	 45.05	0	3775631..3776236	-	201	157376261	-	Ssed_3129	-	methyltransferase type 11
3121	 50.26	0	3777387..3779141	+	584	157376262	-	Ssed_3130	-	prolyl-tRNA synthetase
3122	 53.58	+1	3779253..3780482	-	409	157376263	-	Ssed_3131	-	putative phenylacetate-coenzyme A ligase
3123	 47.13	0	3780533..3781351	-	272	157376264	-	Ssed_3132	-	ABC transporter-related protein
3124	 51.68	+1	3781401..3782648	-	415	157376265	-	Ssed_3133	-	putative branched-chain amino acid ABC transporter
3125	 51.49	+1	3782879..3783952	-	357	157376266	-	Ssed_3134	-	inner-membrane translocator
3126	 50.34	0	3784040..3784933	-	297	157376267	-	Ssed_3135	-	inner-membrane translocator
3127	 51.04	+1	3784930..3786894	-	654	157376268	-	Ssed_3136	-	AMP-dependent synthetase and ligase
3128	 50.13	0	3786894..3787691	-	265	157376269	-	Ssed_3137	-	ABC transporter-related protein
3129	 50.34	0	3787888..3788928	-	346	157376270	-	Ssed_3138	-	hypothetical protein
3130	 50.17	0	3789169..3792654	+	1161	157376271	-	Ssed_3139	-	integral membrane sensor hybrid histidine kinase
3131	 46.61	0	3792615..3793277	-	220	157376272	-	Ssed_3140	-	two component LuxR family transcriptional regulator
3132	 48.40	0	3793709..3794836	+	375	157376273	-	Ssed_3141	-	patatin
3133	 54.76	+2	3794923..3795636	-	237	157376274	-	Ssed_3142	-	hypothetical protein
3134	 51.64	+1	3795647..3797596	-	649	157376275	-	Ssed_3143	-	potassium efflux system protein
3135	 46.37	0	3797781..3798662	+	293	157376276	-	Ssed_3144	-	diguanylate cyclase
3136	 50.24	0	3798643..3800127	-	494	157376277	-	Ssed_3145	-	tRNA(Ile)-lysidine synthetase
3137	 50.60	+1	3800129..3803602	-	1157	157376278	-	Ssed_3146	-	DNA polymerase III subunit alpha
3138	 46.88	0	3803736..3804377	-	213	157376279	-	Ssed_3147	-	ribonuclease H
3139	 48.38	0	3804411..3805553	-	380	157376280	-	Ssed_3148	-	lipid-A-disaccharide synthase
3140	 45.70	0	3805634..3806401	-	255	157376281	-	Ssed_3149	-	UDP-N-acetylglucosamine acyltransferase
3141	 44.59	0	3806398..3806859	-	153	157376282	-	Ssed_3150	-	beta-hydroxyacyl-(acyl-carrier-protein) dehydratase FabZ
3142	 47.56	0	3806889..3807914	-	341	157376283	-	Ssed_3151	-	UDP-3-O-(3-hydroxymyristoyl) glucosamine N-acyltransferase
3143	 46.46	0	3807934..3808428	-	164	157376284	-	Ssed_3152	-	outer membrane chaperone Skp (OmpH)
3144	 45.77	0	3808498..3810981	-	827	157376285	-	Ssed_3153	-	surface antigen (D15)
3145	 46.25	0	3811011..3812396	-	461	157376286	-	Ssed_3154	-	putative membrane-associated zinc metalloprotease
3146	 45.54	0	3812416..3813603	-	395	157376287	-	Ssed_3155	-	1-deoxy-D-xylulose 5-phosphate reductoisomerase
3147	 44.99	0	3813607..3814464	-	285	157376288	-	Ssed_3156	-	phosphatidate cytidylyltransferase
3148	 46.67	0	3814483..3815277	-	264	157376289	-	Ssed_3157	-	di-trans, poly-cis-decaprenylcistransferase
3149	 41.94	-1	3815358..3815915	-	185	157376290	-	Ssed_3158	-	ribosome recycling factor
3150	 44.17	0	3815990..3816727	-	245	157376291	-	Ssed_3159	-	uridylate kinase
3151	 45.58	0	3816817..3817665	-	282	157376292	-	Ssed_3160	-	elongation factor Ts
3152	 45.27	0	3817800..3818528	-	242	157376293	-	Ssed_3161	-	30S ribosomal protein S2
3153	 43.61	0	3818881..3819678	+	265	157376294	-	Ssed_3162	-	methionine aminopeptidase
3154	 47.60	0	3819755..3822334	+	859	157376295	-	Ssed_3163	-	PII uridylyl-transferase
3155	 47.03	0	3822527..3823351	+	274	157376296	-	Ssed_3164	-	2,3,4,5-tetrahydropyridine-2-carboxylate N-succinyltransferase
3156	 38.84	-2	3823604..3823948	+	114	157376297	-	Ssed_3165	-	hypothetical protein
3157	 39.81	-1	3824143..3824976	-	277	157376298	-	Ssed_3166	-	formyltetrahydrofolate deformylase
3158	 44.83	0	3825018..3826487	-	489	157376299	-	Ssed_3167	-	PTS system, glucose-like IIB subunint
3159	 43.23	0	3826439..3826903	-	154	157376300	-	Ssed_3168	-	flavodoxin
3160	 45.64	0	3827342..3828178	-	278	157376301	-	Ssed_3169	-	pseudouridylate synthase
3161	 39.25	-2	3828180..3828500	-	106	157376302	-	Ssed_3170	-	hypothetical protein
3162	 43.69	0	3828741..3829754	+	337	157376303	-	Ssed_3171	-	hypothetical protein
3163	 47.44	0	3829751..3830140	+	129	157376304	-	Ssed_3172	-	hypothetical protein
3164	 44.29	0	3831663..3832310	-	215	157376305	-	Ssed_3173	-	GCN5-related N-acetyltransferase
3165	 41.13	-1	3832792..3833022	+	76	157376306	-	Ssed_3174	-	hypothetical protein
3166	 45.10	0	3833030..3833386	-	118	157376307	-	Ssed_3175	-	hypothetical protein
3167	 41.14	-1	3833549..3833881	+	110	157376308	-	Ssed_3176	-	hypothetical protein
3168	 45.61	0	3833881..3834654	+	257	157376309	-	Ssed_3177	-	hypothetical protein
3169	 45.11	0	3834700..3835353	-	217	157376310	-	Ssed_3178	-	SecY interacting protein Syd
3170	 44.79	0	3835399..3836271	+	290	157376311	-	Ssed_3179	-	7-cyano-7-deazaguanine reductase
3171	 40.90	-1	3836525..3837304	-	259	157376312	-	Ssed_3180	-	hypothetical protein
3172	 42.94	-1	3837413..3838099	-	228	157376313	-	Ssed_3181	-	hypothetical protein
3173	 41.75	-1	3838297..3839199	-	300	157376314	-	Ssed_3182	-	LysR family transcriptional regulator
3174	 42.68	-1	3839296..3840204	-	302	157376315	-	Ssed_3183	-	LysR family transcriptional regulator
3175	 49.13	0	3840370..3842370	+	666	157376316	-	Ssed_3184	-	metallo-beta-lactamase superfamily protein
3176	 44.50	0	3842878..3844068	+	396	157376317	-	Ssed_3185	-	hypothetical protein
3177	 44.94	0	3844311..3845249	-	312	157376318	-	Ssed_3186	-	4'-phosphopantetheinyl transferase
3178	 44.86	0	3845495..3847420	+	641	157376319	-	Ssed_3187	-	methyl-accepting chemotaxis protein-like protein
3179	 46.49	0	3847575..3848828	+	417	157376320	-	Ssed_3188	-	HD domain-containing protein
3180	 45.69	0	3849052..3849642	+	196	157376321	-	Ssed_3189	-	sigma-24 (FecI-like)
3181	 47.72	0	3849791..3850798	+	335	157376322	-	Ssed_3190	-	permease
3182	 45.15	0	3850803..3851039	+	78	157376323	-	Ssed_3191	-	thiol-disulfide isomerase/thioredoxin
3183	 49.38	0	3851229..3851708	+	159	157376324	-	Ssed_3192	-	hypothetical protein
3184	 47.55	0	3851960..3852163	+	67	157376325	-	Ssed_3193	-	hypothetical protein
3185	 49.07	0	3852294..3853589	-	431	157376326	-	Ssed_3194	-	hypothetical protein
3186	 49.56	0	3853586..3854269	-	227	157376327	-	Ssed_3195	-	putative ABC transporter, ATP-binding protein
3187	 49.15	0	3854404..3855636	-	410	157376328	-	Ssed_3196	-	hypothetical protein
3188	 49.61	0	3855626..3856909	-	427	157376329	-	Ssed_3197	-	hypothetical protein
3189	 44.92	0	3856966..3857733	-	255	157376330	-	Ssed_3198	-	hypothetical protein
3190	 51.52	+1	3858577..3861495	+	972	157376331	-	Ssed_3199	-	hypothetical protein
46.69	MEAN

3.68	STD DEV
