IslandPath Analysis: Shewanella sediminis HAW-EB3

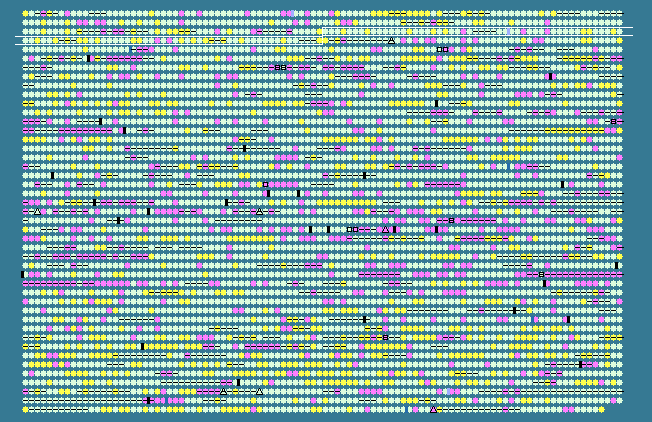

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 46.69 STD DEV: 3.68
Shewanella sediminis HAW-EB3, complete genome - 1..5517674
4497 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
251	 48.04	0	284323..285573	+	416	157373392	-	Ssed_0251	-	hypothetical protein
252	 48.78	0	285705..286073	-	122	157373393	-	Ssed_0252	-	hypothetical protein
253	 48.18	0	286268..287230	-	320	157373394	-	Ssed_0253	-	LysR family transcriptional regulator
254	 51.04	+1	287338..288540	+	400	157373395	-	Ssed_0254	-	Bcr/CflA subfamily drug resistance transporter
255	 44.89	0	288663..289553	-	296	157373396	-	Ssed_0255	-	hypothetical protein
256	 46.80	0	289774..290367	+	197	157373397	-	Ssed_0256	-	DTW domain-containing protein
257	 48.15	0	290669..292780	-	703	157373398	-	Ssed_0257	-	diguanylate cyclase/phosphodiesterase with PAS/PAC and GAF sensor(s)
258	 50.31	0	293104..293421	+	105	157373399	-	Ssed_0258	-	hypothetical protein
259	 47.48	0	293459..294094	+	211	157373400	-	Ssed_0259	-	methyltransferase type 12
260	 44.68	0	294163..294876	-	237	157373401	-	Ssed_0260	-	hypothetical protein
261	 46.55	0	295106..296437	+	443	157373402	-	Ssed_0261	-	peptidase M16 domain-containing protein
262	 47.05	0	296434..297876	+	480	157373403	-	Ssed_0262	-	peptidase M16 domain-containing protein
263	 43.39	0	298019..298585	+	188	157373404	-	Ssed_0263	-	hypothetical protein
264	 46.18	0	298542..299078	+	178	157373405	-	Ssed_0264	-	hypothetical protein
265	 51.61	+1	299126..299590	-	154	157373406	-	Ssed_0265	-	RNA methyltransferase
266	 47.86	0	299843..300778	+	311	157373407	-	Ssed_0266	-	LysR family transcriptional regulator
267	 47.49	0	300775..301671	-	298	157373408	-	Ssed_0267	-	putative pyruvate formate lyase activating enzyme
268	 47.88	0	301643..303196	-	517	157373409	-	Ssed_0268	-	hypothetical protein
269	 51.55	+1	303447..304967	-	506	157373410	-	Ssed_0269	-	aldehyde dehydrogenase (NAD(+))
270	 49.53	0	305272..307068	+	598	157373411	-	Ssed_0270	-	Fis family GAF modulated sigma54 specific transcriptional regulator
271	 51.48	+1	307242..308222	+	326	157373412	-	Ssed_0271	-	alcohol dehydrogenase
272	 48.58	0	308219..309136	-	305	157373413	-	Ssed_0272	-	LysR family transcriptional regulator
273	 47.99	0	309405..310925	+	506	157373414	-	Ssed_0273	-	flavocytochrome c
274	 41.53	-1	310954..311307	+	117	157373415	-	Ssed_0274	-	tetraheme cytochrome c
275	 45.36	0	311595..312758	+	387	157373416	-	Ssed_0275	-	porin
276	 47.11	0	312872..313735	-	287	157373417	-	Ssed_0276	-	transcriptional regulator, LysR family protein
277	 47.91	0	313869..314513	+	214	157373418	-	Ssed_0277	-	TetR family transcriptional regulator
278	 46.13	0	314510..315877	-	455	157373419	-	Ssed_0278	-	integral membrane sensor signal transduction histidine kinase
279	 45.61	0	315877..316560	-	227	157373420	-	Ssed_0279	-	two component transcriptional regulator
280	 44.38	0	316789..317295	+	168	157373421	-	Ssed_0280	-	protein of unknown function, Spy-related
281	 45.75	0	317399..318268	+	289	157373422	-	Ssed_0281	-	cation diffusion facilitator family transporter
282	 46.89	0	331803..333218	-	471	157373423	-	Ssed_0282	-	nitrogen metabolism transcriptional regulator NtrC
283	 46.11	0	333272..334312	-	346	157373424	-	Ssed_0283	-	signal transduction histidine kinase, nitrogen specific, NtrB
284	 40.22	-1	334444..334980	-	178	157373425	-	Ssed_0284	-	hypothetical protein
285	 47.20	0	335181..335858	-	225	157373426	-	Ssed_0285	-	ThiJ/PfpI domain-containing protein
286	 48.70	0	335941..337098	-	385	157373427	-	Ssed_0286	-	iron-containing alcohol dehydrogenase
287	 44.28	0	337213..337815	-	200	157373428	-	Ssed_0287	-	TetR family transcriptional regulator
288	 39.94	-1	337975..338292	-	105	157373429	-	Ssed_0288	-	hypothetical protein
289	 44.67	0	338414..339613	-	399	157373430	-	Ssed_0289	-	sodium:dicarboxylate symporter
290	 43.53	0	339691..342486	-	931	157373431	-	Ssed_0290	-	histidine kinase
291	 45.69	0	342492..343454	-	320	157373432	-	Ssed_0291	-	ABC-type nitrate/sulfonate/bicarbonate transport system protein
292	 46.60	0	343643..345052	-	469	157373433	-	Ssed_0292	-	glutamine synthetase
293	 46.71	0	345432..347255	+	607	157373434	-	Ssed_0293	-	GTP-binding protein TypA
294	 51.19	+1	347570..348784	-	404	157373435	-	Ssed_0294	-	4Fe-4S ferredoxin iron-sulfur binding domain-containing protein
295	 52.53	+1	349069..349839	-	256	157373436	-	Ssed_0295	-	hypothetical protein
296	 49.03	0	350171..351406	-	411	157373437	-	Ssed_0296	-	arabinose efflux permease-like protein
297	 47.79	0	351507..351845	-	112	157373438	-	Ssed_0297	-	flavocytochrome c
298	 49.05	0	351912..353438	-	508	157373439	-	Ssed_0298	-	putative flavoprotein subunit of a reductase
299	 50.43	+1	353807..355450	+	547	157373440	-	Ssed_0299	-	sigma-54 dependent trancsriptional regulator
300	 49.54	0	355662..356309	-	215	157373441	-	Ssed_0300	-	hypothetical protein
301	 47.37	0	356351..356578	-	75	157373442	-	Ssed_0301	-	hypothetical protein
302	 49.16	0	356728..357624	+	298	157373443	-	Ssed_0302	-	ribonuclease BN
303	 50.94	+1	357624..358577	+	317	157373444	-	Ssed_0303	-	alpha/beta hydrolase fold
304	 47.37	0	358574..359143	+	189	157373445	-	Ssed_0304	-	hypothetical protein
305	 48.40	0	359212..359649	+	145	157373446	-	Ssed_0305	-	D-tyrosyl-tRNA deacylase
306	 51.05	+1	359652..360125	+	157	157373447	-	Ssed_0306	-	thioesterase domain-containing protein
307	 48.65	0	360318..360911	+	197	157373448	-	Ssed_0307	-	azoreductase
308	 52.02	+1	361077..361397	-	106	157373449	-	Ssed_0308	-	rhodanese domain-containing protein
309	 46.85	0	361522..362268	-	248	157373450	-	Ssed_0309	-	hypothetical protein
310	 53.12	+1	362282..363529	-	415	157373451	-	Ssed_0310	-	3-oxoacyl-(acyl carrier protein) synthase II
311	 50.41	+1	363567..364292	-	241	157373452	-	Ssed_0311	-	3-ketoacyl-(acyl-carrier-protein) reductase
312	 49.28	0	364299..364787	-	162	157373453	-	Ssed_0312	-	beta-hydroxyacyl-(acyl-carrier-protein) dehydratase, FabA/FabZ
313	 50.75	+1	364784..365989	-	401	157373454	-	Ssed_0313	-	3-oxoacyl-(acyl carrier protein) synthase I
314	 48.97	0	366060..366692	-	210	157373455	-	Ssed_0314	-	hypothetical protein
315	 50.04	0	366721..367983	-	420	157373456	-	Ssed_0315	-	tryptophan halogenase
316	 48.70	0	367983..370397	-	804	157373457	-	Ssed_0316	-	hypothetical protein
317	 49.25	0	370394..371197	-	267	157373458	-	Ssed_0317	-	hypothetical protein
318	 47.50	0	371194..371673	-	159	157373459	-	Ssed_0318	-	thioesterase superfamily protein
319	 51.92	+1	371673..373232	-	519	157373460	-	Ssed_0319	-	histidine ammonia-lyase
320	 50.23	0	373233..374936	-	567	157373461	-	Ssed_0320	-	glycosyl transferase family protein
321	 46.56	0	374936..375313	-	125	157373462	-	Ssed_0321	-	thioester dehydrase family protein
322	 48.72	0	375306..376670	-	454	157373463	-	Ssed_0322	-	hypothetical protein
323	 42.62	-1	376667..377215	-	182	157373464	-	Ssed_0323	-	hypothetical protein
324	 45.78	0	377215..377463	-	82	157373465	-	Ssed_0324	-	acyl carrier protein
325	 42.75	-1	377472..377726	-	84	157373466	-	Ssed_0325	-	acyl carrier protein, putative
326	 48.61	0	377730..378521	-	263	157373467	-	Ssed_0326	-	phospholipid/glycerol acyltransferase
327	 51.74	+1	378514..379230	-	238	157373468	-	Ssed_0327	-	hypothetical protein
328	 48.74	0	379475..380344	-	289	157373469	-	Ssed_0328	-	hypothetical protein
329	 51.88	+1	380531..382606	-	691	157373470	-	Ssed_0329	-	ATP-dependent DNA helicase RecG
330	 49.73	0	382787..383719	-	310	157373471	-	Ssed_0330	-	CaCA family Na(+)/Ca(+) antiporter
331	 50.78	+1	383891..385558	-	555	157373472	-	Ssed_0331	-	AMP-dependent synthetase and ligase
332	 51.87	+1	385804..386499	-	231	157373473	-	Ssed_0332	-	tRNA guanosine-2'-O-methyltransferase
333	 47.14	0	386567..386950	-	127	157373474	-	Ssed_0333	-	putative endoribonuclease L-PSP
334	 50.62	+1	387040..389145	-	701	157373475	-	Ssed_0334	-	bifunctional (p)ppGpp synthetase II/ guanosine-3',5'-bis pyrophosphate 3'-pyrophosphohydrolase
335	 49.12	0	389159..389443	-	94	157373476	-	Ssed_0335	-	DNA-directed RNA polymerase subunit omega
336	 47.92	0	389500..390123	-	207	157373477	-	Ssed_0336	-	guanylate kinase
337	 51.50	+1	390490..391557	+	355	157373478	-	Ssed_0337	-	hypothetical protein
338	 47.78	0	391663..392631	+	322	157373479	-	Ssed_0338	-	hypothetical protein
339	 48.65	0	392628..393704	+	358	157373480	-	Ssed_0339	-	aminoglycoside phosphotransferase
340	 49.19	0	394139..395614	-	491	157373481	-	Ssed_0340	-	hypothetical protein
341	 50.00	0	395907..396092	+	61	157373482	-	Ssed_0341	-	hypothetical protein
342	 48.29	0	396516..396896	-	126	157373483	-	Ssed_0342	-	tetraheme cytochrome c
343	 49.70	0	396941..398584	-	547	157373484	-	Ssed_0343	-	phenylalanine/histidine ammonia-lyase
344	 55.77	+2	398611..400170	-	519	157373485	-	Ssed_0344	-	flavocytochrome c flavin subunit, putative
345	 48.01	0	400647..401804	-	385	157373486	-	Ssed_0345	-	hypothetical protein
346	 48.17	0	402419..403975	+	518	157373487	-	Ssed_0346	-	formate hydrogenlyase transcriptional activator, putative
347	 47.71	0	403972..404430	-	152	157373488	-	Ssed_0347	-	hypothetical protein
348	 49.70	0	404461..405120	-	219	157373489	-	Ssed_0348	-	cytoplasmic chaperone TorD family protein
349	 50.16	0	405205..405840	-	211	157373490	-	Ssed_0349	-	4Fe-4S ferredoxin iron-sulfur binding domain-containing protein
350	 51.81	+1	405853..408282	-	809	157373491	-	Ssed_0350	-	anaerobic dimethyl sulfoxide reductase, A subunit, DmsA/YnfE family protein
46.69	MEAN

3.68	STD DEV
