IslandPathversion 1.0

IslandPath Analysis: Shewanella sediminis HAW-EB3

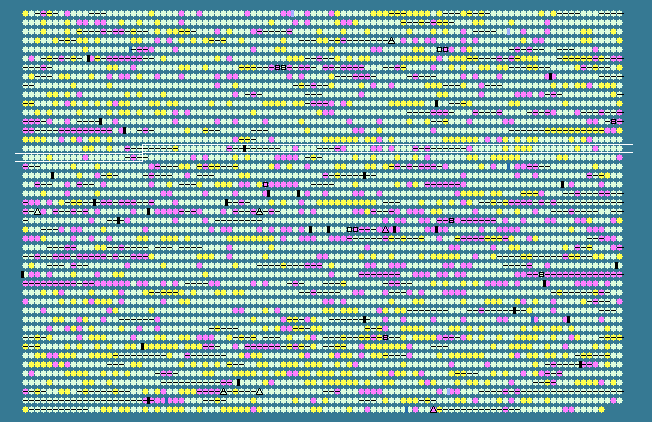

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 46.69 STD DEV: 3.68
Shewanella sediminis HAW-EB3, complete genome - 1..5517674
4497 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1521	 47.25	0	1811126..1813237	-	703	157374662	-	Ssed_1523	-	outer membrane protein precursor MtrB
1522	 49.20	0	1813253..1814254	-	333	157374663	-	Ssed_1524	-	cytochrome c family protein
1523	 48.06	0	1814334..1816316	-	660	157374664	-	Ssed_1525	-	decaheme cytochrome c
1524	 47.50	0	1816751..1818967	-	738	157374665	-	Ssed_1526	-	decaheme cytochrome c
1525	 49.61	0	1819448..1821616	-	722	157374666	-	Ssed_1527	-	decaheme cytochrome c
1526	 50.49	+1	1821682..1823622	-	646	157374667	-	Ssed_1528	-	decaheme cytochrome c MtrF
1527	 47.71	0	1823757..1825892	-	711	157374668	-	Ssed_1529	-	outer membrane protein, putative
1528	 48.14	0	1825908..1826873	-	321	157374669	-	Ssed_1530	-	cytochrome c family protein
1529	 44.71	0	1827301..1827555	+	84	157374670	-	Ssed_1531	-	FeoA family protein
1530	 47.89	0	1827548..1829842	+	764	157374671	-	Ssed_1532	-	ferrous iron transport protein B
1531	 43.75	0	1830005..1831675	+	556	157374672	-	Ssed_1533	-	glutaminyl-tRNA synthetase
1532	 43.38	0	1831844..1832440	-	198	157374673	-	Ssed_1534	-	hypothetical protein
1533	 43.37	0	1832806..1833582	+	258	157374674	-	Ssed_1535	-	tRNA--hydroxylase
1534	 44.31	0	1833661..1834389	-	242	157374675	-	Ssed_1536	-	UDP-2,3-diacylglucosamine hydrolase
1535	 42.38	-1	1834399..1834962	-	187	157374676	-	Ssed_1537	-	peptidylprolyl isomerase
1536	 46.23	0	1835163..1836542	+	459	157374677	-	Ssed_1538	-	cysteinyl-tRNA synthetase
1537	 49.59	0	1836651..1837505	-	284	157374678	-	Ssed_1539	-	methylenetetrahydrofolate dehydrogenase (NADP(+))
1538	 43.68	0	1838635..1839939	+	434	157374679	-	Ssed_1540	-	trigger factor
1539	 45.10	0	1840030..1840641	+	203	157374680	-	Ssed_1541	-	ATP-dependent Clp protease proteolytic subunit
1540	 45.07	0	1840725..1842002	+	425	157374681	-	Ssed_1542	-	ATP-dependent protease ATP-binding subunit
1541	 46.76	0	1842153..1844498	+	781	157374682	-	Ssed_1543	-	endopeptidase La
1542	 44.32	0	1844772..1845044	+	90	157374683	-	Ssed_1544	-	histone family protein DNA-binding protein
1543	 45.50	0	1845253..1847118	+	621	157374684	-	Ssed_1545	-	PpiC-type peptidyl-prolyl cis-trans isomerase
1544	 43.33	0	1847387..1847596	-	69	157374685	-	Ssed_1546	-	TOBE domain-containing protein
1545	 46.38	0	1847748..1848950	-	400	157374686	-	Ssed_1547	-	trans-2-enoyl-CoA reductase
1546	 43.00	-1	1849076..1849861	-	261	157374687	-	Ssed_1548	-	ABC transporter related
1547	 46.84	0	1849836..1850849	-	337	157374688	-	Ssed_1549	-	oligopeptide/dipeptide ABC transporter, ATPase subunit
1548	 47.36	0	1850867..1851757	-	296	157374689	-	Ssed_1550	-	binding-protein-dependent transport systems inner membrane component
1549	 46.32	0	1851744..1852775	-	343	157374690	-	Ssed_1551	-	binding-protein-dependent transport systems inner membrane component
1550	 44.32	0	1852775..1854430	-	551	157374691	-	Ssed_1552	-	extracellular solute-binding protein
1551	 45.79	0	1854505..1855572	-	355	157374692	-	Ssed_1553	-	sigma-54 dependent trancsriptional regulator
1552	 43.57	0	1855750..1856433	+	227	157374693	-	Ssed_1554	-	phage shock protein A, PspA
1553	 41.88	-1	1856454..1856687	+	77	157374694	-	Ssed_1555	-	phage shock protein B
1554	 38.38	-2	1856680..1857075	+	131	157374695	-	Ssed_1556	-	phage shock protein C, PspC
1555	 46.94	0	1857125..1858579	+	484	157374696	-	Ssed_1557	-	protein of unknown function DUF463, YcjX family protein
1556	 45.80	0	1858670..1859776	+	368	157374697	-	Ssed_1558	-	hypothetical protein
1557	 49.02	0	1859954..1861132	+	392	157374698	-	Ssed_1559	-	methionine gamma-lyase
1558	 44.99	0	1861251..1862648	-	465	157374699	-	Ssed_1560	-	anion transporter
1559	 42.77	-1	1863047..1863364	+	105	157374700	-	Ssed_1561	-	helix-hairpin-helix repeat-containing competence protein ComEA
1560	 41.11	-1	1863728..1863997	-	89	157374701	-	Ssed_1562	-	hypothetical protein
1561	 46.32	0	1864388..1865080	-	230	157374702	-	Ssed_1563	-	hypothetical protein
1562	 40.96	-1	1865131..1865799	-	222	157374703	-	Ssed_1564	-	primosomal replication protein N'', putative
1563	 45.99	0	1865796..1866569	-	257	157374704	-	Ssed_1565	-	hypothetical protein
1564	 45.65	0	1866578..1868656	-	692	157374705	-	Ssed_1566	-	ATP-dependent DNA helicase DinG
1565	 44.04	0	1868850..1871231	+	793	157374706	-	Ssed_1567	-	DNA polymerase II
1566	 42.74	-1	1871461..1872672	+	403	157374707	-	Ssed_1568	-	porin
1567	 45.44	0	1873498..1876107	+	869	157374708	-	Ssed_1569	-	TonB-dependent receptor
1568	 40.75	-1	1876204..1877160	+	318	157374709	-	Ssed_1570	-	methyltransferase type 11
1569	 43.30	0	1877755..1878537	+	260	157374710	-	Ssed_1571	-	hypothetical protein
1570	 46.02	0	1878537..1879892	+	451	157374711	-	Ssed_1572	-	MotA/TolQ/ExbB proton channel
1571	 48.00	0	1879892..1880416	+	174	157374712	-	Ssed_1573	-	MotA/TolQ/ExbB proton channel
1572	 45.19	0	1880430..1880834	+	134	157374713	-	Ssed_1574	-	biopolymer transport protein ExbD/TolR
1573	 45.89	0	1880836..1881456	+	206	157374714	-	Ssed_1575	-	TonB family protein
1574	 43.41	0	1881459..1882718	+	419	157374715	-	Ssed_1576	-	tetratricopeptide domain-containing protein
1575	 39.41	-1	1882783..1883292	-	169	157374716	-	Ssed_1577	-	diguanylate cyclase
1576	 44.52	0	1883416..1885266	+	616	157374717	-	Ssed_1578	-	hypothetical protein
1577	 46.95	0	1885416..1885694	+	92	157374718	-	Ssed_1579	-	PpiC-type peptidyl-prolyl cis-trans isomerase
1578	 43.58	0	1885720..1886256	+	178	157374719	-	Ssed_1580	-	GCN5-related N-acetyltransferase
1579	 45.30	0	1886418..1886651	+	77	157374720	-	Ssed_1581	-	RNA-binding S4 domain-containing protein
1580	 49.35	0	1886669..1887055	+	128	157374721	-	Ssed_1582	-	hypothetical protein
1581	 50.58	+1	1887329..1889299	+	656	157374722	-	Ssed_1583	-	hypothetical protein
1582	 48.42	0	1889375..1890262	-	295	157374723	-	Ssed_1584	-	LysR family transcriptional regulator
1583	 53.72	+1	1890409..1891188	+	259	157374724	-	Ssed_1585	-	permease
1584	 50.48	+1	1892094..1893353	-	419	157374725	-	Ssed_1586	-	valine--pyruvate transaminase
1585	 53.54	+1	1893672..1894928	-	418	157374726	-	Ssed_1587	-	hypothetical protein
1586	 49.39	0	1895262..1896407	+	381	157374727	-	Ssed_1588	-	nuclease SbcCD, D subunit
1587	 49.59	0	1896404..1899460	+	1018	157374728	-	Ssed_1589	-	exonuclease SbcC, putative
1588	 48.94	0	1899859..1901133	+	424	157374729	-	Ssed_1590	-	peptidase M23B
1589	 45.17	0	1901458..1902150	+	230	157374730	-	Ssed_1591	-	amino acid ABC transporter periplasmic protein
1590	 43.85	0	1902147..1902650	-	167	157374731	-	Ssed_1592	-	hypothetical protein
1591	 44.30	0	1902998..1903444	-	148	157374732	-	Ssed_1593	-	hypothetical protein
1592	 43.92	0	1903572..1904969	-	465	157374733	-	Ssed_1594	-	DEAD/DEAH box helicase domain-containing protein
1593	 51.77	+1	1905177..1906109	+	310	157374734	-	Ssed_1595	-	patatin
1594	 48.35	0	1906188..1907186	-	332	157374735	-	Ssed_1596	-	alcohol dehydrogenase
1595	 45.13	0	1907426..1907908	+	160	157374736	-	Ssed_1597	-	MarR family transcriptional regulator
1596	 37.82	-2	1908466..1908978	+	170	157374737	-	Ssed_1598	-	hypothetical protein
1597	 48.27	0	1909199..1909921	+	240	157374738	-	Ssed_1599	-	hypothetical protein
1598	 46.32	0	1910178..1912295	+	705	157374739	-	Ssed_1600	-	anaerobic ribonucleoside triphosphate reductase
1599	 47.53	0	1912492..1912956	+	154	157374740	-	Ssed_1601	-	anaerobic ribonucleotide reductase-activating protein
1600	 47.06	0	1913078..1913434	+	118	157374741	-	Ssed_1602	-	hypothetical protein
1601	 45.31	0	1913730..1914347	+	205	157374742	-	Ssed_1603	-	GTP cyclohydrolase II
1602	 47.99	0	1914419..1915237	+	272	157374743	-	Ssed_1604	-	hypothetical protein
1603	 47.07	0	1915261..1916148	-	295	157374744	-	Ssed_1605	-	LysR family transcriptional regulator
1604	 49.90	0	1916292..1917269	+	325	157374745	-	Ssed_1606	-	putative adh_zinc, zinc-binding dehydrogenase
1605	 51.53	+1	1917303..1918022	+	239	157374746	-	Ssed_1607	-	short-chain dehydrogenase/reductase SDR
1606	 49.64	0	1918105..1919637	-	510	157374747	-	Ssed_1608	-	XRE family transcriptional regulator
1607	 43.74	0	1919845..1920363	+	172	157374748	-	Ssed_1609	-	malate synthase
1608	 43.42	0	1920475..1920831	-	118	157374749	-	Ssed_1610	-	hypothetical protein
1609	 48.98	0	1920959..1923367	-	802	157374750	-	Ssed_1611	-	peptidase S8 and S53, subtilisin, kexin, sedolisin
1610	 46.37	0	1923994..1924392	-	132	157374751	-	Ssed_1612	-	rhodanese domain-containing protein
1611	 39.73	-1	1924502..1924720	-	72	157374752	-	Ssed_1613	-	hypothetical protein
1612	 48.33	0	1924798..1928097	-	1099	157374753	-	Ssed_1614	-	acriflavin resistance protein
1613	 48.85	0	1928108..1929151	-	347	157374754	-	Ssed_1615	-	RND family efflux transporter MFP subunit
1614	 44.63	0	1929311..1930027	-	238	157374755	-	Ssed_1616	-	hypothetical protein
1615	 46.61	0	1930111..1930494	-	127	157374756	-	Ssed_1617	-	hypothetical protein
1616	 44.37	0	1930627..1931949	-	440	157374757	-	Ssed_1618	-	membrane protein involved in aromatic hydrocarbon degradation
1617	 47.52	0	1932317..1933768	-	483	157374758	-	Ssed_1619	-	sodium/proline symporter
1618	 46.24	0	1933919..1934623	-	234	157374759	-	Ssed_1620	-	hypothetical protein
1619	 42.91	-1	1934616..1935179	-	187	157374760	-	Ssed_1621	-	RNA polymerase sigma factor
1620	 47.77	0	1935287..1936921	-	544	157374761	-	Ssed_1622	-	hypothetical protein
46.69	MEAN

3.68	STD DEV



Last Updated: Dec 04, 2008

Funding for this work was provided by the Peter Wall Institute for Advanced Studies. This service is hosted by the Brinkman Laboratory of the Department of Molecular Biology and Biochemistry at Simon Fraser University.
