IslandPath Analysis: Shewanella putrefaciens CN-32

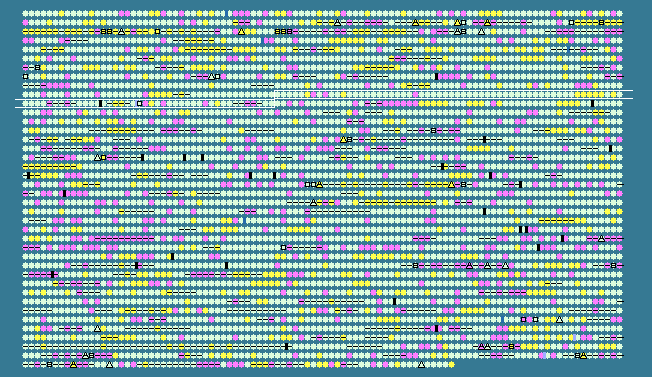

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 44.78 STD DEV: 3.68
Shewanella putrefaciens CN-32, complete genome - 1..4659220
3972 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
943	 44.91	0	1059013..1061016	+	667	146292054	-	Sputcn32_0950	-	methyl-accepting chemotaxis sensory transducer
944	 46.23	0	1061087..1062226	+	379	146292055	-	Sputcn32_0951	-	DNA polymerase IV
945	 46.67	0	1062269..1063168	-	299	146292056	-	Sputcn32_0952	-	LysR family transcriptional regulator
946	 48.02	0	1063261..1064193	+	310	146292057	-	Sputcn32_0953	-	hypothetical protein
947	 47.49	0	1064349..1065824	-	491	146292058	-	Sputcn32_0954	-	aminoacyl-histidine dipeptidase
948	 50.55	+1	1066029..1067567	+	512	146292059	-	Sputcn32_0955	-	peptidase M17, leucyl aminopeptidase domain-containing protein
949	 39.55	-1	1067851..1068027	+	58	146292060	-	Sputcn32_0956	-	hypothetical protein
950	 44.68	0	1068434..1069411	+	325	146292061	-	Sputcn32_0957	-	hypothetical protein
951	 40.86	-1	1069768..1070139	+	123	146292062	-	Sputcn32_0958	-	hypothetical protein
952	 42.61	0	1070643..1070987	-	114	146292063	-	Sputcn32_0959	-	hypothetical protein
953	 46.18	0	1071101..1071925	-	274	146292064	-	Sputcn32_0960	-	hemin importer ATP-binding subunit
954	 50.58	+1	1071938..1072969	-	343	146292065	-	Sputcn32_0961	-	transport system permease protein
955	 44.13	0	1072981..1074027	-	348	146292066	-	Sputcn32_0962	-	periplasmic binding protein
956	 46.35	0	1074113..1074550	-	145	146292067	-	Sputcn32_0963	-	biopolymer transport protein ExbD/TolR
957	 45.44	0	1074547..1075281	-	244	146292068	-	Sputcn32_0964	-	MotA/TolQ/ExbB proton channel
958	 43.90	0	1075344..1076195	-	283	146292069	-	Sputcn32_0965	-	TonB family protein
959	 45.53	0	1076428..1078518	+	696	146292070	-	Sputcn32_0966	-	TonB-dependent heme/hemoglobin receptor family protein
960	 47.29	0	1078545..1079117	+	190	146292071	-	Sputcn32_0967	-	hypothetical protein
961	 44.62	0	1079153..1079710	+	185	146292072	-	Sputcn32_0968	-	pyridoxamine 5'-phosphate oxidase-related, FMN-binding
962	 48.21	0	1079902..1081743	+	613	146292073	-	Sputcn32_0969	-	lipid ABC transporter ATPase/inner membrane protein
963	 44.51	0	1081844..1083445	-	533	146292074	-	Sputcn32_0970	-	AMP-dependent synthetase and ligase
964	 43.78	0	1083852..1085315	-	487	146292075	-	Sputcn32_0971	-	4Fe-4S ferredoxin iron-sulfur binding domain-containing protein
965	 44.51	0	1085486..1086952	-	488	146292076	-	Sputcn32_0972	-	Fis family transcriptional regulator
966	 40.83	-1	1087167..1087766	-	199	146292077	-	Sputcn32_0973	-	thiol:disulfide interchange protein, putative
967	 43.90	0	1087949..1088563	+	204	146292078	-	Sputcn32_0974	-	lysine exporter protein LysE/YggA
968	 42.90	0	1088629..1088952	-	107	146292079	-	Sputcn32_0975	-	hypothetical protein
969	 44.75	0	1089026..1089568	-	180	146292080	-	Sputcn32_0976	-	pilin, putative
970	 43.39	0	1089752..1090417	+	221	146292081	-	Sputcn32_0977	-	uracil-DNA glycosylase
971	 45.68	0	1090480..1091475	-	331	146292082	-	Sputcn32_0978	-	trans-hexaprenyltranstransferase
972	 44.87	0	1091727..1092038	+	103	146292083	rplU	Sputcn32_0979	-	50S ribosomal protein L21
973	 43.14	0	1092053..1092307	+	84	146292084	rpmA	Sputcn32_0980	-	50S ribosomal protein L27
974	 45.67	0	1092523..1093689	+	388	146292085	obgE	Sputcn32_0981	-	GTPase ObgE
975	 45.28	0	1093717..1094478	+	253	146292086	-	Sputcn32_0982	-	hypothetical protein
976	 45.15	0	1094475..1094948	+	157	146292087	-	Sputcn32_0983	-	hypothetical protein
977	 43.89	0	1094978..1095460	+	160	146292088	-	Sputcn32_0984	-	dihydrofolate reductase
978	 44.36	0	1095676..1096092	+	138	146292089	-	Sputcn32_0985	-	hypothetical protein
979	 41.49	0	1096277..1098298	-	673	146292090	-	Sputcn32_0986	-	methyl-accepting chemotaxis sensory transducer
980	 42.42	0	1098394..1099218	-	274	146292091	apaH	Sputcn32_0987	-	diadenosine tetraphosphatase
981	 45.14	0	1099240..1099620	-	126	146292092	apaG	Sputcn32_0988	-	ApaG
982	 46.22	0	1099672..1100478	-	268	146292093	ksgA	Sputcn32_0989	-	dimethyladenosine transferase
983	 47.82	0	1100494..1101480	-	328	146292094	-	Sputcn32_0990	-	4-hydroxythreonine-4-phosphate dehydrogenase
984	 44.44	0	1101487..1102791	-	434	146292095	-	Sputcn32_0991	-	PpiC-type peptidyl-prolyl cis-trans isomerase
985	 42.73	0	1103035..1105332	-	765	146292096	-	Sputcn32_0992	-	organic solvent tolerance protein
986	 42.78	0	1105449..1106528	+	359	146292097	-	Sputcn32_0993	-	aminoglycoside phosphotransferase
987	 46.90	0	1106529..1107206	+	225	146292098	-	Sputcn32_0994	-	nucleotidyl transferase
988	 46.77	0	1107273..1108061	+	262	146292099	djlA	Sputcn32_0995	-	DNA-J like membrane chaperone protein
989	 43.66	0	1108103..1108741	+	212	146292100	-	Sputcn32_0996	-	hypothetical protein
990	 47.48	0	1108766..1109719	+	317	146292101	-	Sputcn32_0997	-	D-isomer specific 2-hydroxyacid dehydrogenase, NAD-binding
991	 47.27	0	1109789..1112062	-	757	146292102	-	Sputcn32_0998	-	TPR repeat-containing protein
992	 46.49	0	1112052..1113533	-	493	146292103	-	Sputcn32_0999	-	hypothetical protein
993	 48.99	+1	1113688..1115412	-	574	146292104	-	Sputcn32_1000	-	pseudouridine synthase
994	 51.28	+1	1115663..1116838	-	391	146292105	purT	Sputcn32_1001	-	phosphoribosylglycinamide formyltransferase 2
995	 48.63	+1	1117161..1118291	-	376	146292106	-	Sputcn32_1002	-	sulfate ABC transporter, ATPase subunit
996	 49.66	+1	1118288..1119157	-	289	146292107	-	Sputcn32_1003	-	sulfate ABC transporter, inner membrane subunit CysW
997	 48.82	+1	1119167..1120012	-	281	146292108	-	Sputcn32_1004	-	sulfate ABC transporter, inner membrane subunit CysT
998	 44.84	0	1120199..1121206	-	335	146292109	-	Sputcn32_1005	-	sulfate ABC transporter, periplasmic sulfate-binding protein
999	 49.72	+1	1121418..1122296	+	292	146292110	cysM	Sputcn32_1006	-	cysteine synthase B
1000	 44.32	0	1122372..1122908	-	178	146292111	-	Sputcn32_1007	-	hypothetical protein
1001	 47.90	0	1123080..1123388	+	102	146292112	-	Sputcn32_1008	-	hypothetical protein
1002	 47.28	0	1123488..1124756	-	422	146292113	-	Sputcn32_1009	-	integral membrane sensor signal transduction histidine kinase
1003	 44.40	0	1124766..1125479	-	237	146292114	-	Sputcn32_1010	-	two component transcriptional regulator
1004	 42.03	0	1125479..1125892	-	137	146292115	-	Sputcn32_1011	-	hypothetical protein
1005	 41.18	0	1125898..1126764	-	288	146292116	-	Sputcn32_1012	-	MltA-interacting MipA family protein
1006	 42.62	0	1127143..1127379	-	78	146292117	-	Sputcn32_1013	-	hypothetical protein
1007	 42.38	0	1128142..1128705	+	187	146292118	-	Sputcn32_1014	-	GPR1/FUN34/yaaH family protein
1008	 40.98	-1	1128759..1129229	-	156	146292119	-	Sputcn32_1015	-	hypothetical protein
1009	 46.28	0	1129424..1129840	-	138	146292120	-	Sputcn32_1016	-	glyoxalase/bleomycin resistance protein/dioxygenase
1010	 45.20	0	1129897..1130511	-	204	146292121	-	Sputcn32_1017	-	NADPH-dependent FMN reductase
1011	 46.45	0	1130658..1131290	+	210	146292122	-	Sputcn32_1018	-	putative transcriptional regulator
1012	 42.62	0	1131352..1132062	+	236	146292123	-	Sputcn32_1019	-	pseudouridine synthase
1013	 42.37	0	1132084..1133709	-	541	146292124	-	Sputcn32_1020	-	methyl-accepting chemotaxis sensory transducer
1014	 41.86	0	1134461..1135222	-	253	146292125	-	Sputcn32_1021	-	putative lipoprotein
1015	 47.49	0	1135345..1136319	+	324	146292126	-	Sputcn32_1022	-	RluA family pseudouridine synthase
1016	 48.98	+1	1136320..1137054	+	244	146292127	-	Sputcn32_1023	-	hypothetical protein
1017	 48.37	0	1137253..1139826	+	857	146292128	-	Sputcn32_1024	-	ATPase
1018	 42.52	0	1139930..1140397	-	155	146292129	-	Sputcn32_1025	-	hypothetical protein
1019	 44.01	0	1140493..1141344	+	283	146292130	-	Sputcn32_1026	-	CDP-diacylglycerol--serine O-phosphatidyltransferase
1020	 46.67	0	1147970..1148344	+	124	146292131	-	Sputcn32_1028	-	ISSod10, transposase OrfB
1021	 40.07	-1	1148793..1149059	+	88	146292132	-	Sputcn32_1029	-	sodium pump decarboxylase, gamma subunit
1022	 48.49	+1	1149071..1150897	+	608	146292133	-	Sputcn32_1030	-	pyruvate carboxylase subunit B
1023	 46.15	0	1150906..1152036	+	376	146292134	-	Sputcn32_1031	-	sodium ion-translocating decarboxylase, beta subunit
1024	 37.50	-1	1152077..1152244	-	55	146292135	-	Sputcn32_1032	-	hypothetical protein
1025	 44.52	0	1152418..1153677	-	419	146292136	-	Sputcn32_1033	-	sodium:dicarboxylate symporter
1026	 43.90	0	1154052..1154477	+	141	146292137	-	Sputcn32_1034	-	hypothetical protein
1027	 44.23	0	1154627..1157461	+	944	146292138	-	Sputcn32_1035	-	peptidase M16 domain-containing protein
1028	 42.79	0	1157647..1159296	+	549	146292139	-	Sputcn32_1036	-	glutamate--cysteine ligase
1029	 45.95	0	1159314..1159757	+	147	146292140	-	Sputcn32_1037	-	hypothetical protein
1030	 44.34	0	1159765..1160382	+	205	146292141	-	Sputcn32_1038	-	hypothetical protein
1031	 40.03	-1	1160475..1161743	-	422	146292142	-	Sputcn32_1039	-	diguanylate cyclase
1032	 46.81	0	1161896..1162993	-	365	146292143	-	Sputcn32_1040	-	phosphoribosylaminoimidazole carboxylase ATPase subunit
1033	 49.39	+1	1162993..1163484	-	163	146292144	-	Sputcn32_1041	-	phosphoribosylaminoimidazole carboxylase, catalytic subunit
1034	 46.19	0	1163764..1165521	-	585	146292145	-	Sputcn32_1042	-	putative sulfate transporter YchM
1035	 43.27	0	1165724..1167625	+	633	146292146	-	Sputcn32_1043	-	von Willebrand factor, type A
1036	 44.06	0	1167712..1168317	+	201	146292147	-	Sputcn32_1044	-	ECF subfamily RNA polymerase sigma-24 factor
1037	 42.99	0	1168310..1169065	+	251	146292148	-	Sputcn32_1045	-	hypothetical protein
1038	 38.55	-1	1169287..1169823	+	178	146292149	-	Sputcn32_1046	-	hemerythrin HHE cation binding domain-containing protein
1039	 39.78	-1	1169917..1170102	-	61	146292150	-	Sputcn32_1047	-	hypothetical protein
1040	 44.02	0	1170319..1171956	-	545	146292151	pgi	Sputcn32_1048	-	glucose-6-phosphate isomerase
1041	 42.95	0	1171977..1172933	-	318	146292152	-	Sputcn32_1049	-	transaldolase B
1042	 43.60	0	1173183..1174283	-	366	146292153	-	Sputcn32_1050	-	OmpA/MotB domain-containing protein
44.78	MEAN

3.68	STD DEV
