IslandPathversion 1.0

IslandPath Analysis: Shewanella putrefaciens CN-32

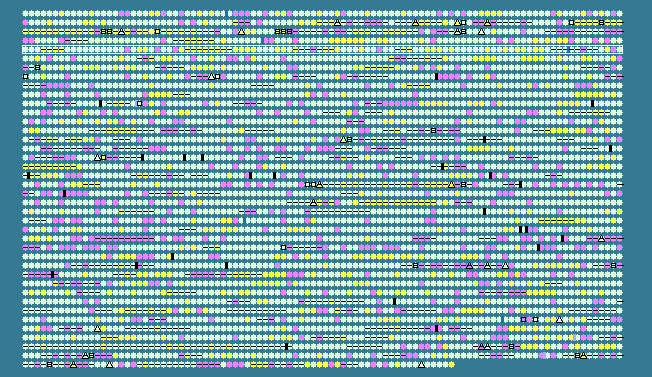

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 44.78 STD DEV: 3.68
Shewanella putrefaciens CN-32, complete genome - 1..4659220
3972 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
401	 42.13	0	437533..438180	-	215	146291512	-	Sputcn32_0405	-	CHAP domain-containing protein
402	 45.29	0	438489..439667	+	392	146291513	-	Sputcn32_0406	-	hypothetical protein
403	 44.21	0	439672..440793	+	373	146291514	-	Sputcn32_0407	-	aminotransferase, class V
404	 52.78	+2	440882..441205	-	107	146291515	-	Sputcn32_0408	-	hypothetical protein
405	 47.18	0	441571..441765	+	64	146291516	-	Sputcn32_0409	-	hypothetical protein
406	 50.06	+1	441963..442835	+	290	146291517	-	Sputcn32_0410	-	hypothetical protein
407	 49.03	+1	443018..443890	+	290	146291518	-	Sputcn32_0411	-	hypothetical protein
408	 47.73	0	444209..445618	-	469	146291519	glnA	Sputcn32_0412	-	glutamine synthetase
409	 47.57	0	446653..448464	+	603	146291520	-	Sputcn32_0413	-	GTP-binding protein TypA
410	 45.24	0	448536..449576	-	346	146291521	-	Sputcn32_0414	-	diguanylate cyclase
411	 46.91	0	449985..452171	+	728	146291522	-	Sputcn32_0415	-	catalase/peroxidase HPI
412	 46.91	0	452242..453456	-	404	146291523	-	Sputcn32_0416	-	4Fe-4S ferredoxin iron-sulfur binding domain-containing protein
413	 47.75	0	453975..454196	-	73	146291524	-	Sputcn32_0417	-	hypothetical protein
414	 43.28	0	454278..455162	+	294	146291525	rbn	Sputcn32_0418	-	ribonuclease BN
415	 45.66	0	455234..455671	+	145	146291526	-	Sputcn32_0419	-	D-tyrosyl-tRNA deacylase
416	 47.33	0	455761..456210	+	149	146291527	-	Sputcn32_0420	-	thioesterase domain-containing protein
417	 44.14	0	456367..457587	+	406	146291528	-	Sputcn32_0421	-	peptidase S1 and S6, chymotrypsin/Hap
418	 41.01	-1	457599..458132	+	177	146291529	-	Sputcn32_0422	-	hypothetical protein
419	 45.39	0	458321..458917	+	198	146291530	-	Sputcn32_0423	-	azoreductase
420	 52.38	+2	459054..459620	-	188	146291531	-	Sputcn32_0424	-	XRE family transcriptional regulator
421	 52.02	+1	459784..460971	+	395	146291532	-	Sputcn32_0425	-	benzoate transporter
422	 47.80	0	461022..461498	-	158	146291533	-	Sputcn32_0426	-	GCN5-related N-acetyltransferase
423	 33.20	-2	461819..462571	+	250	146291534	-	Sputcn32_0427	-	hypothetical protein
424	 42.33	0	463101..463400	-	99	146291535	-	Sputcn32_0428	-	plasmid stabilization system protein
425	 43.21	0	463409..463651	-	80	146291536	-	Sputcn32_0429	-	prevent-host-death family protein
426	 40.73	-1	463931..464674	-	247	146291537	-	Sputcn32_0430	-	hypothetical protein
427	 52.86	+2	464706..465965	-	419	146291538	-	Sputcn32_0431	-	3-oxoacyl-(acyl carrier protein) synthase II
428	 52.34	+2	465966..466691	-	241	146291539	fabG	Sputcn32_0432	-	3-ketoacyl-(acyl-carrier-protein) reductase
429	 48.69	+1	466804..467337	-	177	146291540	-	Sputcn32_0433	-	thioester dehydrase family protein
430	 52.55	+2	467342..468559	-	405	146291541	-	Sputcn32_0434	-	3-oxoacyl-(acyl carrier protein) synthase I
431	 49.02	+1	468588..469352	-	254	146291542	-	Sputcn32_0435	-	hypothetical protein
432	 50.47	+1	469357..470646	-	429	146291543	-	Sputcn32_0436	-	FAD dependent oxidoreductase
433	 51.31	+1	470670..473111	-	813	146291544	-	Sputcn32_0437	-	hypothetical protein
434	 50.39	+1	473114..473881	-	255	146291545	-	Sputcn32_0438	-	hypothetical protein
435	 46.21	0	473878..474312	-	144	146291546	-	Sputcn32_0439	-	thioesterase superfamily protein
436	 52.32	+2	474309..475883	-	524	146291547	-	Sputcn32_0440	-	histidine ammonia-lyase
437	 50.16	+1	475880..477769	-	629	146291548	-	Sputcn32_0441	-	glycosyl transferase family protein
438	 49.03	+1	477763..478176	-	137	146291549	-	Sputcn32_0442	-	thioester dehydrase family protein
439	 49.89	+1	478169..479533	-	454	146291550	-	Sputcn32_0443	-	hypothetical protein
440	 48.09	0	479530..480078	-	182	146291551	-	Sputcn32_0444	-	hypothetical protein
441	 42.97	0	480078..480326	-	82	146291552	-	Sputcn32_0445	-	acyl carrier protein
442	 43.92	0	480336..480590	-	84	146291553	-	Sputcn32_0446	-	acyl carrier protein, putative
443	 50.11	+1	480574..481449	-	291	146291554	-	Sputcn32_0447	-	phospholipid/glycerol acyltransferase
444	 50.67	+1	481442..482185	-	247	146291555	-	Sputcn32_0448	-	hypothetical protein
445	 41.33	0	482525..483424	-	299	146291556	-	Sputcn32_0449	-	hypothetical protein
446	 51.65	+1	483607..485697	-	696	146291557	-	Sputcn32_0450	-	ATP-dependent DNA helicase RecG
447	 44.68	0	485930..486643	+	237	146291558	-	Sputcn32_0451	-	multiple drug resistance protein MarC
448	 46.20	0	486761..488206	-	481	146291559	-	Sputcn32_0452	-	OmpA/MotB domain-containing protein
449	 34.18	-2	488359..488712	+	117	146291560	-	Sputcn32_0453	-	hypothetical protein
450	 43.98	0	489267..489623	+	118	146291561	-	Sputcn32_0454	-	hypothetical protein
451	 51.39	+1	489949..490812	-	287	146291562	-	Sputcn32_0455	-	hypothetical protein
452	 48.60	+1	491350..492063	+	237	146291563	-	Sputcn32_0456	-	ribonuclease PH
453	 49.22	+1	492231..492872	+	213	146291564	pyrE	Sputcn32_0457	-	orotate phosphoribosyltransferase
454	 44.96	0	492931..493575	-	214	146291565	folE	Sputcn32_0458	-	GTP cyclohydrolase I
455	 43.77	0	493799..494392	-	197	146291566	slmA	Sputcn32_0459	-	nucleoid occlusion protein
456	 46.84	0	494425..494883	-	152	146291567	dut	Sputcn32_0460	-	deoxyuridine 5'-triphosphate nucleotidohydrolase
457	 50.20	+1	494880..496100	-	406	146291568	-	Sputcn32_0461	-	phosphopantothenoylcysteine decarboxylase/phosphopantothenate--cysteine ligase
458	 45.58	0	496223..496900	+	225	146291569	-	Sputcn32_0462	-	DNA repair protein RadC
459	 43.88	0	497022..497258	+	78	146291570	-	Sputcn32_0463	-	ribosomal protein L28
460	 35.06	-2	497265..497438	+	57	146291571	rpmG	Sputcn32_0464	-	50S ribosomal protein L33
461	 47.95	0	497762..499081	+	439	146291572	-	Sputcn32_0465	-	N-acetylglutamate synthase
462	 42.20	0	499197..499715	+	172	146291573	-	Sputcn32_0466	-	hypothetical protein
463	 46.89	0	499762..500646	-	294	146291574	-	Sputcn32_0467	-	transporter DMT superfamily protein
464	 48.82	+1	500839..501303	-	154	146291575	-	Sputcn32_0468	-	hypothetical protein
465	 48.85	+1	501600..503423	+	607	146291576	-	Sputcn32_0469	-	ATP-dependent DNA helicase RecQ
466	 41.60	0	503405..505183	-	592	146291577	-	Sputcn32_0470	-	tetratricopeptide domain-containing protein
467	 48.18	0	505691..507259	+	522	146291578	-	Sputcn32_0471	-	2-isopropylmalate synthase
468	 50.14	+1	507330..508424	+	364	146291579	-	Sputcn32_0472	-	3-isopropylmalate dehydrogenase
469	 51.72	+1	508424..509848	+	474	146291580	-	Sputcn32_0473	-	isopropylmalate isomerase large subunit
470	 49.67	+1	509876..510481	+	201	146291581	-	Sputcn32_0474	-	isopropylmalate isomerase small subunit
471	 48.16	0	511001..512356	+	451	146291582	-	Sputcn32_0475	-	membrane protein involved in aromatic hydrocarbon degradation
472	 50.03	+1	512536..514020	+	494	146291583	-	Sputcn32_0476	-	glycerol kinase
473	 44.85	0	514127..514456	-	109	146291584	-	Sputcn32_0477	-	hypothetical protein
474	 45.32	0	514915..515373	+	152	146291585	-	Sputcn32_0478	-	cell division protein MraZ
475	 46.82	0	515405..516346	+	313	146291586	mraW	Sputcn32_0479	-	S-adenosyl-methyltransferase MraW
476	 45.08	0	516357..516671	+	104	146291587	-	Sputcn32_0480	-	cell division protein FtsL
477	 47.43	0	516685..518436	+	583	146291588	-	Sputcn32_0481	-	peptidoglycan glycosyltransferase
478	 49.43	+1	518433..519935	+	500	146291589	-	Sputcn32_0482	-	UDP-N-acetylmuramyl-tripeptide synthetase
479	 47.87	0	519932..521314	+	460	146291590	-	Sputcn32_0483	-	UDP-N-acetylmuramoylalanyl-D-glutamyl-2,6-diaminopimelate--D-alanyl-D-alanyl ligase
480	 44.23	0	521315..522397	+	360	146291591	-	Sputcn32_0484	-	phospho-N-acetylmuramoyl-pentapeptide-transferase
481	 49.70	+1	522404..523723	+	439	146291592	-	Sputcn32_0485	-	UDP-N-acetylmuramoylalanine--D-glutamate ligase
482	 46.45	0	523713..524924	+	403	146291593	-	Sputcn32_0486	-	cell division protein FtsW
483	 48.85	+1	524924..526012	+	362	146291594	-	Sputcn32_0487	-	UDP-N-acetylglucosamine--N-acetylmuramyl-(pentapeptide) pyrophosphoryl-undecaprenol N-acetylglucosamine transferase
484	 48.67	+1	526015..527481	+	488	146291595	-	Sputcn32_0488	-	UDP-N-acetylmuramate--alanine ligase
485	 44.40	0	527633..528382	+	249	146291596	-	Sputcn32_0489	-	polypeptide-transport-associated domain-containing protein
486	 49.76	+1	528363..529598	+	411	146291597	-	Sputcn32_0490	-	cell division protein FtsA
487	 50.00	+1	529632..530819	+	395	146291598	-	Sputcn32_0491	-	cell division protein FtsZ
488	 44.63	0	531000..531920	+	306	146291599	lpxC	Sputcn32_0492	-	UDP-3-O-[3-hydroxymyristoyl] N-acetylglucosamine deacetylase
489	 45.86	0	531932..532378	-	148	146291600	-	Sputcn32_0493	-	hypothetical protein
490	 44.44	0	532406..533305	+	299	146291601	-	Sputcn32_0494	-	peptidase M23B
491	 44.87	0	533366..536095	+	909	146291602	-	Sputcn32_0495	-	preprotein translocase subunit SecA
492	 48.26	0	542884..543285	-	133	146291603	-	Sputcn32_0496	-	hypothetical protein
493	 47.12	0	543297..544304	-	335	146291604	-	Sputcn32_0497	-	delta-aminolevulinic acid dehydratase
494	 41.28	0	544314..546188	-	624	146291605	-	Sputcn32_0498	-	diguanylate cyclase
495	 45.40	0	546181..546984	-	267	146291606	-	Sputcn32_0499	-	TatD-related deoxyribonuclease
496	 42.61	0	546984..547511	-	175	146291607	-	Sputcn32_0500	-	hypothetical protein
497	 42.80	0	547558..548307	-	249	146291608	-	Sputcn32_0501	-	Sec-independent protein translocase, TatC subunit
498	 49.27	+1	548311..548787	-	158	146291609	-	Sputcn32_0502	-	twin-arginine translocation protein, TatB subunit
499	 40.00	-1	548795..549034	-	79	146291610	-	Sputcn32_0503	-	twin arginine-targeting protein translocase
500	 43.64	0	549094..550743	-	549	146291611	-	Sputcn32_0504	-	2-polyprenylphenol 6-hydroxylase
44.78	MEAN

3.68	STD DEV
