IslandPath Analysis: Shewanella putrefaciens CN-32

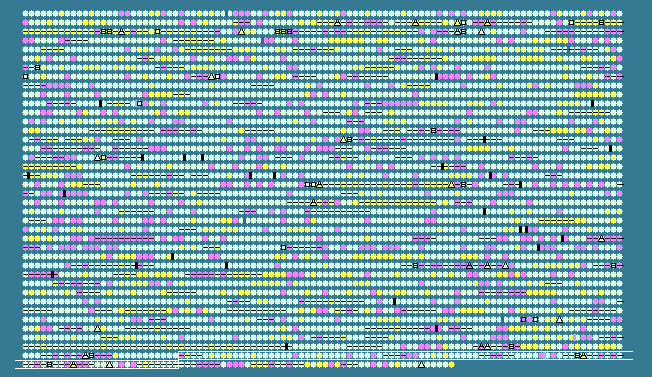

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 44.78 STD DEV: 3.68
Shewanella putrefaciens CN-32, complete genome - 1..4659220
3972 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
3827	 40.51	-1	4477746..4478135	+	129	146294938	-	Sputcn32_3857	-	hypothetical protein
3828	 50.00	+1	4478325..4479368	+	347	146294939	-	Sputcn32_3858	-	ubiquinol oxidase, subunit II
3829	 48.08	0	4479371..4481350	+	659	146294940	-	Sputcn32_3859	-	cytochrome-c oxidase
3830	 48.15	0	4481352..4481972	+	206	146294941	-	Sputcn32_3860	-	cytochrome c oxidase, subunit III
3831	 45.91	0	4481972..4482313	+	113	146294942	-	Sputcn32_3861	-	cytochrome C oxidase subunit IV
3832	 48.63	+1	4482327..4483274	+	315	146294943	-	Sputcn32_3862	-	protoheme IX farnesyltransferase
3833	 43.82	0	4483413..4485614	-	733	146294944	-	Sputcn32_3863	-	TonB-dependent siderophore receptor
3834	 62.30	+2	4485824..4487221	-	465	146294945	-	Sputcn32_3864	-	amino acid permease-associated region
3835	 66.11	+2	4487231..4488133	-	300	146294946	-	Sputcn32_3865	-	homocysteine S-methyltransferase
3836	 47.39	0	4488502..4490031	-	509	146294947	-	Sputcn32_3866	-	XRE family transcriptional regulator
3837	 46.10	0	4490285..4490848	+	187	146294948	-	Sputcn32_3867	-	malate synthase
3838	 46.90	0	4491134..4492084	+	316	146294949	-	Sputcn32_3868	-	hypothetical protein
3839	 50.33	+1	4492105..4492257	-	50	146294950	-	Sputcn32_3869	-	hypothetical protein
3840	 46.15	0	4492500..4493123	-	207	146294951	-	Sputcn32_3870	-	paraquat-inducible protein A
3841	 41.65	0	4493228..4494418	-	396	146294952	-	Sputcn32_3871	-	metal dependent phosphohydrolase
3842	 45.66	0	4494683..4496029	-	448	146294953	-	Sputcn32_3872	-	ABC transporter related
3843	 46.14	0	4496663..4498021	+	452	146294954	-	Sputcn32_3873	-	isochorismate synthase
3844	 42.04	0	4498055..4498789	-	244	146294955	-	Sputcn32_3874	-	hypothetical protein
3845	 44.24	0	4499030..4499689	+	219	146294956	-	Sputcn32_3875	-	hypothetical protein
3846	 39.00	-1	4499789..4500247	+	152	146294957	-	Sputcn32_3876	-	acetyltransferase
3847	 43.79	0	4500476..4502599	-	707	146294958	-	Sputcn32_3877	-	integral membrane sensor signal transduction histidine kinase
3848	 46.82	0	4502601..4504031	-	476	146294959	-	Sputcn32_3878	-	two component, sigma54 specific, Fis family transcriptional regulator
3849	 43.27	0	4504270..4505094	+	274	146294960	-	Sputcn32_3879	-	extracellular solute-binding protein
3850	 50.85	+1	4505091..4505798	+	235	146294961	-	Sputcn32_3880	-	binding-protein-dependent transport systems inner membrane component
3851	 43.74	0	4505802..4506512	+	236	146294962	-	Sputcn32_3881	-	ABC transporter related
3852	 46.60	0	4506496..4507083	+	195	146294963	-	Sputcn32_3882	-	molybdopterin-guanine dinucleotide biosynthesis protein A
3853	 47.72	0	4507117..4508916	+	599	146294964	-	Sputcn32_3883	-	molybdopterin-guanine dinucleotide biosynthesis protein B
3854	 45.63	0	4508933..4509916	+	327	146294965	-	Sputcn32_3884	-	molybdenum cofactor biosynthesis protein A
3855	 40.65	-1	4510003..4510467	+	154	146294966	-	Sputcn32_3885	-	hypothetical protein
3856	 45.83	0	4510500..4511315	+	271	146294967	-	Sputcn32_3886	-	formamidopyrimidine-DNA glycosylase
3857	 44.85	0	4511376..4512851	-	491	146294968	-	Sputcn32_3887	-	hypothetical protein
3858	 42.89	0	4512942..4513433	-	163	146294969	coaD	Sputcn32_3888	-	phosphopantetheine adenylyltransferase
3859	 40.83	-1	4513814..4515655	+	613	146294970	-	Sputcn32_3889	-	sulfatase
3860	 42.67	0	4515722..4516267	-	181	146294971	-	Sputcn32_3890	-	dTDP-4-dehydrorhamnose 3,5-epimerase
3861	 43.28	0	4516313..4517197	-	294	146294972	-	Sputcn32_3891	-	dTDP-4-dehydrorhamnose reductase
3862	 41.67	0	4517310..4518077	-	255	146294973	-	Sputcn32_3892	-	glycosyl transferase family protein
3863	 42.21	0	4518116..4519174	-	352	146294974	-	Sputcn32_3893	-	CDP-glycerol:poly(glycerophosphate) glycerophosphotransferase
3864	 33.08	-2	4519488..4520663	+	391	146294975	-	Sputcn32_3894	-	UDP-galactopyranose mutase
3865	 31.96	-2	4520665..4521465	+	266	146294976	-	Sputcn32_3895	-	hypothetical protein
3866	 34.32	-2	4521531..4522241	-	236	146294977	-	Sputcn32_3896	-	glycosyl transferase family protein
3867	 46.07	0	4522312..4523355	-	347	146294978	-	Sputcn32_3897	-	glycosyl transferase family protein
3868	 43.44	0	4523454..4524215	+	253	146294979	-	Sputcn32_3898	-	3-deoxy-D-manno-octulosonic-acid kinase
3869	 48.66	+1	4524256..4525521	-	421	146294980	-	Sputcn32_3899	-	3-deoxy-D-manno-octulosonic-acid transferase domain-containing protein
3870	 43.06	0	4525721..4526368	+	215	146294981	-	Sputcn32_3900	-	TetR family transcriptional regulator
3871	 50.50	+1	4526664..4527857	+	397	146294982	-	Sputcn32_3901	-	2-amino-3-ketobutyrate coenzyme A ligase
3872	 47.76	0	4527869..4528894	+	341	146294983	tdh	Sputcn32_3902	-	L-threonine 3-dehydrogenase
3873	 43.55	0	4528932..4529303	+	123	146294984	-	Sputcn32_3903	-	rhodanese domain-containing protein
3874	 46.81	0	4529300..4530145	+	281	146294985	-	Sputcn32_3904	-	rhomboid family protein
3875	 45.97	0	4530238..4530894	-	218	146294986	-	Sputcn32_3905	-	isoprenoid biosynthesis protein
3876	 47.02	0	4531281..4534049	+	922	146294987	-	Sputcn32_3906	-	DNA polymerase I
3877	 44.09	0	4534861..4535520	-	219	146294988	-	Sputcn32_3907	-	GTPase EngB
3878	 43.59	0	4535690..4536313	+	207	146294989	-	Sputcn32_3908	-	cytochrome c, class I
3879	 34.57	-2	4536472..4536714	-	80	146294990	-	Sputcn32_3909	-	hypothetical protein
3880	 40.53	-1	4537132..4537770	+	212	146294991	-	Sputcn32_3910	-	hypothetical protein
3881	 42.75	0	4537861..4538412	+	183	146294992	-	Sputcn32_3911	-	hypothetical protein
3882	 43.16	0	4538482..4538949	+	155	146294993	-	Sputcn32_3912	-	hypothetical protein
3883	 43.40	0	4539234..4540574	+	446	146294994	-	Sputcn32_3913	-	coproporphyrinogen III oxidase
3884	 46.79	0	4540659..4541654	-	331	146294995	-	Sputcn32_3914	-	adenosine deaminase
3885	 45.92	0	4541865..4543676	+	603	146294996	-	Sputcn32_3915	-	hypothetical protein
3886	 45.43	0	4543772..4544755	+	327	146294997	-	Sputcn32_3916	-	alpha/beta hydrolase fold
3887	 40.55	-1	4544712..4547162	-	816	146294998	-	Sputcn32_3917	-	diguanylate cyclase/phosphodiesterase with PAS/PAC sensor(s)
3888	 43.49	0	4553122..4554549	-	475	146294999	-	Sputcn32_3918	-	4Fe-4S ferredoxin iron-sulfur binding domain-containing protein
3889	 40.17	-1	4554641..4554991	+	116	146295000	-	Sputcn32_3919	-	hypothetical protein
3890	 47.62	0	4555110..4556012	+	300	146295001	-	Sputcn32_3920	-	naphthoate synthase
3891	 46.08	0	4556196..4556399	+	67	146295002	-	Sputcn32_3921	-	hypothetical protein
3892	 42.92	0	4556700..4560485	-	1261	146295003	-	Sputcn32_3922	-	superfamily I DNA/RNA helicase
3893	 45.96	0	4560533..4560817	+	94	146295004	-	Sputcn32_3923	-	transposase IS3/IS911 family protein
3894	 50.12	+1	4560868..4561683	+	271	146295005	-	Sputcn32_3924	-	integrase catalytic subunit
3895	 42.03	0	4561646..4562197	-	183	146295006	-	Sputcn32_3925	-	hypothetical protein
3896	 42.87	0	4562360..4563397	-	345	146295007	-	Sputcn32_3926	-	putative DNA modification methylase
3897	 38.02	-1	4563564..4563926	+	120	146295008	-	Sputcn32_3927	-	helix-turn-helix domain-containing protein
3898	 41.94	0	4564275..4564994	-	239	146295009	-	Sputcn32_3928	-	hypothetical protein
3899	 40.97	-1	4564981..4565766	-	261	146295010	-	Sputcn32_3929	-	hypothetical protein
3900	 45.17	0	4566423..4567994	-	523	146295011	-	Sputcn32_3930	-	transposition regulatory protein
3901	 46.03	0	4568042..4569553	-	503	146295012	-	Sputcn32_3931	-	transposition protein
3902	 41.91	0	4569771..4570073	-	100	146295013	-	Sputcn32_3932	-	hypothetical protein
3903	 37.98	-1	4570180..4570566	+	128	146295014	-	Sputcn32_3933	-	hypothetical protein
3904	 46.19	0	4570690..4572330	-	546	146295015	-	Sputcn32_3934	-	AAA ATPase
3905	 47.56	0	4572327..4574420	-	697	146295016	-	Sputcn32_3935	-	putative transposase
3906	 42.82	0	4575639..4576766	+	375	146295017	-	Sputcn32_3937	-	hypothetical protein
3907	 42.44	0	4576732..4578279	+	515	146295018	-	Sputcn32_3938	-	hypothetical protein
3908	 38.54	-1	4578385..4580286	+	633	146295019	-	Sputcn32_3939	-	DNA methylase N-4/N-6 domain-containing protein
3909	 48.70	+1	4580323..4581363	-	346	146295020	-	Sputcn32_3940	-	integrase catalytic subunit
3910	 38.20	-1	4581480..4582835	-	451	146295021	-	Sputcn32_3941	-	hypothetical protein
3911	 39.80	-1	4582838..4585003	-	721	146295022	-	Sputcn32_3942	-	hypothetical protein
3912	 44.01	0	4585157..4586776	-	539	146295023	-	Sputcn32_3943	-	hypothetical protein
3913	 46.71	0	4586776..4588293	-	505	146295024	-	Sputcn32_3944	-	transposon Tn7 transposition protein TnsD
3914	 45.50	0	4588296..4589906	-	536	146295025	-	Sputcn32_3945	-	transposon Tn7 transposition protein TnsC
3915	 47.06	0	4589899..4591989	-	696	146295026	-	Sputcn32_3946	-	integrase catalytic subunit
3916	 47.22	0	4591976..4592803	-	275	146295027	-	Sputcn32_3947	-	transposon Tn7 transposition protein TnsA
3917	 40.82	-1	4593046..4594074	-	342	146295028	-	Sputcn32_3948	-	hypothetical protein
3918	 44.07	0	4594221..4594490	-	89	146295029	-	Sputcn32_3949	-	hypothetical protein
3919	 39.13	-1	4594624..4595934	-	436	146295030	-	Sputcn32_3950	-	hypothetical protein
3920	 47.16	0	4596272..4598101	-	609	146295031	-	Sputcn32_3951	-	glucosamine--fructose-6-phosphate aminotransferase, isomerizing
3921	 49.03	+1	4598146..4598916	-	256	146295032	-	Sputcn32_3952	-	DeoR family transcriptional regulator
3922	 42.59	0	4599117..4601222	-	701	146295033	-	Sputcn32_3953	-	TonB-dependent siderophore receptor
3923	 45.20	0	4601499..4602863	-	454	146295034	-	Sputcn32_3954	-	UDP-N-acetylglucosamine pyrophosphorylase
3924	 44.99	0	4603061..4603489	-	142	146295035	-	Sputcn32_3955	-	F0F1 ATP synthase subunit epsilon
3925	 45.91	0	4603524..4604915	-	463	146295036	-	Sputcn32_3956	-	F0F1 ATP synthase subunit beta
3926	 46.34	0	4604951..4605811	-	286	146295037	-	Sputcn32_3957	-	F0F1 ATP synthase subunit gamma
44.78	MEAN

3.68	STD DEV
