IslandPath Analysis: Shewanella putrefaciens CN-32

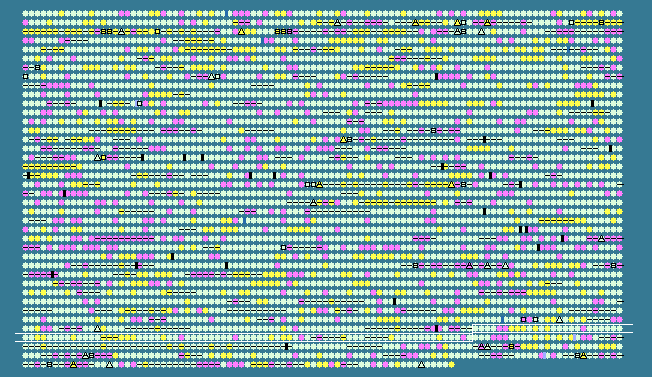

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 44.78 STD DEV: 3.68
Shewanella putrefaciens CN-32, complete genome - 1..4659220
3972 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
3576	 43.19	0	4199066..4200475	+	469	146294687	-	Sputcn32_3604	-	nitrite reductase (cytochrome; ammonia-forming)
3577	 44.18	0	4200927..4202411	+	494	146294688	-	Sputcn32_3605	-	hypothetical protein
3578	 43.83	0	4202505..4203314	+	269	146294689	-	Sputcn32_3606	-	phosphoesterase, PA-phosphatase related
3579	 47.72	0	4203508..4204383	-	291	146294690	-	Sputcn32_3607	-	import inner membrane translocase, subunit Tim44
3580	 36.22	-2	4204831..4205349	-	172	146294691	-	Sputcn32_3608	-	hypothetical protein
3581	 32.21	-2	4205397..4206017	-	206	146294692	-	Sputcn32_3609	-	hypothetical protein
3582	 53.26	+2	4206204..4207337	-	377	146294693	-	Sputcn32_3610	-	alanine--glyoxylate transaminase
3583	 52.95	+2	4207585..4209195	-	536	146294694	-	Sputcn32_3611	-	threonine dehydratase
3584	 53.92	+2	4209198..4211057	-	619	146294695	-	Sputcn32_3612	-	dihydroxy-acid dehydratase
3585	 47.67	0	4211115..4211372	-	85	146294696	ilvM	Sputcn32_3613	-	acetolactate synthase 2 regulatory subunit
3586	 53.23	+2	4211369..4213042	-	557	146294697	-	Sputcn32_3614	-	acetolactate synthase 2 catalytic subunit
3587	 47.40	0	4213654..4215132	-	492	146294698	-	Sputcn32_3615	-	ketol-acid reductoisomerase
3588	 52.46	+2	4215366..4216238	+	290	146294699	-	Sputcn32_3616	-	DNA-binding transcriptional regulator IlvY
3589	 44.95	0	4216235..4217551	-	438	146294700	-	Sputcn32_3617	-	hypothetical protein
3590	 44.87	0	4218089..4218556	-	155	146294701	-	Sputcn32_3618	-	hypothetical protein
3591	 45.23	0	4218680..4219318	+	212	146294702	-	Sputcn32_3619	-	ERCC4 domain-containing protein
3592	 47.08	0	4219347..4220030	-	227	146294703	-	Sputcn32_3620	-	nucleotidase
3593	 47.49	0	4220333..4221229	+	298	146294704	-	Sputcn32_3621	-	LysR family transcriptional regulator
3594	 40.25	-1	4221333..4221809	+	158	146294705	-	Sputcn32_3622	-	hypothetical protein
3595	 43.56	0	4221845..4223800	-	651	146294706	-	Sputcn32_3623	-	hypothetical protein
3596	 44.30	0	4223800..4224027	-	75	146294707	-	Sputcn32_3624	-	XRE family transcriptional regulator
3597	 47.76	0	4224187..4225302	-	371	146294708	-	Sputcn32_3625	-	filamentation induced by cAMP protein Fic
3598	 45.08	0	4225615..4226448	+	277	146294709	-	Sputcn32_3626	-	hypothetical protein
3599	 43.99	0	4226466..4227563	-	365	146294710	-	Sputcn32_3627	-	aminoglycoside phosphotransferase
3600	 48.00	0	4227556..4228428	-	290	146294711	-	Sputcn32_3628	-	hypothetical protein
3601	 47.71	0	4228630..4230159	-	509	146294712	-	Sputcn32_3629	-	hypothetical protein
3602	 46.37	0	4230362..4231036	+	224	146294713	-	Sputcn32_3630	-	guanylate kinase
3603	 50.90	+1	4231095..4231373	+	92	146294714	rpoZ	Sputcn32_3631	-	DNA-directed RNA polymerase subunit omega
3604	 48.67	+1	4231419..4233524	+	701	146294715	-	Sputcn32_3632	-	bifunctional (p)ppGpp synthetase II/ guanosine-3',5'-bis pyrophosphate 3'-pyrophosphohydrolase
3605	 47.14	0	4233550..4233933	+	127	146294716	-	Sputcn32_3633	-	putative endoribonuclease L-PSP
3606	 46.43	0	4234173..4235837	+	554	146294717	-	Sputcn32_3634	-	AMP-dependent synthetase and ligase
3607	 42.90	0	4236017..4236967	+	316	146294718	-	Sputcn32_3635	-	CaCA family Na(+)/Ca(+) antiporter
3608	 44.97	0	4237309..4239723	+	804	146294719	-	Sputcn32_3636	-	TonB-dependent receptor
3609	 49.16	+1	4240084..4241208	-	374	146294720	-	Sputcn32_3637	-	hypothetical protein
3610	 45.59	0	4241472..4241993	+	173	146294721	-	Sputcn32_3638	-	superoxide dismutase, copper/zinc binding
3611	 47.84	0	4242153..4243682	+	509	146294722	-	Sputcn32_3639	-	Mg chelatase, subunit ChlI
3612	 44.04	0	4243784..4244680	+	298	146294723	-	Sputcn32_3640	-	phospholipid/glycerol acyltransferase
3613	 43.81	0	4244694..4245638	+	314	146294724	-	Sputcn32_3641	-	phospholipid/glycerol acyltransferase
3614	 49.70	+1	4245635..4246141	-	168	146294725	-	Sputcn32_3642	-	hypothetical protein
3615	 51.56	+1	4246442..4247209	+	255	146294726	-	Sputcn32_3643	-	GntR family transcriptional regulator
3616	 50.28	+1	4247262..4248140	+	292	146294727	prpB	Sputcn32_3644	-	2-methylisocitrate lyase
3617	 50.89	+1	4248305..4249432	+	375	146294728	-	Sputcn32_3645	-	methylcitrate synthase
3618	 52.14	+2	4249501..4252116	+	871	146294729	-	Sputcn32_3646	-	aconitate hydratase
3619	 52.60	+2	4252210..4253403	+	397	146294730	-	Sputcn32_3647	-	putative AcnD-accessory protein PrpF
3620	 42.68	0	4253654..4258189	+	1511	146294731	-	Sputcn32_3648	-	diguanylate cyclase/phosphodiesterase with PAS/PAC sensor(s)
3621	 47.89	0	4258248..4259339	-	363	146294732	-	Sputcn32_3649	-	branched-chain amino acid aminotransferase
3622	 47.62	0	4259466..4259738	+	90	146294733	-	Sputcn32_3650	-	transcriptional antiterminator, Rof
3623	 47.08	0	4259752..4260093	+	113	146294734	-	Sputcn32_3651	-	hypothetical protein
3624	 48.87	+1	4260219..4260572	-	117	146294735	-	Sputcn32_3652	-	endoribonuclease L-PSP
3625	 47.39	0	4260637..4262166	-	509	146294736	-	Sputcn32_3653	-	Na+/H+ antiporter NhaC
3626	 41.89	0	4262346..4262567	+	73	146294737	-	Sputcn32_3654	-	hypothetical protein
3627	 38.50	-1	4262564..4262776	-	70	146294738	-	Sputcn32_3655	-	hypothetical protein
3628	 43.02	0	4263245..4263853	-	202	146294739	-	Sputcn32_3656	-	DSBA oxidoreductase
3629	 45.47	0	4263978..4265015	-	345	146294740	-	Sputcn32_3657	-	serine/threonine protein kinase
3630	 45.06	0	4265026..4265349	-	107	146294741	-	Sputcn32_3658	-	hypothetical protein
3631	 46.53	0	4265363..4266817	-	484	146294742	-	Sputcn32_3659	-	hypothetical protein
3632	 42.86	0	4266828..4267121	-	97	146294743	-	Sputcn32_3660	-	hypothetical protein
3633	 46.71	0	4267248..4268129	-	293	146294744	-	Sputcn32_3661	-	hypothetical protein
3634	 41.39	0	4268401..4268760	+	119	146294745	-	Sputcn32_3662	-	DsrE family protein
3635	 47.01	0	4268899..4269300	+	133	146294746	-	Sputcn32_3663	-	hypothetical protein
3636	 40.11	-1	4269355..4270284	+	309	146294747	-	Sputcn32_3664	-	hypothetical protein
3637	 45.64	0	4270435..4271019	+	194	146294748	-	Sputcn32_3665	-	hypothetical protein
3638	 42.61	0	4271126..4272127	-	333	146294749	-	Sputcn32_3666	-	periplasmic binding protein
3639	 45.47	0	4272124..4272906	-	260	146294750	-	Sputcn32_3667	-	ABC transporter related
3640	 45.03	0	4272903..4273808	-	301	146294751	-	Sputcn32_3668	-	transport system permease protein
3641	 44.69	0	4273850..4274791	-	313	146294752	-	Sputcn32_3669	-	transport system permease protein
3642	 50.49	+1	4274864..4275574	-	236	146294753	-	Sputcn32_3670	-	hypothetical protein
3643	 45.04	0	4275667..4277784	-	705	146294754	-	Sputcn32_3671	-	TonB-dependent receptor
3644	 50.00	+1	4278104..4279705	+	533	146294755	-	Sputcn32_3672	-	ABC transporter related
3645	 49.17	+1	4279702..4281261	+	519	146294756	-	Sputcn32_3673	-	ABC transporter related
3646	 46.02	0	4281427..4282017	-	196	146294757	-	Sputcn32_3674	-	hypothetical protein
3647	 40.17	-1	4282100..4283137	-	345	146294758	-	Sputcn32_3675	-	acyltransferase 3
3648	 44.07	0	4283140..4284555	-	471	146294759	-	Sputcn32_3676	-	hypothetical protein
3649	 47.01	0	4284726..4285076	-	116	146294760	-	Sputcn32_3677	-	hypothetical protein
3650	 40.95	-1	4285679..4285783	+	34	146294761	-	Sputcn32_3678	-	hypothetical protein
3651	 42.21	0	4286108..4288270	+	720	146294762	-	Sputcn32_3679	-	ornithine decarboxylase
3652	 45.91	0	4288355..4289674	+	439	146294763	-	Sputcn32_3680	-	putrescine transporter
3653	 46.15	0	4289799..4290953	+	384	146294764	-	Sputcn32_3681	-	porin
3654	 50.40	+1	4291198..4293570	-	790	146294765	-	Sputcn32_3682	-	hypothetical protein
3655	 45.26	0	4293772..4294182	-	136	146294766	-	Sputcn32_3683	-	hypothetical protein
3656	 46.27	0	4294341..4295561	+	406	146294767	-	Sputcn32_3684	-	hypothetical protein
3657	 43.82	0	4295739..4297388	+	549	146294768	-	Sputcn32_3685	-	hypothetical protein
3658	 43.33	0	4297420..4298139	-	239	146294769	-	Sputcn32_3686	-	ThiJ/PfpI domain-containing protein
3659	 43.30	0	4298383..4298994	+	203	146294770	-	Sputcn32_3687	-	TetR family transcriptional regulator
3660	 43.92	0	4299033..4299287	-	84	146294771	-	Sputcn32_3688	-	hypothetical protein
3661	 48.02	0	4299299..4299802	-	167	146294772	-	Sputcn32_3689	-	putative orphan protein
3662	 50.31	+1	4299812..4300135	-	107	146294773	-	Sputcn32_3690	-	hypothetical protein
3663	 47.81	0	4300925..4301767	-	280	146294774	-	Sputcn32_3691	-	uroporphyrin-III C/tetrapyrrole methyltransferase
3664	 47.06	0	4301856..4303706	+	616	146294775	-	Sputcn32_3692	-	LppC family lipoprotein
3665	 46.79	0	4303703..4304029	+	108	146294776	-	Sputcn32_3693	-	hypothetical protein
3666	 47.98	0	4304122..4304715	+	197	146294777	-	Sputcn32_3694	-	phosphoheptose isomerase
3667	 44.62	0	4304712..4305278	+	188	146294778	-	Sputcn32_3695	-	transport-associated
3668	 44.05	0	4305299..4306222	-	307	146294779	-	Sputcn32_3696	-	hypothetical protein
3669	 46.05	0	4306342..4307214	+	290	146294780	-	Sputcn32_3697	-	LysR family transcriptional regulator
3670	 48.35	0	4307284..4308282	-	332	146294781	-	Sputcn32_3698	-	tryptophanyl-tRNA synthetase
3671	 46.40	0	4308327..4309007	-	226	146294782	-	Sputcn32_3699	-	phosphoglycolate phosphatase
3672	 46.98	0	4309012..4309722	-	236	146294783	-	Sputcn32_3700	-	ribulose-phosphate 3-epimerase
3673	 41.80	0	4309952..4310317	+	121	146294784	-	Sputcn32_3701	-	hypothetical protein
3674	 38.71	-1	4310317..4310502	+	61	146294785	-	Sputcn32_3702	-	hypothetical protein
3675	 41.55	0	4310520..4311359	-	279	146294786	-	Sputcn32_3703	-	DNA adenine methylase
44.78	MEAN

3.68	STD DEV
