IslandPath Analysis: Shewanella putrefaciens CN-32

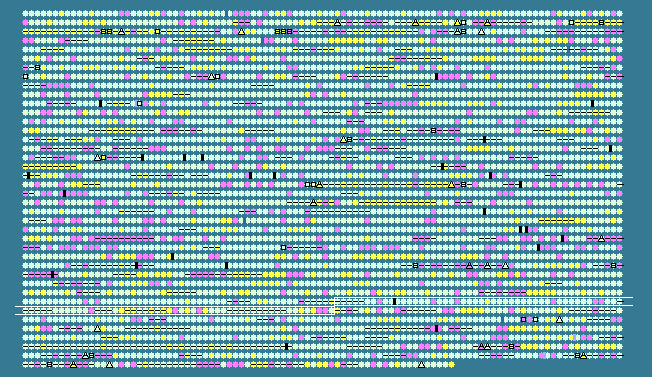

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 44.78 STD DEV: 3.68
Shewanella putrefaciens CN-32, complete genome - 1..4659220
3972 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
3253	 41.83	0	3815928..3816821	-	297	146294364	-	Sputcn32_3277	-	HflC protein
3254	 45.14	0	3816825..3817967	-	380	146294365	-	Sputcn32_3278	-	HflK protein
3255	 46.41	0	3818004..3819311	-	435	146294366	-	Sputcn32_3279	-	GTP-binding protein, HSR1-related
3256	 45.42	0	3819335..3819607	-	90	146294367	-	Sputcn32_3280	-	RNA chaperone Hfq
3257	 44.59	0	3819698..3820612	-	304	146294368	-	Sputcn32_3281	-	tRNA delta(2)-isopentenylpyrophosphate transferase
3258	 44.81	0	3820628..3822553	-	641	146294369	-	Sputcn32_3282	-	DNA mismatch repair protein MutL
3259	 44.44	0	3822555..3823985	-	476	146294370	-	Sputcn32_3283	-	N-acetylmuramoyl-L-alanine amidase
3260	 40.74	-1	3823994..3824452	-	152	146294371	-	Sputcn32_3284	-	hypothetical protein
3261	 47.00	0	3824541..3826040	-	499	146294372	-	Sputcn32_3285	-	carbohydrate kinase, YjeF related protein
3262	 42.54	0	3826334..3826789	-	151	146294373	-	Sputcn32_3286	-	hypothetical protein
3263	 43.22	0	3828585..3829130	-	181	146294374	-	Sputcn32_3287	-	oligoribonuclease
3264	 45.07	0	3829243..3830307	+	354	146294375	-	Sputcn32_3288	-	ribosome-associated GTPase
3265	 45.98	0	3830375..3831244	+	289	146294376	-	Sputcn32_3289	-	phosphatidylserine decarboxylase
3266	 42.15	0	3831260..3832144	+	294	146294377	-	Sputcn32_3290	-	hypothetical protein
3267	 41.32	0	3832214..3835420	+	1068	146294378	-	Sputcn32_3291	-	MscS mechanosensitive ion channel
3268	 43.71	0	3835435..3836157	+	240	146294379	-	Sputcn32_3292	-	glycerophosphoryl diester phosphodiesterase
3269	 39.88	-1	3836173..3836508	-	111	146294380	-	Sputcn32_3293	-	hypothetical protein
3270	 45.46	0	3836905..3838479	-	524	146294381	-	Sputcn32_3294	-	methyl-accepting chemotaxis sensory transducer
3271	 42.71	0	3838730..3838921	+	63	146294382	-	Sputcn32_3295	-	BFD/(2Fe-2S)-binding domain-containing protein
3272	 44.90	0	3839176..3839832	-	218	146294383	-	Sputcn32_3296	-	thiopurine S-methyltransferase
3273	 40.35	-1	3839936..3840277	-	113	146294384	-	Sputcn32_3297	-	hypothetical protein
3274	 44.78	0	3840526..3842334	+	602	146294385	-	Sputcn32_3298	-	protein kinase
3275	 46.53	0	3842363..3844765	-	800	146294386	-	Sputcn32_3299	-	hypothetical protein
3276	 45.43	0	3844834..3848538	-	1234	146294387	-	Sputcn32_3300	-	multi-sensor hybrid histidine kinase
3277	 44.66	0	3848750..3850144	-	464	146294388	-	Sputcn32_3301	-	PhoH family protein
3278	 49.16	+1	3850547..3853453	+	968	146294389	-	Sputcn32_3302	-	ATP-dependent helicase HepA
3279	 45.76	0	3853623..3854507	+	294	146294390	-	Sputcn32_3303	-	hypothetical protein
3280	 44.86	0	3854566..3855372	-	268	146294391	-	Sputcn32_3304	-	enoyl-CoA hydratase
3281	 45.08	0	3855891..3856886	+	331	146294392	-	Sputcn32_3305	-	CheC, inhibitor of MCP methylation
3282	 43.28	0	3856905..3857879	+	324	146294393	-	Sputcn32_3306	-	diguanylate cyclase
3283	 43.70	0	3857951..3858355	-	134	146294394	-	Sputcn32_3307	-	hypothetical protein
3284	 42.75	0	3858399..3859184	-	261	146294395	-	Sputcn32_3308	-	1-acyl-sn-glycerol-3-phosphate acyltransferase
3285	 45.37	0	3859294..3860082	-	262	146294396	-	Sputcn32_3309	-	ABC-3 protein
3286	 47.41	0	3860088..3860996	-	302	146294397	-	Sputcn32_3310	-	periplasmic solute binding protein
3287	 42.95	0	3860980..3862164	-	394	146294398	-	Sputcn32_3311	-	hypothetical protein
3288	 43.99	0	3862242..3862532	-	96	146294399	-	Sputcn32_3312	-	hypothetical protein
3289	 36.51	-2	3862819..3862944	+	41	146294400	-	Sputcn32_3313	-	hypothetical protein
3290	 47.99	0	3863119..3864831	-	570	146294401	-	Sputcn32_3314	-	formate--tetrahydrofolate ligase
3291	 45.61	0	3865006..3865836	-	276	146294402	-	Sputcn32_3315	-	dehydratase
3292	 43.15	0	3866245..3867018	+	257	146294403	-	Sputcn32_3316	-	methyltransferase type 11
3293	 45.67	0	3867043..3867942	-	299	146294404	-	Sputcn32_3317	-	GumN family protein
3294	 42.39	0	3867991..3868299	+	102	146294405	-	Sputcn32_3318	-	hypothetical protein
3295	 42.91	0	3868463..3870217	+	584	146294406	-	Sputcn32_3319	-	diguanylate cyclase/phosphodiesterase
3296	 40.76	-1	3870231..3870755	-	174	146294407	-	Sputcn32_3320	-	hypothetical protein
3297	 38.51	-1	3871028..3871336	+	102	146294408	-	Sputcn32_3321	-	hypothetical protein
3298	 41.57	0	3871368..3871877	-	169	146294409	-	Sputcn32_3322	-	hypothetical protein
3299	 42.58	0	3871922..3872386	+	154	146294410	-	Sputcn32_3323	-	hypothetical protein
3300	 43.11	0	3872469..3873266	+	265	146294411	-	Sputcn32_3324	-	response regulator receiver protein
3301	 45.05	0	3873413..3873685	+	90	146294412	-	Sputcn32_3325	-	histone family protein DNA-binding protein
3302	 42.28	0	3873983..3874675	+	230	146294413	-	Sputcn32_3326	-	hypothetical protein
3303	 43.49	0	3874756..3875661	-	301	146294414	-	Sputcn32_3327	-	alpha-L-glutamate ligase
3304	 42.22	0	3875822..3877543	-	573	146294415	-	Sputcn32_3328	-	response regulator receiver modulated diguanylate cyclase/phosphodiesterase
3305	 41.84	0	3877553..3877987	-	144	146294416	-	Sputcn32_3329	-	response regulator receiver protein
3306	 41.32	0	3877984..3880137	-	717	146294417	-	Sputcn32_3330	-	multi-sensor signal transduction histidine kinase
3307	 44.07	0	3880446..3880622	+	58	146294418	-	Sputcn32_3331	-	hypothetical protein
3308	 45.13	0	3881024..3882379	+	451	146294419	-	Sputcn32_3332	-	hypothetical protein
3309	 45.90	0	3882455..3883831	-	458	146294420	-	Sputcn32_3333	-	amino acid carrier protein
3310	 44.40	0	3884078..3885514	-	478	146294421	-	Sputcn32_3334	-	beta-lactamase domain-containing protein
3311	 42.91	0	3885639..3886484	-	281	146294422	-	Sputcn32_3335	-	hypothetical protein
3312	 40.70	-1	3886517..3886774	-	85	146294423	-	Sputcn32_3336	-	redox-active disulfide protein 2
3313	 47.40	0	3887094..3887420	-	108	146294424	-	Sputcn32_3337	-	antibiotic biosynthesis monooxygenase
3314	 46.93	0	3887494..3887949	-	151	146294425	-	Sputcn32_3338	-	GCN5-related N-acetyltransferase
3315	 45.74	0	3888148..3888558	+	136	146294426	mscL	Sputcn32_3339	-	large-conductance mechanosensitive channel
3316	 47.22	0	3888636..3888959	-	107	146294427	-	Sputcn32_3340	-	antibiotic biosynthesis monooxygenase
3317	 53.35	+2	3889120..3892347	-	1075	146294428	-	Sputcn32_3341	-	CzcA family heavy metal efflux protein
3318	 53.55	+2	3892377..3893642	-	421	146294429	-	Sputcn32_3342	-	RND family efflux transporter MFP subunit
3319	 50.24	+1	3893653..3895131	-	492	146294430	-	Sputcn32_3343	-	outer membrane efflux protein
3320	 48.20	0	3895462..3895905	-	147	146294431	-	Sputcn32_3344	-	hypothetical protein
3321	 47.34	0	3896111..3896317	-	68	146294432	-	Sputcn32_3345	-	hypothetical protein
3322	 48.91	+1	3896354..3896719	-	121	146294433	-	Sputcn32_3346	-	hypothetical protein
3323	 47.45	0	3896856..3897287	+	143	146294434	-	Sputcn32_3347	-	hypothetical protein
3324	 50.34	+1	3897406..3897840	+	144	146294435	-	Sputcn32_3348	-	3-dehydroquinate dehydratase
3325	 48.67	+1	3897895..3898572	+	225	146294436	-	Sputcn32_3349	-	short-chain dehydrogenase/reductase SDR
3326	 41.19	0	3898635..3899309	-	224	146294437	-	Sputcn32_3350	-	hypothetical protein
3327	 47.75	0	3899776..3900552	-	258	146294438	-	Sputcn32_3351	-	hypothetical protein
3328	 50.27	+1	3900712..3902193	+	493	146294439	-	Sputcn32_3352	-	UbiD family decarboxylase
3329	 48.07	0	3902306..3903004	+	232	146294440	fre	Sputcn32_3353	-	FMN reductase
3330	 38.12	-1	3903741..3904847	-	368	146294441	-	Sputcn32_3354	-	hypothetical protein
3331	 48.97	+1	3905579..3906211	-	210	146294442	-	Sputcn32_3355	-	flavoprotein oxygenase
3332	 43.61	0	3906229..3907512	-	427	146294443	-	Sputcn32_3356	-	transcriptional regulator, CadC
3333	 42.09	0	3907734..3908612	-	292	146294444	-	Sputcn32_3357	-	copper ABC transporter, permease protein
3334	 44.64	0	3908609..3909643	-	344	146294445	-	Sputcn32_3358	-	ABC transporter related
3335	 46.84	0	3909640..3910935	-	431	146294446	-	Sputcn32_3359	-	periplasmic copper-binding
3336	 46.75	0	3910940..3911431	-	163	146294447	-	Sputcn32_3360	-	NosL family protein
3337	 46.84	0	3911520..3912200	-	226	146294448	-	Sputcn32_3361	-	formate-dependent nitrite reductase, NrfG protein
3338	 43.68	0	3912235..3913017	-	260	146294449	-	Sputcn32_3362	-	peptidylprolyl isomerase, FKBP-type
3339	 46.03	0	3913103..3913543	-	146	146294450	-	Sputcn32_3363	-	rhodanese domain-containing protein
3340	 43.47	0	3913606..3915735	-	709	146294451	-	Sputcn32_3364	-	cytochrome c, putative
3341	 45.96	0	3916280..3918409	+	709	146294452	-	Sputcn32_3365	-	cytochrome c-type biogenesis protein CcmF
3342	 44.29	0	3918409..3918828	+	139	146294453	-	Sputcn32_3366	-	cytochrome C biogenesis protein
3343	 42.74	0	3918845..3919429	+	194	146294454	-	Sputcn32_3367	-	redoxin domain-containing protein
3344	 44.21	0	3919605..3920183	+	192	146294455	-	Sputcn32_3368	-	hypothetical protein
3345	 46.74	0	3920249..3920539	+	96	146294456	-	Sputcn32_3369	-	putative mitomycin resistance protein
3346	 47.37	0	3920543..3921625	-	360	146294457	-	Sputcn32_3370	-	hypothetical protein
3347	 50.80	+1	3921696..3922760	-	354	146294458	-	Sputcn32_3371	-	2-nitropropane dioxygenase, NPD
3348	 45.18	0	3922843..3923703	-	286	146294459	ubiA	Sputcn32_3372	-	4-hydroxybenzoate octaprenyltransferase
3349	 49.70	+1	3923849..3926017	-	722	146294460	uvrD	Sputcn32_3373	-	DNA-dependent helicase II
3350	 39.90	-1	3926965..3928410	+	481	146294461	-	Sputcn32_3375	-	hypothetical protein
3351	 40.96	-1	3928641..3931274	+	877	146294462	-	Sputcn32_3376	-	helicase domain-containing protein
3352	 45.08	0	3931857..3933056	+	399	146294463	-	Sputcn32_3377	-	hypothetical protein
44.78	MEAN

3.68	STD DEV
