IslandPathversion 1.0

IslandPath Analysis: Shewanella putrefaciens CN-32

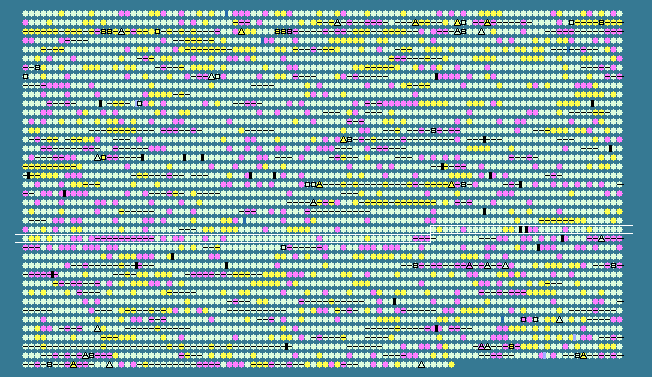

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 44.78 STD DEV: 3.68
Shewanella putrefaciens CN-32, complete genome - 1..4659220
3972 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2469	 47.38	0	2883336..2884460	-	374	146293580	tgt	Sputcn32_2484	-	queuine tRNA-ribosyltransferase
2470	 49.04	+1	2884620..2885657	-	345	146293581	-	Sputcn32_2485	-	S-adenosylmethionine--tRNA-ribosyltransferase-isomerase
2471	 42.01	0	2885714..2885932	-	72	146293582	-	Sputcn32_2486	-	hypothetical protein
2472	 43.55	0	2886018..2886653	+	211	146293583	-	Sputcn32_2487	-	hypothetical protein
2473	 43.01	0	2886865..2887536	+	223	146293584	-	Sputcn32_2488	-	pseudouridylate synthase
2474	 38.85	-1	2887593..2888027	-	144	146293585	-	Sputcn32_2489	-	hypothetical protein
2475	 47.25	0	2888350..2889729	+	459	146293586	-	Sputcn32_2490	-	oxidoreductase domain-containing protein
2476	 43.39	0	2889792..2890328	-	178	146293587	-	Sputcn32_2491	-	NADH:ubiquinone oxidoreductase complex I intermediate-associated protein 30
2477	 43.44	0	2890393..2891619	-	408	146293588	-	Sputcn32_2492	-	serine/threonine transporter SstT
2478	 43.33	0	2891773..2892672	-	299	146293589	-	Sputcn32_2493	-	putative CheW protein
2479	 47.56	0	2892804..2893274	-	156	146293590	-	Sputcn32_2494	-	dual specificity protein phosphatase
2480	 47.90	0	2893339..2894622	-	427	146293591	-	Sputcn32_2495	-	DEAD/DEAH box helicase domain-containing protein
2481	 52.33	+2	2894670..2895227	-	185	146293592	-	Sputcn32_2496	-	methylated-DNA--protein-cysteine methyltransferase
2482	 49.47	+1	2895273..2896964	-	563	146293593	-	Sputcn32_2497	-	alcohol dehydrogenase
2483	 46.72	0	2897449..2899278	+	609	146293594	-	Sputcn32_2498	-	ABC transporter related
2484	 43.40	0	2901539..2902948	-	469	146293595	-	Sputcn32_2499	-	glutamyl-tRNA synthetase
2485	 40.66	-1	2904592..2905614	+	340	146293596	-	Sputcn32_2500	-	TRAP dicarboxylate transporter, DctP subunit
2486	 39.38	-1	2905677..2906321	+	214	146293597	-	Sputcn32_2501	-	tripartite ATP-independent periplasmic transporter DctQ
2487	 45.99	0	2906321..2907718	+	465	146293598	-	Sputcn32_2502	-	TRAP dicarboxylate transporter, DctM subunit
2488	 42.60	0	2907830..2909641	+	603	146293599	-	Sputcn32_2503	-	integral membrane sensor signal transduction histidine kinase
2489	 44.78	0	2909638..2911017	+	459	146293600	-	Sputcn32_2504	-	two component, sigma54 specific, Fis family transcriptional regulator
2490	 43.91	0	2911124..2914195	-	1023	146293601	-	Sputcn32_2505	-	hypothetical protein
2491	 40.07	-1	2914298..2914876	-	192	146293602	-	Sputcn32_2506	-	thymidine kinase
2492	 46.12	0	2915419..2917521	+	700	146293603	-	Sputcn32_2507	-	hypothetical protein
2493	 46.19	0	2917722..2919875	+	717	146293604	-	Sputcn32_2508	-	peptidyl-dipeptidase Dcp
2494	 43.40	0	2919947..2921515	-	522	146293605	-	Sputcn32_2509	-	Na+/H+ antiporter NhaC
2495	 48.98	+1	2921888..2922814	-	308	146293606	-	Sputcn32_2510	-	electron transfer flavoprotein, alpha subunit
2496	 44.00	0	2922815..2923564	-	249	146293607	-	Sputcn32_2511	-	electron transfer flavoprotein beta-subunit
2497	 41.73	0	2923877..2924269	+	130	146293608	-	Sputcn32_2512	-	histone family protein nucleoid-structuring protein H-NS
2498	 45.18	0	2924485..2927574	+	1029	146293609	-	Sputcn32_2513	-	amidohydrolase
2499	 45.33	0	2927574..2928890	+	438	146293610	-	Sputcn32_2514	-	hypothetical protein
2500	 45.93	0	2928967..2929347	+	126	146293611	-	Sputcn32_2515	-	putative lipoprotein
2501	 46.80	0	2929486..2930220	+	244	146293612	-	Sputcn32_2516	-	hypothetical protein
2502	 48.57	+1	2930221..2930850	+	209	146293613	-	Sputcn32_2517	-	hexapaptide repeat-containing transferase
2503	 48.37	0	2931085..2932800	+	571	146293614	-	Sputcn32_2518	-	prolyl-tRNA synthetase
2504	 42.31	0	2932928..2934052	-	374	146293615	-	Sputcn32_2519	-	patatin
2505	 48.41	0	2934347..2934598	+	83	146293616	-	Sputcn32_2520	-	hypothetical protein
2506	 41.49	0	2934747..2935457	+	236	146293617	-	Sputcn32_2521	-	putative lipoprotein
2507	 43.77	0	2935466..2936251	+	261	146293618	-	Sputcn32_2522	-	hypothetical protein
2508	 44.28	0	2936251..2938617	+	788	146293619	-	Sputcn32_2523	-	protein of unknown function DUF940, membrane lipoprotein putative
2509	 37.29	-2	2939478..2939780	-	100	146293620	-	Sputcn32_2524	-	excinuclease ABC subunit C
2510	 40.44	-1	2940654..2942003	-	449	146293621	-	Sputcn32_2525	-	GAF sensor signal transduction histidine kinase
2511	 44.52	0	2942377..2942823	+	148	146293622	-	Sputcn32_2526	-	copper resistance lipoprotein NlpE
2512	 41.11	0	2943787..2945727	-	646	146293623	-	Sputcn32_2527	-	polysaccharide biosynthesis protein CapD
2513	 39.82	-1	2945858..2946412	-	184	146293624	-	Sputcn32_2528	-	sugar transferase
2514	 37.77	-1	2946427..2947350	-	307	146293625	-	Sputcn32_2529	-	NAD-dependent epimerase/dehydratase
2515	 32.17	-2	2947343..2948284	-	313	146293626	-	Sputcn32_2530	-	glycosyl transferase family protein
2516	 30.12	-2	2948311..2949243	-	310	146293627	-	Sputcn32_2531	-	glycosyl transferase family protein
2517	 28.98	-2	2949245..2950393	-	382	146293628	-	Sputcn32_2532	-	hypothetical protein
2518	 30.38	-2	2950386..2951231	-	281	146293629	-	Sputcn32_2533	-	glycosyl transferase family protein
2519	 30.31	-2	2951304..2952131	-	275	146293630	-	Sputcn32_2534	-	hypothetical protein
2520	 29.11	-2	2952196..2953425	-	409	146293631	-	Sputcn32_2535	-	polysaccharide biosynthesis protein
2521	 28.48	-2	2953409..2954500	-	363	146293632	-	Sputcn32_2536	-	glycosyl transferase, group 1
2522	 37.70	-1	2954600..2955148	-	182	146293633	-	Sputcn32_2537	-	dTDP-4-dehydrorhamnose 3,5-epimerase
2523	 44.41	0	2955220..2956095	-	291	146293634	-	Sputcn32_2538	-	dTDP-4-dehydrorhamnose reductase
2524	 40.80	-1	2956092..2956961	-	289	146293635	-	Sputcn32_2539	-	glucose-1-phosphate thymidylyltransferase
2525	 43.80	0	2957032..2958111	-	359	146293636	-	Sputcn32_2540	-	dTDP-glucose 4,6 dehydratase
2526	 40.51	-1	2958327..2959316	-	329	146293637	-	Sputcn32_2541	-	lipopolysaccharide biosynthesis
2527	 37.85	-1	2959508..2959861	-	117	146293638	-	Sputcn32_2542	-	hypothetical protein
2528	 43.04	0	2960057..2962816	-	919	146293639	-	Sputcn32_2543	-	polysaccharide export protein
2529	 41.62	0	2964311..2964817	-	168	146293640	-	Sputcn32_2544	-	NusG antitermination factor
2530	 43.82	0	2965291..2966796	+	501	146293641	-	Sputcn32_2545	-	amino acid/peptide transporter
2531	 40.85	-1	2967397..2968527	-	376	146293642	-	Sputcn32_2546	-	response regulator receiver protein
2532	 43.81	0	2968647..2969429	-	260	146293643	-	Sputcn32_2547	-	VacJ family lipoprotein
2533	 43.39	0	2969660..2971579	+	639	146293644	-	Sputcn32_2548	-	hypothetical protein
2534	 38.78	-1	2971620..2971931	+	103	146293645	-	Sputcn32_2549	-	FlhB domain-containing protein
2535	 45.11	0	2972337..2972735	-	132	146293646	-	Sputcn32_2550	-	hypothetical protein
2536	 41.62	0	2972906..2973400	-	164	146293647	-	Sputcn32_2551	-	putative CheW protein
2537	 41.89	0	2973408..2974400	-	330	146293648	-	Sputcn32_2552	-	putative CheW protein
2538	 44.19	0	2974384..2975175	-	263	146293649	-	Sputcn32_2553	-	cobyrinic acid a,c-diamide synthase
2539	 42.07	0	2975231..2975665	-	144	146293650	-	Sputcn32_2554	-	hypothetical protein
2540	 47.01	0	2975688..2976806	-	372	146293651	-	Sputcn32_2555	-	chemotaxis-specific methylesterase
2541	 45.28	0	2976827..2979052	-	741	146293652	-	Sputcn32_2556	-	CheA signal transduction histidine kinase
2542	 41.33	0	2979068..2979805	-	245	146293653	-	Sputcn32_2557	-	chemotaxis phosphatase, CheZ
2543	 43.75	0	2979819..2980202	-	127	146293654	-	Sputcn32_2558	-	response regulator receiver protein
2544	 43.56	0	2980250..2980963	-	237	146293655	fliA	Sputcn32_2559	-	flagellar biosynthesis sigma factor
2545	 45.01	0	2980956..2981837	-	293	146293656	-	Sputcn32_2560	-	cobyrinic acid a,c-diamide synthase
2546	 46.28	0	2981842..2983224	-	460	146293657	flhF	Sputcn32_2561	-	flagellar biosynthesis regulator FlhF
2547	 45.52	0	2983236..2985335	-	699	146293658	flhA	Sputcn32_2562	-	flagellar biosynthesis protein FlhA
2548	 44.92	0	2985428..2986558	-	376	146293659	flhB	Sputcn32_2563	-	flagellar biosynthesis protein FlhB
2549	 45.61	0	2986576..2987373	-	265	146293660	fliR	Sputcn32_2564	-	flagellar biosynthesis protein FliR
2550	 41.11	0	2987378..2987647	-	89	146293661	-	Sputcn32_2565	-	flagellar biosynthetic protein FliQ
2551	 42.03	0	2987665..2988411	-	248	146293662	fliP	Sputcn32_2566	-	flagellar biosynthesis protein FliP
2552	 42.86	0	2988408..2988827	-	139	146293663	-	Sputcn32_2567	-	flagellar biosynthesis protein, FliO
2553	 44.79	0	2988854..2989237	-	127	146293664	fliN	Sputcn32_2568	-	flagellar motor switch protein
2554	 44.48	0	2989249..2990280	-	343	146293665	fliM	Sputcn32_2569	-	flagellar motor switch protein FliM
2555	 41.67	0	2990320..2990835	-	171	146293666	fliL	Sputcn32_2570	-	flagellar basal body-associated protein FliL
2556	 43.29	0	2990927..2992402	-	491	146293667	-	Sputcn32_2571	-	flagellar hook-length control protein
2557	 41.89	0	2992569..2993012	-	147	146293668	-	Sputcn32_2572	-	flagellar export protein FliJ
2558	 48.51	+1	2993024..2994361	-	445	146293669	fliI	Sputcn32_2573	-	flagellum-specific ATP synthase
2559	 42.42	0	2994330..2995286	-	318	146293670	fliH	Sputcn32_2574	-	flagellar assembly protein H
2560	 45.08	0	2995273..2996319	-	348	146293671	fliG	Sputcn32_2575	-	flagellar motor switch protein G
2561	 45.75	0	2996312..2997994	-	560	146293672	fliF	Sputcn32_2576	-	flagellar MS-ring protein
2562	 44.94	0	2998040..2998375	-	111	146293673	-	Sputcn32_2577	-	flagellar hook-basal body complex subunit FliE
2563	 44.22	0	2998595..2999935	-	446	146293674	-	Sputcn32_2578	-	two component, sigma54 specific, Fis family transcriptional regulator
2564	 44.60	0	2999928..3001010	-	360	146293675	-	Sputcn32_2579	-	PAS/PAC sensor signal transduction histidine kinase
2565	 43.17	0	3001120..3002553	-	477	146293676	-	Sputcn32_2580	-	sigma-54 dependent trancsriptional regulator
2566	 37.71	-1	3002849..3003259	-	136	146293677	fliS	Sputcn32_2581	-	flagellar protein FliS
2567	 38.63	-1	3003266..3003586	-	106	146293678	-	Sputcn32_2582	-	hypothetical protein
2568	 39.59	-1	3003598..3004971	-	457	146293679	-	Sputcn32_2583	-	flagellar hook-associated 2 domain-containing protein
44.78	MEAN

3.68	STD DEV
