IslandPath Analysis: Shewanella putrefaciens CN-32

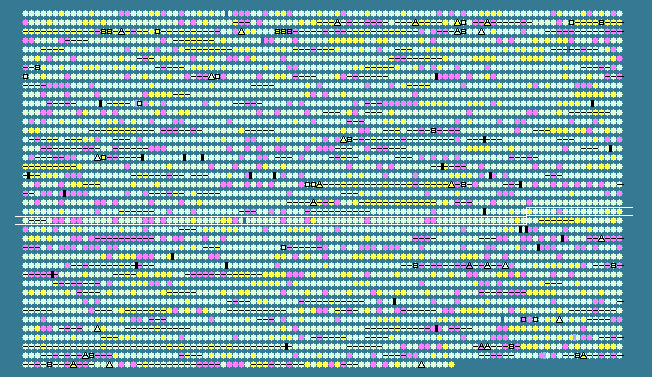

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 44.78 STD DEV: 3.68
Shewanella putrefaciens CN-32, complete genome - 1..4659220
3972 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2285	 49.33	+1	2650935..2651534	-	199	146293396	-	Sputcn32_2300	-	recombination protein RecR
2286	 46.06	0	2651547..2651876	-	109	146293397	-	Sputcn32_2301	-	hypothetical protein
2287	 47.39	0	2652046..2654919	-	957	146293398	-	Sputcn32_2302	-	DNA polymerase III, subunits gamma and tau
2288	 43.24	0	2655038..2655592	-	184	146293399	-	Sputcn32_2303	-	adenine phosphoribosyltransferase
2289	 42.62	0	2655822..2656187	-	121	146293400	-	Sputcn32_2304	-	hypothetical protein
2290	 32.52	-2	2656269..2656391	-	40	146293401	-	Sputcn32_2305	-	hypothetical protein
2291	 42.17	0	2656540..2657286	-	248	146293402	-	Sputcn32_2306	-	hypothetical protein
2292	 42.64	0	2657286..2658188	-	300	146293403	-	Sputcn32_2307	-	hypothetical protein
2293	 44.28	0	2658268..2658678	-	136	146293404	-	Sputcn32_2308	-	hypothetical protein
2294	 46.12	0	2658923..2659876	+	317	146293405	-	Sputcn32_2309	-	dihydrouridine synthase, DuS
2295	 48.06	0	2660080..2660439	+	119	146293406	-	Sputcn32_2310	-	TraR/DksA family transcriptional regulator
2296	 41.65	0	2660672..2662390	-	572	146293407	ushA	Sputcn32_2311	-	bifunctional UDP-sugar hydrolase/5'-nucleotidase periplasmic precursor
2297	 46.43	0	2662755..2663426	-	223	146293408	-	Sputcn32_2312	-	carboxylesterase
2298	 49.56	+1	2663515..2663742	-	75	146293409	-	Sputcn32_2313	-	hypothetical protein
2299	 47.06	0	2663994..2665952	+	652	146293410	-	Sputcn32_2314	-	peptidase M1, membrane alanine aminopeptidase
2300	 48.78	+1	2666072..2666563	-	163	146293411	-	Sputcn32_2315	-	peptidylprolyl isomerase, FKBP-type
2301	 45.68	0	2666670..2667989	-	439	146293412	-	Sputcn32_2316	-	lytic murein transglycosylase
2302	 42.22	0	2668196..2668555	+	119	146293413	-	Sputcn32_2317	-	hypothetical protein
2303	 45.23	0	2668607..2669245	+	212	146293414	-	Sputcn32_2318	-	hypothetical protein
2304	 41.69	0	2669340..2670284	-	314	146293415	-	Sputcn32_2319	-	putative CheW protein
2305	 42.72	0	2670548..2671165	-	205	146293416	-	Sputcn32_2320	-	methyltransferase type 11
2306	 41.12	0	2671262..2671813	+	183	146293417	-	Sputcn32_2321	-	peptidase S16, lon domain-containing protein
2307	 40.72	-1	2671948..2672610	+	220	146293418	-	Sputcn32_2322	-	ECF subfamily RNA polymerase sigma-24 factor
2308	 42.94	0	2672603..2673310	+	235	146293419	-	Sputcn32_2323	-	anti-ECFsigma factor, ChrR
2309	 34.43	-2	2673919..2674101	+	60	146293420	-	Sputcn32_2324	-	hypothetical protein
2310	 37.55	-1	2674402..2674662	+	86	146293421	-	Sputcn32_2325	-	hypothetical protein
2311	 44.53	0	2674820..2676292	-	490	146293422	-	Sputcn32_2326	-	putative nicotinate phosphoribosyltransferase
2312	 47.30	0	2676303..2677190	-	295	146293423	-	Sputcn32_2327	-	ribose-phosphate pyrophosphokinase
2313	 43.84	0	2677546..2678259	-	237	146293424	-	Sputcn32_2328	-	NUDIX hydrolase
2314	 45.48	0	2678341..2679369	-	342	146293425	-	Sputcn32_2329	-	hypothetical protein
2315	 47.06	0	2679637..2680044	+	135	146293426	-	Sputcn32_2330	-	hypothetical protein
2316	 41.27	0	2680139..2680516	-	125	146293427	-	Sputcn32_2331	-	hypothetical protein
2317	 41.98	0	2680680..2681315	-	211	146293428	-	Sputcn32_2332	-	response regulator receiver protein
2318	 45.58	0	2682053..2682403	-	116	146293429	-	Sputcn32_2333	-	cytochrome c3
2319	 44.56	0	2682806..2683669	-	287	146293430	-	Sputcn32_2334	-	heat shock protein HtpX
2320	 44.16	0	2683959..2684669	+	236	146293431	-	Sputcn32_2335	-	peptidase E
2321	 40.94	-1	2685026..2686615	+	529	146293432	mdoG	Sputcn32_2336	-	glucan biosynthesis protein G
2322	 38.18	-1	2687240..2688208	+	322	146293433	-	Sputcn32_2337	-	hypothetical protein
2323	 42.76	0	2688547..2689161	+	204	146293434	-	Sputcn32_2338	-	MotA/TolQ/ExbB proton channel
2324	 40.41	-1	2689158..2689496	+	112	146293435	-	Sputcn32_2339	-	hypothetical protein
2325	 44.15	0	2689483..2693439	+	1318	146293436	-	Sputcn32_2340	-	cobaltochelatase
2326	 44.79	0	2693457..2695751	+	764	146293437	-	Sputcn32_2341	-	TonB-dependent receptor
2327	 46.37	0	2695851..2696594	-	247	146293438	bioD	Sputcn32_2342	-	dithiobiotin synthetase
2328	 45.93	0	2696634..2697443	-	269	146293439	-	Sputcn32_2343	-	biotin biosynthesis protein BioC
2329	 48.60	+1	2697582..2698793	-	403	146293440	-	Sputcn32_2344	-	8-amino-7-oxononanoate synthase
2330	 48.24	0	2698798..2699850	-	350	146293441	-	Sputcn32_2345	-	biotin synthase
2331	 47.58	0	2699974..2701314	+	446	146293442	-	Sputcn32_2346	-	adenosylmethionine-8-amino-7-oxononanoate aminotransferase
2332	 45.44	0	2701548..2703149	+	533	146293443	-	Sputcn32_2347	-	methyl-accepting chemotaxis sensory transducer
2333	 45.67	0	2703205..2706642	-	1145	146293444	-	Sputcn32_2348	-	integral membrane sensor hybrid histidine kinase
2334	 48.85	+1	2706818..2708770	+	650	146293445	-	Sputcn32_2349	-	acetyl-CoA synthetase
2335	 48.37	0	2708918..2710726	+	602	146293446	-	Sputcn32_2350	-	type III restriction enzyme, res subunit
2336	 40.23	-1	2710787..2711047	+	86	146293447	grxA	Sputcn32_2351	-	glutaredoxin 1
2337	 42.42	0	2711228..2711326	+	32	146293448	-	Sputcn32_2352	-	hypothetical protein
2338	 43.30	0	2717503..2718054	-	183	146293449	-	Sputcn32_2353	-	D,D-heptose 1,7-bisphosphate phosphatase
2339	 45.44	0	2718359..2719060	+	233	146293450	-	Sputcn32_2354	-	GntR family transcriptional regulator
2340	 44.60	0	2719153..2720217	+	354	146293451	-	Sputcn32_2355	-	3-oxoacyl-(acyl carrier protein) synthase III
2341	 45.98	0	2720415..2721086	-	223	146293452	-	Sputcn32_2356	-	exonuclease, RNase T and DNA polymerase III
2342	 43.18	0	2721102..2722949	-	615	146293453	-	Sputcn32_2357	-	cyclic nucleotide-binding protein
2343	 44.85	0	2723092..2724828	-	578	146293454	-	Sputcn32_2358	-	Na+/solute symporter
2344	 38.58	-1	2724840..2725106	-	88	146293455	-	Sputcn32_2359	-	hypothetical protein
2345	 43.43	0	2725722..2726345	-	207	146293456	-	Sputcn32_2360	-	DSBA oxidoreductase
2346	 45.06	0	2726459..2727319	-	286	146293457	-	Sputcn32_2361	-	NAD-dependent epimerase/dehydratase
2347	 44.33	0	2727376..2728584	-	402	146293458	-	Sputcn32_2362	-	metal dependent phosphohydrolase
2348	 41.16	0	2728803..2729300	-	165	146293459	-	Sputcn32_2363	-	hypothetical protein
2349	 48.59	+1	2729465..2731522	-	685	146293460	-	Sputcn32_2364	-	DNA ligase, NAD-dependent
2350	 45.00	0	2731621..2732649	-	342	146293461	-	Sputcn32_2365	-	cell division protein ZipA
2351	 45.64	0	2732673..2736110	-	1145	146293462	-	Sputcn32_2366	-	chromosome segregation protein SMC
2352	 42.56	0	2736308..2737087	+	259	146293463	-	Sputcn32_2367	-	putative sulfate transport protein CysZ
2353	 46.08	0	2737182..2738303	-	373	146293464	-	Sputcn32_2368	-	3-oxoacyl-(acyl carrier protein) synthase III
2354	 46.20	0	2738300..2739496	-	398	146293465	-	Sputcn32_2369	-	RDD domain-containing protein
2355	 45.30	0	2739748..2740716	+	322	146293466	-	Sputcn32_2370	-	cysteine synthase A
2356	 44.63	0	2740915..2741994	+	359	146293467	-	Sputcn32_2371	-	O-methyltransferase family protein
2357	 43.78	0	2742126..2743130	+	334	146293468	-	Sputcn32_2372	-	C4-dicarboxylate transporter/malic acid transport protein
2358	 40.64	-1	2743830..2746730	+	966	146293469	-	Sputcn32_2373	-	TonB-dependent receptor
2359	 44.69	0	2746853..2748331	-	492	146293470	-	Sputcn32_2374	-	hypothetical protein
2360	 43.64	0	2748762..2749673	+	303	146293471	-	Sputcn32_2375	-	LysR family transcriptional regulator
2361	 44.92	0	2749753..2751366	-	537	146293472	-	Sputcn32_2376	-	formate/nitrite transporter
2362	 46.71	0	2752283..2753815	+	510	146293473	-	Sputcn32_2377	-	hypothetical protein
2363	 45.03	0	2754460..2756742	+	760	146293474	-	Sputcn32_2378	-	formate acetyltransferase
2364	 44.80	0	2756806..2757546	+	246	146293475	pflA	Sputcn32_2379	-	pyruvate formate lyase-activating enzyme 1
2365	 44.93	0	2757591..2758073	-	160	146293476	-	Sputcn32_2380	-	hypothetical protein
2366	 44.06	0	2758175..2759377	+	400	146293477	-	Sputcn32_2381	-	acetate kinase
2367	 47.86	0	2759496..2761649	+	717	146293478	-	Sputcn32_2382	-	phosphate acetyltransferase
2368	 39.86	-1	2762132..2762560	+	142	146293479	-	Sputcn32_2383	-	hypothetical protein
2369	 41.18	0	2762684..2762887	-	67	146293480	-	Sputcn32_2384	-	hypothetical protein
2370	 44.70	0	2762993..2763907	-	304	146293481	-	Sputcn32_2385	-	hypothetical protein
2371	 41.46	0	2763915..2765021	-	368	146293482	-	Sputcn32_2386	-	hypothetical protein
2372	 41.67	0	2765119..2765490	+	123	146293483	folX	Sputcn32_2387	-	D-erythro-7,8-dihydroneopterin triphosphate 2'-epimerase
2373	 45.53	0	2765585..2766478	+	297	146293484	-	Sputcn32_2388	-	hypothetical protein
2374	 42.97	0	2766994..2768217	+	407	146293485	-	Sputcn32_2389	-	sodium/glutamate symporter
2375	 47.28	0	2768276..2770771	-	831	146293486	-	Sputcn32_2390	-	hypothetical protein
2376	 47.22	0	2770774..2771529	-	251	146293487	-	Sputcn32_2391	-	ABC transporter related
2377	 45.50	0	2771582..2772181	+	199	146293488	-	Sputcn32_2392	-	arylesterase
2378	 43.45	0	2772327..2773394	+	355	146293489	-	Sputcn32_2393	-	hypothetical protein
2379	 41.59	0	2773488..2774504	-	338	146293490	-	Sputcn32_2394	-	putative periplasmic protease
2380	 46.46	0	2774628..2777102	-	824	146293491	-	Sputcn32_2395	-	hypothetical protein
2381	 46.61	0	2777364..2778101	+	245	146293492	-	Sputcn32_2396	-	short chain dehydrogenase
2382	 45.44	0	2778149..2779123	-	324	146293493	-	Sputcn32_2397	-	hypothetical protein
2383	 50.46	+1	2779224..2780099	-	291	146293494	-	Sputcn32_2398	-	pseudouridine synthase
2384	 44.56	0	2780092..2780688	-	198	146293495	-	Sputcn32_2399	-	putative transcriptional regulator
44.78	MEAN

3.68	STD DEV
