IslandPath Analysis: Shewanella putrefaciens CN-32

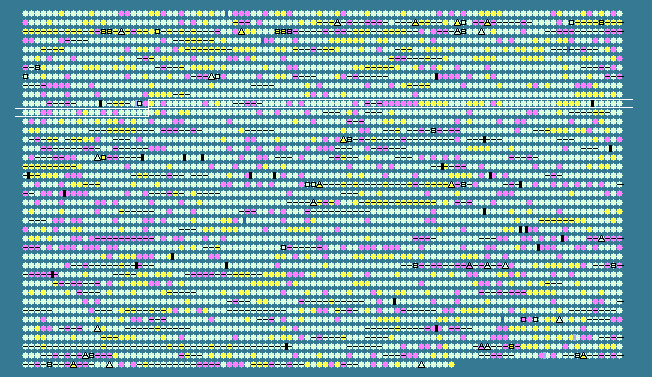

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 44.78 STD DEV: 3.68
Shewanella putrefaciens CN-32, complete genome - 1..4659220
3972 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1022	 48.49	+1	1149071..1150897	+	608	146292133	-	Sputcn32_1030	-	pyruvate carboxylase subunit B
1023	 46.15	0	1150906..1152036	+	376	146292134	-	Sputcn32_1031	-	sodium ion-translocating decarboxylase, beta subunit
1024	 37.50	-1	1152077..1152244	-	55	146292135	-	Sputcn32_1032	-	hypothetical protein
1025	 44.52	0	1152418..1153677	-	419	146292136	-	Sputcn32_1033	-	sodium:dicarboxylate symporter
1026	 43.90	0	1154052..1154477	+	141	146292137	-	Sputcn32_1034	-	hypothetical protein
1027	 44.23	0	1154627..1157461	+	944	146292138	-	Sputcn32_1035	-	peptidase M16 domain-containing protein
1028	 42.79	0	1157647..1159296	+	549	146292139	-	Sputcn32_1036	-	glutamate--cysteine ligase
1029	 45.95	0	1159314..1159757	+	147	146292140	-	Sputcn32_1037	-	hypothetical protein
1030	 44.34	0	1159765..1160382	+	205	146292141	-	Sputcn32_1038	-	hypothetical protein
1031	 40.03	-1	1160475..1161743	-	422	146292142	-	Sputcn32_1039	-	diguanylate cyclase
1032	 46.81	0	1161896..1162993	-	365	146292143	-	Sputcn32_1040	-	phosphoribosylaminoimidazole carboxylase ATPase subunit
1033	 49.39	+1	1162993..1163484	-	163	146292144	-	Sputcn32_1041	-	phosphoribosylaminoimidazole carboxylase, catalytic subunit
1034	 46.19	0	1163764..1165521	-	585	146292145	-	Sputcn32_1042	-	putative sulfate transporter YchM
1035	 43.27	0	1165724..1167625	+	633	146292146	-	Sputcn32_1043	-	von Willebrand factor, type A
1036	 44.06	0	1167712..1168317	+	201	146292147	-	Sputcn32_1044	-	ECF subfamily RNA polymerase sigma-24 factor
1037	 42.99	0	1168310..1169065	+	251	146292148	-	Sputcn32_1045	-	hypothetical protein
1038	 38.55	-1	1169287..1169823	+	178	146292149	-	Sputcn32_1046	-	hemerythrin HHE cation binding domain-containing protein
1039	 39.78	-1	1169917..1170102	-	61	146292150	-	Sputcn32_1047	-	hypothetical protein
1040	 44.02	0	1170319..1171956	-	545	146292151	pgi	Sputcn32_1048	-	glucose-6-phosphate isomerase
1041	 42.95	0	1171977..1172933	-	318	146292152	-	Sputcn32_1049	-	transaldolase B
1042	 43.60	0	1173183..1174283	-	366	146292153	-	Sputcn32_1050	-	OmpA/MotB domain-containing protein
1043	 42.71	0	1174537..1176903	-	788	146292154	-	Sputcn32_1051	-	putative phosphoketolase
1044	 42.88	0	1177331..1178776	+	481	146292155	-	Sputcn32_1052	-	amino acid carrier protein
1045	 39.02	-1	1178906..1179679	+	257	146292156	-	Sputcn32_1053	-	hypothetical protein
1046	 43.97	0	1179739..1181148	-	469	146292157	-	Sputcn32_1054	-	peptidase M28
1047	 39.06	-1	1181284..1181580	+	98	146292158	-	Sputcn32_1055	-	regulatory protein, ArsR
1048	 44.94	0	1181636..1181902	-	88	146292159	rpsT	Sputcn32_1056	-	30S ribosomal protein S20
1049	 42.69	0	1182155..1183714	+	519	146292160	-	Sputcn32_1057	-	integral membrane protein MviN
1050	 44.55	0	1183780..1184715	+	311	146292161	-	Sputcn32_1058	-	riboflavin biosynthesis protein RibF
1051	 46.72	0	1184748..1187570	+	940	146292162	-	Sputcn32_1059	-	isoleucyl-tRNA synthetase
1052	 43.02	0	1187580..1188095	+	171	146292163	-	Sputcn32_1060	-	lipoprotein signal peptidase
1053	 46.57	0	1188092..1188514	+	140	146292164	-	Sputcn32_1061	-	peptidylprolyl isomerase, FKBP-type
1054	 45.77	0	1188516..1189472	+	318	146292165	-	Sputcn32_1062	-	hydroxymethylbutenyl pyrophosphate reductase
1055	 43.48	0	1189689..1190240	+	183	146292166	-	Sputcn32_1063	-	type IV pilus modification protein PilV
1056	 39.94	-1	1190241..1191224	+	327	146292167	-	Sputcn32_1064	-	prepilin-type cleavage/methylation-like protein
1057	 43.45	0	1191237..1191671	+	144	146292168	-	Sputcn32_1065	-	type IV pilus assembly protein PilX
1058	 38.42	-1	1191676..1195173	+	1165	146292169	-	Sputcn32_1066	-	type IV pilin biogenesis protein, putative
1059	 42.24	0	1195180..1195572	+	130	146292170	-	Sputcn32_1067	-	methylation site containing protein
1060	 36.36	-2	1195569..1195865	+	98	146292171	-	Sputcn32_1068	-	hypothetical protein
1061	 37.24	-2	1195969..1196454	-	161	146292172	-	Sputcn32_1069	-	methylation site containing protein
1062	 38.60	-1	1196604..1197116	-	170	146292173	-	Sputcn32_1070	-	methylation site containing protein
1063	 41.00	-1	1197367..1197705	+	112	146292174	-	Sputcn32_1071	-	nitrogen regulatory protein P-II
1064	 40.93	-1	1197893..1199182	+	429	146292175	-	Sputcn32_1072	-	NADH dehydrogenase
1065	 39.33	-1	1199246..1200262	-	338	146292176	-	Sputcn32_1073	-	regulatory protein, LacI
1066	 39.48	-1	1200687..1203305	+	872	146292177	-	Sputcn32_1074	-	TonB-dependent receptor
1067	 48.28	0	1203560..1206262	+	900	146292178	-	Sputcn32_1075	-	Beta-N-acetylhexosaminidase
1068	 49.32	+1	1206463..1207419	+	318	146292179	-	Sputcn32_1076	-	ATPase, BadF/BadG/BcrA/BcrD type
1069	 50.65	+1	1207437..1208435	+	332	146292180	-	Sputcn32_1077	-	glutamine--fructose-6-phosphate transaminase (isomerizing)
1070	 52.14	+2	1208569..1209738	+	389	146292181	-	Sputcn32_1078	-	N-acetylglucosamine-6-phosphate deacetylase
1071	 48.57	+1	1209895..1211049	+	384	146292182	-	Sputcn32_1079	-	hypothetical protein
1072	 46.04	0	1211367..1212665	+	432	146292183	-	Sputcn32_1080	-	glucose/galactose transporter
1073	 44.67	0	1212789..1213511	-	240	146292184	-	Sputcn32_1081	-	hypothetical protein
1074	 44.54	0	1213695..1214060	-	121	146292185	-	Sputcn32_1082	-	protein of unknown function DUF861, cupin_3
1075	 51.78	+1	1214091..1215581	-	496	146292186	-	Sputcn32_1083	-	methylmalonate-semialdehyde dehydrogenase
1076	 50.15	+1	1215651..1216988	-	445	146292187	-	Sputcn32_1084	-	beta alanine--pyruvate transaminase
1077	 50.90	+1	1217269..1218765	+	498	146292188	-	Sputcn32_1085	-	aldehyde dehydrogenase
1078	 41.67	0	1219469..1219672	+	67	146292189	-	Sputcn32_1086	-	hypothetical protein
1079	 40.10	-1	1220859..1221272	+	137	146292190	-	Sputcn32_1087	-	rare lipoprotein A
1080	 49.42	+1	1221466..1222323	+	285	146292191	-	Sputcn32_1088	-	3-mercaptopyruvate sulfurtransferase
1081	 44.31	0	1222383..1222892	+	169	146292192	-	Sputcn32_1089	-	hypothetical protein
1082	 47.94	0	1223019..1224326	-	435	146292193	-	Sputcn32_1090	-	FAD dependent oxidoreductase
1083	 41.89	0	1224563..1225111	+	182	146292194	-	Sputcn32_1091	-	XRE family transcriptional regulator
1084	 47.11	0	1225519..1226280	+	253	146292195	-	Sputcn32_1092	-	peptidase C26
1085	 44.40	0	1226283..1227638	+	451	146292196	-	Sputcn32_1093	-	glutamate--ammonia ligase
1086	 41.69	0	1228259..1229359	+	366	146292197	-	Sputcn32_1094	-	extracellular solute-binding protein
1087	 45.29	0	1229534..1230670	+	378	146292198	-	Sputcn32_1095	-	spermidine/putrescine ABC transporter ATPase subunit
1088	 42.16	0	1230667..1231572	+	301	146292199	-	Sputcn32_1096	-	binding-protein-dependent transport systems inner membrane component
1089	 45.96	0	1231569..1232384	+	271	146292200	-	Sputcn32_1097	-	binding-protein-dependent transport systems inner membrane component
1090	 49.49	+1	1232642..1233928	+	428	146292201	-	Sputcn32_1098	-	FAD dependent oxidoreductase
1091	 49.34	+1	1233979..1235427	+	482	146292202	-	Sputcn32_1099	-	succinic semialdehyde dehydrogenase
1092	 51.88	+1	1235460..1236737	+	425	146292203	-	Sputcn32_1100	-	4-aminobutyrate aminotransferase
1093	 49.21	+1	1236884..1237891	-	335	146292204	-	Sputcn32_1101	-	luciferase family protein
1094	 46.86	0	1238409..1240049	-	546	146292205	-	Sputcn32_1102	-	amino acid/peptide transporter
1095	 43.00	0	1240308..1242428	+	706	146292206	-	Sputcn32_1103	-	methyl-accepting chemotaxis sensory transducer
1096	 45.92	0	1242929..1244779	-	616	146292207	-	Sputcn32_1104	-	RpoD family RNA polymerase sigma factor
1097	 44.75	0	1244910..1246634	-	574	146292208	-	Sputcn32_1105	-	DNA primase
1098	 46.85	0	1246718..1247161	-	147	146292209	-	Sputcn32_1106	-	GatB/Yqey domain-containing protein
1099	 44.91	0	1247168..1247383	-	71	146292210	rpsU	Sputcn32_1107	-	30S ribosomal protein S21
1100	 47.89	0	1247602..1248618	+	338	146292211	-	Sputcn32_1108	-	metalloendopeptidase glycoprotease family
1101	 46.24	0	1248697..1249308	-	203	146292212	-	Sputcn32_1109	-	putative glycerol-3-phosphate acyltransferase PlsY
1102	 42.74	0	1249577..1249927	+	116	146292213	-	Sputcn32_1110	-	dihydroneopterin aldolase
1103	 43.06	0	1250012..1250515	+	167	146292214	-	Sputcn32_1111	-	2-amino-4-hydroxy-6-hydroxymethyldihydropteridine pyrophosphokinase
1104	 40.07	-1	1250534..1251334	+	266	146292215	-	Sputcn32_1112	-	undecaprenyl pyrophosphate phosphatase
1105	 39.98	-1	1251419..1252276	+	285	146292216	-	Sputcn32_1113	-	rRNA (guanine-N(1)-)-methyltransferase
1106	 44.19	0	1252482..1252748	-	88	146292217	-	Sputcn32_1114	-	major outer membrane lipoprotein, putative
1107	 44.34	0	1252995..1254257	-	420	146292218	-	Sputcn32_1115	-	metal dependent phosphohydrolase
1108	 43.21	0	1254412..1256091	+	559	146292219	-	Sputcn32_1116	-	peptidoglycan binding domain-containing protein
1109	 45.51	0	1256091..1257158	+	355	146292220	-	Sputcn32_1117	-	general secretion pathway protein B
1110	 40.46	-1	1257219..1258466	-	415	146292221	-	Sputcn32_1118	-	citrate transporter
1111	 48.88	+1	1258880..1260172	-	430	146292222	-	Sputcn32_1119	-	glutamate-1-semialdehyde-2,1-aminomutase
1112	 45.88	0	1260199..1261218	-	339	146292223	-	Sputcn32_1120	-	aspartate carbamoyltransferase
1113	 46.61	0	1261442..1263166	-	574	146292224	-	Sputcn32_1121	-	Cl- channel, voltage-gated family protein
1114	 40.64	-1	1263240..1264046	+	268	146292225	-	Sputcn32_1122	-	hypothetical protein
1115	 45.58	0	1264039..1264389	+	116	146292226	-	Sputcn32_1123	-	iron-sulfur cluster insertion protein ErpA
1116	 39.41	-1	1264487..1264930	-	147	146292227	-	Sputcn32_1124	-	hypothetical protein
1117	 44.88	0	1264959..1265339	-	126	146292228	-	Sputcn32_1125	-	hypothetical protein
1118	 47.30	0	1265593..1266702	-	369	146292229	anmK	Sputcn32_1126	-	anhydro-N-acetylmuramic acid kinase
1119	 41.93	0	1266724..1268130	-	468	146292230	-	Sputcn32_1127	-	peptidase M23B
1120	 44.81	0	1268257..1269450	+	397	146292231	-	Sputcn32_1128	-	tyrosyl-tRNA synthetase
1121	 43.36	0	1269573..1270001	-	142	146292232	-	Sputcn32_1129	-	hypothetical protein
44.78	MEAN

3.68	STD DEV
