IslandPath Analysis: Shewanella pealeana ATCC 700345

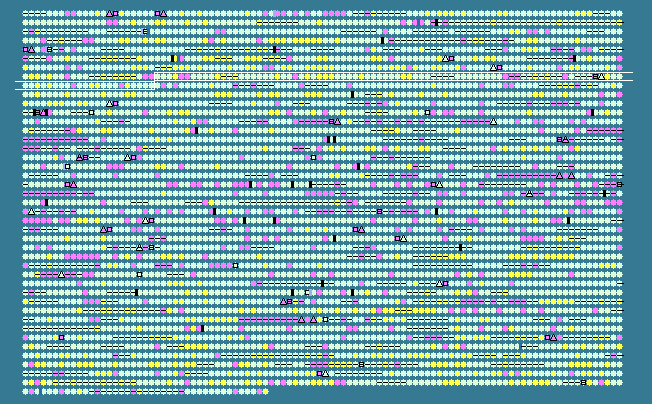

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 45.18   STD DEV: 3.28
Shewanella pealeana ATCC 700345, complete genome - 1..5174581
4241 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
723	 42.99	0	899535..900539	+	334	157960553	-	Spea_0725	-	basic membrane lipoprotein
724	 45.21	0	900666..902282	+	538	157960554	-	Spea_0726	-	ABC transporter related
725	 47.30	0	902279..903409	+	376	157960555	-	Spea_0727	-	inner-membrane translocator
726	 50.62	+1	903413..904378	+	321	157960556	-	Spea_0728	-	inner-membrane translocator
727	 37.65	-2	904899..905315	+	138	157960557	-	Spea_0729	-	hypothetical protein
728	 38.67	-1	905386..905985	+	199	157960558	-	Spea_0730	-	hypothetical protein
729	 47.68	0	906550..907539	-	329	157960559	-	Spea_0731	-	fructose-1,6-bisphosphatase
730	 48.60	+1	907792..910038	+	748	157960560	-	Spea_0732	-	peptidase S9B dipeptidylpeptidase IV subunit
731	 44.07	0	910471..911187	-	238	157960561	-	Spea_0733	-	two-component response regulator
732	 43.14	0	911749..912105	+	118	157960562	-	Spea_0734	-	hypothetical protein
733	 50.69	+1	912895..914265	+	456	157960563	-	Spea_0735	-	aspartate kinase III
734	 49.14	+1	914301..915407	+	368	157960564	-	Spea_0736	-	succinylglutamate desuccinylase/aspartoacylase
735	 45.24	0	915685..916146	-	153	157960565	-	Spea_0737	-	DNA-binding transcriptional regulator AsnC
736	 48.97	+1	916411..917088	-	225	157960566	-	Spea_0738	-	pseudouridine synthase
737	 47.42	0	917202..917492	-	96	157960567	-	Spea_0739	-	hypothetical protein
738	 47.13	0	917531..918052	-	173	157960568	-	Spea_0740	-	methyltransferase type 12
739	 47.20	0	918057..918467	-	136	157960569	-	Spea_0741	-	hypothetical protein
740	 47.07	0	919122..920111	+	329	157960570	-	Spea_0742	-	D-isomer specific 2-hydroxyacid dehydrogenase NAD-binding
741	 48.51	+1	920124..920861	+	245	157960571	-	Spea_0743	-	dienelactone hydrolase
742	 44.57	0	920984..921517	-	177	157960572	-	Spea_0744	-	hypothetical protein
743	 49.19	+1	921814..922557	+	247	157960573	-	Spea_0745	-	spermine synthase
744	 46.49	0	923053..923622	+	189	157960574	-	Spea_0746	-	alkyl hydroperoxide reductase/ Thiol specific antioxidant/ Mal allergen
745	 48.63	+1	923915..925489	+	524	157960575	-	Spea_0747	-	FAD-dependent pyridine nucleotide-disulphide oxidoreductase
746	 41.67	-1	925608..926735	+	375	157960576	-	Spea_0748	-	diguanylate cyclase
747	 47.98	0	926794..926991	-	65	157960577	-	Spea_0749	-	hypothetical protein
748	 49.16	+1	927428..928855	-	475	157960578	-	Spea_0750	-	hypothetical protein
749	 45.80	0	929175..929591	-	138	157960579	-	Spea_0751	-	hypothetical protein
750	 50.34	+1	930076..931251	+	391	157960580	-	Spea_0752	-	FAD dependent oxidoreductase
751	 49.75	+1	931409..932596	+	395	157960581	-	Spea_0753	-	chromate transporter
752	 51.24	+1	932673..936995	-	1440	157960582	-	Spea_0754	-	formate dehydrogenase, alpha subunit
753	 48.14	0	937293..938285	-	330	157960583	-	Spea_0755	-	Ion transport 2 domain-containing protein
754	 47.39	0	938835..939716	+	293	157960584	-	Spea_0756	-	peptide chain release factor 2
755	 46.88	0	939729..941234	+	501	157960585	-	Spea_0757	-	lysyl-tRNA synthetase
756	 47.02	0	941881..944400	+	839	157960586	-	Spea_0758	-	diguanylate cyclase/phosphodiesterase with PAS/PAC sensor(s)
757	 49.16	+1	944422..945015	-	197	157960587	-	Spea_0759	-	pseudouridine synthase
758	 46.09	0	945297..946088	+	263	157960588	-	Spea_0760	-	glucosamine-6-phosphate isomerase
759	 44.38	0	946690..947232	+	180	157960589	-	Spea_0761	-	hypothetical protein
760	 48.36	0	947312..947983	+	223	157960590	-	Spea_0762	-	nitroreductase
761	 45.60	0	948023..948340	+	105	157960591	-	Spea_0763	-	cupin family protein
762	 47.90	0	948489..950438	+	649	157960592	-	Spea_0764	-	peptidase U32
763	 42.93	0	950515..950889	+	124	157960593	-	Spea_0765	-	hypothetical protein
764	 51.45	+1	951008..951454	-	148	157960594	-	Spea_0766	-	Fe-S metabolism associated SufE
765	 50.25	+1	951760..952971	-	403	157960595	-	Spea_0767	-	SufS subfamily cysteine desulfurase
766	 48.47	+1	953172..954215	-	347	157960596	-	Spea_0768	-	aldo/keto reductase
767	 46.92	0	954341..955282	-	313	157960597	-	Spea_0769	-	MarR family transcriptional regulator
768	 48.52	+1	955376..955915	-	179	157960598	-	Spea_0770	-	NTPase
769	 43.36	0	956473..957759	+	428	157960599	-	Spea_0771	-	aromatic amino acid permease
770	 46.35	0	957934..959301	+	455	157960600	-	Spea_0772	-	L-serine dehydratase 1
771	 47.07	0	959385..959828	-	147	157960601	-	Spea_0773	-	GCN5-related N-acetyltransferase
772	 47.08	0	959968..960258	+	96	157960602	-	Spea_0774	-	hypothetical protein
773	 46.11	0	960429..961727	+	432	157960603	-	Spea_0775	-	sodium:dicarboxylate symporter
774	 43.00	0	962027..962440	-	137	157960604	-	Spea_0776	-	protein of unknown function DUF306 Meta and HslJ
775	 42.38	0	962519..962728	+	69	157960605	-	Spea_0777	-	hypothetical protein
776	 47.57	0	962918..963865	-	315	157960606	-	Spea_0778	-	diguanylate cyclase
777	 46.77	0	964148..964705	+	185	157960607	-	Spea_0779	-	GCN5-related N-acetyltransferase
778	 42.74	0	964714..965064	+	116	157960608	-	Spea_0780	-	hypothetical protein
779	 41.71	-1	965349..965885	-	178	157960609	-	Spea_0781	-	hypothetical protein
780	 44.64	0	966376..967074	+	232	157960610	-	Spea_0782	-	hypothetical protein
781	 37.25	-2	967539..968558	-	339	157960611	-	Spea_0783	-	hypothetical protein
782	 41.18	-1	969568..970395	+	275	157960612	-	Spea_0784	-	hypothetical protein
783	 40.58	-1	970701..971528	+	275	157960613	-	Spea_0785	-	hypothetical protein
784	 44.73	0	971651..972124	-	157	157960614	-	Spea_0786	-	GCN5-related N-acetyltransferase
785	 47.71	0	972502..973656	-	384	157960615	-	Spea_0787	-	S-adenosylmethionine synthetase
786	 49.05	+1	974163..976154	+	663	157960616	-	Spea_0788	-	transketolase
787	 47.35	0	976253..977272	+	339	157960617	-	Spea_0789	-	erythrose 4-phosphate dehydrogenase
788	 50.17	+1	977642..978817	+	391	157960618	-	Spea_0790	-	phosphoglycerate kinase
789	 48.45	0	979126..980190	+	354	157960619	-	Spea_0791	-	fructose-1,6-bisphosphate aldolase
790	 44.53	0	980408..981148	+	246	157960620	-	Spea_0792	-	hypothetical protein
791	 38.15	-2	981469..982215	+	248	157960621	-	Spea_0793	-	putative transcriptional regulator, CadC
792	 42.47	0	982334..982738	+	134	157960622	-	Spea_0794	-	hypothetical protein
793	 45.40	0	982985..984418	+	477	157960623	-	Spea_0795	-	hypothetical protein
794	 46.31	0	984632..986851	-	739	157960624	-	Spea_0796	-	putative diguanylate cyclase
795	 46.80	0	986977..987585	-	202	157960625	-	Spea_0797	-	radical SAM domain-containing protein
796	 41.41	-1	987772..988155	+	127	157960626	-	Spea_0798	-	transposase
797	 43.62	0	988272..989000	+	242	157960627	-	Spea_0799	-	integrase catalytic region
798	 48.74	+1	989039..992185	-	1048	157960628	-	Spea_0800	-	acriflavin resistance protein
799	 47.22	0	992185..993444	-	419	157960629	-	Spea_0801	-	RND family efflux transporter MFP subunit
800	 47.41	0	993624..994859	-	411	157960630	-	Spea_0802	-	ATP-dependent RNA helicase SrmB
801	 48.43	0	994929..995723	-	264	157960631	-	Spea_0803	-	methyltransferase small
802	 44.54	0	996241..997587	+	448	157960632	-	Spea_0804	-	branched-chain amino acid transport system II carrier protein
803	 51.27	+1	998105..999007	+	300	157960633	-	Spea_0805	-	tyrosine recombinase XerD
804	 45.73	0	999232..999957	+	241	157960634	-	Spea_0806	-	thiol:disulfide interchange protein DsbC
805	 51.36	+1	1000125..1001849	+	574	157960635	-	Spea_0807	-	single-stranded-DNA-specific exonuclease RecJ
806	 44.17	0	1002397..1002876	-	159	157960636	-	Spea_0808	-	AsnC family transcriptional regulator
807	 45.24	0	1003095..1004396	+	433	157960637	-	Spea_0809	-	hypothetical protein
808	 44.17	0	1005284..1006612	+	442	157960638	-	Spea_0810	-	serine transporter
809	 32.75	-2	1007342..1008724	+	460	157960639	-	Spea_0811	-	hypothetical protein
810	 46.62	0	1008854..1009267	+	137	157960640	-	Spea_0812	-	NUDIX hydrolase
811	 48.27	0	1009716..1011041	-	441	157960641	-	Spea_0813	-	FAD dependent oxidoreductase
812	 49.81	+1	1011167..1012198	-	343	157960642	-	Spea_0814	-	AraC family transcriptional regulator
813	 48.94	+1	1012326..1012940	+	204	157960643	-	Spea_0815	-	lysine exporter protein LysE/YggA
814	 46.21	0	1013154..1013813	-	219	157960644	-	Spea_0816	-	ribose-5-phosphate isomerase A
815	 48.47	+1	1014119..1015063	+	314	157960645	-	Spea_0817	-	hypothetical protein
816	 47.72	0	1015117..1016256	+	379	157960646	-	Spea_0818	-	endonuclease/exonuclease/phosphatase
817	 41.46	-1	1016282..1016761	-	159	157960647	-	Spea_0819	-	MORN repeat-containing protein
818	 51.19	+1	1016981..1018750	+	589	157960648	-	Spea_0820	-	alkaline phosphatase
819	 44.56	0	1019275..1019835	+	186	157960649	-	Spea_0821	-	phosphoribosyltransferase
820	 46.48	0	1020216..1020428	-	70	157960650	-	Spea_0822	-	hypothetical protein
821	 48.35	0	1020859..1023528	-	889	157960651	-	Spea_0823	-	aminopeptidase N
822	 42.90	0	1023747..1024352	-	201	157960652	-	Spea_0824	-	membrane lipoprotein lipid attachment site
45.18	MEAN

3.28	STD DEV
