IslandPathversion 1.0

IslandPath Analysis: Shewanella pealeana ATCC 700345

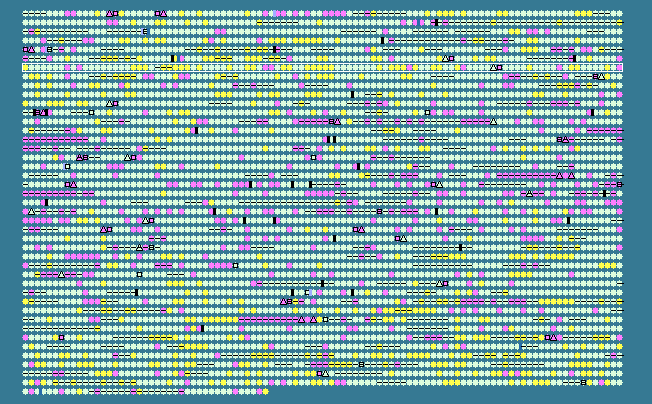

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 45.18 STD DEV: 3.28
Shewanella pealeana ATCC 700345, complete genome - 1..5174581
4241 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
601	 50.44	+1	740018..740584	-	188	157960431	-	Spea_0602	-	protein of unknown function DUF335 SprT
602	 48.32	0	740862..742022	-	386	157960432	-	Spea_0603	-	hypothetical protein
603	 46.93	0	742513..743424	-	303	157960433	-	Spea_0604	-	LysR family transcriptional regulator
604	 46.55	0	743547..748100	+	1517	157960434	-	Spea_0605	-	carbamoyl-phosphate synthase L chain ATP-binding
605	 47.63	0	748187..749431	-	414	157960435	-	Spea_0606	-	sodium/hydrogen exchanger
606	 43.54	0	749576..750388	-	270	157960436	-	Spea_0607	-	hypothetical protein
607	 43.19	0	750412..751557	-	381	157960437	-	Spea_0608	-	UDP-galactopyranose mutase
608	 40.00	-1	752424..753128	+	234	157960438	-	Spea_0609	-	sporulation domain-containing protein
609	 42.86	0	753282..753911	+	209	157960439	-	Spea_0610	-	hypothetical protein
610	 38.89	-1	753974..754423	+	149	157960440	-	Spea_0611	-	hypothetical protein
611	 42.86	0	754521..755360	+	279	157960441	-	Spea_0612	-	hypothetical protein
612	 42.
