IslandPathversion 1.0

IslandPath Analysis: Shewanella pealeana ATCC 700345

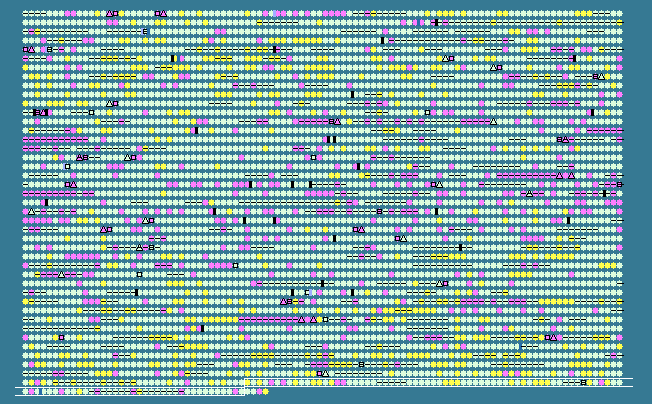

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 45.18 STD DEV: 3.28
Shewanella pealeana ATCC 700345, complete genome - 1..5174581
4241 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
4138	 50.08	+1	5048487..5049113	+	208	157963968	-	Spea_4157	-	lysine exporter protein LysE/YggA
4139	 45.56	0	5049203..5050462	-	419	157963969	-	Spea_4158	-	MscS mechanosensitive ion channel
4140	 49.53	+1	5050651..5051187	+	178	157963970	-	Spea_4159	-	hypothetical protein
4141	 43.75	0	5051557..5052708	+	383	157963971	-	Spea_4160	-	iron-containing alcohol dehydrogenase
4142	 41.41	-1	5052776..5053171	+	131	157963972	-	Spea_4161	-	hypothetical protein
4143	 46.61	0	5053349..5054011	+	220	157963973	-	Spea_4162	-	hypothetical protein
4144	 40.76	-1	5054242..5054982	+	246	157963974	-	Spea_4163	-	hypothetical protein
4145	 46.67	0	5055063..5056082	+	339	157963975	-	Spea_4164	-	1-aminocyclopropane-1-carboxylate deaminase
4146	 49.54	+1	5056193..5057599	+	468	157963976	-	Spea_4165	-	Na+/H+ antiporter NhaC
4147	 46.25	0	5057672..5058058	+	128	157963977	-	Spea_4166	-	putative endoribonuclease L-PSP
4148	 46.95	0	5058192..5059094	-	300	157963978	-	Spea_4167
