IslandPath Analysis: Shewanella pealeana ATCC 700345

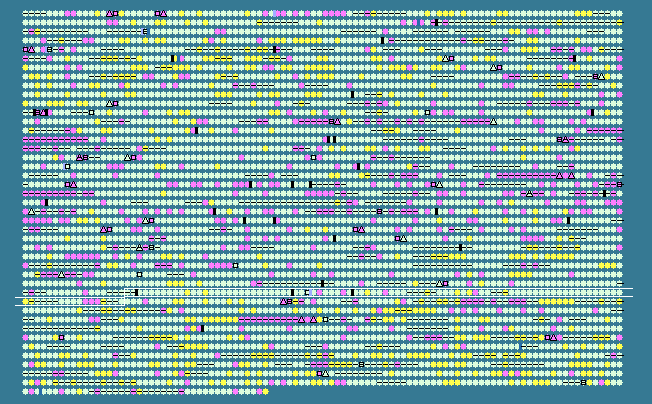

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 45.18   STD DEV: 3.28
Shewanella pealeana ATCC 700345, complete genome - 1..5174581
4241 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
3118	 42.25	0	3834174..3834599	-	141	157962948	-	Spea_3131	-	hypothetical protein
3119	 41.97	0	3834636..3835052	-	138	157962949	-	Spea_3132	-	hypothetical protein
3120	 45.05	0	3837555..3838646	-	363	157962950	-	Spea_3133	-	translation-associated GTPase
3121	 46.09	0	3838700..3839326	-	208	157962951	-	Spea_3134	-	peptidyl-tRNA hydrolase
3122	 47.33	0	3839549..3840748	-	399	157962952	-	Spea_3135	-	UbiH/UbiF/VisC/COQ6 family ubiquinone biosynthesis hydroxylase
3123	 46.03	0	3841058..3841372	+	104	157962953	-	Spea_3136	-	hypothetical protein
3124	 44.47	0	3841468..3842895	+	475	157962954	-	Spea_3137	-	tRNA-i(6)A37 thiotransferase enzyme MiaB
3125	 46.78	0	3843057..3844097	+	346	157962955	-	Spea_3138	-	PhoH family protein
3126	 43.10	0	3844090..3844560	+	156	157962956	-	Spea_3139	-	putative metalloprotease
3127	 44.44	0	3844588..3845469	+	293	157962957	-	Spea_3140	-	CBS domain-containing protein
3128	 48.89	+1	3845509..3847044	+	511	157962958	-	Spea_3
