IslandPath Analysis: Shewanella pealeana ATCC 700345

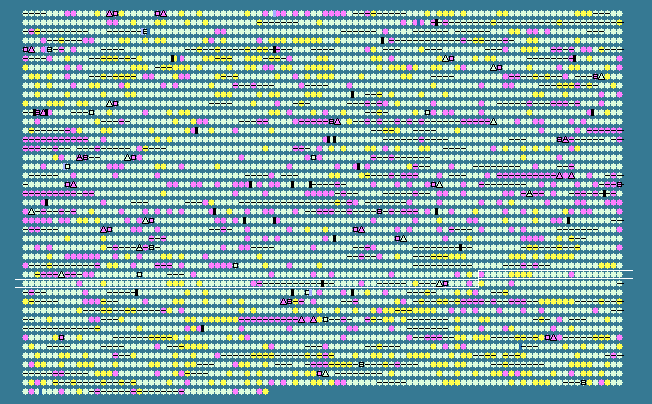

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 45.18   STD DEV: 3.28
Shewanella pealeana ATCC 700345, complete genome - 1..5174581
4241 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2977	 40.56	-1	3661548..3661796	+	82	157962807	-	Spea_2989	-	exodeoxyribonuclease VII, small subunit
2978	 47.28	0	3661797..3662678	+	293	157962808	-	Spea_2990	-	polyprenyl synthetase
2979	 48.12	0	3662701..3664566	+	621	157962809	-	Spea_2991	-	1-deoxy-D-xylulose-5-phosphate synthase
2980	 44.28	0	3664697..3665299	-	200	157962810	-	Spea_2992	-	GrpE protein
2981	 46.87	0	3665400..3666278	+	292	157962811	-	Spea_2993	-	ATP-NAD/AcoX kinase
2982	 48.72	+1	3666988..3668631	+	547	157962812	-	Spea_2994	-	L-lactate permease
2983	 50.00	+1	3668740..3671559	+	939	157962813	-	Spea_2995	-	FAD linked oxidase domain-containing protein
2984	 49.06	+1	3671949..3672692	+	247	157962814	-	Spea_2996	-	hypothetical protein
2985	 49.93	+1	3672701..3674074	+	457	157962815	-	Spea_2997	-	hypothetical protein
2986	 47.37	0	3674079..3674648	+	189	157962816	-	Spea_2998	-	hypothetical protein
2987	 42.99	0	3674780..3675970	-	396	157962817	-	Spea_2999	-	TonB family protein
2988
