IslandPath Analysis: Shewanella pealeana ATCC 700345

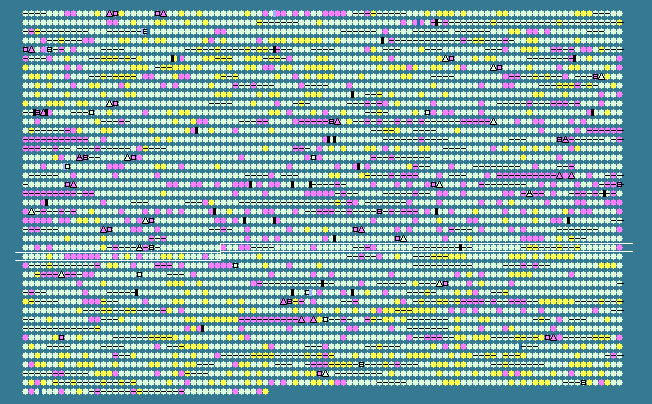

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 45.18 STD DEV: 3.28
Shewanella pealeana ATCC 700345, complete genome - 1..5174581
4241 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2634	 40.82	-1	3220520..3221053	-	177	157962464	-	Spea_2643	-	GCN5-related N-acetyltransferase
2635	 44.09	0	3221088..3221366	-	92	157962465	-	Spea_2644	-	PpiC-type peptidyl-prolyl cis-trans isomerase
2636	 44.24	0	3221500..3223332	-	610	157962466	-	Spea_2645	-	hypothetical protein
2637	 39.15	-1	3223402..3223917	+	171	157962467	-	Spea_2646	-	diguanylate cyclase
2638	 41.35	-1	3223991..3225238	-	415	157962468	-	Spea_2647	-	tetratricopeptide domain-containing protein
2639	 45.09	0	3225241..3225861	-	206	157962469	-	Spea_2648	-	TonB family protein
2640	 44.69	0	3225863..3226267	-	134	157962470	-	Spea_2649	-	biopolymer transport protein ExbD/TolR
2641	 46.29	0	3226281..3226805	-	174	157962471	-	Spea_2650	-	MotA/TolQ/ExbB proton channel
2642	 44.32	0	3226805..3228160	-	451	157962472	-	Spea_2651	-	MotA/TolQ/ExbB proton channel
2643	 43.81	0	3228160..3228942	-	260	157962473	-	Spea_2652	-	hypothetical protein
2644	 43.27	0	3229718..3232564	-	948	157962474
