IslandPathversion 1.0

IslandPath Analysis: Shewanella pealeana ATCC 700345

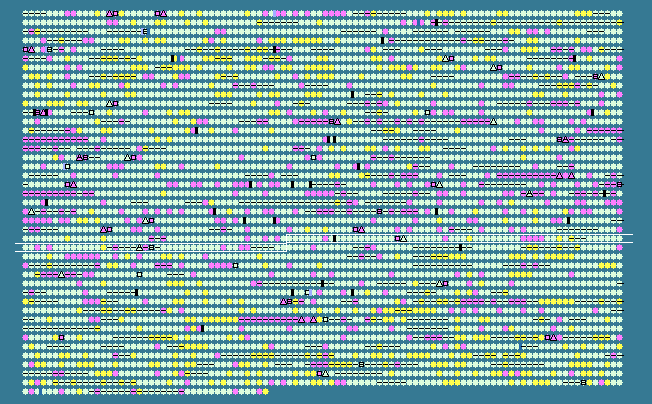

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 45.18 STD DEV: 3.28
Shewanella pealeana ATCC 700345, complete genome - 1..5174581
4241 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2545	 43.48	0	3107611..3108270	+	219	157962375	-	Spea_2554	-	two component LuxR family transcriptional regulator
2546	 46.05	0	3108354..3109643	-	429	157962376	-	Spea_2555	-	FAD dependent oxidoreductase
2547	 47.45	0	3109992..3110324	+	110	157962377	-	Spea_2556	-	hypothetical protein
2548	 45.23	0	3110390..3113818	-	1142	157962378	-	Spea_2557	-	histidine kinase
2549	 48.13	0	3113995..3115947	+	650	157962379	-	Spea_2558	-	acetyl-CoA synthetase
2550	 43.37	0	3116131..3117873	+	580	157962380	-	Spea_2559	-	type III restriction protein res subunit
2551	 39.70	-1	3117970..3118236	+	88	157962381	-	Spea_2560	-	glutaredoxin 1
2552	 42.81	0	3118298..3119458	-	386	157962382	-	Spea_2561	-	porin
2553	 42.15	0	3122035..3122760	-	241	157962383	-	Spea_2562	-	Tol-Pal system YbgF
2554	 43.70	0	3122785..3123324	-	179	157962384	-	Spea_2563	-	peptidoglycan-associated lipoprotein
2555	 46.41	0	3123349..3124671	-	440	157962385	-	Spea_2564	-	beta-propeller repeat-containi
