IslandPath Analysis: Shewanella pealeana ATCC 700345

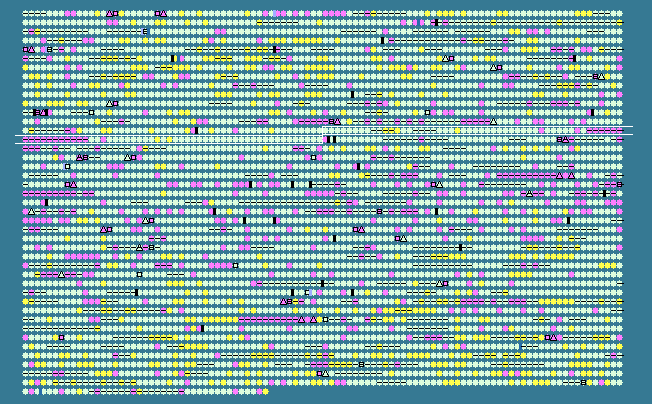

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 45.18 STD DEV: 3.28
Shewanella pealeana ATCC 700345, complete genome - 1..5174581
4241 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1351	 42.19	0	1649673..1650146	+	157	157961181	-	Spea_1353	-	flagellar protein FlaG protein
1352	 44.79	0	1650241..1651602	+	453	157961182	-	Spea_1354	-	flagellar hook-associated 2 domain-containing protein
1353	 42.06	0	1651749..1652126	+	125	157961183	-	Spea_1355	-	hypothetical protein
1354	 42.29	0	1652133..1652534	+	133	157961184	-	Spea_1356	-	flagellar protein FliS
1355	 44.42	0	1652848..1654281	+	477	157961185	-	Spea_1357	-	sigma-54 dependent trancsriptional regulator
1356	 46.42	0	1654839..1655954	+	371	157961186	-	Spea_1358	-	PAS/PAC sensor signal transduction histidine kinase
1357	 48.26	0	1655947..1657299	+	450	157961187	-	Spea_1359	-	two component, sigma54 specific, Fis family transcriptional regulator
1358	 43.24	0	1657813..1658145	+	110	157961188	-	Spea_1360	-	flagellar hook-basal body complex subunit FliE
1359	 48.03	0	1658188..1659888	+	566	157961189	-	Spea_1361	-	flagellar MS-ring protein
1360	 46.19	0	1659878..1660927	+	349	157961190	-	Spea_1362	-	flagellar motor switch protein G
1361	 49.00	+1	1660927..1661877	+	316	157961191	-	Spea_1363	-	flagellar assembly protein FliH
1362	 52.50	+2	1661849..1663189	+	446	157961192	-	Spea_1364	-	flagellum-specific ATP synthase
1363	 49.44	+1	1663244..1663690	+	148	157961193	-	Spea_1365	-	flagellar export protein FliJ
1364	 47.28	0	1663908..1665434	+	508	157961194	-	Spea_1366	-	flagellar hook-length control protein
1365	 46.63	0	1665511..1666029	+	172	157961195	-	Spea_1367	-	flagellar basal body-associated protein FliL
1366	 46.55	0	1666098..1667126	+	342	157961196	-	Spea_1368	-	flagellar motor switch protein FliM
1367	 45.93	0	1667139..1667519	+	126	157961197	-	Spea_1369	-	flagellar motor switch protein
1368	 47.47	0	1667547..1667921	+	124	157961198	-	Spea_1370	-	flagellar biosynthesis protein FliO
1369	 43.47	0	1667932..1668681	+	249	157961199	-	Spea_1371	-	flagellar biosynthesis protein FliP
1370	 44.07	0	1668689..1668958	+	89	157961200	-	Spea_1372	-	flagellar biosynthetic protein FliQ
1371	 48.19	0	1668997..1669797	+	266	157961201	-	Spea_1373	-	flagellar biosynthesis protein FliR
1372	 48.32	0	1669939..1671072	+	377	157961202	-	Spea_1374	-	flagellar biosynthesis protein FlhB
1373	 49.81	+1	1671339..1673438	+	699	157961203	-	Spea_1375	-	flagellar biosynthesis protein FlhA
1374	 44.66	0	1673450..1674862	+	470	157961204	-	Spea_1376	-	flagellar biosynthesis regulator FlhF
1375	 46.37	0	1674867..1675748	+	293	157961205	-	Spea_1377	-	cobyrinic acid ac-diamide synthase
1376	 46.67	0	1675741..1676460	+	239	157961206	-	Spea_1378	-	flagellar biosynthesis sigma factor
1377	 44.85	0	1676497..1676904	+	135	157961207	-	Spea_1379	-	response regulator receiver protein
1378	 41.87	-1	1676918..1677655	+	245	157961208	-	Spea_1380	-	chemotaxis phosphatase, CheZ
1379	 46.36	0	1677668..1679893	+	741	157961209	-	Spea_1381	-	CheA signal transduction histidine kinase
1380	 47.88	0	1679983..1681164	+	393	157961210	-	Spea_1382	-	chemotaxis-specific methylesterase
1381	 43.67	0	1681157..1681843	+	228	157961211	-	Spea_1383	-	hypothetical protein
1382	 44.32	0	1681984..1682775	+	263	157961212	-	Spea_1384	-	cobyrinic acid ac-diamide synthase
1383	 45.32	0	1682759..1683676	+	305	157961213	-	Spea_1385	-	CheW protein
1384	 42.89	0	1684185..1684676	+	163	157961214	-	Spea_1386	-	CheW protein
1385	 45.19	0	1685059..1685463	+	134	157961215	-	Spea_1387	-	hypothetical protein
1386	 47.90	0	1685881..1686189	-	102	157961216	-	Spea_1388	-	FlhB domain-containing protein
1387	 41.18	-1	1686216..1687718	-	500	157961217	-	Spea_1389	-	hypothetical protein
1388	 44.40	0	1688215..1688982	+	255	157961218	-	Spea_1390	-	VacJ family lipoprotein
1389	 42.28	0	1689078..1690184	+	368	157961219	-	Spea_1391	-	response regulator receiver protein
1390	 44.49	0	1690742..1692247	-	501	157961220	-	Spea_1393	-	amino acid/peptide transporter
1391	 44.06	0	1692692..1693213	+	173	157961221	-	Spea_1394	-	transcriptional acivator RfaH
1392	 44.13	0	1694703..1697498	+	931	157961222	-	Spea_1395	-	polysaccharide export protein
1393	 40.28	-1	1697589..1697948	+	119	157961223	-	Spea_1396	-	hypothetical protein
1394	 43.25	0	1698048..1699025	+	325	157961224	-	Spea_1397	-	lipopolysaccharide biosynthesis protein
1395	 40.35	-1	1699269..1700366	+	365	157961225	-	Spea_1398	-	dTDP-glucose 4,6 dehydratase
1396	 36.66	-2	1700366..1701238	+	290	157961226	-	Spea_1399	-	glucose-1-phosphate thymidylyltransferase
1397	 33.08	-2	1701235..1701633	+	132	157961227	-	Spea_1400	-	WxcM domain-containing protein
1398	 28.54	-2	1701618..1702076	+	152	157961228	-	Spea_1401	-	GCN5-related N-acetyltransferase
1399	 30.85	-2	1702078..1703004	+	308	157961229	-	Spea_1402	-	hypothetical protein
1400	 35.84	-2	1703001..1704116	+	371	157961230	-	Spea_1403	-	DegT/DnrJ/EryC1/StrS aminotransferase
1401	 35.42	-2	1704129..1707101	+	990	157961231	-	Spea_1404	-	hypothetical protein
1402	 36.03	-2	1707098..1707727	+	209	157961232	-	Spea_1405	-	peptidase C26
1403	 36.11	-2	1707724..1708515	+	263	157961233	-	Spea_1406	-	nucleotidyl transferase
1404	 31.72	-2	1708496..1709797	+	433	157961234	-	Spea_1407	-	CDP-glycerol:poly(glycerophosphate) glycerophosphotransferase
1405	 34.92	-2	1709809..1711257	+	482	157961235	-	Spea_1408	-	polysaccharide biosynthesis protein
1406	 33.61	-2	1711365..1712435	+	356	157961236	-	Spea_1409	-	glycosyl transferase group 1
1407	 32.36	-2	1712484..1713719	+	411	157961237	-	Spea_1410	-	hypothetical protein
1408	 32.49	-2	1713709..1714659	+	316	157961238	-	Spea_1411	-	glycosyl transferase family protein
1409	 34.38	-2	1714661..1715428	+	255	157961239	-	Spea_1412	-	glycosyl transferase family protein
1410	 37.20	-2	1715486..1716649	+	387	157961240	-	Spea_1413	-	DegT/DnrJ/EryC1/StrS aminotransferase
1411	 34.34	-2	1716642..1717238	+	198	157961241	-	Spea_1414	-	sugar transferase
1412	 44.44	0	1718393..1720336	+	647	157961242	-	Spea_1416	-	polysaccharide biosynthesis protein CapD
1413	 44.00	0	1720905..1722413	-	502	157961243	-	Spea_1417	-	RNA-metabolising metallo-beta-lactamase
1414	 40.70	-1	1722866..1724032	+	388	157961244	-	Spea_1418	-	UDP-glucose 6-dehydrogenase
1415	 42.04	0	1724390..1725400	+	336	157961245	-	Spea_1419	-	NAD-dependent epimerase/dehydratase
1416	 45.61	0	1725678..1726247	+	189	157961246	-	Spea_1420	-	dTDP-4-dehydrorhamnose 3,5-epimerase
1417	 43.58	0	1726537..1727736	-	399	157961247	-	Spea_1421	-	CDP-glycerol:poly(glycerophosphate) glycerophosphotransferase
1418	 43.64	0	1727790..1728245	-	151	157961248	-	Spea_1422	-	glycerol-3-phosphate cytidylyltransferase
1419	 44.19	0	1728315..1729742	-	475	157961249	-	Spea_1423	-	nucleotidyl transferase
1420	 44.75	0	1729753..1731924	-	723	157961250	-	Spea_1424	-	WecB/TagA/CpsF family glycosyl transferase
1421	 45.53	0	1732177..1733250	-	357	157961251	-	Spea_1425	-	glycosyl transferase family protein
1422	 47.08	0	1733240..1734607	-	455	157961252	-	Spea_1426	-	polysaccharide biosynthesis protein
1423	 49.92	+1	1735201..1736448	-	415	157961253	-	Spea_1427	-	hypothetical protein
1424	 47.62	0	1736406..1737812	-	468	157961254	-	Spea_1428	-	hypothetical protein
1425	 48.70	+1	1737840..1739147	-	435	157961255	-	Spea_1429	-	polysaccharide export protein
1426	 43.72	0	1739159..1739524	-	121	157961256	-	Spea_1430	-	anti-sigma-factor antagonist
1427	 43.33	0	1740203..1740592	-	129	157961257	-	Spea_1431	-	putative anti-sigma regulatory factor, serine/threonine protein kinase
1428	 44.85	0	1740608..1741831	-	407	157961258	-	Spea_1432	-	response regulator receiver modulated serine phosphatase
1429	 47.92	0	1742026..1742889	+	287	157961259	-	Spea_1433	-	phosphonate ABC transporter, periplasmic phosphonate-binding protein
1430	 44.90	0	1742889..1746449	+	1186	157961260	-	Spea_1434	-	multi-sensor hybrid histidine kinase
1431	 46.16	0	1746558..1748054	+	498	157961261	-	Spea_1435	-	two component, sigma54 specific, Fis family transcriptional regulator
1432	 45.85	0	1748151..1748933	+	260	157961262	-	Spea_1436	-	putative hydrolase
1433	 45.42	0	1748985..1750076	+	363	157961263	-	Spea_1437	-	dTDP-4-dehydrorhamnose reductase
1434	 48.53	+1	1750387..1751853	-	488	157961264	-	Spea_1438	-	hypothetical protein
1435	 47.40	0	1752143..1754695	+	850	157961265	-	Spea_1439	-	glycoside hydrolase family 3 protein
1436	 46.26	0	1754834..1755622	+	262	157961266	-	Spea_1440	-	3'(2'),5'-bisphosphate nucleotidase
1437	 47.68	0	1755727..1756632	+	301	157961267	-	Spea_1441	-	fructokinase
1438	 46.69	0	1756797..1757567	+	256	157961268	-	Spea_1442	-	hypothetical protein
1439	 44.89	0	1757890..1758564	+	224	157961269	-	Spea_1443	-	hypothetical protein
1440	 42.72	0	1758685..1759110	-	141	157961270	-	Spea_1444	-	hypothetical protein
1441	 48.54	+1	1759212..1759691	-	159	157961271	-	Spea_1445	-	ferredoxin-type protein NapF
1442	 45.69	0	1759867..1760886	-	339	157961272	-	Spea_1446	-	UDP-glucose 4-epimerase
1443	 45.10	0	1760970..1761878	-	302	157961273	-	Spea_1447	-	UTP-glucose-1-phosphate uridylyltransferase
1444	 45.33	0	1762393..1763184	+	263	157961274	-	Spea_1448	-	phenylalanine 4-monooxygenase
1445	 46.02	0	1763267..1763605	+	112	157961275	-	Spea_1449	-	pterin-4-alpha-carbinolamine dehydratase
1446	 45.46	0	1763886..1765427	+	513	157961276	-	Spea_1450	-	transcriptional regulator, TyrR
1447	 46.91	0	1765708..1766694	+	328	157961277	-	Spea_1451	-	fumarylacetoacetate (FAA) hydrolase
1448	 45.31	0	1766811..1767461	+	216	157961278	-	Spea_1452	-	maleylacetoacetate isomerase
1449	 45.58	0	1767553..1768434	-	293	157961279	-	Spea_1453	-	LysR family transcriptional regulator
1450	 43.25	0	1768643..1769872	+	409	157961280	-	Spea_1454	-	major facilitator transporter
45.18	MEAN

3.28	STD DEV
