IslandPath Analysis: Shewanella pealeana ATCC 700345

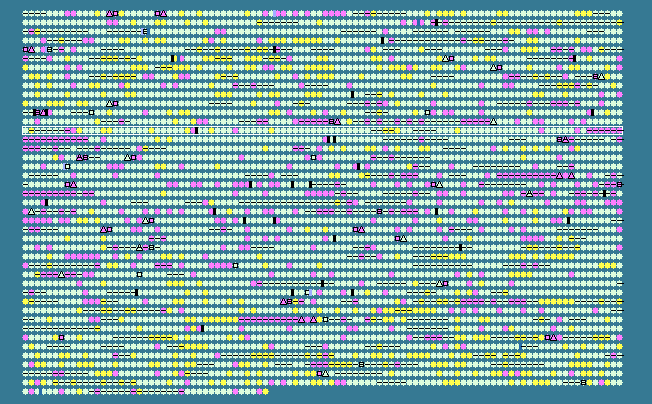

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 45.18 STD DEV: 3.28
Shewanella pealeana ATCC 700345, complete genome - 1..5174581
4241 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1301	 44.44	0	1587365..1588165	+	266	157961131	-	Spea_1303	-	type IV pilus biogenesis/stability protein PilW
1302	 48.76	+1	1588165..1589130	+	321	157961132	-	Spea_1304	-	hypothetical protein
1303	 46.95	0	1589152..1590267	+	371	157961133	-	Spea_1305	-	4-hydroxy-3-methylbut-2-en-1-yl diphosphate synthase
1304	 46.90	0	1590407..1591681	+	424	157961134	-	Spea_1306	-	histidyl-tRNA synthetase
1305	 44.28	0	1591696..1592316	+	206	157961135	-	Spea_1307	-	tetratricopeptide TPR_4
1306	 46.38	0	1592328..1593515	+	395	157961136	-	Spea_1308	-	outer membrane protein assembly complex subunit YfgL
1307	 48.47	+1	1593602..1595074	+	490	157961137	-	Spea_1309	-	GTP-binding protein EngA
1308	 40.00	-1	1595153..1595872	-	239	157961138	-	Spea_1310	-	hypothetical protein
1309	 39.42	-1	1596103..1597005	-	300	157961139	-	Spea_1311	-	hypothetical protein
1310	 50.30	+1	1597820..1599157	-	445	157961140	-	Spea_1312	-	exodeoxyribonuclease VII large subunit
1311	 46.84	0	1599278..1600750	+	490	157961141	-	Spea_1313	-	inositol-5-monophosphate dehydrogenase
1312	 46.70	0	1600874..1602451	+	525	157961142	-	Spea_1314	-	bifunctional GMP synthase/glutamine amidotransferase protein
1313	 48.17	0	1602580..1603071	+	163	157961143	-	Spea_1315	-	CMP/dCMP deaminase zinc-binding
1314	 48.96	+1	1603486..1604925	-	479	157961144	-	Spea_1316	-	lytic transglycosylase catalytic
1315	 49.69	+1	1605218..1609099	+	1293	157961145	-	Spea_1317	-	phosphoribosylformylglycinamidine synthase
1316	 45.41	0	1610325..1611881	+	518	157961146	-	Spea_1318	-	cytochrome bd ubiquinol oxidase subunit I
1317	 46.14	0	1611897..1613036	+	379	157961147	-	Spea_1319	-	cytochrome d ubiquinol oxidase, subunit II
1318	 42.74	0	1613052..1613168	+	38	157961148	-	Spea_1320	-	cyd operon protein YbgT
1319	 43.11	0	1613671..1614243	-	190	157961149	-	Spea_1321	-	hypothetical protein
1320	 47.90	0	1614466..1616469	-	667	157961150	-	Spea_1322	-	methyl-accepting chemotaxis sensory transducer
1321	 43.14	0	1616760..1617014	+	84	157961151	-	Spea_1323	-	hypothetical protein
1322	 51.17	+1	1616998..1620114	-	1038	157961152	-	Spea_1324	-	acriflavin resistance protein
1323	 47.26	0	1620120..1621232	-	370	157961153	-	Spea_1325	-	RND family efflux transporter MFP subunit
1324	 46.44	0	1621419..1622036	+	205	157961154	-	Spea_1326	-	TetR family transcriptional regulator
1325	 47.57	0	1622099..1622674	-	191	157961155	-	Spea_1327	-	hypothetical protein
1326	 43.75	0	1622706..1623185	-	159	157961156	-	Spea_1328	-	hypothetical protein
1327	 46.48	0	1623485..1624237	+	250	157961157	-	Spea_1329	-	methyltransferase type 11
1328	 49.36	+1	1624590..1625843	+	417	157961158	-	Spea_1330	-	sodium:dicarboxylate symporter
1329	 38.75	-1	1625951..1626781	-	276	157961159	-	Spea_1331	-	fatty acid hydroxylase
1330	 46.75	0	1627615..1628784	-	389	157961160	-	Spea_1332	-	hypothetical protein
1331	 45.24	0	1629092..1629721	+	209	157961161	-	Spea_1333	-	hypothetical protein
1332	 49.44	+1	1629722..1630168	+	148	157961162	-	Spea_1334	-	hypothetical protein
1333	 42.02	0	1630556..1630981	-	141	157961163	-	Spea_1335	-	FlgN family protein
1334	 43.40	0	1631078..1631395	-	105	157961164	-	Spea_1336	-	anti-sigma-28 factor, FlgM
1335	 43.80	0	1631493..1632266	-	257	157961165	-	Spea_1337	-	flagellar basal body P-ring biosynthesis protein FlgA
1336	 41.59	-1	1632477..1633397	+	306	157961166	-	Spea_1338	-	response regulator receiver modulated CheW protein
1337	 44.72	0	1633537..1634370	+	277	157961167	-	Spea_1339	-	MCP methyltransferase, CheR-type
1338	 44.61	0	1634536..1634934	+	132	157961168	-	Spea_1340	-	flagellar basal body rod protein FlgB
1339	 44.84	0	1634937..1635353	+	138	157961169	-	Spea_1341	-	flagellar basal body rod protein FlgC
1340	 47.11	0	1635379..1636191	+	270	157961170	-	Spea_1342	-	flagellar basal body rod modification protein
1341	 47.80	0	1636277..1637638	+	453	157961171	-	Spea_1343	-	flagellar hook protein FlgE
1342	 49.33	+1	1638295..1639038	+	247	157961172	-	Spea_1344	-	flagellar basal body rod protein FlgF
1343	 45.25	0	1639049..1639837	+	262	157961173	-	Spea_1345	-	flagellar basal body rod protein FlgG
1344	 46.94	0	1639881..1640534	+	217	157961174	-	Spea_1346	-	flagellar basal body L-ring protein
1345	 48.58	+1	1640574..1641668	+	364	157961175	-	Spea_1347	-	flagellar basal body P-ring protein
1346	 46.34	0	1641697..1642788	+	363	157961176	-	Spea_1348	-	peptidoglycan hydrolase
1347	 47.79	0	1642832..1644754	+	640	157961177	-	Spea_1349	-	flagellar hook-associated protein FlgK
1348	 45.72	0	1644839..1646041	+	400	157961178	-	Spea_1350	-	flagellar hook-associated protein FlgL
1349	 46.67	0	1646348..1647532	+	394	157961179	-	Spea_1351	-	flagellin domain-containing protein
1350	 46.45	0	1648279..1649460	+	393	157961180	-	Spea_1352	-	flagellin domain-containing protein
1351	 42.19	0	1649673..1650146	+	157	157961181	-	Spea_1353	-	flagellar protein FlaG protein
1352	 44.79	0	1650241..1651602	+	453	157961182	-	Spea_1354	-	flagellar hook-associated 2 domain-containing protein
1353	 42.06	0	1651749..1652126	+	125	157961183	-	Spea_1355	-	hypothetical protein
1354	 42.29	0	1652133..1652534	+	133	157961184	-	Spea_1356	-	flagellar protein FliS
1355	 44.42	0	1652848..1654281	+	477	157961185	-	Spea_1357	-	sigma-54 dependent trancsriptional regulator
1356	 46.42	0	1654839..1655954	+	371	157961186	-	Spea_1358	-	PAS/PAC sensor signal transduction histidine kinase
1357	 48.26	0	1655947..1657299	+	450	157961187	-	Spea_1359	-	two component, sigma54 specific, Fis family transcriptional regulator
1358	 43.24	0	1657813..1658145	+	110	157961188	-	Spea_1360	-	flagellar hook-basal body complex subunit FliE
1359	 48.03	0	1658188..1659888	+	566	157961189	-	Spea_1361	-	flagellar MS-ring protein
1360	 46.19	0	1659878..1660927	+	349	157961190	-	Spea_1362	-	flagellar motor switch protein G
1361	 49.00	+1	1660927..1661877	+	316	157961191	-	Spea_1363	-	flagellar assembly protein FliH
1362	 52.50	+2	1661849..1663189	+	446	157961192	-	Spea_1364	-	flagellum-specific ATP synthase
1363	 49.44	+1	1663244..1663690	+	148	157961193	-	Spea_1365	-	flagellar export protein FliJ
1364	 47.28	0	1663908..1665434	+	508	157961194	-	Spea_1366	-	flagellar hook-length control protein
1365	 46.63	0	1665511..1666029	+	172	157961195	-	Spea_1367	-	flagellar basal body-associated protein FliL
1366	 46.55	0	1666098..1667126	+	342	157961196	-	Spea_1368	-	flagellar motor switch protein FliM
1367	 45.93	0	1667139..1667519	+	126	157961197	-	Spea_1369	-	flagellar motor switch protein
1368	 47.47	0	1667547..1667921	+	124	157961198	-	Spea_1370	-	flagellar biosynthesis protein FliO
1369	 43.47	0	1667932..1668681	+	249	157961199	-	Spea_1371	-	flagellar biosynthesis protein FliP
1370	 44.07	0	1668689..1668958	+	89	157961200	-	Spea_1372	-	flagellar biosynthetic protein FliQ
1371	 48.19	0	1668997..1669797	+	266	157961201	-	Spea_1373	-	flagellar biosynthesis protein FliR
1372	 48.32	0	1669939..1671072	+	377	157961202	-	Spea_1374	-	flagellar biosynthesis protein FlhB
1373	 49.81	+1	1671339..1673438	+	699	157961203	-	Spea_1375	-	flagellar biosynthesis protein FlhA
1374	 44.66	0	1673450..1674862	+	470	157961204	-	Spea_1376	-	flagellar biosynthesis regulator FlhF
1375	 46.37	0	1674867..1675748	+	293	157961205	-	Spea_1377	-	cobyrinic acid ac-diamide synthase
1376	 46.67	0	1675741..1676460	+	239	157961206	-	Spea_1378	-	flagellar biosynthesis sigma factor
1377	 44.85	0	1676497..1676904	+	135	157961207	-	Spea_1379	-	response regulator receiver protein
1378	 41.87	-1	1676918..1677655	+	245	157961208	-	Spea_1380	-	chemotaxis phosphatase, CheZ
1379	 46.36	0	1677668..1679893	+	741	157961209	-	Spea_1381	-	CheA signal transduction histidine kinase
1380	 47.88	0	1679983..1681164	+	393	157961210	-	Spea_1382	-	chemotaxis-specific methylesterase
1381	 43.67	0	1681157..1681843	+	228	157961211	-	Spea_1383	-	hypothetical protein
1382	 44.32	0	1681984..1682775	+	263	157961212	-	Spea_1384	-	cobyrinic acid ac-diamide synthase
1383	 45.32	0	1682759..1683676	+	305	157961213	-	Spea_1385	-	CheW protein
1384	 42.89	0	1684185..1684676	+	163	157961214	-	Spea_1386	-	CheW protein
1385	 45.19	0	1685059..1685463	+	134	157961215	-	Spea_1387	-	hypothetical protein
1386	 47.90	0	1685881..1686189	-	102	157961216	-	Spea_1388	-	FlhB domain-containing protein
1387	 41.18	-1	1686216..1687718	-	500	157961217	-	Spea_1389	-	hypothetical protein
1388	 44.40	0	1688215..1688982	+	255	157961218	-	Spea_1390	-	VacJ family lipoprotein
1389	 42.28	0	1689078..1690184	+	368	157961219	-	Spea_1391	-	response regulator receiver protein
1390	 44.49	0	1690742..1692247	-	501	157961220	-	Spea_1393	-	amino acid/peptide transporter
1391	 44.06	0	1692692..1693213	+	173	157961221	-	Spea_1394	-	transcriptional acivator RfaH
1392	 44.13	0	1694703..1697498	+	931	157961222	-	Spea_1395	-	polysaccharide export protein
1393	 40.28	-1	1697589..1697948	+	119	157961223	-	Spea_1396	-	hypothetical protein
1394	 43.25	0	1698048..1699025	+	325	157961224	-	Spea_1397	-	lipopolysaccharide biosynthesis protein
1395	 40.35	-1	1699269..1700366	+	365	157961225	-	Spea_1398	-	dTDP-glucose 4,6 dehydratase
1396	 36.66	-2	1700366..1701238	+	290	157961226	-	Spea_1399	-	glucose-1-phosphate thymidylyltransferase
1397	 33.08	-2	1701235..1701633	+	132	157961227	-	Spea_1400	-	WxcM domain-containing protein
1398	 28.54	-2	1701618..1702076	+	152	157961228	-	Spea_1401	-	GCN5-related N-acetyltransferase
1399	 30.85	-2	1702078..1703004	+	308	157961229	-	Spea_1402	-	hypothetical protein
1400	 35.84	-2	1703001..1704116	+	371	157961230	-	Spea_1403	-	DegT/DnrJ/EryC1/StrS aminotransferase
45.18	MEAN

3.28	STD DEV
