IslandPathversion 1.0

IslandPath Analysis: Shewanella pealeana ATCC 700345

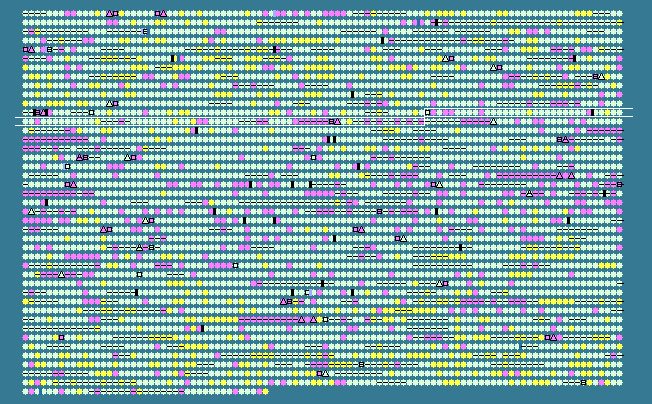

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 45.18 STD DEV: 3.28
Shewanella pealeana ATCC 700345, complete genome - 1..5174581
4241 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1168	 42.08	0	1416201..1417217	-	338	157960998	-	Spea_1170	-	transposase IS116/IS110/IS902 family protein
1169	 36.60	-2	1417740..1420280	+	846	157960999	-	Spea_1171	-	putative transcriptional regulator
1170	 42.13	0	1421146..1421907	-	253	157961000	-	Spea_1172	-	pirin domain-containing protein
1171	 40.85	-1	1422022..1423005	-	327	157961001	-	Spea_1173	-	putative glutathione S-transferase
1172	 41.56	-1	1423068..1423517	-	149	157961002	-	Spea_1174	-	DoxX family protein
1173	 42.40	0	1423734..1424648	+	304	157961003	-	Spea_1175	-	LysR family transcriptional regulator
1174	 43.93	0	1424789..1426411	-	540	157961004	-	Spea_1176	-	response regulator receiver protein
1175	 46.36	0	1426483..1428723	-	746	157961005	-	Spea_1177	-	Hpt sensor hybrid histidine kinase
1176	 45.85	0	1428958..1429860	+	300	157961006	-	Spea_1178	-	LysR family transcriptional regulator
1177	 41.42	-1	1429957..1430562	-	201	157961007	-	Spea_1179	-	hypothetical protein
1178	 45.13	0	1430564..1433353	-	929
