IslandPath Analysis: Shewanella frigidimarina NCIMB 400

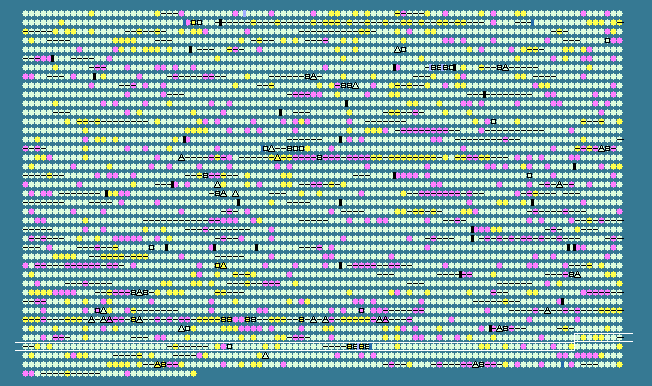

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 42.09 STD DEV: 3.12
Shewanella frigidimarina NCIMB 400, complete genome - 1..4845257
4029 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
3693	 44.67	0	4428869..4430041	-	390	114564880	-	Sfri_3728	-	hypothetical protein
3694	 46.16	+1	4430054..4431043	-	329	114564881	-	Sfri_3729	-	secretion protein HlyD family protein
3695	 44.35	0	4431033..4432466	-	477	114564882	-	Sfri_3730	-	outer membrane efflux protein
3696	 46.03	+1	4432650..4434098	-	482	114564883	-	Sfri_3731	-	peptidase U62, modulator of DNA gyrase
3697	 46.45	+1	4434194..4435024	-	276	114564884	-	Sfri_3732	-	Nitrilase/cyanide hydratase and apolipoprotein N-acyltransferase
3698	 42.57	0	4434948..4439279	-	1443	114564885	-	Sfri_3733	-	hypothetical protein
3699	 43.59	0	4439279..4440769	-	496	114564886	-	Sfri_3734	-	ribonuclease G
3700	 44.90	0	4440851..4441438	-	195	114564887	-	Sfri_3735	-	maf protein
3701	 43.29	0	4441496..4441987	-	163	114564888	-	Sfri_3736	-	rod shape-determining protein MreD
3702	 45.28	+1	4441984..4442946	-	320	114564889	-	Sfri_3737	-	rod shape-determining protein MreC
3703	 46.67	+1	4443010..4444059	-	349	114564890	-	Sfri_3738	-	cell shape determining protein, MreB/Mrl family protein
3704	 41.07	0	4444252..4448850	-	1532	114564891	-	Sfri_3739	-	hypothetical protein
3705	 45.61	+1	4448840..4449295	-	151	114564892	-	Sfri_3740	-	MSHA biogenesis protein MshP
3706	 42.03	0	4449285..4450112	-	275	114564893	-	Sfri_3741	-	methylation site containing protein
3707	 43.20	0	4450112..4450648	-	178	114564894	-	Sfri_3742	-	methylation site containing protein
3708	 42.50	0	4450638..4451117	-	159	114564895	-	Sfri_3743	-	methylation site containing protein
3709	 42.15	0	4451358..4451879	-	173	114564896	-	Sfri_3744	-	methylation site containing protein
3710	 42.08	0	4451945..4452550	-	201	114564897	-	Sfri_3745	-	methylation site containing protein
3711	 39.90	0	4452660..4453238	-	192	114564898	-	Sfri_3746	-	hypothetical protein
3712	 41.73	0	4453283..4454497	-	404	114564899	-	Sfri_3747	-	type II secretion system protein
3713	 44.12	0	4454500..4456260	-	586	114564900	-	Sfri_3748	-	type II secretion system protein E
3714	 44.21	0	4456257..4457534	-	425	114564901	-	Sfri_3749	-	TPR repeat-containing protein
3715	 40.11	0	4457549..4458493	-	314	114564902	-	Sfri_3750	-	MSHA biogenesis protein MshM
3716	 42.91	0	4458563..4460233	-	556	114564903	-	Sfri_3751	-	pilus (MSHA type) biogenesis protein MshL
3717	 40.67	0	4460247..4460573	-	108	114564904	-	Sfri_3752	-	MSHA biogenesis protein MshK
3718	 40.49	0	4460554..4461210	-	218	114564905	-	Sfri_3753	-	MSHA biogenesis protein MshJ
3719	 41.35	0	4461207..4461755	-	182	114564906	-	Sfri_3754	-	hypothetical protein
3720	 40.40	0	4461824..4462729	-	301	114564907	-	Sfri_3755	-	biogenesis protein MshI
3721	 39.61	0	4462992..4464902	-	636	114564908	-	Sfri_3756	-	regulatory protein CsrD
3722	 42.55	0	4465106..4466353	-	415	114564909	-	Sfri_3757	-	malate dehydrogenase
3723	 39.91	0	4466787..4466999	-	70	114564910	rpmE	Sfri_3758	-	50S ribosomal protein L31
3724	 39.72	0	4467142..4468377	-	411	114564911	-	Sfri_3759	-	hypothetical protein
3725	 40.26	0	4468667..4469503	-	278	114564912	-	Sfri_3760	-	hypothetical protein
3726	 46.13	+1	4469588..4471783	+	731	114564913	-	Sfri_3761	-	primosomal protein N'
3727	 44.04	0	4471963..4473708	+	581	114564914	argS	Sfri_3762	-	arginyl-tRNA synthetase
3728	 45.50	+1	4473711..4474310	+	199	114564915	-	Sfri_3763	-	sporulation domain-containing protein
3729	 43.24	0	4474481..4475005	+	174	114564916	-	Sfri_3764	-	ATP-dependent protease peptidase subunit
3730	 43.29	0	4475031..4476356	+	441	114564917	hslU	Sfri_3765	-	ATP-dependent protease ATP-binding subunit
3731	 41.86	0	4476532..4476918	+	128	114564918	-	Sfri_3766	-	hypothetical protein
3732	 39.87	0	4476962..4477267	+	101	114564919	-	Sfri_3767	-	hypothetical protein
3733	 47.92	+1	4477529..4477816	-	95	114564920	-	Sfri_3768	-	hypothetical protein
3734	 32.31	-2	4478111..4478890	+	259	114564921	-	Sfri_3769	-	hypothetical protein
3735	 42.62	0	4479098..4480141	+	347	114564922	-	Sfri_3770	-	transposase IS116/IS110/IS902 family protein
3736	 43.61	0	4480959..4483556	-	865	114564923	-	Sfri_3771	-	bifunctional aconitate hydratase 2/2-methylisocitrate dehydratase
3737	 45.05	0	4483962..4484618	+	218	114564924	-	Sfri_3772	-	2-deoxyglucose-6-phosphatase
3738	 42.91	0	4484950..4487214	-	754	114564925	-	Sfri_3773	-	patatin
3739	 40.93	0	4487323..4491786	-	1487	114564926	-	Sfri_3774	-	diguanylate cyclase/phosphodiesterase with PAS/PAC sensor(s)
3740	 42.28	0	4492187..4493617	-	476	114564927	-	Sfri_3775	-	dihydrolipoamide dehydrogenase
3741	 46.25	+1	4493817..4495814	-	665	114564928	-	Sfri_3776	-	pyruvate dehydrogenase complex dihydrolipoamide acetyltransferase
3742	 43.87	0	4495826..4498492	-	888	114564929	aceE	Sfri_3777	-	pyruvate dehydrogenase subunit E1
3743	 45.68	+1	4498584..4499336	-	250	114564930	pdhR	Sfri_3778	-	transcriptional regulator PdhR
3744	 40.85	0	4499635..4500486	-	283	114564931	-	Sfri_3779	-	regulatory protein AmpE
3745	 44.68	0	4500612..4501166	-	184	114564932	-	Sfri_3780	-	N-acetyl-anhydromuranmyl-L-alanine amidase
3746	 44.48	0	4501586..4502464	+	292	114564933	-	Sfri_3781	-	nicotinate-nucleotide pyrophosphorylase
3747	 40.94	0	4503464..4503910	+	148	114564934	-	Sfri_3782	-	methylation site containing protein
3748	 42.77	0	4504003..4505709	+	568	114564935	-	Sfri_3783	-	type IV-A pilus assembly ATPase PilB
3749	 41.51	0	4505817..4507076	+	419	114564936	-	Sfri_3784	-	type II secretion system protein
3750	 41.96	0	4507106..4508032	+	308	114564937	-	Sfri_3785	-	prepilin peptidase
3751	 42.06	0	4508029..4508658	+	209	114564938	-	Sfri_3786	-	dephospho-CoA kinase
3752	 38.64	-1	4508651..4509385	+	244	114564939	-	Sfri_3787	-	hypothetical protein
3753	 40.18	0	4509422..4509640	+	72	114564940	-	Sfri_3788	-	hypothetical protein
3754	 39.14	0	4509664..4510059	+	131	114564941	-	Sfri_3789	-	mutator MutT protein
3755	 45.69	+1	4510983..4511516	-	177	114564942	-	Sfri_3792	-	ISSod10, transposase OrfB
3756	 40.00	0	4511530..4512009	-	159	114564943	-	Sfri_3793	-	ISSod10, transposase OrfA
3757	 46.18	+1	4518767..4519303	-	178	114564944	-	Sfri_3794	-	ISSod10, transposase OrfB
3758	 40.42	0	4519317..4519796	-	159	114564945	-	Sfri_3795	-	ISSod10, transposase OrfA
3759	 41.20	0	4526231..4528951	-	906	114564946	-	Sfri_3796	-	preprotein translocase subunit SecA
3760	 43.11	0	4529010..4529909	-	299	114564947	-	Sfri_3797	-	peptidase M23B
3761	 43.05	0	4529937..4530389	+	150	114564948	-	Sfri_3798	-	hypothetical protein
3762	 42.89	0	4530394..4531314	-	306	114564949	lpxC	Sfri_3799	-	UDP-3-O-[3-hydroxymyristoyl] N-acetylglucosamine deacetylase
3763	 46.36	+1	4531525..4532691	-	388	114564950	-	Sfri_3800	-	cell division protein FtsZ
3764	 44.82	0	4532718..4533953	-	411	114564951	-	Sfri_3801	-	cell division protein FtsA
3765	 40.73	0	4533950..4534720	-	256	114564952	-	Sfri_3802	-	polypeptide-transport-associated domain-containing protein
3766	 44.51	0	4534842..4536299	-	485	114564953	-	Sfri_3803	-	UDP-N-acetylmuramate--alanine ligase
3767	 43.84	0	4536301..4537404	-	367	114564954	-	Sfri_3804	-	UDP-N-acetylglucosamine--N-acetylmuramyl-(pentapeptide) pyrophosphoryl-undecaprenol N-acetylglucosamine transferase
3768	 44.94	0	4537404..4538618	-	404	114564955	-	Sfri_3805	-	cell division protein FtsW
3769	 44.14	0	4538608..4539930	-	440	114564956	-	Sfri_3806	-	UDP-N-acetylmuramoylalanine--D-glutamate ligase
3770	 43.67	0	4539953..4541035	-	360	114564957	-	Sfri_3807	-	phospho-N-acetylmuramoyl-pentapeptide-transferase
3771	 44.78	0	4541036..4542424	-	462	114564958	-	Sfri_3808	-	UDP-N-acetylmuramoylalanyl-D-glutamyl-2,6-diaminopimelate--D-alanyl-D-alanyl ligase
3772	 43.33	0	4542421..4543911	-	496	114564959	-	Sfri_3809	-	UDP-N-acetylmuramyl-tripeptide synthetases
3773	 44.43	0	4543898..4545646	-	582	114564960	-	Sfri_3810	-	peptidoglycan glycosyltransferase
3774	 42.86	0	4545658..4545972	-	104	114564961	-	Sfri_3811	-	cell division protein FtsL
3775	 43.31	0	4545987..4546928	-	313	114564962	mraW	Sfri_3812	-	S-adenosyl-methyltransferase MraW
3776	 44.23	0	4546954..4547412	-	152	114564963	-	Sfri_3813	-	cell division protein MraZ
3777	 46.11	+1	4548550..4548870	+	106	114564964	-	Sfri_3814	-	hypothetical protein
3778	 45.89	+1	4548883..4550379	-	498	114564965	-	Sfri_3815	-	glycerol kinase
3779	 44.86	0	4550575..4551927	-	450	114564966	-	Sfri_3816	-	membrane protein involved in aromatic hydrocarbon degradation
3780	 42.24	0	4552406..4553011	-	201	114564967	-	Sfri_3817	-	isopropylmalate isomerase small subunit
3781	 46.50	+1	4553031..4554443	-	470	114564968	-	Sfri_3818	-	isopropylmalate isomerase large subunit
3782	 45.11	0	4554443..4555537	-	364	114564969	-	Sfri_3819	-	3-isopropylmalate dehydrogenase
3783	 43.21	0	4555534..4557102	-	522	114564970	-	Sfri_3820	-	2-isopropylmalate synthase
3784	 38.27	-1	4557707..4559470	+	587	114564971	-	Sfri_3821	-	hypothetical protein
3785	 44.16	0	4559475..4561322	-	615	114564972	-	Sfri_3822	-	ATP-dependent DNA helicase RecQ
3786	 43.44	0	4561524..4561988	+	154	114564973	-	Sfri_3823	-	hypothetical protein
3787	 42.24	0	4562113..4563021	+	302	114564974	-	Sfri_3824	-	transporter DMT superfamily protein
3788	 43.94	0	4563137..4564456	-	439	114564975	-	Sfri_3825	-	N-acetylglutamate synthase
3789	 34.48	-2	4564933..4565106	-	57	114564976	rpmG	Sfri_3826	-	50S ribosomal protein L33
3790	 40.93	0	4565113..4565349	-	78	114564977	-	Sfri_3827	-	ribosomal protein L28
3791	 43.22	0	4565471..4566148	-	225	114564978	-	Sfri_3828	-	DNA repair protein RadC
3792	 46.30	+1	4566645..4567847	+	400	114564979	-	Sfri_3829	-	phosphopantothenoylcysteine decarboxylase/phosphopantothenate--cysteine ligase
42.09	MEAN

3.12	STD DEV
