IslandPath Analysis: Shewanella frigidimarina NCIMB 400

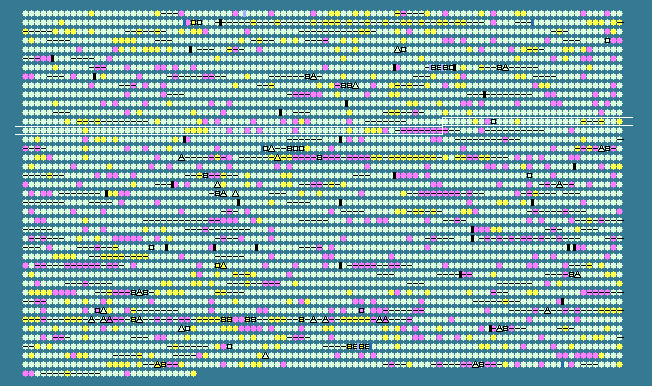

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 42.09 STD DEV: 3.12
Shewanella frigidimarina NCIMB 400, complete genome - 1..4845257
4029 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1271	 40.69	0	1515927..1516388	+	153	114562459	-	Sfri_1281	-	beta-hydroxyacyl-(acyl-carrier-protein) dehydratase FabZ
1272	 42.02	0	1516385..1517155	+	256	114562460	-	Sfri_1282	-	UDP-N-acetylglucosamine acyltransferase
1273	 43.52	0	1517165..1518313	+	382	114562461	lpxB	Sfri_1283	-	lipid-A-disaccharide synthase
1274	 45.07	0	1518334..1518972	+	212	114562462	-	Sfri_1284	-	ribonuclease H
1275	 45.47	+1	1519083..1522559	+	1158	114562463	dnaE	Sfri_1285	-	DNA polymerase III subunit alpha
1276	 46.63	+1	1522569..1524035	+	488	114562464	-	Sfri_1286	-	tRNA(Ile)-lysidine synthetase
1277	 44.72	0	1524300..1525889	+	529	114562465	-	Sfri_1287	-	peptidase M28
1278	 30.64	-2	1526736..1527998	+	420	114562466	-	Sfri_1288	-	hypothetical protein
1279	 40.42	0	1528484..1529527	-	347	114562467	-	Sfri_1289	-	transposase IS116/IS110/IS902 family protein
1280	 45.02	0	1530169..1531263	-	364	114562468	-	Sfri_1290	-	GCN5-related N-acetyltransferase
1281	 41.39	0	1531339..1532790	+	483	114562469	-	Sfri_1291	-	RimK domain-containing protein ATP-grasp
1282	 40.82	0	1532879..1533760	-	293	114562470	-	Sfri_1292	-	diguanylate cyclase
1283	 46.24	+1	1533923..1535875	+	650	114562471	-	Sfri_1293	-	potassium efflux system protein
1284	 41.71	0	1536058..1536594	+	178	114562472	-	Sfri_1294	-	ECF subfamily RNA polymerase sigma-24 factor
1285	 43.28	0	1536591..1537304	+	237	114562473	-	Sfri_1295	-	hypothetical protein
1286	 43.98	0	1537676..1539262	+	528	114562474	-	Sfri_1296	-	hypothetical protein
1287	 44.38	0	1539273..1539815	+	180	114562475	-	Sfri_1297	-	hypothetical protein
1288	 39.31	0	1539988..1541124	+	378	114562476	-	Sfri_1298	-	TPR repeat-containing protein
1289	 41.96	0	1541135..1542259	+	374	114562477	-	Sfri_1299	-	hypothetical protein
1290	 41.86	0	1542734..1545946	+	1070	114562478	-	Sfri_1300	-	SNF2-related protein
1291	 42.53	0	1546158..1546505	+	115	114562479	-	Sfri_1301	-	putative orphan protein
1292	 42.81	0	1547241..1548833	+	530	114562480	mdoG	Sfri_1302	-	glucan biosynthesis protein G
1293	 44.93	0	1548830..1550950	+	706	114562481	-	Sfri_1303	-	glucosyltransferase MdoH
1294	 47.66	+1	1551100..1552104	-	334	114562482	-	Sfri_1304	-	NADH:flavin oxidoreductase/NADH oxidase
1295	 43.74	0	1552114..1552728	-	204	114562483	-	Sfri_1305	-	lysine exporter protein LysE/YggA
1296	 43.10	0	1552976..1553446	+	156	114562484	-	Sfri_1306	-	DTW domain-containing protein
1297	 46.40	+1	1553519..1556182	-	887	114562485	-	Sfri_1307	-	Beta-glucosidase
1298	 43.96	0	1556198..1556959	-	253	114562486	-	Sfri_1308	-	hypothetical protein
1299	 43.95	0	1556969..1558456	-	495	114562487	-	Sfri_1309	-	tryptophan halogenase
1300	 45.78	+1	1558499..1559518	-	339	114562488	-	Sfri_1310	-	transcription factor jumonji domain-containing protein
1301	 43.98	0	1559524..1560246	-	240	114562489	-	Sfri_1311	-	SapC family protein
1302	 45.06	0	1560357..1561934	-	525	114562490	-	Sfri_1312	-	tryptophan halogenase
1303	 43.31	0	1562246..1565182	-	978	114562491	-	Sfri_1313	-	TonB-dependent receptor, plug
1304	 42.30	0	1565677..1566735	-	352	114562492	-	Sfri_1314	-	transcriptional regulator, LacI family protein
1305	 43.57	0	1566740..1568068	-	442	114562493	-	Sfri_1315	-	sugar (glycoside-Pentoside-hexuronide) transporter
1306	 40.99	0	1568160..1569491	-	443	114562494	-	Sfri_1316	-	Beta-glucosidase
1307	 43.43	0	1569874..1571181	+	435	114562495	-	Sfri_1317	-	glucose/galactose transporter
1308	 44.38	0	1571191..1573833	+	880	114562496	-	Sfri_1318	-	Beta-glucosidase
1309	 43.55	0	1573973..1575049	+	358	114562497	-	Sfri_1319	-	glucan endo-1,3-beta-D-glucosidase
1310	 44.69	0	1575452..1576252	+	266	114562498	-	Sfri_1320	-	3'(2'),5'-bisphosphate nucleotidase
1311	 46.58	+1	1576326..1577231	+	301	114562499	-	Sfri_1321	-	fructokinase
1312	 43.74	0	1577397..1578155	+	252	114562500	-	Sfri_1322	-	hypothetical protein
1313	 43.82	0	1578245..1578940	+	231	114562501	-	Sfri_1323	-	hypothetical protein
1314	 42.51	0	1578972..1579385	+	137	114562502	-	Sfri_1324	-	glutathione-dependent formaldehyde-activating, GFA
1315	 40.56	0	1579382..1579741	-	119	114562503	-	Sfri_1325	-	hypothetical protein
1316	 45.47	+1	1579866..1580351	-	161	114562504	-	Sfri_1326	-	ferredoxin-type protein NapF
1317	 42.98	0	1580674..1581699	-	341	114562505	-	Sfri_1327	-	UDP-glucose 4-epimerase
1318	 41.35	0	1582052..1582849	+	265	114562506	phhA	Sfri_1328	-	phenylalanine 4-monooxygenase
1319	 43.95	0	1582923..1583261	+	112	114562507	phhB	Sfri_1329	-	pterin-4-alpha-carbinolamine dehydratase
1320	 43.66	0	1583426..1584964	+	512	114562508	-	Sfri_1330	-	transcriptional regulator, TyrR
1321	 43.47	0	1585202..1586188	+	328	114562509	-	Sfri_1331	-	fumarylacetoacetate (FAA) hydrolase
1322	 42.70	0	1586287..1586937	+	216	114562510	-	Sfri_1332	-	maleylacetoacetate isomerase
1323	 42.62	0	1587002..1587604	+	200	114562511	-	Sfri_1333	-	hypothetical protein
1324	 40.12	0	1587851..1588498	+	215	114562512	-	Sfri_1334	-	outer membrane protein W
1325	 42.88	0	1588578..1589321	-	247	114562513	-	Sfri_1335	-	short chain dehydrogenase family protein
1326	 39.89	0	1589683..1590627	+	314	114562514	-	Sfri_1336	-	homoserine O-succinyltransferase
1327	 39.31	0	1590741..1592648	+	635	114562515	-	Sfri_1337	-	diguanylate cyclase
1328	 48.19	+1	1592959..1594149	+	396	114562516	-	Sfri_1338	-	acetyl-CoA acetyltransferases
1329	 45.72	+1	1594314..1595807	+	497	114562517	-	Sfri_1339	-	methylmalonate-semialdehyde dehydrogenase
1330	 46.89	+1	1595973..1597130	+	385	114562518	-	Sfri_1340	-	butyryl-CoA dehydrogenase
1331	 47.89	+1	1597181..1597963	+	260	114562519	-	Sfri_1341	-	enoyl-CoA hydratase
1332	 44.59	0	1597963..1599081	+	372	114562520	-	Sfri_1342	-	enoyl-CoA hydratase/isomerase
1333	 45.56	+1	1599096..1599995	+	299	114562521	-	Sfri_1343	-	3-hydroxyisobutyrate dehydrogenase
1334	 43.74	0	1600008..1600766	+	252	114562522	fabG	Sfri_1344	-	3-ketoacyl-(acyl-carrier-protein) reductase
1335	 38.16	-1	1600968..1601174	+	68	114562523	-	Sfri_1345	-	hypothetical protein
1336	 43.39	0	1601182..1602126	+	314	114562524	-	Sfri_1346	-	hypothetical protein
1337	 43.00	0	1602228..1603148	+	306	114562525	-	Sfri_1347	-	hypothetical protein
1338	 38.49	-1	1603644..1604594	+	316	114562526	-	Sfri_1348	-	hypothetical protein
1339	 40.79	0	1605047..1606615	+	522	114562527	-	Sfri_1349	-	ABC transporter related
1340	 36.87	-1	1606744..1607139	+	131	114562528	-	Sfri_1350	-	hypothetical protein
1341	 41.64	0	1607166..1607972	+	268	114562529	-	Sfri_1351	-	alpha/beta hydrolase fold
1342	 42.15	0	1608270..1610276	+	668	114562530	-	Sfri_1352	-	methyl-accepting chemotaxis sensory transducer
1343	 39.78	0	1610738..1611280	-	180	114562531	-	Sfri_1353	-	hypothetical protein
1344	 39.60	0	1611310..1611915	-	201	114562532	-	Sfri_1354	-	lysine exporter protein LysE/YggA
1345	 39.44	0	1612094..1612912	-	272	114562533	-	Sfri_1355	-	hypothetical protein
1346	 37.28	-1	1613007..1613513	-	168	114562534	-	Sfri_1356	-	amino acid-binding ACT domain-containing protein
1347	 42.77	0	1613710..1615965	+	751	114562535	-	Sfri_1357	-	binding-protein-dependent transport systems inner membrane component
1348	 44.40	0	1616024..1617685	+	553	114562536	-	Sfri_1358	-	phosphate ABC transporter, inner membrane subunit PstA
1349	 42.74	0	1617712..1618530	+	272	114562537	-	Sfri_1359	-	phosphate ABC transporter, ATPase subunit
1350	 42.39	0	1618588..1619283	+	231	114562538	-	Sfri_1360	-	transcriptional regulator PhoU
1351	 42.27	0	1619423..1620004	+	193	114562539	-	Sfri_1361	-	hypothetical protein
1352	 40.86	0	1620297..1620668	+	123	114562540	-	Sfri_1362	-	hypothetical protein
1353	 40.79	0	1621144..1621371	-	75	114562541	-	Sfri_1363	-	hypothetical protein
1354	 40.93	0	1621451..1622767	+	438	114562542	-	Sfri_1364	-	hypothetical protein
1355	 47.71	+1	1623023..1624072	+	349	114562543	-	Sfri_1365	-	3-oxoacyl-(acyl carrier protein) synthase III
1356	 43.72	0	1624131..1625006	+	291	114562544	-	Sfri_1366	-	alpha/beta hydrolase fold
1357	 44.31	0	1625129..1626823	+	564	114562545	-	Sfri_1367	-	peptide synthase
1358	 46.29	+1	1626857..1627906	+	349	114562546	-	Sfri_1368	-	3-beta hydroxysteroid dehydrogenase/isomerase
1359	 46.24	+1	1628128..1629312	+	394	114562547	-	Sfri_1369	-	methionine gamma-lyase
1360	 48.60	+2	1629729..1630121	-	130	114562548	-	Sfri_1370	-	hypothetical protein
1361	 38.35	-1	1630121..1632211	-	696	114562549	-	Sfri_1371	-	diguanylate cyclase/phosphodiesterase
1362	 40.96	0	1632239..1632841	-	200	114562550	-	Sfri_1372	-	hypothetical protein
1363	 40.19	0	1634326..1635492	+	388	114562551	-	Sfri_1373	-	UDP-glucose 6-dehydrogenase
1364	 38.07	-1	1635522..1636535	+	337	114562552	-	Sfri_1374	-	NAD-dependent epimerase/dehydratase
1365	 30.72	-2	1636544..1637347	+	267	114562553	-	Sfri_1375	-	glycosyl transferase, WecB/TagA/CpsF family protein
1366	 32.07	-2	1637500..1638606	+	368	114562554	-	Sfri_1376	-	glycosyl transferase, group 1
1367	 38.39	-1	1638606..1639712	+	368	114562555	-	Sfri_1377	-	glycosyl transferase, group 1
1368	 31.25	-2	1639702..1640952	+	416	114562556	-	Sfri_1378	-	O-antigen polymerase
1369	 30.76	-2	1640999..1641892	+	297	114562557	-	Sfri_1379	-	glycosyl transferase family protein
1370	 30.79	-2	1641894..1643309	+	471	114562558	-	Sfri_1380	-	polysaccharide biosynthesis protein
42.09	MEAN

3.12	STD DEV
