IslandPath Analysis: Shigella flexneri 2a str. 2457T

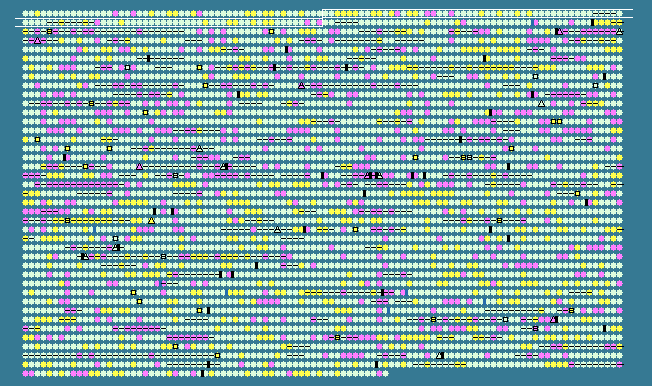

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 51.60 STD DEV: 4.04
Shigella flexneri 2a str. 2457T, complete genome - 1..4599354
4061 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
51	 54.24	0	57100..57759	-	219	30061623	yabO	S0055	-	23S rRNA/tRNA pseudouridine synthase A
52	 54.87	0	57771..60677	-	968	30061624	hepA	S0056	-	ATP-dependent helicase HepA
53	 55.19	0	60842..63193	-	783	30061625	polB	S0057	-	DNA polymerase II
54	 55.17	0	63268..63963	-	231	30061626	araD	S0058	-	L-ribulose-5-phosphate 4-epimerase
55	 55.29	0	64163..65665	-	500	30061627	araA	S0059	-	L-arabinose isomerase
56	 58.08	+1	65676..67376	-	566	30061628	araB	S0060	-	ribulokinase
57	 52.67	0	67715..68593	+	292	30061629	araC	S0061	-	DNA-binding transcriptional regulator AraC
58	 54.51	0	68679..69443	+	254	30061630	yabI	S0062	-	hypothetical protein
59	 56.94	+1	69557..70255	-	232	30061631	thiQ	S0063	-	thiamine transporter ATP-binding subunit
60	 58.54	+1	70239..71849	-	536	30061632	thiP	S0064	-	thiamine transporter membrane protein
61	 52.74	0	71825..72808	-	327	30061633	tbpA	S0065	-	thiamine transporter substrate binding subunit
62	 55.19	0	72972..74627	-	551	30061634	yabN	S0066	-	transcriptional regulator SgrR
63	 48.09	0	74949..76127	+	392	30061635	yabM	S0067	-	putative transport protein
64	 52.15	0	76176..76781	-	201	30061636	leuD	S0068	-	isopropylmalate isomerase small subunit
65	 55.32	0	76792..78192	-	466	30061637	leuC	S0069	-	isopropylmalate isomerase large subunit
66	 55.22	0	78195..79286	-	363	161486552	leuB	S0070	-	3-isopropylmalate dehydrogenase
67	 52.74	0	79286..80857	-	523	30061639	leuA	S0071	-	2-isopropylmalate synthase
68	 47.13	-1	80950..81036	-	28	30061640	leuL	S0072	-	leu operon leader peptide
69	 45.71	-1	81695..82639	+	314	161486551	leuO	S0073	-	leucine transcriptional activator
70	 52.81	0	82957..84681	+	574	161486550	ilvI	S0074	-	acetolactate synthase 3 catalytic subunit
71	 50.20	0	84684..85175	+	163	30061643	ilvH	S0075	-	acetolactate synthase 3 regulatory subunit
72	 47.13	-1	85188..85274	+	28	30061644	fruL	S0076	-	fruR leader peptide
73	 54.93	0	85356..86360	+	334	30061645	fruR	S0077	-	DNA-binding transcriptional regulator FruR
74	 52.54	0	86483..86758	+	91	30061646	-	S0078	-	IS1 orfA
75	 52.58	0	86677..87180	+	167	30061647	-	S0079	-	IS1 orfB
76	 52.07	0	87739..88197	+	152	30061648	yabB	S0080	-	cell division protein MraZ
77	 55.20	0	88199..89140	+	313	30061649	mraW	S0081	-	S-adenosyl-methyltransferase MraW
78	 50.55	0	89137..89502	+	121	30061650	ftsL	S0082	-	cell division protein FtsL
79	 53.88	0	89518..91284	+	588	30061651	ftsI	S0083	-	penicillin-binding protein 3; peptidoglycan synthetase
80	 56.79	+1	91271..92758	+	495	30061652	murE	S0084	-	UDP-N-acetylmuramoylalanyl-D-glutamate--2,6-diaminopimelate ligase
81	 54.82	0	92755..94113	+	452	30061653	murF	S0085	-	UDP-N-acetylmuramoyl-tripeptide--D-alanyl-D-alanine ligase
82	 52.82	0	94107..95189	+	360	30061654	mraY	S0086	-	phospho-N-acetylmuramoyl-pentapeptide-transferase
83	 55.35	0	95192..96508	+	438	30061655	murD	S0087	-	UDP-N-acetylmuramoyl-L-alanyl-D-glutamate synthetase
84	 52.53	0	96508..97752	+	414	30061656	ftsW	S0088	-	cell division protein FtsW
85	 55.71	+1	97749..98816	+	355	30061657	murG	S0089	-	N-acetylglucosaminyl transferase
86	 54.40	0	98870..100345	+	491	30061658	murC	S0090	-	UDP-N-acetylmuramate--L-alanine ligase
87	 51.36	0	100338..101258	+	306	30061659	ddl	S0091	-	D-alanine--D-alanine ligase
88	 53.31	0	101260..102090	+	276	30061660	ftsQ	S0092	-	cell division protein FtsQ
89	 52.02	0	102087..103349	+	420	30061661	ftsA	S0093	-	cell division protein FtsA
90	 53.91	0	103410..104561	+	383	30061662	ftsZ	S0094	-	cell division protein FtsZ
91	 51.20	0	104662..105579	+	305	30061663	lpxC	S0095	-	UDP-3-O-[3-hydroxymyristoyl] N-acetylglucosamine deacetylase
92	 54.00	0	105810..106322	+	170	161486549	yacA	S0096	-	SecA regulator SecM
93	 52.22	0	106384..109089	+	901	30061665	secA	S0097	-	preprotein translocase subunit SecA
94	 49.23	0	109149..109538	+	129	30061666	mutT	S0098	-	nucleoside triphosphate pyrophosphohydrolase
95	 54.81	0	109553..109687	-	44	30061667	-	S0099	-	hypothetical protein
96	 52.02	0	109638..109835	-	65	30061668	yacG	S0100	-	zinc-binding protein
97	 51.21	0	109845..110588	-	247	30061669	yacF	S0101	-	hypothetical protein
98	 52.33	0	110588..111208	-	206	30061670	coaE	S0102	-	dephospho-CoA kinase
99	 51.72	0	111433..112476	+	347	30061671	guaC	S0103	-	guanosine 5'-monophosphate oxidoreductase
100	 51.85	0	112396..112503	-	35	30061672	-	S0104	-	hypothetical protein
101	 52.54	0	112511..113713	-	400	30061673	hofC	S0105	-	type IV pilin biogenesis protein
102	 53.06	0	114860..115300	-	146	30061674	ppdD	S0107	-	putative major pilin subunit
103	 53.36	0	115503..116396	-	297	30061675	nadC	S0108	-	quinolinate phosphoribosyltransferase
104	 53.80	0	116484..117035	+	183	30061676	ampD	S0109	-	N-acetyl-anhydromuranmyl-L-alanine amidase
105	 52.16	0	117032..117886	+	284	30061677	ampE	S0110	-	regulatory protein AmpE
106	 52.69	0	117929..119302	-	457	30061678	aroP	S0111	-	aromatic amino acid transporter
107	 55.82	+1	119843..120607	+	254	30061679	pdhR	S0112	-	transcriptional regulator PdhR
108	 53.23	0	120768..123431	+	887	30061680	aceE	S0113	-	pyruvate dehydrogenase subunit E1
109	 54.55	0	123446..125326	+	626	30061681	aceF	S0114	-	dihydrolipoamide acetyltransferase
110	 52.70	0	125651..127075	+	474	30061682	lpdA	S0115	-	dihydrolipoamide dehydrogenase
111	 55.77	+1	129353..131950	+	865	30061683	acnB	S0117	-	bifunctional aconitate hydratase 2/2-methylisocitrate dehydratase
112	 52.07	0	132125..132487	+	120	161486548	yacL	S0118	-	hypothetical protein
113	 45.91	-1	132525..133319	-	264	30061685	speD	S0119	-	S-adenosylmethionine decarboxylase
114	 50.98	0	133335..134201	-	288	30061686	speE	S0120	-	spermidine synthase
115	 49.04	0	134307..134777	-	156	30061687	yacC	S0121	-	hypothetical protein
116	 54.55	0	134820..136370	+	516	30061688	yacK	S0122	-	multicopper oxidase
117	 55.71	+1	136417..138807	-	796	30061689	gcd	S0123	-	glucose dehydrogenase
118	 50.28	0	139013..139549	+	178	161486547	hpt	S0124	-	hypoxanthine-guanine phosphoribosyltransferase
119	 50.83	0	139590..140252	-	220	30061691	yadF	S0125	-	carbonic anhydrase
120	 48.87	0	140361..141287	+	308	30061692	yadG	S0126	-	putative ATP-binding component of a transport system
121	 50.97	0	141284..142054	+	256	30061693	yadH	S0127	-	hypothetical protein
122	 48.75	0	142159..142599	+	146	30061694	yadI	S0128	-	putative PTS enzyme II B component
123	 49.11	0	142663..143892	+	409	30061695	yadE	S0129	-	hypothetical protein
124	 52.76	0	143896..144276	-	126	30061696	panD	S0130	-	aspartate alpha-decarboxylase
125	 48.62	0	144550..145452	+	300	30061697	yadD	S0131	-	hypothetical protein
126	 52.23	0	145526..146377	-	283	30061698	panC	S0132	-	pantoate--beta-alanine ligase
127	 53.84	0	146389..147183	-	264	30061699	panB	S0133	-	3-methyl-2-oxobutanoate hydroxymethyltransferase
128	 52.54	0	147677..147952	+	91	30061700	-	S0134	-	IS1 orfA
129	 52.78	0	147871..148374	+	167	30061701	-	S0136	-	IS1 orfB
130	 52.08	0	148522..149001	-	159	30061702	folK	S0137	-	2-amino-4-hydroxy-6-hydroxymethyldihyropteridine pyrophosphokinase
131	 55.32	0	148998..150416	-	472	161486546	pcnB	S0138	-	poly(A) polymerase I
132	 53.96	0	150455..151351	-	298	161486545	yadB	S0139	-	glutamyl-Q tRNA(Asp) synthetase
133	 52.63	0	151418..151873	-	151	30061705	dksA	S0140	-	DnaK transcriptional regulator DksA
134	 49.08	0	152051..152755	-	234	30061706	sfsA	S0141	-	sugar fermentation stimulation protein A
135	 55.93	+1	152770..153309	-	179	30061707	yadP	S0142	-	hypothetical protein
136	 56.89	+1	153329..155803	+	824	30061708	hrpB	S0143	-	ATP-dependent RNA helicase HrpB
137	 54.99	0	155999..158533	+	844	30061709	mrcB	S0144	-	penicillin-binding protein 1b
138	 51.29	0	158753..160996	+	747	30061710	fhuA	S0145	-	ferrichrome outer membrane transporter
139	 56.14	+1	161047..161844	+	265	30061711	fhuC	S0146	-	iron-hydroxamate transporter ATP-binding subunit
140	 54.21	0	161844..162734	+	296	30061712	fhuD	S0147	-	iron-hydroxamate transporter substrate-binding subunit
141	 59.46	+1	162731..164713	+	660	30061713	fhuB	S0148	-	iron-hydroxamate transporter permease subunit
142	 55.74	+1	164748..166028	-	426	30061714	hemL	S0149	-	glutamate-1-semialdehyde aminotransferase
143	 53.80	0	166253..167674	+	473	30061715	yadQ	S0150	-	chloride channel protein
144	 51.59	0	167756..168100	+	114	30061716	yadR	S0151	-	iron-sulfur cluster insertion protein ErpA
145	 53.04	0	168147..168770	-	207	30061717	yadS	S0152	-	hypothetical protein
146	 52.68	0	168808..169608	-	266	30061718	yadT	S0153	-	vitamin B12-transporter protein BtuF
147	 52.93	0	169601..170299	-	232	30061719	pfs	S0154	-	5'-methylthioadenosine/S-adenosylhomocysteine nucleosidase
148	 47.89	0	170383..171900	+	505	30061720	dgt	S0155	-	deoxyguanosinetriphosphate triphosphohydrolase
149	 53.96	0	172030..173454	+	474	30061721	htrA	S0156	-	serine endoprotease
150	 44.19	-1	174854..175240	-	128	30061722	yaeH	S0158	-	hypothetical protein
51.60	MEAN

4.04	STD DEV
