IslandPath Analysis: Shigella flexneri 2a str. 2457T

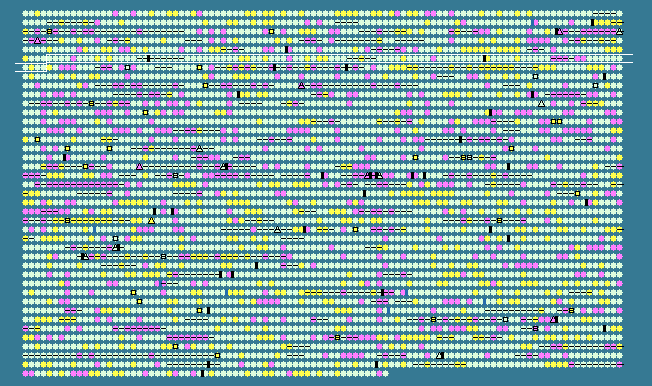

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 51.60 STD DEV: 4.04
Shigella flexneri 2a str. 2457T, complete genome - 1..4599354
4061 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
505	 51.28	0	555625..556443	+	272	30062078	ybhA	S0546	-	phosphotransferase
506	 53.73	0	556444..557502	-	352	30062079	modC	S0547	-	molybdate transporter ATP-binding protein
507	 53.91	0	557505..558194	-	229	30062080	modB	S0548	-	molybdate ABC transporter permease protein
508	 51.03	0	558194..558967	-	257	30062081	modA	S0549	-	molybdate transporter periplasmic protein
509	 41.33	-2	559134..559283	-	49	30062082	-	S0550	-	hypothetical protein
510	 52.60	0	559412..560200	+	262	30062083	modE	S0551	-	DNA-binding transcriptional regulator ModE
511	 52.00	0	560268..561740	+	490	30062084	modF	S0552	-	putative molybdenum transport ATP-binding protein ModF
512	 54.28	0	562001..563017	+	338	30062085	galE	S0553	-	UDP-galactose-4-epimerase
513	 55.30	0	563027..564073	+	348	30062086	galT	S0554	-	galactose-1-phosphate uridylyltransferase
514	 52.92	0	564077..565225	+	382	30062087	galK	S0555	-	galactokinase
515	 55.52	0	565219..566259	+	346	30062088	galM	S0556	-	aldose 1-epimerase
516	 51.66	0	566462..567214	+	250	30062089	gpmA	S0557	-	phosphoglyceromutase
517	 51.28	0	567381..568433	-	350	30062090	aroG	S0558	-	phospho-2-dehydro-3-deoxyheptonate aldolase
518	 50.13	0	568749..569129	+	126	30062091	-	S0559	-	putative homeobox protein
519	 52.87	0	569243..570184	+	313	30062092	ybgR	S0560	-	zinc transporter ZitB
520	 48.33	0	570181..570900	-	239	30062093	pnuC	S0561	-	PnuC protein
521	 50.19	0	570938..571981	-	347	30062094	nadA	S0562	-	quinolinate synthetase
522	 49.37	0	572965..573756	-	263	30062095	ybgF	S0568	-	hypothetical protein
523	 51.34	0	573766..574287	-	173	30062096	pal	S0569	-	peptidoglycan-associated outer membrane lipoprotein
524	 53.13	0	574322..575614	-	430	30062097	tolB	S0570	-	translocation protein TolB
525	 52.25	0	575747..576988	-	413	30062098	tolA	S0571	-	cell envelope integrity inner membrane protein TolA
526	 51.75	0	577053..577481	-	142	30062099	tolR	S0572	-	colicin uptake protein TolR
527	 50.07	0	577485..578177	-	230	30062100	tolQ	S0573	-	colicin uptake protein TolQ
528	 49.63	0	578174..578578	-	134	30062101	ybgC	S0574	-	acyl-CoA thioester hydrolase YbgC
529	 50.00	0	578728..579021	-	97	30062102	ybgE	S0575	-	hypothetical protein
530	 53.77	0	579149..580288	-	379	30062103	cydB	S0576	-	cytochrome d terminal oxidase polypeptide subunit II
531	 52.74	0	580304..581875	-	523	30062104	cydA	S0577	-	cytochrome d terminal oxidase, polypeptide subunit I
532	 49.47	0	582720..585353	-	877	30062105	ybgG	S0578	-	alpha-mannosidase
533	 54.53	0	585371..587347	-	658	30062106	hrsA	S0579	-	2-O-a-mannosyl-D-glycerate specific PTS transporten components IIABC
534	 48.25	0	587457..588401	+	314	30062107	farR	S0580	-	DNA-binding transcriptional repressor MngR
535	 52.87	0	588283..589152	-	289	30062108	sucD	S0581	-	succinyl-CoA synthetase subunit alpha
536	 54.76	0	589152..590318	-	388	30062109	sucC	S0582	-	succinyl-CoA synthetase subunit beta
537	 55.91	+1	590412..591629	-	405	30062110	sucB	S0583	-	dihydrolipoamide acetyltransferase
538	 55.39	0	591644..594445	-	933	30062111	kgd	S0584	-	alpha-ketoglutarate decarboxylase
539	 49.43	0	594427..594687	-	86	30062112	-	S0585	-	hypothetical protein
540	 52.02	0	594746..595462	-	238	30062113	sdhB	S0586	-	succinate dehydrogenase iron-sulfur subunit
541	 56.08	+1	595478..597244	-	588	30062114	sdhA	S0587	-	succinate dehydrogenase flavoprotein subunit
542	 51.15	0	597244..597591	-	115	30062115	sdhD	S0588	-	succinate dehydrogenase cytochrome b556 small membrane subunit
543	 49.23	0	597585..597974	-	129	161486531	sdhC	S0589	-	succinate dehydrogenase cytochrome b556 large membrane subunit
544	 49.92	0	598683..599966	+	427	30062117	gltA	S0590	-	type II citrate synthase
545	 47.62	0	600357..600923	+	188	30062118	ybgD	S0591	-	putative fimbrial-like protein
546	 49.39	0	600974..603433	+	819	30062119	ybgQ	S0592	-	putative outer membrane protein
547	 49.45	0	603448..604179	+	243	30062120	ybgP	S0593	-	putative chaperone
548	 55.59	0	605359..606450	+	363	30062121	abrB	S0595	-	putative transport protein
549	 52.65	0	606447..607238	-	263	30062122	nei	S0596	-	endonuclease VIII
550	 57.28	+1	607274..608008	-	244	30062123	ybgL	S0597	-	hypothetical protein
551	 57.23	+1	608924..609580	-	218	30062124	ybgJ	S0599	-	putative carboxylase
552	 53.36	0	609603..610346	-	247	30062125	ybgI	S0600	-	putative hydrolase-oxidase
553	 52.36	0	610617..612098	+	493	30062126	ybgH	S0601	-	putative transport protein
554	 53.28	0	612248..613666	-	472	30062127	phrB	S0602	-	deoxyribodipyrimidine photolyase
555	 49.80	0	613663..614172	-	169	30062128	ybgA	S0603	-	hypothetical protein
556	 53.47	0	614301..614588	+	95	30062129	-	S0604	-	hypothetical protein
557	 57.25	+1	615026..618412	-	1128	30062130	rhsE	S0605	-	putative Rhs-family protein
558	 52.78	0	619028..619531	-	167	30062131	-	S0606	-	IS1 orfB
559	 52.98	0	619450..619734	-	94	30062132	-	S0607	-	IS1 orfA
560	 51.69	0	620220..620426	-	68	30062133	ybfA	S0608	-	hypothetical protein
561	 54.60	0	620828..622501	+	557	30062134	kdpA	S0609	-	potassium-transporting ATPase subunit A
562	 54.62	0	624580..625152	+	190	30062135	kdpC	S0611	-	potassium-transporting ATPase subunit C
563	 50.38	0	631391..632710	+	439	30062136	potE	S0615	-	putrescine transporter
564	 55.27	0	632766..634406	-	546	30062137	pgm	S0616	-	phosphoglucomutase
565	 50.00	0	634432..634977	-	181	30062138	seqA	S0617	-	replication initiation regulator SeqA
566	 50.85	0	635162..635926	+	254	30062139	ybfF	S0618	-	hypothetical protein
567	 53.44	0	635997..636359	+	120	30062140	ybfE	S0619	-	LexA regulated protein
568	 48.59	0	636499..637029	+	176	30062141	fldA	S0620	-	flavodoxin FldA
569	 48.10	0	637318..637764	+	148	30062142	fur	S0621	-	ferric uptake regulator
570	 49.24	0	637848..638174	-	108	30062143	ybfN	S0622	-	hypothetical protein
571	 51.39	0	638211..639617	-	468	30062144	ybfM	S0623	-	hypothetical protein
572	 52.43	0	640196..641860	-	554	30062145	glnS	S0624	-	glutaminyl-tRNA synthetase
573	 54.85	0	642063..644009	-	648	30062146	nagE	S0625	-	N-acetyl glucosamine specific PTS system components IIABC
574	 48.69	0	644342..645142	+	266	30062147	nagB	S0626	-	glucosamine-6-phosphate deaminase
575	 51.96	0	645202..646350	+	382	30062148	nagA	S0627	-	N-acetylglucosamine-6-phosphate deacetylase
576	 52.91	0	646359..647579	+	406	30062149	nagC	S0628	-	transcriptional repressor of nag (N-acetylglucosamine) operon
577	 51.59	0	648776..650440	+	554	30062150	asnB	S0630	-	asparagine synthetase B
578	 56.04	+1	651676..652851	-	391	30062151	ubiF	S0642	-	2-octaprenyl-3-methyl-6-methoxy-1,4-benzoquinol hydroxylase
579	 54.04	0	652997..654421	+	474	30062152	yleA	S0643	-	hypothetical protein
580	 53.98	0	654535..655614	+	359	30062153	ybeZ	S0644	-	putative ATP-binding protein in pho regulon
581	 51.50	0	655611..656078	+	155	30062154	ybeY	S0645	-	putative metalloprotease
582	 51.65	0	656168..657046	+	292	30062155	ybeX	S0646	-	putative transport protein
583	 55.69	+1	657071..658609	+	512	30062156	lnt	S0647	-	apolipoprotein N-acyltransferase
584	 48.73	0	659005..659913	+	302	30062157	ybeJ	S0648	-	glutamate and aspartate transporter subunit
585	 53.04	0	660083..660823	+	246	30062158	gltJ	S0649	-	glutamate/aspartate transport system permease
586	 50.22	0	660823..661497	+	224	30062159	gltK	S0650	-	glutamate/aspartate transport system permease
587	 52.34	0	661497..662222	+	241	30062160	gltL	S0651	-	ATP-binding protein of glutamate/aspartate transport system
588	 51.18	0	662340..663275	+	311	30062161	rihA	S0652	-	ribonucleoside hydrolase 1
589	 47.52	-1	665089..666540	-	483	30062162	ybeV	S0654	-	hypothetical protein
590	 48.02	0	666537..667244	-	235	30062163	ybeU	S0655	-	putative tRNA ligase
591	 42.16	-2	667346..667900	+	184	30062164	ybeT	S0656	-	hypothetical protein
592	 48.53	0	667910..669337	-	475	30062165	ybeS	S0657	-	putative enzyme
593	 45.20	-1	669334..670041	-	235	30062166	ybeR	S0658	-	hypothetical protein
594	 46.54	-1	670199..671182	+	327	30062167	ybeQ	S0659	-	hypothetical protein
595	 51.97	0	671252..671734	-	160	30062168	ybeL	S0660	-	hypothetical protein
596	 53.39	0	671969..674551	+	860	30062169	leuS	S0661	-	leucyl-tRNA synthetase
597	 52.58	0	674566..675147	+	193	30062170	rlpB	S0662	-	LPS-assembly lipoprotein RplB
598	 52.52	0	675147..676178	+	343	30062171	holA	S0663	-	DNA polymerase III subunit delta
599	 49.84	0	676180..676821	+	213	30062172	nadD	S0664	-	nicotinic acid mononucleotide adenylyltransferase
600	 50.65	0	676845..677456	+	203	30062173	phpB	S0665	-	alpha-ribazole phosphatase
601	 53.33	0	677824..678033	+	69	30062174	ybeB	S0666	-	hypothetical protein
602	 58.33	+1	678037..678504	+	155	30062175	ybeA	S0667	-	SPOUT methyltransferase superfamily protein
603	 52.73	0	678535..680436	+	633	30062176	mrdA	S0668	-	penicillin-binding protein 2
604	 51.84	0	680439..681551	+	370	30062177	mrdB	S0669	-	cell wall shape-determining protein
51.60	MEAN

4.04	STD DEV
