IslandPath Analysis: Shigella flexneri 2a str. 2457T

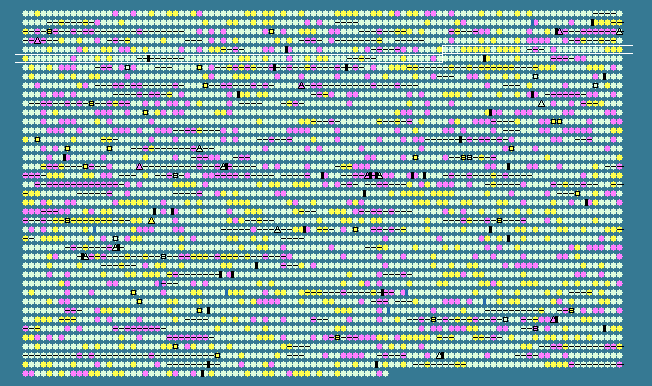

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 51.60 STD DEV: 4.04
Shigella flexneri 2a str. 2457T, complete genome - 1..4599354
4061 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
471	 52.90	0	516702..516977	+	91	30062044	-	S0505	-	IS1 orfA
472	 52.78	0	516896..517399	+	167	30062045	-	S0506	-	IS1 orfB
473	 53.80	0	518740..519555	-	271	30062046	fepC	S0508	-	iron-enterobactin transporter ATP-binding protein
474	 58.41	+1	519552..520544	-	330	30062047	fepG	S0509	-	iron-enterobactin transporter permease
475	 60.57	+2	520541..521557	-	338	30062048	fepD	S0510	-	iron-enterobactin transporter membrane protein
476	 57.10	+1	521656..522888	+	410	30062049	ybdA	S0511	-	enterobactin exporter EntS
477	 56.01	+1	522892..523848	-	318	30062050	fepB	S0512	-	iron-enterobactin transporter periplasmic binding protein
478	 56.30	+1	525325..526935	+	536	30062051	entE	S0514	-	enterobactin synthase subunit E
479	 55.01	0	526949..527806	+	285	30062052	entB	S0515	-	2,3-dihydro-2,3-dihydroxybenzoate synthetase, isochroismatase
480	 57.56	+1	527806..528552	+	248	30062053	entA	S0516	-	2,3-dihydroxybenzoate-2,3-dehydrogenase
481	 57.73	+1	528555..528968	+	137	30062054	ybdB	S0517	-	hypothetical protein
482	 57.08	+1	529149..531254	+	701	30062055	cstA	S0518	-	carbon starvation protein
483	 55.65	+1	531643..532731	-	362	30062056	ybdH	S0519	-	hypothetical protein
484	 53.75	0	532840..534000	+	386	30062057	ybdL	S0520	-	putative aminotransferase
485	 53.75	0	534520..535146	-	208	30062058	-	S0522	-	IS911 orfB
486	 44.88	-1	535386..535688	-	100	30062059	-	S0523	-	IS911 orfA
487	 49.10	0	536938..537216	+	92	30062060	-	S0526	-	ISEhe3 orfA
488	 50.55	0	537273..538085	+	270	30062061	-	S0527	-	ISEhe3 orfB
489	 46.85	-1	539566..540312	-	248	161486532	dsbG	S0528	-	disulfide isomerase/thiol-disulfide oxidase
490	 49.82	0	540684..541247	+	187	30062063	ahpC	S0529	-	alkyl hydroperoxide reductase subunit C
491	 52.44	0	541462..543057	+	531	30062064	ahpF	S0530	-	alkyl hydroperoxide reductase, F52a subunit
492	 50.12	0	543178..543606	-	142	30062065	ybdQ	S0531	-	hypothetical protein
493	 50.44	0	543827..545065	+	412	30062066	ybdR	S0532	-	putative oxidoreductase
494	 51.73	0	545146..545607	+	153	30062067	-	S0533	-	hypothetical protein
495	 54.74	0	545296..545706	-	136	30062068	rnk	S0534	-	nucleoside diphosphate kinase regulator
496	 50.91	0	545935..546759	-	274	30062069	rna	S0535	-	ribonuclease I
497	 55.06	0	548368..549246	-	292	30062070	citG	S0537	-	triphosphoribosyl-dephospho-CoA synthase
498	 59.51	+1	549283..549771	-	162	30062071	citX	S0538	-	2'-(5''-triphosphoribosyl)-3'-dephospho-CoA:apo-citrate lyase
499	 56.03	+1	549775..551307	-	510	30062072	citF	S0539	-	citrate lyase alpha chain
500	 57.32	+1	551318..552226	-	302	30062073	citE	S0540	-	citrate lyase beta chain (acyl lyase subunit)
501	 55.56	0	552223..552519	-	98	30062074	citD	S0541	-	citrate lyase subunit gamma
502	 49.39	0	552534..553679	-	381	30062075	citC	S0542	-	citrate lyase synthetase (citrate (pro-3S)-lyase ligase
503	 52.78	0	554059..554562	-	167	30062076	-	S0543	-	IS1 orfB
504	 52.90	0	554481..554756	-	91	30062077	-	S0545	-	IS1 orfA
505	 51.28	0	555625..556443	+	272	30062078	ybhA	S0546	-	phosphotransferase
506	 53.73	0	556444..557502	-	352	30062079	modC	S0547	-	molybdate transporter ATP-binding protein
507	 53.91	0	557505..558194	-	229	30062080	modB	S0548	-	molybdate ABC transporter permease protein
508	 51.03	0	558194..558967	-	257	30062081	modA	S0549	-	molybdate transporter periplasmic protein
509	 41.33	-2	559134..559283	-	49	30062082	-	S0550	-	hypothetical protein
510	 52.60	0	559412..560200	+	262	30062083	modE	S0551	-	DNA-binding transcriptional regulator ModE
511	 52.00	0	560268..561740	+	490	30062084	modF	S0552	-	putative molybdenum transport ATP-binding protein ModF
512	 54.28	0	562001..563017	+	338	30062085	galE	S0553	-	UDP-galactose-4-epimerase
513	 55.30	0	563027..564073	+	348	30062086	galT	S0554	-	galactose-1-phosphate uridylyltransferase
514	 52.92	0	564077..565225	+	382	30062087	galK	S0555	-	galactokinase
515	 55.52	0	565219..566259	+	346	30062088	galM	S0556	-	aldose 1-epimerase
516	 51.66	0	566462..567214	+	250	30062089	gpmA	S0557	-	phosphoglyceromutase
517	 51.28	0	567381..568433	-	350	30062090	aroG	S0558	-	phospho-2-dehydro-3-deoxyheptonate aldolase
518	 50.13	0	568749..569129	+	126	30062091	-	S0559	-	putative homeobox protein
519	 52.87	0	569243..570184	+	313	30062092	ybgR	S0560	-	zinc transporter ZitB
520	 48.33	0	570181..570900	-	239	30062093	pnuC	S0561	-	PnuC protein
521	 50.19	0	570938..571981	-	347	30062094	nadA	S0562	-	quinolinate synthetase
522	 49.37	0	572965..573756	-	263	30062095	ybgF	S0568	-	hypothetical protein
523	 51.34	0	573766..574287	-	173	30062096	pal	S0569	-	peptidoglycan-associated outer membrane lipoprotein
524	 53.13	0	574322..575614	-	430	30062097	tolB	S0570	-	translocation protein TolB
525	 52.25	0	575747..576988	-	413	30062098	tolA	S0571	-	cell envelope integrity inner membrane protein TolA
526	 51.75	0	577053..577481	-	142	30062099	tolR	S0572	-	colicin uptake protein TolR
527	 50.07	0	577485..578177	-	230	30062100	tolQ	S0573	-	colicin uptake protein TolQ
528	 49.63	0	578174..578578	-	134	30062101	ybgC	S0574	-	acyl-CoA thioester hydrolase YbgC
529	 50.00	0	578728..579021	-	97	30062102	ybgE	S0575	-	hypothetical protein
530	 53.77	0	579149..580288	-	379	30062103	cydB	S0576	-	cytochrome d terminal oxidase polypeptide subunit II
531	 52.74	0	580304..581875	-	523	30062104	cydA	S0577	-	cytochrome d terminal oxidase, polypeptide subunit I
532	 49.47	0	582720..585353	-	877	30062105	ybgG	S0578	-	alpha-mannosidase
533	 54.53	0	585371..587347	-	658	30062106	hrsA	S0579	-	2-O-a-mannosyl-D-glycerate specific PTS transporten components IIABC
534	 48.25	0	587457..588401	+	314	30062107	farR	S0580	-	DNA-binding transcriptional repressor MngR
535	 52.87	0	588283..589152	-	289	30062108	sucD	S0581	-	succinyl-CoA synthetase subunit alpha
536	 54.76	0	589152..590318	-	388	30062109	sucC	S0582	-	succinyl-CoA synthetase subunit beta
537	 55.91	+1	590412..591629	-	405	30062110	sucB	S0583	-	dihydrolipoamide acetyltransferase
538	 55.39	0	591644..594445	-	933	30062111	kgd	S0584	-	alpha-ketoglutarate decarboxylase
539	 49.43	0	594427..594687	-	86	30062112	-	S0585	-	hypothetical protein
540	 52.02	0	594746..595462	-	238	30062113	sdhB	S0586	-	succinate dehydrogenase iron-sulfur subunit
541	 56.08	+1	595478..597244	-	588	30062114	sdhA	S0587	-	succinate dehydrogenase flavoprotein subunit
542	 51.15	0	597244..597591	-	115	30062115	sdhD	S0588	-	succinate dehydrogenase cytochrome b556 small membrane subunit
543	 49.23	0	597585..597974	-	129	161486531	sdhC	S0589	-	succinate dehydrogenase cytochrome b556 large membrane subunit
544	 49.92	0	598683..599966	+	427	30062117	gltA	S0590	-	type II citrate synthase
545	 47.62	0	600357..600923	+	188	30062118	ybgD	S0591	-	putative fimbrial-like protein
546	 49.39	0	600974..603433	+	819	30062119	ybgQ	S0592	-	putative outer membrane protein
547	 49.45	0	603448..604179	+	243	30062120	ybgP	S0593	-	putative chaperone
548	 55.59	0	605359..606450	+	363	30062121	abrB	S0595	-	putative transport protein
549	 52.65	0	606447..607238	-	263	30062122	nei	S0596	-	endonuclease VIII
550	 57.28	+1	607274..608008	-	244	30062123	ybgL	S0597	-	hypothetical protein
551	 57.23	+1	608924..609580	-	218	30062124	ybgJ	S0599	-	putative carboxylase
552	 53.36	0	609603..610346	-	247	30062125	ybgI	S0600	-	putative hydrolase-oxidase
553	 52.36	0	610617..612098	+	493	30062126	ybgH	S0601	-	putative transport protein
554	 53.28	0	612248..613666	-	472	30062127	phrB	S0602	-	deoxyribodipyrimidine photolyase
555	 49.80	0	613663..614172	-	169	30062128	ybgA	S0603	-	hypothetical protein
556	 53.47	0	614301..614588	+	95	30062129	-	S0604	-	hypothetical protein
557	 57.25	+1	615026..618412	-	1128	30062130	rhsE	S0605	-	putative Rhs-family protein
558	 52.78	0	619028..619531	-	167	30062131	-	S0606	-	IS1 orfB
559	 52.98	0	619450..619734	-	94	30062132	-	S0607	-	IS1 orfA
560	 51.69	0	620220..620426	-	68	30062133	ybfA	S0608	-	hypothetical protein
561	 54.60	0	620828..622501	+	557	30062134	kdpA	S0609	-	potassium-transporting ATPase subunit A
562	 54.62	0	624580..625152	+	190	30062135	kdpC	S0611	-	potassium-transporting ATPase subunit C
563	 50.38	0	631391..632710	+	439	30062136	potE	S0615	-	putrescine transporter
564	 55.27	0	632766..634406	-	546	30062137	pgm	S0616	-	phosphoglucomutase
565	 50.00	0	634432..634977	-	181	30062138	seqA	S0617	-	replication initiation regulator SeqA
566	 50.85	0	635162..635926	+	254	30062139	ybfF	S0618	-	hypothetical protein
567	 53.44	0	635997..636359	+	120	30062140	ybfE	S0619	-	LexA regulated protein
568	 48.59	0	636499..637029	+	176	30062141	fldA	S0620	-	flavodoxin FldA
569	 48.10	0	637318..637764	+	148	30062142	fur	S0621	-	ferric uptake regulator
570	 49.24	0	637848..638174	-	108	30062143	ybfN	S0622	-	hypothetical protein
51.60	MEAN

4.04	STD DEV
