IslandPath Analysis: Shigella flexneri 2a str. 2457T

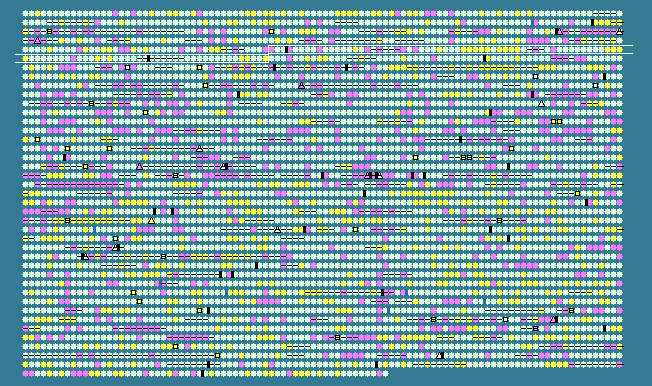

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 51.60 STD DEV: 4.04
Shigella flexneri 2a str. 2457T, complete genome - 1..4599354
4061 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
442	 43.15	-2	477297..477989	+	230	30062015	sfmC	S0470	-	putative chaperone
443	 53.17	0	478532..479035	-	167	30062016	-	S0471	-	IS1 orfB
444	 52.90	0	478954..479229	-	91	30062017	-	S0472	-	IS1 orfA
445	 45.41	-1	479858..480619	-	253	30062018	envY	S0475	-	envelope protein
446	 51.74	0	480802..481692	-	296	30062019	ybcH	S0476	-	hypothetical protein
447	 51.91	0	487035..488477	-	480	30062020	ybcZ	S0479	-	sensor kinase CusS
448	 54.39	0	488467..489150	-	227	30062021	ylcA	S0480	-	DNA-binding transcriptional activator CusR
449	 51.84	0	489307..490689	+	460	30062022	ylcB	S0481	-	copper/silver efflux system outer membrane protein CusC
450	 45.05	-1	490713..491045	+	110	30062023	ylcC	S0482	-	periplasmic copper-binding protein
451	 50.00	0	491986..492309	+	107	30062024	-	S0484	-	IntA
452	 54.43	0	492349..492969	-	206	30062025	-	S0485	-	IS629 orfB
453	 54.43	0	493232..493558	-	108	30062026	-	S0486	-	IS629 orfA
454	 54.29	0	494699..495490	-	263	30062027	-	S0487	-	insertion sequence 2 OrfB protein
455	 50.36	0	495562..495972	-	136	30062028	-	S0488	-	insertion sequence 2 OrfA protein
456	 55.44	0	496745..499888	+	1047	30062029	ybdE	S0490	-	putative inner membrane component for iron transport
457	 52.72	0	499989..501365	+	458	30062030	pheP	S0491	-	phenylalanine transporter
458	 47.52	-1	501433..502680	-	415	30062031	ybdG	S0492	-	putative transport protein
459	 51.38	0	502788..503441	-	217	30062032	nfnB	S0493	-	dihydropteridine reductase
460	 46.88	-1	503535..503903	-	122	30062033	ybdF	S0494	-	hypothetical protein
461	 50.60	0	503968..504216	-	82	30062034	ybdJ	S0495	-	hypothetical protein
462	 52.46	0	504282..505400	-	372	30062035	ybdK	S0496	-	carboxylate-amine ligase
463	 46.17	-1	505832..506353	+	173	30062036	IS103	S0497	-	IS103 orf
464	 47.45	-1	506350..506781	+	143	30062037	-	S0498	-	IS150 orfB
465	 49.02	0	507298..507450	+	50	30062038	-	S0499	-	hypothetical protein
466	 47.62	0	507702..507953	+	83	30062039	-	S0500	-	hypothetical protein
467	 48.57	0	508075..508704	-	209	30062040	entD	S0501	-	phosphopantetheinyltransferase component of enterobactin synthase multienzyme complex
468	 54.17	0	508870..511110	-	746	30062041	fepA	S0502	-	outer membrane receptor FepA
469	 54.28	0	511353..512555	+	400	30062042	fes	S0503	-	enterobactin/ferric enterobactin esterase
470	 56.50	+1	512773..516618	+	1281	30062043	entF	S0504	-	enterobactin synthase subunit F
471	 52.90	0	516702..516977	+	91	30062044	-	S0505	-	IS1 orfA
472	 52.78	0	516896..517399	+	167	30062045	-	S0506	-	IS1 orfB
473	 53.80	0	518740..519555	-	271	30062046	fepC	S0508	-	iron-enterobactin transporter ATP-binding protein
474	 58.41	+1	519552..520544	-	330	30062047	fepG	S0509	-	iron-enterobactin transporter permease
475	 60.57	+2	520541..521557	-	338	30062048	fepD	S0510	-	iron-enterobactin transporter membrane protein
476	 57.10	+1	521656..522888	+	410	30062049	ybdA	S0511	-	enterobactin exporter EntS
477	 56.01	+1	522892..523848	-	318	30062050	fepB	S0512	-	iron-enterobactin transporter periplasmic binding protein
478	 56.30	+1	525325..526935	+	536	30062051	entE	S0514	-	enterobactin synthase subunit E
479	 55.01	0	526949..527806	+	285	30062052	entB	S0515	-	2,3-dihydro-2,3-dihydroxybenzoate synthetase, isochroismatase
480	 57.56	+1	527806..528552	+	248	30062053	entA	S0516	-	2,3-dihydroxybenzoate-2,3-dehydrogenase
481	 57.73	+1	528555..528968	+	137	30062054	ybdB	S0517	-	hypothetical protein
482	 57.08	+1	529149..531254	+	701	30062055	cstA	S0518	-	carbon starvation protein
483	 55.65	+1	531643..532731	-	362	30062056	ybdH	S0519	-	hypothetical protein
484	 53.75	0	532840..534000	+	386	30062057	ybdL	S0520	-	putative aminotransferase
485	 53.75	0	534520..535146	-	208	30062058	-	S0522	-	IS911 orfB
486	 44.88	-1	535386..535688	-	100	30062059	-	S0523	-	IS911 orfA
487	 49.10	0	536938..537216	+	92	30062060	-	S0526	-	ISEhe3 orfA
488	 50.55	0	537273..538085	+	270	30062061	-	S0527	-	ISEhe3 orfB
489	 46.85	-1	539566..540312	-	248	161486532	dsbG	S0528	-	disulfide isomerase/thiol-disulfide oxidase
490	 49.82	0	540684..541247	+	187	30062063	ahpC	S0529	-	alkyl hydroperoxide reductase subunit C
491	 52.44	0	541462..543057	+	531	30062064	ahpF	S0530	-	alkyl hydroperoxide reductase, F52a subunit
492	 50.12	0	543178..543606	-	142	30062065	ybdQ	S0531	-	hypothetical protein
493	 50.44	0	543827..545065	+	412	30062066	ybdR	S0532	-	putative oxidoreductase
494	 51.73	0	545146..545607	+	153	30062067	-	S0533	-	hypothetical protein
495	 54.74	0	545296..545706	-	136	30062068	rnk	S0534	-	nucleoside diphosphate kinase regulator
496	 50.91	0	545935..546759	-	274	30062069	rna	S0535	-	ribonuclease I
497	 55.06	0	548368..549246	-	292	30062070	citG	S0537	-	triphosphoribosyl-dephospho-CoA synthase
498	 59.51	+1	549283..549771	-	162	30062071	citX	S0538	-	2'-(5''-triphosphoribosyl)-3'-dephospho-CoA:apo-citrate lyase
499	 56.03	+1	549775..551307	-	510	30062072	citF	S0539	-	citrate lyase alpha chain
500	 57.32	+1	551318..552226	-	302	30062073	citE	S0540	-	citrate lyase beta chain (acyl lyase subunit)
501	 55.56	0	552223..552519	-	98	30062074	citD	S0541	-	citrate lyase subunit gamma
502	 49.39	0	552534..553679	-	381	30062075	citC	S0542	-	citrate lyase synthetase (citrate (pro-3S)-lyase ligase
503	 52.78	0	554059..554562	-	167	30062076	-	S0543	-	IS1 orfB
504	 52.90	0	554481..554756	-	91	30062077	-	S0545	-	IS1 orfA
505	 51.28	0	555625..556443	+	272	30062078	ybhA	S0546	-	phosphotransferase
506	 53.73	0	556444..557502	-	352	30062079	modC	S0547	-	molybdate transporter ATP-binding protein
507	 53.91	0	557505..558194	-	229	30062080	modB	S0548	-	molybdate ABC transporter permease protein
508	 51.03	0	558194..558967	-	257	30062081	modA	S0549	-	molybdate transporter periplasmic protein
509	 41.33	-2	559134..559283	-	49	30062082	-	S0550	-	hypothetical protein
510	 52.60	0	559412..560200	+	262	30062083	modE	S0551	-	DNA-binding transcriptional regulator ModE
511	 52.00	0	560268..561740	+	490	30062084	modF	S0552	-	putative molybdenum transport ATP-binding protein ModF
512	 54.28	0	562001..563017	+	338	30062085	galE	S0553	-	UDP-galactose-4-epimerase
513	 55.30	0	563027..564073	+	348	30062086	galT	S0554	-	galactose-1-phosphate uridylyltransferase
514	 52.92	0	564077..565225	+	382	30062087	galK	S0555	-	galactokinase
515	 55.52	0	565219..566259	+	346	30062088	galM	S0556	-	aldose 1-epimerase
516	 51.66	0	566462..567214	+	250	30062089	gpmA	S0557	-	phosphoglyceromutase
517	 51.28	0	567381..568433	-	350	30062090	aroG	S0558	-	phospho-2-dehydro-3-deoxyheptonate aldolase
518	 50.13	0	568749..569129	+	126	30062091	-	S0559	-	putative homeobox protein
519	 52.87	0	569243..570184	+	313	30062092	ybgR	S0560	-	zinc transporter ZitB
520	 48.33	0	570181..570900	-	239	30062093	pnuC	S0561	-	PnuC protein
521	 50.19	0	570938..571981	-	347	30062094	nadA	S0562	-	quinolinate synthetase
522	 49.37	0	572965..573756	-	263	30062095	ybgF	S0568	-	hypothetical protein
523	 51.34	0	573766..574287	-	173	30062096	pal	S0569	-	peptidoglycan-associated outer membrane lipoprotein
524	 53.13	0	574322..575614	-	430	30062097	tolB	S0570	-	translocation protein TolB
525	 52.25	0	575747..576988	-	413	30062098	tolA	S0571	-	cell envelope integrity inner membrane protein TolA
526	 51.75	0	577053..577481	-	142	30062099	tolR	S0572	-	colicin uptake protein TolR
527	 50.07	0	577485..578177	-	230	30062100	tolQ	S0573	-	colicin uptake protein TolQ
528	 49.63	0	578174..578578	-	134	30062101	ybgC	S0574	-	acyl-CoA thioester hydrolase YbgC
529	 50.00	0	578728..579021	-	97	30062102	ybgE	S0575	-	hypothetical protein
530	 53.77	0	579149..580288	-	379	30062103	cydB	S0576	-	cytochrome d terminal oxidase polypeptide subunit II
531	 52.74	0	580304..581875	-	523	30062104	cydA	S0577	-	cytochrome d terminal oxidase, polypeptide subunit I
532	 49.47	0	582720..585353	-	877	30062105	ybgG	S0578	-	alpha-mannosidase
533	 54.53	0	585371..587347	-	658	30062106	hrsA	S0579	-	2-O-a-mannosyl-D-glycerate specific PTS transporten components IIABC
534	 48.25	0	587457..588401	+	314	30062107	farR	S0580	-	DNA-binding transcriptional repressor MngR
535	 52.87	0	588283..589152	-	289	30062108	sucD	S0581	-	succinyl-CoA synthetase subunit alpha
536	 54.76	0	589152..590318	-	388	30062109	sucC	S0582	-	succinyl-CoA synthetase subunit beta
537	 55.91	+1	590412..591629	-	405	30062110	sucB	S0583	-	dihydrolipoamide acetyltransferase
538	 55.39	0	591644..594445	-	933	30062111	kgd	S0584	-	alpha-ketoglutarate decarboxylase
539	 49.43	0	594427..594687	-	86	30062112	-	S0585	-	hypothetical protein
540	 52.02	0	594746..595462	-	238	30062113	sdhB	S0586	-	succinate dehydrogenase iron-sulfur subunit
541	 56.08	+1	595478..597244	-	588	30062114	sdhA	S0587	-	succinate dehydrogenase flavoprotein subunit
51.60	MEAN

4.04	STD DEV
