IslandPathversion 1.0

IslandPath Analysis: Shigella flexneri 2a str. 2457T

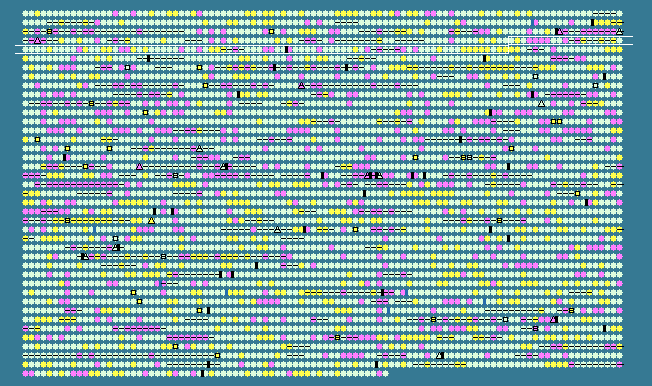

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 51.60 STD DEV: 4.04
Shigella flexneri 2a str. 2457T, complete genome - 1..4599354
4061 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
382	 54.33	0	410956..412284	+	442	30061955	-	S0405	-	IS4 orf
383	 56.73	+1	412314..412625	-	103	30061956	ybaZ	S0406	-	hypothetical protein
384	 50.00	0	413004..413357	+	117	30061957	ybaA	S0408	-	hypothetical protein
385	 47.71	0	413399..414949	-	516	30061958	ylaB	S0409	-	hypothetical protein
386	 47.13	-1	415113..415583	-	156	30061959	ylaC	S0410	-	hypothetical protein
387	 40.18	-2	416422..416640	-	72	30061960	hha	S0412	-	hemolysin expression-modulating protein
388	 40.80	-2	416666..417040	-	124	30061961	ybaJ	S0413	-	hypothetical protein
389	 53.78	0	417586..420735	-	1049	30061962	acrB	S0414	-	acriflavine resistance protein
390	 53.69	0	420758..421951	-	397	30061963	acrA	S0415	-	acriflavin resistance protein AcrA precursor
391	 45.37	-1	422093..422740	+	215	30061964	acrR	S0416	-	DNA-binding transcriptional repressor AcrR
392	 51.92	0	422868..426230	+	1120	30061965	aefA	S0417	-	potassium efflux protein KefA
393	 46.91	-1	426442..426603	-	53	30061966	ybaM	S0418	-	hypothetical protein
394	 59.09	+1	426617..427144	-	175	30061967	priC	S0419	-	primosomal replication protein N''
395	 52.12	0	427214..427591	+	125	30061968	ybaN	S0420	-	hypothetical protein
396	 53.62	0	427744..428295	+	183	30061969	apt	S0421	-	adenine phosphoribosyltransferase
397	 57.48	+1	428424..430349	+	641	30061970	dnaX	S0422	-	DNA polymerase III subunits gamma and tau
398	 52.42	0	430402..430731	+	109	30061971	ybaB	S0423	-	hypothetical protein
399	 57.43	+1	430731..431336	+	201	30061972	recR	S0424	-	recombination protein RecR
400	 52.64	0	431446..433320	+	624	30061973	htpG	S0425	-	heat shock protein 90
401	 51.63	0	433501..434145	+	214	30061974	adk	S0426	-	adenylate kinase
402	 54.31	0	434277..435239	+	320	30061975	hemH	S0427	-	ferrochelatase
403	 50.79	0	435377..436195	-	272	30061976	ybaC	S0428	-	putative lipase
404	 52.11	0	436347..437651	+	434	30061977	gsk	S0429	-	inosine-guanosine kinase
405	 55.10	0	437784..439460	-	558	30061978	ybaL	S0430	-	putative cation:proton antiport protein
406	 52.33	0	439698..440918	-	406	30061979	fsr	S0431	-	fosmidomycin resistance protein
407	 50.76	0	441136..442788	+	550	30061980	ushA	S0432	-	bifunctional UDP-sugar hydrolase/5'-nucleotidase periplasmic precursor
408	 50.83	0	442825..443304	-	159	30061981	ybaK	S0433	-	hypothetical protein
409	 54.09	0	443508..444302	-	264	30061982	ybaP	S0434	-	putative ligase
410	 44.44	-1	444386..444781	+	131	30061983	ybaQ	S0435	-	hypothetical protein
411	 57.84	+1	444996..447500	-	834	30061984	ybaR	S0436	-	copper exporting ATPase
412	 53.38	0	447762..448694	+	310	30061985	ybaS	S0437	-	glutaminase
413	 53.13	0	448697..449989	+	430	30061986	ybaT	S0438	-	putative amino acid/amine transport protein
414	 58.58	+1	450114..450521	+	135	30061987	ybbI	S0439	-	DNA-binding transcriptional regulator CueR
415	 57.68	+1	450522..450977	-	151	30061988	ybbJ	S0440	-	hypothetical protein
416	 52.40	0	450977..451894	-	305	30061989	ybbK	S0441	-	putative protease
417	 45.43	-1	452040..452717	+	225	30061990	ybbL	S0442	-	putative ABC transporter ATP-binding protein YbbL
418	 46.59	-1	452677..453483	+	268	30061991	ybbM	S0443	-	putative metal resistance protein
419	 55.56	0	453546..454436	-	296	30061992	ybbN	S0444	-	putative thioredoxin-like protein
420	 53.70	0	454461..455270	-	269	30061993	ybbO	S0445	-	short chain dehydrogenase
421	 56.62	+1	455853..456539	+	228	30061994	ybbA	S0447	-	putative ABC transporter ATP-binding protein YbbA
422	 54.61	0	459664..460758	-	364	30061995	ybbB	S0449	-	tRNA 2-selenouridine synthase
423	 51.67	0	460827..461753	-	308	30061996	ybbS	S0450	-	DNA-binding transcriptional activator AllS
424	 51.35	0	461983..462465	+	160	30061997	ybbT	S0451	-	ureidoglycolate hydrolase
425	 52.82	0	462543..463358	+	271	30061998	ybbU	S0452	-	DNA-binding transcriptional repressor AllR
426	 53.09	0	463448..465229	+	593	30061999	gcl	S0453	-	glyoxylate carboligase
427	 46.45	-1	465242..465523	+	93	30062000	gip	S0454	-	glyoxylate-induced protein
428	 52.58	0	465534..466037	-	167	30062001	-	S0455	-	IS1 orfB
429	 52.17	0	465956..466231	-	91	30062002	-	S0456	-	IS1 orfA
430	 46.13	-1	466260..466931	-	223	30062003	ylbA	S0457	-	hypothetical protein
431	 51.55	0	466942..468099	-	385	30062004	ylbB	S0458	-	allantoate amidohydrolase
432	 57.16	+1	468821..469714	+	297	30062005	arcC	S0460	-	carbamate kinase
433	 56.27	+1	469852..470919	-	355	30062006	purK	S0461	-	phosphoribosylaminoimidazole carboxylase ATPase subunit
434	 59.41	+1	470916..471425	-	169	30062007	purE	S0462	-	phosphoribosylaminoimidazole carboxylase catalytic subunit
435	 53.94	0	471543..472265	-	240	30062008	ybbF	S0463	-	UDP-2,3-diacylglucosamine hydrolase
436	 47.68	0	472268..472762	-	164	30062009	ppiB	S0464	-	peptidyl-prolyl cis-trans isomerase B (rotamase B)
437	 54.76	0	472936..474321	+	461	30062010	cysS	S0465	-	cysteinyl-tRNA synthetase
438	 52.55	0	474357..474866	-	169	30062011	ybcI	S0466	-	hypothetical protein
439	 54.93	0	474974..475186	-	70	161486533	ybcJ	S0467	-	hypothetical protein
440	 54.56	0	475188..476054	-	288	30062013	folD	S0468	-	bifunctional 5,10-methylene-tetrahydrofolate dehydrogenase/ 5,10-methylene-tetrahydrofolate cyclohydrolase
441	 43.75	-1	476502..477077	+	191	30062014	sfmA	S0469	-	putative fimbrial-like protein
442	 43.15	-2	477297..477989	+	230	30062015	sfmC	S0470	-	putative chaperone
443	 53.17	0	478532..479035	-	167	30062016	-	S0471	-	IS1 orfB
444	 52.90	0	478954..479229	-	91	30062017	-	S0472	-	IS1 orfA
445	 45.41	-1	479858..480619	-	253	30062018	envY	S0475	-	envelope protein
446	 51.74	0	480802..481692	-	296	30062019	ybcH	S0476	-	hypothetical protein
447	 51.91	0	487035..488477	-	480	30062020	ybcZ	S0479	-	sensor kinase CusS
448	 54.39	0	488467..489150	-	227	30062021	ylcA	S0480	-	DNA-binding transcriptional activator CusR
449	 51.84	0	489307..490689	+	460	30062022	ylcB	S0481	-	copper/silver efflux system outer membrane protein CusC
450	 45.05	-1	490713..491045	+	110	30062023	ylcC	S0482	-	periplasmic copper-binding protein
451	 50.00	0	491986..492309	+	107	30062024	-	S0484	-	IntA
452	 54.43	0	492349..492969	-	206	30062025	-	S0485	-	IS629 orfB
453	 54.43	0	493232..493558	-	108	30062026	-	S0486	-	IS629 orfA
454	 54.29	0	494699..495490	-	263	30062027	-	S0487	-	insertion sequence 2 OrfB protein
455	 50.36	0	495562..495972	-	136	30062028	-	S0488	-	insertion sequence 2 OrfA protein
456	 55.44	0	496745..499888	+	1047	30062029	ybdE	S0490	-	putative inner membrane component for iron transport
457	 52.72	0	499989..501365	+	458	30062030	pheP	S0491	-	phenylalanine transporter
458	 47.52	-1	501433..502680	-	415	30062031	ybdG	S0492	-	putative transport protein
459	 51.38	0	502788..503441	-	217	30062032	nfnB	S0493	-	dihydropteridine reductase
460	 46.88	-1	503535..503903	-	122	30062033	ybdF	S0494	-	hypothetical protein
461	 50.60	0	503968..504216	-	82	30062034	ybdJ	S0495	-	hypothetical protein
462	 52.46	0	504282..505400	-	372	30062035	ybdK	S0496	-	carboxylate-amine ligase
463	 46.17	-1	505832..506353	+	173	30062036	IS103	S0497	-	IS103 orf
464	 47.45	-1	506350..506781	+	143	30062037	-	S0498	-	IS150 orfB
465	 49.02	0	507298..507450	+	50	30062038	-	S0499	-	hypothetical protein
466	 47.62	0	507702..507953	+	83	30062039	-	S0500	-	hypothetical protein
467	 48.57	0	508075..508704	-	209	30062040	entD	S0501	-	phosphopantetheinyltransferase component of enterobactin synthase multienzyme complex
468	 54.17	0	508870..511110	-	746	30062041	fepA	S0502	-	outer membrane receptor FepA
469	 54.28	0	511353..512555	+	400	30062042	fes	S0503	-	enterobactin/ferric enterobactin esterase
470	 56.50	+1	512773..516618	+	1281	30062043	entF	S0504	-	enterobactin synthase subunit F
471	 52.90	0	516702..516977	+	91	30062044	-	S0505	-	IS1 orfA
472	 52.78	0	516896..517399	+	167	30062045	-	S0506	-	IS1 orfB
473	 53.80	0	518740..519555	-	271	30062046	fepC	S0508	-	iron-enterobactin transporter ATP-binding protein
474	 58.41	+1	519552..520544	-	330	30062047	fepG	S0509	-	iron-enterobactin transporter permease
475	 60.57	+2	520541..521557	-	338	30062048	fepD	S0510	-	iron-enterobactin transporter membrane protein
476	 57.10	+1	521656..522888	+	410	30062049	ybdA	S0511	-	enterobactin exporter EntS
477	 56.01	+1	522892..523848	-	318	30062050	fepB	S0512	-	iron-enterobactin transporter periplasmic binding protein
478	 56.30	+1	525325..526935	+	536	30062051	entE	S0514	-	enterobactin synthase subunit E
479	 55.01	0	526949..527806	+	285	30062052	entB	S0515	-	2,3-dihydro-2,3-dihydroxybenzoate synthetase, isochroismatase
480	 57.56	+1	527806..528552	+	248	30062053	entA	S0516	-	2,3-dihydroxybenzoate-2,3-dehydrogenase
481	 57.73	+1	528555..528968	+	137	30062054	ybdB	S0517	-	hypothetical protein
51.60	MEAN

4.04	STD DEV
