IslandPath Analysis: Shigella flexneri 2a str. 2457T

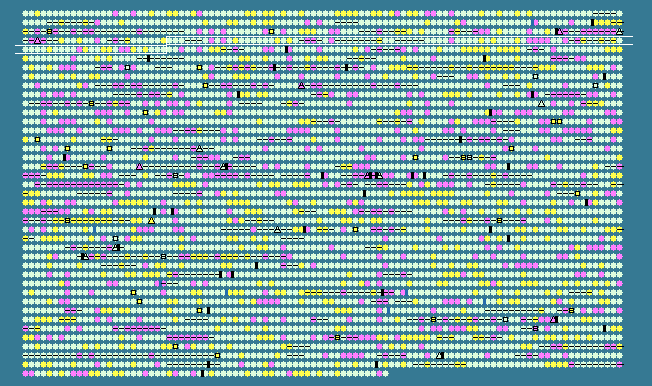

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 51.60 STD DEV: 4.04
Shigella flexneri 2a str. 2457T, complete genome - 1..4599354
4061 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
325	 52.55	0	349628..351001	+	457	30061898	proY	S0347	-	putative proline-specific permease
326	 54.35	0	351157..352974	+	605	30061899	malZ	S0348	-	maltodextrin glucosidase
327	 53.97	0	353645..354715	+	356	30061900	queA	S0350	-	S-adenosylmethionine:tRNA ribosyltransferase-isomerase
328	 50.71	0	354770..355897	+	375	30061901	tgt	S0351	-	queuine tRNA-ribosyltransferase
329	 49.55	0	355920..356252	+	110	30061902	yajC	S0352	-	preprotein translocase subunit YajC
330	 53.19	0	356280..358127	+	615	30061903	secD	S0353	-	preprotein translocase subunit SecD
331	 51.54	0	358138..359109	+	323	30061904	secF	S0354	-	preprotein translocase subunit SecF
332	 46.55	-1	359238..359585	+	115	30061905	yajD	S0355	-	hypothetical protein
333	 50.51	0	359762..360646	-	294	30061906	tsx	S0356	-	outer membrane protein Tsx
334	 47.22	-1	360944..361483	-	179	161486536	yajI	S0357	-	hypothetical protein
335	 50.67	0	361634..362083	+	149	30061908	ybaD	S0358	-	transcriptional regulator NrdR
336	 55.71	+1	362087..363190	+	367	30061909	ribD	S0359	-	bifunctional diaminohydroxyphosphoribosylaminopyrimidine deaminase/5-amino-6-(5-phosphoribosylamino)uracil reductase
337	 52.23	0	363279..363749	+	156	30061910	ribH	S0360	-	riboflavin synthase subunit beta
338	 54.05	0	363769..364188	+	139	30061911	nusB	S0361	-	transcription antitermination protein NusB
339	 54.40	0	364266..365243	+	325	30061912	thiL	S0362	-	thiamine monophosphate kinase
340	 52.79	0	365221..365739	+	172	30061913	pgpA	S0363	-	phosphatidylglycerophosphatase A
341	 53.89	0	366822..368684	-	620	30061914	dxs	S0365	-	1-deoxy-D-xylulose-5-phosphate synthase
342	 54.33	0	368709..369608	-	299	30061915	ispA	S0366	-	geranyltranstransferase
343	 55.14	0	369608..369850	-	80	30061916	xseB	S0367	-	exodeoxyribonuclease VII small subunit
344	 51.62	0	370056..371504	+	482	30061917	yajK	S0368	-	thiamine biosynthesis protein ThiI
345	 56.28	+1	371558..372154	-	198	30061918	thiJ	S0369	-	hypothetical protein
346	 51.32	0	372111..373022	-	303	30061919	apbA	S0370	-	2-dehydropantoate 2-reductase
347	 49.80	0	373190..373681	+	163	30061920	yajQ	S0371	-	nucleotide-binding protein
348	 35.93	-2	373741..375471	-	576	30061921	-	S4809	-	hypothetical protein
349	 36.12	-2	375524..377677	-	717	30061922	-	S4810	-	hypothetical protein
350	 52.90	0	377828..378103	+	91	30061923	-	S0372	-	IS1 orfA
351	 52.38	0	378231..378524	+	97	30061924	-	S4811	-	IS1 orfB
352	 44.58	-1	378572..378811	-	79	30061925	-	S4812	-	hypothetical protein
353	 49.36	0	379105..379416	-	103	30061926	-	S0373	-	hypothetical protein
354	 53.38	0	379600..380487	-	295	30061927	cyoE	S0374	-	protoheme IX farnesyltransferase
355	 50.00	0	380502..380831	-	109	30061928	cyoD	S0375	-	cytochrome o ubiquinol oxidase subunit IV
356	 53.66	0	380831..381445	-	204	30061929	cyoC	S0376	-	cytochrome o ubiquinol oxidase subunit III
357	 53.24	0	383978..385027	-	349	30061930	-	S0379	-	ISSfl3 orfD
358	 52.91	0	385243..385431	-	62	146133915	-	S0380	-	ISSfl3 orfC
359	 51.85	0	385428..385562	-	44	30061932	-	S0381	-	ISSfl3 orfC
360	 56.90	+1	385582..385929	-	115	30061933	-	S0382	-	ISSfl3 orfB
361	 51.61	0	385926..386423	-	165	30061934	-	S0383	-	ISSfl3 orfA
362	 54.27	0	386970..388445	-	491	30061935	ampG	S0384	-	muropeptide transporter
363	 51.12	0	388489..389067	-	192	161486535	yajG	S0385	-	hypothetical protein
364	 48.43	0	389372..389689	+	105	161486534	bolA	S0386	-	transcriptional regulator BolA
365	 51.19	0	390033..391331	+	432	30061938	tig	S0387	-	trigger factor
366	 50.96	0	391578..392201	+	207	30061939	clpP	S0388	-	ATP-dependent Clp protease proteolytic subunit
367	 51.76	0	392327..393601	+	424	30061940	clpX	S0389	-	ATP-dependent protease ATP-binding subunit
368	 52.36	0	393789..396143	+	784	30061941	lon	S0390	-	DNA-binding ATP-dependent protease La
369	 49.45	0	396352..396624	+	90	30061942	hupB	S0391	-	transcriptional regulator HU subunit beta
370	 52.19	0	396816..398687	+	623	30061943	ybaU	S0392	-	peptidyl-prolyl cis-trans isomerase (rotamase D)
371	 54.84	0	398838..399209	+	123	30061944	ybaV	S0393	-	hypothetical protein
372	 46.12	-1	399303..399701	+	132	30061945	ybaW	S0394	-	hypothetical protein
373	 51.29	0	399753..400448	-	231	30061946	ybaX	S0395	-	queuosine biosynthesis protein QueC
374	 51.26	0	402293..403123	+	276	30061947	cof	S0397	-	hypothetical protein
375	 49.82	0	403190..403735	+	181	30061948	ybaO	S0398	-	putative LRP-like transcriptional regulator
376	 54.15	0	403765..405537	+	590	30061949	mdlA	S0399	-	putative multidrug transporter membrane\ATP-binding components
377	 55.50	0	405530..407311	+	593	30061950	mdlB	S0400	-	putative multidrug transporter membrane\ATP-binding components
378	 51.03	0	407492..407830	+	112	30061951	glnK	S0401	-	nitrogen regulatory protein P-II 2
379	 55.56	0	407860..409146	+	428	30061952	amtB	S0402	-	ammonium transporter
380	 52.50	0	409195..410055	-	286	30061953	tesB	S0403	-	acyl-CoA thioesterase II
381	 54.28	0	410273..410845	+	190	30061954	ybaY	S0404	-	hypothetical protein
382	 54.33	0	410956..412284	+	442	30061955	-	S0405	-	IS4 orf
383	 56.73	+1	412314..412625	-	103	30061956	ybaZ	S0406	-	hypothetical protein
384	 50.00	0	413004..413357	+	117	30061957	ybaA	S0408	-	hypothetical protein
385	 47.71	0	413399..414949	-	516	30061958	ylaB	S0409	-	hypothetical protein
386	 47.13	-1	415113..415583	-	156	30061959	ylaC	S0410	-	hypothetical protein
387	 40.18	-2	416422..416640	-	72	30061960	hha	S0412	-	hemolysin expression-modulating protein
388	 40.80	-2	416666..417040	-	124	30061961	ybaJ	S0413	-	hypothetical protein
389	 53.78	0	417586..420735	-	1049	30061962	acrB	S0414	-	acriflavine resistance protein
390	 53.69	0	420758..421951	-	397	30061963	acrA	S0415	-	acriflavin resistance protein AcrA precursor
391	 45.37	-1	422093..422740	+	215	30061964	acrR	S0416	-	DNA-binding transcriptional repressor AcrR
392	 51.92	0	422868..426230	+	1120	30061965	aefA	S0417	-	potassium efflux protein KefA
393	 46.91	-1	426442..426603	-	53	30061966	ybaM	S0418	-	hypothetical protein
394	 59.09	+1	426617..427144	-	175	30061967	priC	S0419	-	primosomal replication protein N''
395	 52.12	0	427214..427591	+	125	30061968	ybaN	S0420	-	hypothetical protein
396	 53.62	0	427744..428295	+	183	30061969	apt	S0421	-	adenine phosphoribosyltransferase
397	 57.48	+1	428424..430349	+	641	30061970	dnaX	S0422	-	DNA polymerase III subunits gamma and tau
398	 52.42	0	430402..430731	+	109	30061971	ybaB	S0423	-	hypothetical protein
399	 57.43	+1	430731..431336	+	201	30061972	recR	S0424	-	recombination protein RecR
400	 52.64	0	431446..433320	+	624	30061973	htpG	S0425	-	heat shock protein 90
401	 51.63	0	433501..434145	+	214	30061974	adk	S0426	-	adenylate kinase
402	 54.31	0	434277..435239	+	320	30061975	hemH	S0427	-	ferrochelatase
403	 50.79	0	435377..436195	-	272	30061976	ybaC	S0428	-	putative lipase
404	 52.11	0	436347..437651	+	434	30061977	gsk	S0429	-	inosine-guanosine kinase
405	 55.10	0	437784..439460	-	558	30061978	ybaL	S0430	-	putative cation:proton antiport protein
406	 52.33	0	439698..440918	-	406	30061979	fsr	S0431	-	fosmidomycin resistance protein
407	 50.76	0	441136..442788	+	550	30061980	ushA	S0432	-	bifunctional UDP-sugar hydrolase/5'-nucleotidase periplasmic precursor
408	 50.83	0	442825..443304	-	159	30061981	ybaK	S0433	-	hypothetical protein
409	 54.09	0	443508..444302	-	264	30061982	ybaP	S0434	-	putative ligase
410	 44.44	-1	444386..444781	+	131	30061983	ybaQ	S0435	-	hypothetical protein
411	 57.84	+1	444996..447500	-	834	30061984	ybaR	S0436	-	copper exporting ATPase
412	 53.38	0	447762..448694	+	310	30061985	ybaS	S0437	-	glutaminase
413	 53.13	0	448697..449989	+	430	30061986	ybaT	S0438	-	putative amino acid/amine transport protein
414	 58.58	+1	450114..450521	+	135	30061987	ybbI	S0439	-	DNA-binding transcriptional regulator CueR
415	 57.68	+1	450522..450977	-	151	30061988	ybbJ	S0440	-	hypothetical protein
416	 52.40	0	450977..451894	-	305	30061989	ybbK	S0441	-	putative protease
417	 45.43	-1	452040..452717	+	225	30061990	ybbL	S0442	-	putative ABC transporter ATP-binding protein YbbL
418	 46.59	-1	452677..453483	+	268	30061991	ybbM	S0443	-	putative metal resistance protein
419	 55.56	0	453546..454436	-	296	30061992	ybbN	S0444	-	putative thioredoxin-like protein
420	 53.70	0	454461..455270	-	269	30061993	ybbO	S0445	-	short chain dehydrogenase
421	 56.62	+1	455853..456539	+	228	30061994	ybbA	S0447	-	putative ABC transporter ATP-binding protein YbbA
422	 54.61	0	459664..460758	-	364	30061995	ybbB	S0449	-	tRNA 2-selenouridine synthase
423	 51.67	0	460827..461753	-	308	30061996	ybbS	S0450	-	DNA-binding transcriptional activator AllS
424	 51.35	0	461983..462465	+	160	30061997	ybbT	S0451	-	ureidoglycolate hydrolase
51.60	MEAN

4.04	STD DEV
