IslandPath Analysis: Shigella flexneri 2a str. 2457T

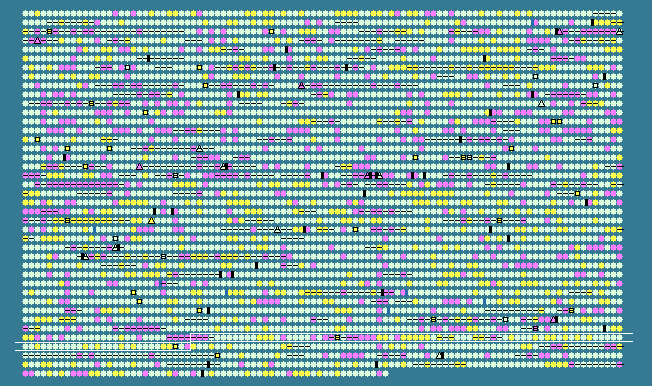

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 51.60 STD DEV: 4.04
Shigella flexneri 2a str. 2457T, complete genome - 1..4599354
4061 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
3629	 38.98	-2	4141577..4142107	-	176	30065207	yhiF	S4226	-	hypothetical protein
3630	 44.67	-1	4142263..4142862	-	199	30065208	slp	S4227	-	outer membrane protein induced after carbon starvation
3631	 45.87	-1	4144880..4145836	-	318	30065209	-	S4229	-	hypothetical protein
3632	 52.78	0	4145867..4146370	-	167	30065210	-	S4230	-	IS1 orfB
3633	 52.90	0	4146289..4146564	-	91	30065211	-	S4231	-	IS1 orfA
3634	 49.86	0	4146620..4146964	+	114	30065212	arsR	S4232	-	DNA-binding transcriptional repressor ArsR
3635	 54.50	0	4147018..4148307	+	429	30065213	arsB	S4233	-	arsenical pump membrane protein
3636	 52.11	0	4148320..4148745	+	141	30065214	arsC	S4234	-	arsenate reductase
3637	 52.90	0	4148901..4149176	+	91	30065215	-	S4235	-	IS1 orfB
3638	 52.98	0	4149095..4149598	+	167	30065216	-	S4236	-	IS1 orfB
3639	 54.32	0	4150511..4151863	-	450	30065217	gor	S4237	-	glutathione reductase
3640	 55.28	0	4151935..4152777	-	280	30065218	yhiR	S4238	-	hypothetical protein
3641	 55.21	0	4152980..4155022	+	680	30065219	prlC	S4239	-	oligopeptidase A
3642	 59.10	+1	4155030..4155782	+	250	30065220	yhiQ	S4240	-	putative methyltransferase
3643	 48.51	0	4157618..4158052	-	144	30065221	uspA	S4242	-	universal stress protein
3644	 47.02	-1	4158446..4158781	+	111	30065222	yhiO	S4243	-	universal stress protein UspB
3645	 54.00	0	4158852..4160351	-	499	30065223	pitA	S4244	-	low-affinity phosphate transport protein
3646	 54.00	0	4160583..4161782	+	399	30065224	yhiN	S4245	-	hypothetical protein
3647	 52.54	0	4162311..4162586	+	91	30065225	-	S4246	-	IS1 orfA
3648	 52.98	0	4162505..4163008	+	167	30065226	-	S4247	-	IS1 orfB
3649	 46.33	-1	4163019..4163318	-	99	30065227	-	S4248	-	IS600 orfA
3650	 50.29	0	4163583..4164608	+	341	30065228	-	S4249	-	hypothetical protein
3651	 42.07	-2	4166011..4166571	+	186	30065229	-	S4250	-	chaperone
3652	 43.43	-2	4166615..4167694	+	359	30065230	-	S4254	-	fimbrial protein remnant
3653	 55.30	0	4167949..4168854	-	301	161486387	-	S4252	-	insertion element IS2 transposase InsD
3654	 53.01	0	4168812..4169177	-	121	161486386	-	S4253	-	insertion sequence 2 OrfA protein
3655	 46.59	-1	4170556..4171068	+	170	30065233	-	S4255	-	hypothetical protein
3656	 37.27	-2	4171175..4171936	-	253	30065234	-	S4836	-	hypothetical protein
3657	 35.56	-2	4172182..4172946	+	254	30065235	-	S4837	-	hypothetical protein
3658	 35.66	-2	4172900..4173415	+	171	30065236	-	S4838	-	hypothetical protein
3659	 37.52	-2	4176769..4178391	+	540	30065237	yhiJ	S4259	-	hypothetical protein
3660	 59.18	+1	4178757..4179824	+	355	30065238	yhiI	S4260	-	hypothetical protein
3661	 56.65	+1	4179821..4182556	+	911	30065239	yhiH	S4261	-	putative ATP-binding component of a transport system
3662	 54.67	0	4182556..4183680	+	374	30065240	yhhJ	S4262	-	putative transporter
3663	 43.33	-2	4184011..4184370	+	119	30065241	-	S4263	-	hypothetical protein
3664	 55.72	+1	4184490..4184891	-	133	30065242	yhhG	S4264	-	nickel responsive regulator
3665	 55.76	+1	4184897..4185703	-	268	30065243	nikE	S4265	-	nickel transporter ATP-binding protein
3666	 58.95	+1	4185700..4186464	-	254	30065244	nikD	S4266	-	nickel transporter ATP-binding protein
3667	 60.31	+2	4186464..4187297	-	277	30065245	nikC	S4267	-	nickel transporter permease NikC
3668	 57.99	+1	4187294..4188238	-	314	30065246	nikB	S4268	-	nickel transporter permease NikB
3669	 53.40	0	4188238..4189812	-	524	30065247	nikA	S4269	-	periplasmic binding protein for nickel
3670	 56.63	+1	4189923..4190510	-	195	30065248	yhhU	S4270	-	holo-(acyl carrier protein) synthase 2
3671	 51.24	0	4190565..4191614	-	349	30065249	yhhT	S4271	-	hypothetical protein
3672	 56.65	+1	4191748..4192965	+	405	161486385	yhhS	S4272	-	hypothetical protein
3673	 51.43	0	4192969..4193526	-	185	161486384	-	S4273	-	hypothetical protein
3674	 50.45	0	4193599..4194264	-	221	30065252	yhhQ	S4274	-	hypothetical protein
3675	 54.07	0	4194485..4194730	+	81	30065253	yhhP	S4275	-	cell developmental protein SirA
3676	 57.94	+1	4194832..4197030	-	732	30065254	zntA	S4276	-	zinc/cadmium/mercury/lead-transporting ATPase
3677	 56.46	+1	4197104..4197730	-	208	30065255	yhhN	S4277	-	putative enzyme
3678	 50.83	0	4197871..4198230	+	119	30065256	yhhM	S4278	-	putative receptor
3679	 44.81	-1	4198233..4198502	-	89	30065257	yhhL	S4279	-	hypothetical protein
3680	 53.77	0	4198492..4199088	-	198	30065258	yhhF	S4280	-	16S rRNA m(2)G966-methyltransferase
3681	 53.17	0	4199238..4200734	+	498	30065259	ftsY	S4281	-	cell division protein FtsY
3682	 55.46	0	4200737..4201405	+	222	30065260	ftsE	S4282	-	cell division protein FtsE
3683	 53.64	0	4201398..4202456	+	352	30065261	ftsX	S4283	-	cell division protein FtsX
3684	 54.04	0	4202701..4203555	+	284	30065262	rpoH	S4284	-	RNA polymerase factor sigma-32
3685	 53.75	0	4203769..4204929	+	386	30065263	livJ	S4285	-	high-affinity amino acid transport protein, periplasmic binding protein
3686	 55.99	+1	4205128..4205511	-	127	30065264	yhhK	S4286	-	hypothetical protein
3687	 54.41	0	4205935..4207044	+	369	30065265	livK	S4287	-	high-affinity leucine-specific transport protein, periplasmic binding protein
3688	 55.77	+1	4207092..4208018	+	308	30065266	livH	S4288	-	branched-chain amino acid transporter permease subunit LivH
3689	 56.26	+1	4208015..4209292	+	425	30065267	livM	S4289	-	leucine/isoleucine/valine transporter permease subunit
3690	 53.91	0	4209289..4210056	+	255	30065268	livG	S4290	-	leucine/isoleucine/valine transporter ATP-binding subunit
3691	 57.42	+1	4210058..4210771	+	237	30065269	livF	S4291	-	leucine/isoleucine/valine transporter ATP-binding subunit
3692	 53.45	0	4211168..4212484	+	438	30065270	ugpB	S4292	-	glycerol-3-phosphate transporter periplasmic binding protein
3693	 55.52	0	4212582..4213469	+	295	30065271	ugpA	S4293	-	glycerol-3-phosphate transporter permease
3694	 54.26	0	4213466..4214311	+	281	30065272	ugpE	S4294	-	glycerol-3-phosphate transporter membrane protein
3695	 56.18	+1	4215300..4216043	+	247	30065273	ugpQ	S4296	-	cytoplasmic glycerophosphodiester phosphodiesterase
3696	 51.47	0	4216030..4216470	-	146	30065274	yhhA	S4297	-	hypothetical protein
3697	 55.08	0	4216590..4218332	+	580	30065275	ggt	S4298	-	gamma-glutamyltranspeptidase periplasmic precursor
3698	 51.94	0	4218391..4218879	-	162	30065276	yhhY	S4299	-	putative acetyltransferase YhhY
3699	 50.87	0	4219212..4220249	+	345	30065277	yhhX	S4300	-	putative dehydrogenase
3700	 52.30	0	4220372..4221067	+	231	30065278	yhhW	S4301	-	hypothetical protein
3701	 54.95	0	4221348..4222286	+	312	30065279	gntR	S4302	-	regulator of gluconate (gnt) operon
3702	 50.57	0	4222425..4222952	+	175	161486383	gntK	S4303	-	gluconate kinase 1
3703	 55.87	+1	4223019..4224296	+	425	30065281	gntU	S4304	-	low affinity gluconate transporter
3704	 50.17	0	4224353..4224946	-	197	30065282	yhgN	S4306	-	dITP- and XTP- hydrolyzing protein
3705	 54.08	0	4225138..4226241	+	367	30065283	asd	S4307	-	aspartate-semialdehyde dehydrogenase
3706	 53.04	0	4226514..4228700	+	728	30065284	glgB	S4308	-	glycogen branching enzyme
3707	 54.15	0	4228697..4230670	+	657	30065285	glgX	S4309	-	glycogen debranching enzyme
3708	 52.31	0	4230688..4231983	+	431	30065286	glgC	S4310	-	glucose-1-phosphate adenylyltransferase
3709	 54.74	0	4231983..4233416	+	477	30065287	glgA	S4311	-	glycogen synthase
3710	 50.86	0	4233435..4235882	+	815	30065288	glgP	S4312	-	glycogen phosphorylase
3711	 55.94	+1	4236000..4236866	+	288	30065289	-	S4313	-	IS4 orf
3712	 50.88	0	4236872..4237327	+	151	30065290	-	S4314	-	IS4 orf
3713	 55.65	+1	4237934..4239412	-	492	30065291	glpD	S4316	-	glycerol-3-phosphate dehydrogenase
3714	 54.43	0	4239630..4239956	+	108	30065292	glpE	S4317	-	thiosulfate sulfurtransferase
3715	 54.18	0	4240007..4240831	+	274	30065293	glpG	S4318	-	intramembrane serine protease GlpG
3716	 54.94	0	4240848..4241606	+	252	30065294	glpR	S4319	-	DNA-binding transcriptional repressor GlpR
3717	 55.35	0	4241588..4243186	-	532	30065295	rtcR	S4320	-	putative 2-component regulator
3718	 51.34	0	4243367..4244593	+	408	30065296	rtcB	S4321	-	hypothetical protein
3719	 55.94	+1	4245008..4245613	+	201	30065297	yhgJ	S4323	-	RNA 3'-terminal-phosphate cyclase
3720	 51.92	0	4248973..4251366	+	797	30065298	malP	S4325	-	maltodextrin phosphorylase
3721	 54.82	0	4251376..4253460	+	694	30065299	malQ	S4326	-	4-alpha-glucanotransferase
3722	 53.76	0	4253505..4254821	-	438	30065300	gntT	S4327	-	high-affinity transport permease for gluconate
3723	 53.12	0	4255182..4255757	-	191	30065301	yhgI	S4328	-	putative DNA uptake protein
3724	 55.70	+1	4255816..4256499	-	227	161486382	yhgH	S4330	-	gluconate periplasmic binding protein
3725	 55.89	+1	4256537..4257325	+	262	30065303	bioH	S4329	-	carboxylesterase BioH
3726	 55.30	0	4258051..4258956	-	301	161486381	-	S4331	-	insertion element IS2 transposase InsD
3727	 53.01	0	4258914..4259279	-	121	161486380	-	S4332	-	insertion sequence 2 OrfA protein
3728	 47.86	0	4259355..4260242	-	295	30065306	yhgA	S4333	-	hypothetical protein
51.60	MEAN

4.04	STD DEV
