IslandPath Analysis: Shigella flexneri 2a str. 2457T

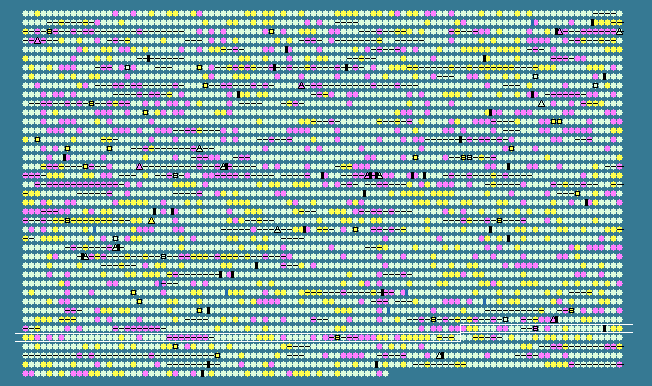

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 51.60 STD DEV: 4.04
Shigella flexneri 2a str. 2457T, complete genome - 1..4599354
4061 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
3574	 46.69	-1	4066673..4067668	-	331	30065152	yiaH	S4164	-	hypothetical protein
3575	 55.81	+1	4068237..4069148	+	303	30065153	glyQ	S4165	-	glycyl-tRNA synthetase subunit alpha
3576	 55.70	+1	4069158..4071227	+	689	30065154	glyS	S4166	-	glycyl-tRNA synthetase subunit beta
3577	 52.58	0	4071285..4071788	-	167	30065155	-	S4167	-	IS1 orfB
3578	 52.54	0	4071707..4071982	-	91	30065156	-	S4168	-	IS1 orfA
3579	 50.84	0	4072203..4072499	+	98	30065157	-	S4169	-	hypothetical protein
3580	 42.11	-2	4076000..4076728	-	242	30065158	yhiW	S4171	-	putative ARAC-type regulatory protein
3581	 41.21	-2	4077096..4077920	-	274	30065159	yhiX	S4172	-	DNA-binding transcriptional regulator GadX
3582	 53.89	0	4078290..4079690	-	466	30065160	gadA	S4173	-	glutamate decarboxylase isozyme
3583	 48.50	0	4079901..4081298	-	465	30065161	yhjA	S4174	-	putative cytochrome C peroxidase
3584	 52.98	0	4081357..4081860	-	167	30065162	-	S4175	-	IS1 orfB
3585	 52.90	0	4081779..4082054	-	91	30065163	-	S4177	-	IS1 orfA
3586	 42.96	-2	4082600..4083451	+	283	30065164	-	S4178	-	IS150 putative transposase
3587	 48.36	0	4083892..4084104	-	70	30065165	cspA	S4179	-	major cold shock protein
3588	 40.48	-2	4084550..4084675	-	41	30065166	yiaG	S4180	-	hypothetical protein
3589	 49.70	0	4084989..4085819	+	276	30065167	yiaF	S4181	-	hypothetical protein
3590	 52.00	0	4085869..4086843	-	324	30065168	yiaE	S4182	-	2-hydroxyacid dehydrogenase
3591	 59.33	+1	4086947..4087573	-	208	30065169	yiaD	S4183	-	putative outer membrane lipoprotein
3592	 54.56	0	4087814..4090093	+	759	30065170	bisC	S4184	-	biotin sulfoxide reductase
3593	 52.15	0	4090062..4090502	-	146	30065171	yiaC	S4185	-	hypothetical protein
3594	 49.82	0	4090499..4091062	-	187	30065172	tag	S4186	-	3-methyl-adenine DNA glycosylase I
3595	 49.93	0	4091220..4091918	+	232	30065173	yhjY	S4187	-	putative lipase
3596	 51.53	0	4092147..4093355	+	402	30065174	yhjX	S4188	-	putative resistance protein
3597	 50.30	0	4093679..4095370	+	563	161486388	yhjW	S4189	-	phosphoethanolamine transferase
3598	 51.87	0	4096282..4097889	+	535	30065176	dppA	S4191	-	dipeptide transport protein
3599	 56.18	+1	4098197..4099216	+	339	30065177	dppB	S4192	-	dipeptide transporter permease DppB
3600	 58.91	+1	4099226..4100128	+	300	30065178	dppC	S4193	-	dipeptide transporter
3601	 55.89	+1	4100139..4101122	+	327	30065179	dppD	S4194	-	dipeptide transporter ATP-binding subunit
3602	 55.82	+1	4101119..4102123	+	334	30065180	dppF	S4195	-	dipeptide transporter ATP-binding subunit
3603	 44.97	-1	4102153..4103424	-	423	30065181	yhjV	S4196	-	putative transporter protein
3604	 52.26	0	4104577..4106256	-	559	30065182	yhjU	S4197	-	hypothetical protein
3605	 47.92	0	4106253..4106444	-	63	30065183	yhjT	S4198	-	hypothetical protein
3606	 48.92	0	4106441..4108012	-	523	30065184	yhjS	S4199	-	putative protease
3607	 46.03	-1	4108285..4108473	+	62	30065185	yhjR	S4200	-	hypothetical protein
3608	 54.05	0	4108485..4109237	+	250	30065186	yhjQ	S4201	-	cell division protein
3609	 54.76	0	4111892..4114201	+	769	30065187	yhjN	S4203	-	cellulose synthase regulator protein
3610	 54.11	0	4114208..4115314	+	368	30065188	yhjM	S4204	-	endo-1,4-D-glucanase
3611	 52.41	0	4117746..4119695	+	649	30065189	yhjK	S4206	-	putative phosphodiesterase
3612	 51.67	0	4119885..4121171	+	428	30065190	dctA	S4207	-	C4-dicarboxylate transporter DctA
3613	 54.04	0	4121392..4122888	+	498	30065191	yhjJ	S4208	-	hypothetical protein
3614	 54.48	0	4122984..4124132	-	382	30065192	kdgK	S4209	-	ketodeoxygluconokinase
3615	 52.86	0	4124145..4124912	+	255	30065193	yhjH	S4210	-	EAL domain-containing protein
3616	 52.98	0	4124982..4127042	+	686	30065194	yhjG	S4211	-	hypothetical protein
3617	 56.01	+1	4127224..4128546	-	440	30065195	yhjE	S4212	-	putative transport protein
3618	 52.66	0	4128957..4129970	-	337	30065196	yhjD	S4213	-	hypothetical protein
3619	 52.16	0	4130019..4130990	-	323	30065197	yhjC	S4214	-	putative transcriptional regulator LYSR-type
3620	 47.93	0	4131438..4132040	+	200	30065198	yhjB	S4215	-	putative regulator
3621	 54.25	0	4132056..4133384	-	442	30065199	-	S4216	-	IS4 orf
3622	 53.88	0	4133529..4135178	-	549	30065200	treF	S4217	-	trehalase
3623	 52.90	0	4135449..4135724	+	91	30065201	-	S4218	-	IS1 orfA
3624	 52.78	0	4135643..4136146	+	167	30065202	-	S4219	-	IS1 orfB
3625	 32.95	-2	4137898..4138425	-	175	30065203	yhiE	S4221	-	hypothetical protein
3626	 46.77	-1	4139224..4139796	-	190	30065204	hdeD	S4222	-	acid-resistance membrane protein
3627	 42.64	-2	4140051..4140383	+	110	30065205	hdeA	S4223	-	acid-resistance protein
3628	 39.53	-2	4140487..4140825	+	112	30065206	hdeB	S4224	-	acid-resistance protein
3629	 38.98	-2	4141577..4142107	-	176	30065207	yhiF	S4226	-	hypothetical protein
3630	 44.67	-1	4142263..4142862	-	199	30065208	slp	S4227	-	outer membrane protein induced after carbon starvation
3631	 45.87	-1	4144880..4145836	-	318	30065209	-	S4229	-	hypothetical protein
3632	 52.78	0	4145867..4146370	-	167	30065210	-	S4230	-	IS1 orfB
3633	 52.90	0	4146289..4146564	-	91	30065211	-	S4231	-	IS1 orfA
3634	 49.86	0	4146620..4146964	+	114	30065212	arsR	S4232	-	DNA-binding transcriptional repressor ArsR
3635	 54.50	0	4147018..4148307	+	429	30065213	arsB	S4233	-	arsenical pump membrane protein
3636	 52.11	0	4148320..4148745	+	141	30065214	arsC	S4234	-	arsenate reductase
3637	 52.90	0	4148901..4149176	+	91	30065215	-	S4235	-	IS1 orfB
3638	 52.98	0	4149095..4149598	+	167	30065216	-	S4236	-	IS1 orfB
3639	 54.32	0	4150511..4151863	-	450	30065217	gor	S4237	-	glutathione reductase
3640	 55.28	0	4151935..4152777	-	280	30065218	yhiR	S4238	-	hypothetical protein
3641	 55.21	0	4152980..4155022	+	680	30065219	prlC	S4239	-	oligopeptidase A
3642	 59.10	+1	4155030..4155782	+	250	30065220	yhiQ	S4240	-	putative methyltransferase
3643	 48.51	0	4157618..4158052	-	144	30065221	uspA	S4242	-	universal stress protein
3644	 47.02	-1	4158446..4158781	+	111	30065222	yhiO	S4243	-	universal stress protein UspB
3645	 54.00	0	4158852..4160351	-	499	30065223	pitA	S4244	-	low-affinity phosphate transport protein
3646	 54.00	0	4160583..4161782	+	399	30065224	yhiN	S4245	-	hypothetical protein
3647	 52.54	0	4162311..4162586	+	91	30065225	-	S4246	-	IS1 orfA
3648	 52.98	0	4162505..4163008	+	167	30065226	-	S4247	-	IS1 orfB
3649	 46.33	-1	4163019..4163318	-	99	30065227	-	S4248	-	IS600 orfA
3650	 50.29	0	4163583..4164608	+	341	30065228	-	S4249	-	hypothetical protein
3651	 42.07	-2	4166011..4166571	+	186	30065229	-	S4250	-	chaperone
3652	 43.43	-2	4166615..4167694	+	359	30065230	-	S4254	-	fimbrial protein remnant
3653	 55.30	0	4167949..4168854	-	301	161486387	-	S4252	-	insertion element IS2 transposase InsD
3654	 53.01	0	4168812..4169177	-	121	161486386	-	S4253	-	insertion sequence 2 OrfA protein
3655	 46.59	-1	4170556..4171068	+	170	30065233	-	S4255	-	hypothetical protein
3656	 37.27	-2	4171175..4171936	-	253	30065234	-	S4836	-	hypothetical protein
3657	 35.56	-2	4172182..4172946	+	254	30065235	-	S4837	-	hypothetical protein
3658	 35.66	-2	4172900..4173415	+	171	30065236	-	S4838	-	hypothetical protein
3659	 37.52	-2	4176769..4178391	+	540	30065237	yhiJ	S4259	-	hypothetical protein
3660	 59.18	+1	4178757..4179824	+	355	30065238	yhiI	S4260	-	hypothetical protein
3661	 56.65	+1	4179821..4182556	+	911	30065239	yhiH	S4261	-	putative ATP-binding component of a transport system
3662	 54.67	0	4182556..4183680	+	374	30065240	yhhJ	S4262	-	putative transporter
3663	 43.33	-2	4184011..4184370	+	119	30065241	-	S4263	-	hypothetical protein
3664	 55.72	+1	4184490..4184891	-	133	30065242	yhhG	S4264	-	nickel responsive regulator
3665	 55.76	+1	4184897..4185703	-	268	30065243	nikE	S4265	-	nickel transporter ATP-binding protein
3666	 58.95	+1	4185700..4186464	-	254	30065244	nikD	S4266	-	nickel transporter ATP-binding protein
3667	 60.31	+2	4186464..4187297	-	277	30065245	nikC	S4267	-	nickel transporter permease NikC
3668	 57.99	+1	4187294..4188238	-	314	30065246	nikB	S4268	-	nickel transporter permease NikB
3669	 53.40	0	4188238..4189812	-	524	30065247	nikA	S4269	-	periplasmic binding protein for nickel
3670	 56.63	+1	4189923..4190510	-	195	30065248	yhhU	S4270	-	holo-(acyl carrier protein) synthase 2
3671	 51.24	0	4190565..4191614	-	349	30065249	yhhT	S4271	-	hypothetical protein
3672	 56.65	+1	4191748..4192965	+	405	161486385	yhhS	S4272	-	hypothetical protein
3673	 51.43	0	4192969..4193526	-	185	161486384	-	S4273	-	hypothetical protein
51.60	MEAN

4.04	STD DEV
