IslandPathversion 1.0

IslandPath Analysis: Shigella flexneri 2a str. 2457T

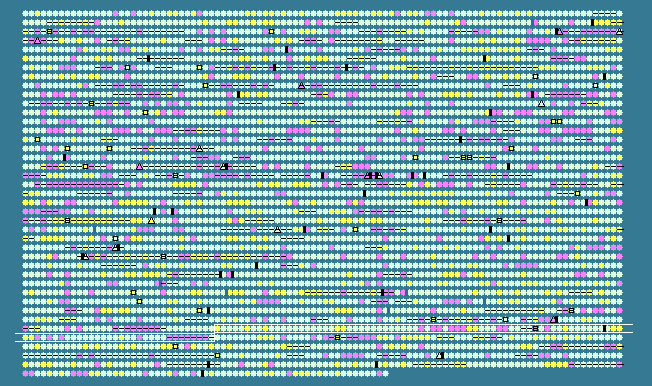

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 51.60 STD DEV: 4.04
Shigella flexneri 2a str. 2457T, complete genome - 1..4599354
4061 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
3533	 56.15	+1	4014524..4015807	-	427	161486389	yibP	S4116	-	hypothetical protein
3534	 53.27	0	4015817..4017361	-	514	30065112	yibO	S4117	-	phosphoglyceromutase
3535	 50.00	0	4017606..4018037	+	143	30065113	yibN	S4118	-	hypothetical protein
3536	 51.19	0	4018179..4018430	+	83	30065114	grxC	S4119	-	glutaredoxin 3
3537	 51.07	0	4018493..4018960	+	155	30065115	secB	S4120	-	preprotein translocase subunit SecB
3538	 56.57	+1	4018960..4019979	+	339	30065116	gpsA	S4121	-	NAD(P)H-dependent glycerol-3-phosphate dehydrogenase
3539	 53.16	0	4020059..4020880	+	273	30065117	cysE	S4122	-	serine acetyltransferase
3540	 55.06	0	4020933..4021406	-	157	30065118	yibK	S4123	-	putative tRNA/rRNA methyltransferase YibK
3541	 55.67	+1	4021602..4022792	-	396	30065119	lldD	S4124	-	L-lactate dehydrogenase
3542	 54.18	0	4022789..4023565	-	258	30065120	lldR	S4125	-	DNA-binding transcriptional repressor LldR
3543	 55.07	0	4023565..4025220	-	551	30065121	lldP	S4126	-	L-lactate permease
3544	 52.54	0	4031481..4031756	+	91	30065122	-	S4130	-	IS1 orfA
3545	 52.58	0	4031675..4032178	+	167	30065123	-	S4131	-	IS1 orfB
3546	 50.96	0	4032297..4032659	-	120	30065124	yibL	S4132	-	hypothetical protein
3547	 51.19	0	4033164..4033751	-	195	30065125	mtlR	S4133	-	mannitol repressor protein
3548	 53.00	0	4033751..4034899	-	382	30065126	mtlD	S4134	-	mannitol-1-phosphate 5-dehydrogenase
3549	 53.40	0	4034994..4036907	-	637	30065127	mtlA	S4135	-	PTS system, mannitol-specific enzyme IIABC components
3550	 51.24	0	4037444..4037806	+	120	30065128	yibI	S4136	-	hypothetical protein
3551	 52.21	0	4037809..4038894	+	361	30065129	yibH	S4137	-	hypothetical protein
3552	 52.87	0	4038965..4039573	+	202	30065130	yibF	S4138	-	glutathione S-transferase
3553	 56.39	+1	4039671..4041062	+	463	30065131	selA	S4139	-	selenocysteine synthase
3554	 56.21	+1	4041059..4042903	+	614	30065132	selB	S4140	-	selenocysteinyl-tRNA-specific translation factor
3555	 50.35	0	4043093..4044244	+	383	30065133	yiaY	S4141	-	putative alcohol dehydrogenase
3556	 54.57	0	4044319..4045947	+	542	30065134	aldB	S4142	-	aldehyde dehydrogenase B (lactaldehyde dehydrogenase)
3557	 52.98	0	4046643..4047146	-	167	30065135	-	S4143	-	IS1 orfB
3558	 52.54	0	4047065..4047340	-	91	30065136	-	S4144	-	IS1 orfA
3559	 50.89	0	4047374..4048666	-	430	30065137	-	S4145	-	hypothetical protein
3560	 53.17	0	4049001..4049504	-	167	30065138	-	S4147	-	IS1 orfB
3561	 52.54	0	4049423..4049698	-	91	30065139	-	S4148	-	IS1 orfA
3562	 53.65	0	4049913..4050911	-	332	30065140	yiaK	S4150	-	2,3-diketo-L-gulonate reductase
3563	 52.18	0	4051111..4051959	+	282	30065141	yiaJ	S4151	-	putative regulator
3564	 53.80	0	4052061..4052534	+	157	30065142	yiaI	S4152	-	hypothetical protein
3565	 52.39	0	4052685..4053938	-	417	30065143	avtA	S4153	-	valine--pyruvate transaminase
3566	 52.29	0	4054116..4056146	-	676	30065144	malS	S4154	-	periplasmic alpha-amylase precursor
3567	 47.64	0	4056466..4057290	+	274	30065145	bax	S4155	-	hypothetical protein
3568	 53.55	0	4058654..4059835	-	393	30065146	xylH	S4157	-	putative xylose transporter, membrane component
3569	 47.02	-1	4059813..4061354	-	513	30065147	xylG	S4158	-	xylose transporter ATP-binding subunit
3570	 43.30	-2	4061432..4062424	-	330	30065148	xylF	S4159	-	D-xylose transporter subunit XylF
3571	 54.16	0	4064184..4065638	+	484	30065149	xylB	S4161	-	xylulokinase
3572	 40.94	-2	4065807..4066148	+	113	30065150	yiaB	S4162	-	hypothetical protein
3573	 42.01	-2	4066194..4066631	+	145	30065151	yiaA	S4163	-	hypothetical protein
3574	 46.69	-1	4066673..4067668	-	331	30065152	yiaH	S4164	-	hypothetical protein
3575	 55.81	+1	4068237..4069148	+	303	30065153	glyQ	S4165	-	glycyl-tRNA synthetase subunit alpha
3576	 55.70	+1	4069158..4071227	+	689	30065154	glyS	S4166	-	glycyl-tRNA synthetase subunit beta
3577	 52.58	0	4071285..4071788	-	167	30065155	-	S4167	-	IS1 orfB
3578	 52.54	0	4071707..4071982	-	91	30065156	-	S4168	-	IS1 orfA
3579	 50.84	0	4072203..4072499	+	98	30065157	-	S4169	-	hypothetical protein
3580	 42.11	-2	4076000..4076728	-	242	30065158	yhiW	S4171	-	putative ARAC-type regulatory protein
3581	 41.21	-2	4077096..4077920	-	274	30065159	yhiX	S4172	-	DNA-binding transcriptional regulator GadX
3582	 53.89	0	4078290..4079690	-	466	30065160	gadA	S4173	-	glutamate decarboxylase isozyme
3583	 48.50	0	4079901..4081298	-	465	30065161	yhjA	S4174	-	putative cytochrome C peroxidase
3584	 52.98	0	4081357..4081860	-	167	30065162	-	S4175	-	IS1 orfB
3585	 52.90	0	4081779..4082054	-	91	30065163	-	S4177	-	IS1 orfA
3586	 42.96	-2	4082600..4083451	+	283	30065164	-	S4178	-	IS150 putative transposase
3587	 48.36	0	4083892..4084104	-	70	30065165	cspA	S4179	-	major cold shock protein
3588	 40.48	-2	4084550..4084675	-	41	30065166	yiaG	S4180	-	hypothetical protein
3589	 49.70	0	4084989..4085819	+	276	30065167	yiaF	S4181	-	hypothetical protein
3590	 52.00	0	4085869..4086843	-	324	30065168	yiaE	S4182	-	2-hydroxyacid dehydrogenase
3591	 59.33	+1	4086947..4087573	-	208	30065169	yiaD	S4183	-	putative outer membrane lipoprotein
3592	 54.56	0	4087814..4090093	+	759	30065170	bisC	S4184	-	biotin sulfoxide reductase
3593	 52.15	0	4090062..4090502	-	146	30065171	yiaC	S4185	-	hypothetical protein
3594	 49.82	0	4090499..4091062	-	187	30065172	tag	S4186	-	3-methyl-adenine DNA glycosylase I
3595	 49.93	0	4091220..4091918	+	232	30065173	yhjY	S4187	-	putative lipase
3596	 51.53	0	4092147..4093355	+	402	30065174	yhjX	S4188	-	putative resistance protein
3597	 50.30	0	4093679..4095370	+	563	161486388	yhjW	S4189	-	phosphoethanolamine transferase
3598	 51.87	0	4096282..4097889	+	535	30065176	dppA	S4191	-	dipeptide transport protein
3599	 56.18	+1	4098197..4099216	+	339	30065177	dppB	S4192	-	dipeptide transporter permease DppB
3600	 58.91	+1	4099226..4100128	+	300	30065178	dppC	S4193	-	dipeptide transporter
3601	 55.89	+1	4100139..4101122	+	327	30065179	dppD	S4194	-	dipeptide transporter ATP-binding subunit
3602	 55.82	+1	4101119..4102123	+	334	30065180	dppF	S4195	-	dipeptide transporter ATP-binding subunit
3603	 44.97	-1	4102153..4103424	-	423	30065181	yhjV	S4196	-	putative transporter protein
3604	 52.26	0	4104577..4106256	-	559	30065182	yhjU	S4197	-	hypothetical protein
3605	 47.92	0	4106253..4106444	-	63	30065183	yhjT	S4198	-	hypothetical protein
3606	 48.92	0	4106441..4108012	-	523	30065184	yhjS	S4199	-	putative protease
3607	 46.03	-1	4108285..4108473	+	62	30065185	yhjR	S4200	-	hypothetical protein
3608	 54.05	0	4108485..4109237	+	250	30065186	yhjQ	S4201	-	cell division protein
3609	 54.76	0	4111892..4114201	+	769	30065187	yhjN	S4203	-	cellulose synthase regulator protein
3610	 54.11	0	4114208..4115314	+	368	30065188	yhjM	S4204	-	endo-1,4-D-glucanase
3611	 52.41	0	4117746..4119695	+	649	30065189	yhjK	S4206	-	putative phosphodiesterase
3612	 51.67	0	4119885..4121171	+	428	30065190	dctA	S4207	-	C4-dicarboxylate transporter DctA
3613	 54.04	0	4121392..4122888	+	498	30065191	yhjJ	S4208	-	hypothetical protein
3614	 54.48	0	4122984..4124132	-	382	30065192	kdgK	S4209	-	ketodeoxygluconokinase
3615	 52.86	0	4124145..4124912	+	255	30065193	yhjH	S4210	-	EAL domain-containing protein
3616	 52.98	0	4124982..4127042	+	686	30065194	yhjG	S4211	-	hypothetical protein
3617	 56.01	+1	4127224..4128546	-	440	30065195	yhjE	S4212	-	putative transport protein
3618	 52.66	0	4128957..4129970	-	337	30065196	yhjD	S4213	-	hypothetical protein
3619	 52.16	0	4130019..4130990	-	323	30065197	yhjC	S4214	-	putative transcriptional regulator LYSR-type
3620	 47.93	0	4131438..4132040	+	200	30065198	yhjB	S4215	-	putative regulator
3621	 54.25	0	4132056..4133384	-	442	30065199	-	S4216	-	IS4 orf
3622	 53.88	0	4133529..4135178	-	549	30065200	treF	S4217	-	trehalase
3623	 52.90	0	4135449..4135724	+	91	30065201	-	S4218	-	IS1 orfA
3624	 52.78	0	4135643..4136146	+	167	30065202	-	S4219	-	IS1 orfB
3625	 32.95	-2	4137898..4138425	-	175	30065203	yhiE	S4221	-	hypothetical protein
3626	 46.77	-1	4139224..4139796	-	190	30065204	hdeD	S4222	-	acid-resistance membrane protein
3627	 42.64	-2	4140051..4140383	+	110	30065205	hdeA	S4223	-	acid-resistance protein
3628	 39.53	-2	4140487..4140825	+	112	30065206	hdeB	S4224	-	acid-resistance protein
3629	 38.98	-2	4141577..4142107	-	176	30065207	yhiF	S4226	-	hypothetical protein
3630	 44.67	-1	4142263..4142862	-	199	30065208	slp	S4227	-	outer membrane protein induced after carbon starvation
3631	 45.87	-1	4144880..4145836	-	318	30065209	-	S4229	-	hypothetical protein
3632	 52.78	0	4145867..4146370	-	167	30065210	-	S4230	-	IS1 orfB
51.60	MEAN

4.04	STD DEV
