IslandPath Analysis: Shigella flexneri 2a str. 2457T

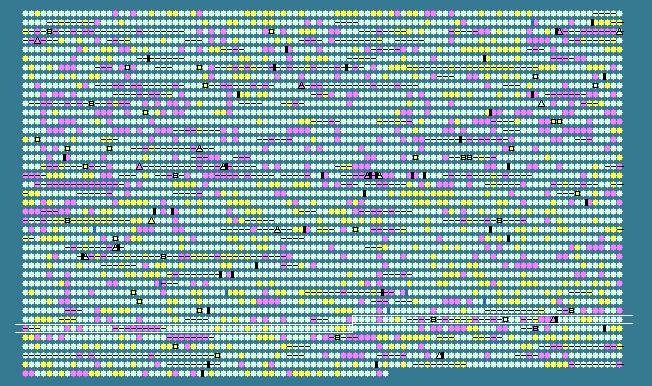

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 51.60 STD DEV: 4.04
Shigella flexneri 2a str. 2457T, complete genome - 1..4599354
4061 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
3456	 52.78	0	3929306..3929809	-	167	30065034	-	S4036	-	IS1 orfB
3457	 52.90	0	3929728..3930003	-	91	30065035	-	S4037	-	IS1 orfA
3458	 49.90	0	3930037..3931086	-	349	30065036	bglB	S4038	-	phospho-beta-glucosidase B cryptic
3459	 51.38	0	3931105..3932982	-	625	30065037	bglF	S4039	-	beta-glucoside-specific PTS system components IIABC
3460	 42.58	-2	3933116..3933937	-	273	30065038	bglG	S4040	-	transcriptional antiterminator BglG
3461	 52.20	0	3934224..3934949	-	241	30065039	phoU	S4041	-	transcriptional regulator PhoU
3462	 52.84	0	3934964..3935737	-	257	30065040	pstB	S4042	-	phosphate transporter subunit
3463	 56.90	+1	3935829..3936719	-	296	30065041	pstA	S4043	-	phosphate transporter permease subunit
3464	 55.04	0	3936767..3937678	-	303	30065042	pstC	S4044	-	phosphate transporter permease subunit
3465	 51.59	0	3937765..3938805	-	346	30065043	pstS	S4045	-	phosphate transporter subunit
3466	 53.26	0	3940059..3940334	+	91	30065044	-	S4046	-	IS1 orfA
3467	 47.01	-1	3940913..3943435	-	840	30065045	lpfC	S4048	-	putative long polar fimbriae
3468	 52.73	0	3943581..3943946	+	121	161486396	-	S4049	-	insertion sequence 2 OrfA protein
3469	 55.30	0	3943904..3944809	+	301	161486395	-	S4050	-	insertion element IS2 transposase InsD
3470	 52.64	0	3946459..3948654	-	731	30065048	iutA	S4052	-	putative ferric siderophore receptor
3471	 46.56	-1	3948660..3949997	-	445	30065049	iucD	S4053	-	lysine:N6-hydroxylase
3472	 54.56	0	3949994..3951736	-	580	30065050	iucC	S4054	-	siderophore biosynthesis protein
3473	 56.43	+1	3951736..3952683	-	315	30065051	iucB	S4055	-	siderophore biosynthesis protein
3474	 53.59	0	3952684..3954465	-	593	30065052	iucA	S4056	-	siderophore biosynthesis protein
3475	 56.95	+1	3954544..3955737	+	397	30065053	imm	S4057	-	putative membrane transport protein
3476	 41.15	-2	3955687..3956658	-	323	30065054	shiE	S4829	-	hypothetical protein
3477	 52.90	0	3956539..3956814	+	91	30065055	-	S4058	-	IS1 orfA
3478	 52.58	0	3956733..3957236	+	167	30065056	-	S4059	-	IS1 orfB
3479	 40.35	-2	3957757..3958155	-	132	30065057	shiD	S4830	-	colV-immunity protein
3480	 53.01	0	3959474..3959839	+	121	161486394	-	S4060	-	insertion sequence 2 OrfA protein
3481	 55.08	0	3959797..3960702	+	301	161486393	-	S4061	-	insertion element IS2 transposase InsD
3482	 54.13	0	3961705..3962031	+	108	30065060	-	S4062	-	IS629 orfA
3483	 54.63	0	3962267..3962914	+	215	30065061	-	S4063	-	IS629 orfB
3484	 33.91	-2	3962995..3963513	-	172	30065062	shiC	S4831	-	hypothetical protein
3485	 52.67	0	3963698..3963997	+	99	30065063	-	S4064	-	IS3 orfA
3486	 58.02	+1	3963994..3964386	+	130	30065064	-	S4832	-	IS3 orfB
3487	 47.84	0	3964845..3965306	-	153	30065065	shiB	S4833	-	hypothetical protein
3488	 46.46	-1	3965821..3966864	-	347	30065066	shiA	S4834	-	hypothetical protein
3489	 44.97	-1	3967276..3968487	-	403	30065067	-	S4835	-	putative integrase
3490	 52.01	0	3970539..3972857	+	772	30065068	yicI	S4073	-	alpha-xylosidase YicI
3491	 54.33	0	3972910..3974619	-	569	30065069	yicH	S4074	-	hypothetical protein
3492	 55.03	0	3974740..3976131	-	463	30065070	yicE	S4075	-	putative transport protein
3493	 53.90	0	3976411..3977616	+	401	30065071	gltS	S4076	-	glutamate transport protein
3494	 57.01	+1	3977650..3979731	-	693	30065072	recG	S4077	-	ATP-dependent DNA helicase RecG
3495	 55.22	0	3979737..3980426	-	229	30065073	spoU	S4078	-	tRNA guanosine-2'-O-methyltransferase
3496	 53.77	0	3980433..3982541	-	702	30065074	spoT	S4079	-	bifunctional (p)ppGpp synthetase II/ guanosine-3',5'-bis pyrophosphate 3'-pyrophosphohydrolase
3497	 53.26	0	3982560..3982835	-	91	30065075	rpoZ	S4080	-	DNA-directed RNA polymerase subunit omega
3498	 49.04	0	3982890..3983513	-	207	30065076	gmk	S4081	-	guanylate kinase
3499	 52.76	0	3983771..3985453	+	560	30065077	ligB	S4082	-	NAD-dependent DNA ligase LigB
3500	 52.53	0	3985450..3986121	-	223	30065078	yicG	S4083	-	hypothetical protein
3501	 45.70	-1	3986358..3987182	-	274	30065079	dinD	S4084	-	DNA-damage-inducible protein D
3502	 53.36	0	3987403..3988266	-	287	30065080	yicC	S4085	-	hypothetical protein
3503	 56.35	+1	3988393..3989109	+	238	30065081	rph	S4086	-	ribonuclease PH
3504	 52.80	0	3989175..3989816	+	213	30065082	pyrE	S4087	-	orotate phosphoribosyltransferase
3505	 53.27	0	3989853..3990449	-	198	161486392	slmA	S4088	-	nucleoid occlusion protein
3506	 54.68	0	3990556..3991014	-	152	30065084	dut	S4089	-	deoxyuridine 5'-triphosphate nucleotidohydrolase
3507	 53.15	0	3990992..3992212	-	406	161486391	dfp	S4090	-	bifunctional phosphopantothenoylcysteine decarboxylase/phosphopantothenate synthase
3508	 47.70	0	3992378..3993052	+	224	161486390	radC	S4091	-	DNA repair protein RadC
3509	 53.16	0	3993269..3993505	+	78	30065087	rpmB	S4092	-	50S ribosomal protein L28
3510	 39.88	-2	3993526..3993693	+	55	30065088	rpmG	S4093	-	50S ribosomal protein L33
3511	 53.95	0	3993791..3994600	+	269	30065089	mutM	S4094	-	formamidopyrimidine-DNA glycosylase
3512	 52.71	0	3994639..3995118	-	159	30065090	coaD	S4095	-	phosphopantetheine adenylyltransferase
3513	 53.91	0	3995126..3996403	-	425	30065091	kdtA	S4096	-	3-deoxy-D-manno-octulosonic-acid transferase
3514	 52.90	0	3996537..3996812	+	91	30065092	-	S4097	-	IS1 orfA
3515	 52.98	0	3996731..3997234	+	167	30065093	-	S4098	-	IS1 orfB
3516	 46.65	-1	3997592..3998650	+	352	30065094	waaQ	S4099	-	lipopolysaccharide core biosynthesis protein
3517	 48.36	0	3998647..3999771	+	374	30065095	waaG	S4100	-	LPS alpha1,3-glucosyltransferase
3518	 47.83	0	3999755..4000561	+	268	30065096	waaP	S4101	-	lipopolysaccharide core biosynthesis protein
3519	 31.05	-2	4000604..4001611	+	335	30065097	waaL	S4102	-	UDP-D-galactose:(glucosyl)lipopolysaccharide- alpha-1,3-D-galactosyltransferase
3520	 30.51	-2	4001637..4002344	+	235	30065098	waaY	S4103	-	lipopolysaccharide core biosynthesis protein
3521	 30.87	-2	4002369..4003382	+	337	30065099	waaJ	S4104	-	putative UDP-glucose:(galactosyl) LPS alpha1,2-glucosyltransferase
3522	 36.75	-2	4003391..4004533	+	380	30065100	waaD	S4105	-	lipopolysaccharide 1,2-N- acetylglucosaminetransferase
3523	 35.32	-2	4004569..4005777	-	402	30065101	waaI	S4106	-	lipid A-core, surface polymer ligase
3524	 50.26	0	4005774..4006736	-	320	30065102	rfaC	S4107	-	ADP-heptose:LPS heptosyl transferase I
3525	 53.87	0	4006770..4007816	-	348	30065103	rfaF	S4108	-	ADP-heptose:LPS heptosyltransferase II
3526	 50.91	0	4007826..4008758	-	310	30065104	rfaD	S4109	-	ADP-L-glycero-D-mannoheptose-6-epimerase
3527	 54.39	0	4010194..4011390	+	398	30065105	kbl	S4110	-	2-amino-3-ketobutyrate coenzyme A ligase
3528	 52.44	0	4011400..4012425	+	341	30065106	tdh	S4111	-	L-threonine 3-dehydrogenase
3529	 52.90	0	4012655..4012930	+	91	30065107	-	S4112	-	IS1 orfA
3530	 52.78	0	4012849..4013352	+	167	30065108	-	S4113	-	IS1 orfB
3531	 53.19	0	4013434..4013574	+	46	30065109	yibD	S4114	-	putative regulator
3532	 52.76	0	4013561..4014394	-	277	30065110	yibQ	S4115	-	hypothetical protein
3533	 56.15	+1	4014524..4015807	-	427	161486389	yibP	S4116	-	hypothetical protein
3534	 53.27	0	4015817..4017361	-	514	30065112	yibO	S4117	-	phosphoglyceromutase
3535	 50.00	0	4017606..4018037	+	143	30065113	yibN	S4118	-	hypothetical protein
3536	 51.19	0	4018179..4018430	+	83	30065114	grxC	S4119	-	glutaredoxin 3
3537	 51.07	0	4018493..4018960	+	155	30065115	secB	S4120	-	preprotein translocase subunit SecB
3538	 56.57	+1	4018960..4019979	+	339	30065116	gpsA	S4121	-	NAD(P)H-dependent glycerol-3-phosphate dehydrogenase
3539	 53.16	0	4020059..4020880	+	273	30065117	cysE	S4122	-	serine acetyltransferase
3540	 55.06	0	4020933..4021406	-	157	30065118	yibK	S4123	-	putative tRNA/rRNA methyltransferase YibK
3541	 55.67	+1	4021602..4022792	-	396	30065119	lldD	S4124	-	L-lactate dehydrogenase
3542	 54.18	0	4022789..4023565	-	258	30065120	lldR	S4125	-	DNA-binding transcriptional repressor LldR
3543	 55.07	0	4023565..4025220	-	551	30065121	lldP	S4126	-	L-lactate permease
3544	 52.54	0	4031481..4031756	+	91	30065122	-	S4130	-	IS1 orfA
3545	 52.58	0	4031675..4032178	+	167	30065123	-	S4131	-	IS1 orfB
3546	 50.96	0	4032297..4032659	-	120	30065124	yibL	S4132	-	hypothetical protein
3547	 51.19	0	4033164..4033751	-	195	30065125	mtlR	S4133	-	mannitol repressor protein
3548	 53.00	0	4033751..4034899	-	382	30065126	mtlD	S4134	-	mannitol-1-phosphate 5-dehydrogenase
3549	 53.40	0	4034994..4036907	-	637	30065127	mtlA	S4135	-	PTS system, mannitol-specific enzyme IIABC components
3550	 51.24	0	4037444..4037806	+	120	30065128	yibI	S4136	-	hypothetical protein
3551	 52.21	0	4037809..4038894	+	361	30065129	yibH	S4137	-	hypothetical protein
3552	 52.87	0	4038965..4039573	+	202	30065130	yibF	S4138	-	glutathione S-transferase
3553	 56.39	+1	4039671..4041062	+	463	30065131	selA	S4139	-	selenocysteine synthase
3554	 56.21	+1	4041059..4042903	+	614	30065132	selB	S4140	-	selenocysteinyl-tRNA-specific translation factor
3555	 50.35	0	4043093..4044244	+	383	30065133	yiaY	S4141	-	putative alcohol dehydrogenase
51.60	MEAN

4.04	STD DEV
