IslandPath Analysis: Shigella flexneri 2a str. 2457T

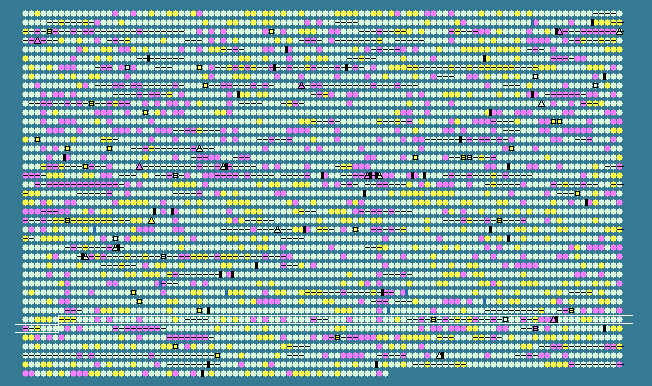

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 51.60 STD DEV: 4.04
Shigella flexneri 2a str. 2457T, complete genome - 1..4599354
4061 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
3407	 56.07	+1	3872959..3874647	-	562	30064984	ilvB	S3978	-	acetolactate synthase catalytic subunit
3408	 57.58	+1	3874753..3874851	-	32	30064985	ivbL	S3979	-	ilvB operon leader peptide
3409	 57.47	+1	3875818..3876969	+	383	30064986	emrD	S3980	-	multidrug resistance protein D
3410	 53.82	0	3876977..3877474	-	165	30064987	yidF	S3981	-	putative transcriptional regulator
3411	 50.69	0	3877471..3877833	-	120	30064988	yidG	S3982	-	hypothetical protein
3412	 52.01	0	3877823..3878170	-	115	30064989	yidH	S3983	-	hypothetical protein
3413	 47.34	-1	3878279..3878692	+	137	30064990	yidI	S3984	-	hypothetical protein
3414	 52.91	0	3880216..3881931	-	571	30064991	yidK	S3986	-	putative symporter YidK
3415	 43.40	-2	3882098..3882991	+	297	30064992	yidL	S3987	-	putative ARAC-type regulatory protein
3416	 50.62	0	3883802..3884287	-	161	30064993	glvB	S3989	-	arbutin specific enzyme IIB component of PTS
3417	 51.56	0	3885713..3886387	+	224	30064994	yidP	S3991	-	putative transcriptional regulator
3418	 52.95	0	3886426..3888087	-	553	30064995	yidE	S3992	-	hypothetical protein
3419	 48.95	0	3888283..3888711	-	142	30064996	ibpB	S3993	-	heat shock chaperone IbpB
3420	 47.34	-1	3888823..3889236	-	137	30064997	ibpA	S3994	-	heat shock protein IbpA
3421	 54.05	0	3889541..3889873	+	110	161486397	yidQ	S3995	-	hypothetical protein
3422	 53.65	0	3889875..3891149	-	424	30064999	yidR	S3996	-	hypothetical protein
3423	 51.59	0	3891214..3892314	+	366	30065000	yidS	S3997	-	putative oxidoreductase
3424	 53.06	0	3892275..3893612	-	445	30065001	dgoT	S3998	-	D-galactonate transport protein
3425	 54.61	0	3895433..3896311	-	292	30065002	dgoK	S4000	-	2-oxo-3-deoxygalactonate kinase
3426	 55.36	0	3896308..3896997	-	229	30065003	yidW	S4002	-	regulator protein for dgo operon
3427	 51.17	0	3897977..3898789	-	270	30065005	yidA	S4004	-	sugar phosphatase
3428	 51.13	0	3898903..3899301	-	132	30065006	yidB	S4005	-	hypothetical protein
3429	 54.74	0	3899541..3901955	-	804	30065007	gyrB	S4006	-	DNA gyrase subunit B
3430	 54.28	0	3901984..3903057	-	357	30065008	recF	S4007	-	recombination protein F
3431	 54.13	0	3903057..3904157	-	366	30065009	dnaN	S4008	-	DNA polymerase III subunit beta
3432	 53.63	0	3904162..3905565	-	467	30065010	dnaA	S4009	-	chromosomal replication initiation protein
3433	 51.77	0	3906172..3906312	+	46	30065011	rpmH	S4010	-	50S ribosomal protein L34
3434	 56.11	+1	3906329..3906688	+	119	30065012	rnpA	S4011	-	ribonuclease P
3435	 53.49	0	3906912..3908558	+	548	30065013	yidC	S4012	-	putative inner membrane protein translocase component YidC
3436	 56.63	+1	3908664..3910028	+	454	30065014	trmE	S4013	-	tRNA modification GTPase TrmE
3437	 52.98	0	3910242..3910745	-	167	30065015	-	S4014	-	IS1 orfB
3438	 52.90	0	3910664..3910939	-	91	30065016	-	S4015	-	IS1 orfA
3439	 36.00	-2	3911046..3911120	+	24	30065017	tnaL	S4016	-	tryptophanase leader peptide
3440	 50.35	0	3911341..3912756	+	471	30065018	tnaA	S4017	-	tryptophanase
3441	 46.63	-1	3912847..3914094	+	415	30065019	tnaB	S4018	-	tryptophan permease TnaB
3442	 52.98	0	3914226..3915401	+	391	30065020	yidY	S4019	-	multidrug efflux system protein MdtL
3443	 52.24	0	3916068..3916781	-	237	30065021	-	S4021	-	IS600 orfB
3444	 46.20	-1	3916922..3917224	-	100	30065022	-	S4022	-	IS600 orfA
3445	 52.13	0	3917759..3918508	+	249	30065023	yieE	S4024	-	hypothetical protein
3446	 53.09	0	3918530..3919096	+	188	30065024	yieF	S4025	-	hypothetical protein
3447	 52.47	0	3919150..3920487	-	445	30065025	yieG	S4026	-	putative membrane / transport protein
3448	 48.55	0	3920652..3921308	+	218	30065026	yieH	S4027	-	6-phosphogluconate phosphatase
3449	 44.09	-1	3921375..3921848	+	157	30065027	yieI	S4028	-	putative inner membrane protein
3450	 50.07	0	3922016..3922690	+	224	30065028	-	S4029	-	ISSfl3 orfA
3451	 54.70	0	3922687..3923037	+	116	30065029	-	S4030	-	ISSfl3 orfB
3452	 52.37	0	3923034..3924635	+	533	30065030	-	S4031	-	ISSfl3 orfC
3453	 49.52	0	3925288..3926010	-	240	30065031	yieK	S4033	-	putative 6-phosphogluconolactonase
3454	 50.34	0	3926012..3927187	-	391	30065032	yieL	S4034	-	putative xylanase
3455	 45.44	-1	3927214..3928791	-	525	30065033	yieC	S4035	-	putative receptor protein
3456	 52.78	0	3929306..3929809	-	167	30065034	-	S4036	-	IS1 orfB
3457	 52.90	0	3929728..3930003	-	91	30065035	-	S4037	-	IS1 orfA
3458	 49.90	0	3930037..3931086	-	349	30065036	bglB	S4038	-	phospho-beta-glucosidase B cryptic
3459	 51.38	0	3931105..3932982	-	625	30065037	bglF	S4039	-	beta-glucoside-specific PTS system components IIABC
3460	 42.58	-2	3933116..3933937	-	273	30065038	bglG	S4040	-	transcriptional antiterminator BglG
3461	 52.20	0	3934224..3934949	-	241	30065039	phoU	S4041	-	transcriptional regulator PhoU
3462	 52.84	0	3934964..3935737	-	257	30065040	pstB	S4042	-	phosphate transporter subunit
3463	 56.90	+1	3935829..3936719	-	296	30065041	pstA	S4043	-	phosphate transporter permease subunit
3464	 55.04	0	3936767..3937678	-	303	30065042	pstC	S4044	-	phosphate transporter permease subunit
3465	 51.59	0	3937765..3938805	-	346	30065043	pstS	S4045	-	phosphate transporter subunit
3466	 53.26	0	3940059..3940334	+	91	30065044	-	S4046	-	IS1 orfA
3467	 47.01	-1	3940913..3943435	-	840	30065045	lpfC	S4048	-	putative long polar fimbriae
3468	 52.73	0	3943581..3943946	+	121	161486396	-	S4049	-	insertion sequence 2 OrfA protein
3469	 55.30	0	3943904..3944809	+	301	161486395	-	S4050	-	insertion element IS2 transposase InsD
3470	 52.64	0	3946459..3948654	-	731	30065048	iutA	S4052	-	putative ferric siderophore receptor
3471	 46.56	-1	3948660..3949997	-	445	30065049	iucD	S4053	-	lysine:N6-hydroxylase
3472	 54.56	0	3949994..3951736	-	580	30065050	iucC	S4054	-	siderophore biosynthesis protein
3473	 56.43	+1	3951736..3952683	-	315	30065051	iucB	S4055	-	siderophore biosynthesis protein
3474	 53.59	0	3952684..3954465	-	593	30065052	iucA	S4056	-	siderophore biosynthesis protein
3475	 56.95	+1	3954544..3955737	+	397	30065053	imm	S4057	-	putative membrane transport protein
3476	 41.15	-2	3955687..3956658	-	323	30065054	shiE	S4829	-	hypothetical protein
3477	 52.90	0	3956539..3956814	+	91	30065055	-	S4058	-	IS1 orfA
3478	 52.58	0	3956733..3957236	+	167	30065056	-	S4059	-	IS1 orfB
3479	 40.35	-2	3957757..3958155	-	132	30065057	shiD	S4830	-	colV-immunity protein
3480	 53.01	0	3959474..3959839	+	121	161486394	-	S4060	-	insertion sequence 2 OrfA protein
3481	 55.08	0	3959797..3960702	+	301	161486393	-	S4061	-	insertion element IS2 transposase InsD
3482	 54.13	0	3961705..3962031	+	108	30065060	-	S4062	-	IS629 orfA
3483	 54.63	0	3962267..3962914	+	215	30065061	-	S4063	-	IS629 orfB
3484	 33.91	-2	3962995..3963513	-	172	30065062	shiC	S4831	-	hypothetical protein
3485	 52.67	0	3963698..3963997	+	99	30065063	-	S4064	-	IS3 orfA
3486	 58.02	+1	3963994..3964386	+	130	30065064	-	S4832	-	IS3 orfB
3487	 47.84	0	3964845..3965306	-	153	30065065	shiB	S4833	-	hypothetical protein
3488	 46.46	-1	3965821..3966864	-	347	30065066	shiA	S4834	-	hypothetical protein
3489	 44.97	-1	3967276..3968487	-	403	30065067	-	S4835	-	putative integrase
3490	 52.01	0	3970539..3972857	+	772	30065068	yicI	S4073	-	alpha-xylosidase YicI
3491	 54.33	0	3972910..3974619	-	569	30065069	yicH	S4074	-	hypothetical protein
3492	 55.03	0	3974740..3976131	-	463	30065070	yicE	S4075	-	putative transport protein
3493	 53.90	0	3976411..3977616	+	401	30065071	gltS	S4076	-	glutamate transport protein
3494	 57.01	+1	3977650..3979731	-	693	30065072	recG	S4077	-	ATP-dependent DNA helicase RecG
3495	 55.22	0	3979737..3980426	-	229	30065073	spoU	S4078	-	tRNA guanosine-2'-O-methyltransferase
3496	 53.77	0	3980433..3982541	-	702	30065074	spoT	S4079	-	bifunctional (p)ppGpp synthetase II/ guanosine-3',5'-bis pyrophosphate 3'-pyrophosphohydrolase
3497	 53.26	0	3982560..3982835	-	91	30065075	rpoZ	S4080	-	DNA-directed RNA polymerase subunit omega
3498	 49.04	0	3982890..3983513	-	207	30065076	gmk	S4081	-	guanylate kinase
3499	 52.76	0	3983771..3985453	+	560	30065077	ligB	S4082	-	NAD-dependent DNA ligase LigB
3500	 52.53	0	3985450..3986121	-	223	30065078	yicG	S4083	-	hypothetical protein
3501	 45.70	-1	3986358..3987182	-	274	30065079	dinD	S4084	-	DNA-damage-inducible protein D
3502	 53.36	0	3987403..3988266	-	287	30065080	yicC	S4085	-	hypothetical protein
3503	 56.35	+1	3988393..3989109	+	238	30065081	rph	S4086	-	ribonuclease PH
3504	 52.80	0	3989175..3989816	+	213	30065082	pyrE	S4087	-	orotate phosphoribosyltransferase
3505	 53.27	0	3989853..3990449	-	198	161486392	slmA	S4088	-	nucleoid occlusion protein
3506	 54.68	0	3990556..3991014	-	152	30065084	dut	S4089	-	deoxyuridine 5'-triphosphate nucleotidohydrolase
51.60	MEAN

4.04	STD DEV
