IslandPath Analysis: Shigella flexneri 2a str. 2457T

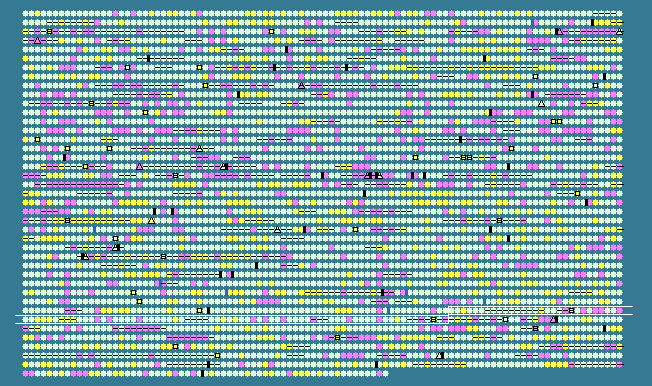

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 51.60 STD DEV: 4.04
Shigella flexneri 2a str. 2457T, complete genome - 1..4599354
4061 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
3372	 49.24	0	3834909..3836429	+	506	30064949	yieN	S3942	-	regulatory ATPase RavA
3373	 52.55	0	3836423..3837874	+	483	161486402	yieM	S3943	-	hypothetical protein
3374	 56.50	+1	3837879..3838871	-	330	30064951	asnA	S3944	-	asparagine synthetase AsnA
3375	 49.24	0	3839023..3839481	+	152	30064952	asnC	S3945	-	DNA-binding transcriptional regulator AsnC
3376	 49.77	0	3839571..3840014	+	147	30064953	mioC	S3946	-	flavodoxin
3377	 54.50	0	3840393..3842282	+	629	30064954	gidA	S3947	-	tRNA uridine 5-carboxymethylaminomethyl modification enzyme GidA
3378	 48.56	0	3842346..3842969	+	207	30064955	gidB	S3948	-	glucose-inhibited division protein B
3379	 51.97	0	3843586..3843966	+	126	161486401	atpI	S3949	-	F0F1 ATP synthase subunit I
3380	 49.88	0	3843975..3844790	+	271	30064957	atpB	S3950	-	F0F1 ATP synthase subunit A
3381	 54.17	0	3844837..3845076	+	79	30064958	atpE	S3951	-	F0F1 ATP synthase subunit C
3382	 52.65	0	3845138..3845608	+	156	30064959	atpF	S3952	-	F0F1 ATP synthase subunit B
3383	 51.31	0	3845623..3846156	+	177	30064960	atpH	S3953	-	F0F1 ATP synthase subunit delta
3384	 53.37	0	3846169..3847710	+	513	30064961	atpA	S3954	-	F0F1 ATP synthase subunit alpha
3385	 53.47	0	3847761..3848624	+	287	30064962	atpG	S3955	-	F0F1 ATP synthase subunit gamma
3386	 54.95	0	3848651..3850033	+	460	30064963	atpD	S3956	-	F0F1 ATP synthase subunit beta
3387	 55.31	0	3850060..3850473	+	137	30064964	atpC	S3957	-	F0F1 ATP synthase subunit epsilon
3388	 53.10	0	3850824..3852194	+	456	30064965	glmU	S3958	-	bifunctional N-acetylglucosamine-1-phosphate uridyltransferase/glucosamine-1-phosphate acetyltransferase
3389	 53.83	0	3852356..3854185	+	609	30064966	glmS	S3959	-	D-fructose-6-phosphate amidotransferase
3390	 54.10	0	3854306..3855634	+	442	30064967	-	S3960	-	IS4 orf
3391	 47.47	-1	3855926..3856498	+	190	30064968	lpfA	S3961	-	putative major fimbrial subunit
3392	 55.30	0	3857264..3858169	-	301	161486400	-	S3963	-	insertion element IS2 transposase InsD
3393	 53.01	0	3858127..3858492	-	121	161486399	-	S3964	-	insertion sequence 2 OrfA protein
3394	 44.18	-1	3860121..3860627	+	168	30064971	-	S3965	-	putative secreted autotransporter toxin
3395	 52.24	0	3860668..3861381	-	237	30064972	-	S3966	-	IS600 orfB
3396	 46.20	-1	3861522..3861824	-	100	30064973	-	S3967	-	IS600 orfA
3397	 42.52	-2	3862079..3862372	+	97	30064974	-	S3968	-	putative transport protein
3398	 52.90	0	3862413..3863603	-	396	161486398	nepI	S3969	-	ribonucleoside transporter
3399	 51.88	0	3863814..3864293	-	159	30064976	yicN	S3970	-	hypothetical protein
3400	 47.20	-1	3864319..3865731	-	470	30064977	yicO	S3971	-	hypothetical protein
3401	 54.67	0	3865828..3867594	+	588	30064978	yicP	S3972	-	cryptic adenine deaminase
3402	 52.73	0	3867640..3869031	-	463	30064979	uhpT	S3973	-	sugar phosphate antiporter
3403	 55.15	0	3869169..3870488	-	439	30064980	uhpC	S3974	-	regulatory protein UhpC
3404	 56.95	+1	3870498..3872000	-	500	30064981	uhpB	S3975	-	sensory histidine kinase UhpB
3405	 59.05	+1	3872000..3872590	-	196	30064982	uhpA	S3976	-	DNA-binding transcriptional activator UhpA
3406	 48.45	0	3872665..3872955	-	96	30064983	ilvN	S3977	-	acetolactate synthase 1 regulatory subunit
3407	 56.07	+1	3872959..3874647	-	562	30064984	ilvB	S3978	-	acetolactate synthase catalytic subunit
3408	 57.58	+1	3874753..3874851	-	32	30064985	ivbL	S3979	-	ilvB operon leader peptide
3409	 57.47	+1	3875818..3876969	+	383	30064986	emrD	S3980	-	multidrug resistance protein D
3410	 53.82	0	3876977..3877474	-	165	30064987	yidF	S3981	-	putative transcriptional regulator
3411	 50.69	0	3877471..3877833	-	120	30064988	yidG	S3982	-	hypothetical protein
3412	 52.01	0	3877823..3878170	-	115	30064989	yidH	S3983	-	hypothetical protein
3413	 47.34	-1	3878279..3878692	+	137	30064990	yidI	S3984	-	hypothetical protein
3414	 52.91	0	3880216..3881931	-	571	30064991	yidK	S3986	-	putative symporter YidK
3415	 43.40	-2	3882098..3882991	+	297	30064992	yidL	S3987	-	putative ARAC-type regulatory protein
3416	 50.62	0	3883802..3884287	-	161	30064993	glvB	S3989	-	arbutin specific enzyme IIB component of PTS
3417	 51.56	0	3885713..3886387	+	224	30064994	yidP	S3991	-	putative transcriptional regulator
3418	 52.95	0	3886426..3888087	-	553	30064995	yidE	S3992	-	hypothetical protein
3419	 48.95	0	3888283..3888711	-	142	30064996	ibpB	S3993	-	heat shock chaperone IbpB
3420	 47.34	-1	3888823..3889236	-	137	30064997	ibpA	S3994	-	heat shock protein IbpA
3421	 54.05	0	3889541..3889873	+	110	161486397	yidQ	S3995	-	hypothetical protein
3422	 53.65	0	3889875..3891149	-	424	30064999	yidR	S3996	-	hypothetical protein
3423	 51.59	0	3891214..3892314	+	366	30065000	yidS	S3997	-	putative oxidoreductase
3424	 53.06	0	3892275..3893612	-	445	30065001	dgoT	S3998	-	D-galactonate transport protein
3425	 54.61	0	3895433..3896311	-	292	30065002	dgoK	S4000	-	2-oxo-3-deoxygalactonate kinase
3426	 55.36	0	3896308..3896997	-	229	30065003	yidW	S4002	-	regulator protein for dgo operon
3427	 51.17	0	3897977..3898789	-	270	30065005	yidA	S4004	-	sugar phosphatase
3428	 51.13	0	3898903..3899301	-	132	30065006	yidB	S4005	-	hypothetical protein
3429	 54.74	0	3899541..3901955	-	804	30065007	gyrB	S4006	-	DNA gyrase subunit B
3430	 54.28	0	3901984..3903057	-	357	30065008	recF	S4007	-	recombination protein F
3431	 54.13	0	3903057..3904157	-	366	30065009	dnaN	S4008	-	DNA polymerase III subunit beta
3432	 53.63	0	3904162..3905565	-	467	30065010	dnaA	S4009	-	chromosomal replication initiation protein
3433	 51.77	0	3906172..3906312	+	46	30065011	rpmH	S4010	-	50S ribosomal protein L34
3434	 56.11	+1	3906329..3906688	+	119	30065012	rnpA	S4011	-	ribonuclease P
3435	 53.49	0	3906912..3908558	+	548	30065013	yidC	S4012	-	putative inner membrane protein translocase component YidC
3436	 56.63	+1	3908664..3910028	+	454	30065014	trmE	S4013	-	tRNA modification GTPase TrmE
3437	 52.98	0	3910242..3910745	-	167	30065015	-	S4014	-	IS1 orfB
3438	 52.90	0	3910664..3910939	-	91	30065016	-	S4015	-	IS1 orfA
3439	 36.00	-2	3911046..3911120	+	24	30065017	tnaL	S4016	-	tryptophanase leader peptide
3440	 50.35	0	3911341..3912756	+	471	30065018	tnaA	S4017	-	tryptophanase
3441	 46.63	-1	3912847..3914094	+	415	30065019	tnaB	S4018	-	tryptophan permease TnaB
3442	 52.98	0	3914226..3915401	+	391	30065020	yidY	S4019	-	multidrug efflux system protein MdtL
3443	 52.24	0	3916068..3916781	-	237	30065021	-	S4021	-	IS600 orfB
3444	 46.20	-1	3916922..3917224	-	100	30065022	-	S4022	-	IS600 orfA
3445	 52.13	0	3917759..3918508	+	249	30065023	yieE	S4024	-	hypothetical protein
3446	 53.09	0	3918530..3919096	+	188	30065024	yieF	S4025	-	hypothetical protein
3447	 52.47	0	3919150..3920487	-	445	30065025	yieG	S4026	-	putative membrane / transport protein
3448	 48.55	0	3920652..3921308	+	218	30065026	yieH	S4027	-	6-phosphogluconate phosphatase
3449	 44.09	-1	3921375..3921848	+	157	30065027	yieI	S4028	-	putative inner membrane protein
3450	 50.07	0	3922016..3922690	+	224	30065028	-	S4029	-	ISSfl3 orfA
3451	 54.70	0	3922687..3923037	+	116	30065029	-	S4030	-	ISSfl3 orfB
3452	 52.37	0	3923034..3924635	+	533	30065030	-	S4031	-	ISSfl3 orfC
3453	 49.52	0	3925288..3926010	-	240	30065031	yieK	S4033	-	putative 6-phosphogluconolactonase
3454	 50.34	0	3926012..3927187	-	391	30065032	yieL	S4034	-	putative xylanase
3455	 45.44	-1	3927214..3928791	-	525	30065033	yieC	S4035	-	putative receptor protein
3456	 52.78	0	3929306..3929809	-	167	30065034	-	S4036	-	IS1 orfB
3457	 52.90	0	3929728..3930003	-	91	30065035	-	S4037	-	IS1 orfA
3458	 49.90	0	3930037..3931086	-	349	30065036	bglB	S4038	-	phospho-beta-glucosidase B cryptic
3459	 51.38	0	3931105..3932982	-	625	30065037	bglF	S4039	-	beta-glucoside-specific PTS system components IIABC
3460	 42.58	-2	3933116..3933937	-	273	30065038	bglG	S4040	-	transcriptional antiterminator BglG
3461	 52.20	0	3934224..3934949	-	241	30065039	phoU	S4041	-	transcriptional regulator PhoU
3462	 52.84	0	3934964..3935737	-	257	30065040	pstB	S4042	-	phosphate transporter subunit
3463	 56.90	+1	3935829..3936719	-	296	30065041	pstA	S4043	-	phosphate transporter permease subunit
3464	 55.04	0	3936767..3937678	-	303	30065042	pstC	S4044	-	phosphate transporter permease subunit
3465	 51.59	0	3937765..3938805	-	346	30065043	pstS	S4045	-	phosphate transporter subunit
3466	 53.26	0	3940059..3940334	+	91	30065044	-	S4046	-	IS1 orfA
3467	 47.01	-1	3940913..3943435	-	840	30065045	lpfC	S4048	-	putative long polar fimbriae
3468	 52.73	0	3943581..3943946	+	121	161486396	-	S4049	-	insertion sequence 2 OrfA protein
3469	 55.30	0	3943904..3944809	+	301	161486395	-	S4050	-	insertion element IS2 transposase InsD
3470	 52.64	0	3946459..3948654	-	731	30065048	iutA	S4052	-	putative ferric siderophore receptor
3471	 46.56	-1	3948660..3949997	-	445	30065049	iucD	S4053	-	lysine:N6-hydroxylase
51.60	MEAN

4.04	STD DEV
