IslandPath Analysis: Shigella flexneri 2a str. 2457T

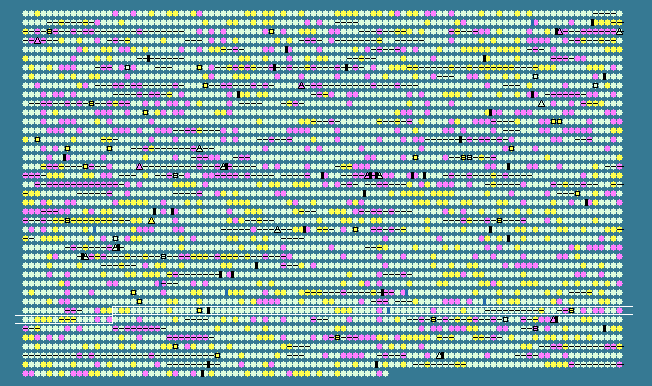

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 51.60 STD DEV: 4.04
Shigella flexneri 2a str. 2457T, complete genome - 1..4599354
4061 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
3316	 54.07	0	3764422..3765318	-	298	30064893	xerC	S3867	-	site-specific tyrosine recombinase XerC
3317	 55.93	+1	3765315..3766022	-	235	30064894	yigA	S3868	-	hypothetical protein
3318	 55.15	0	3766019..3766843	-	274	161486405	dapF	S3869	-	diaminopimelate epimerase
3319	 52.45	0	3766880..3767083	-	67	30064896	yifL	S3870	-	putative outer membrane lipoprotein
3320	 50.48	0	3767386..3768423	+	345	30064897	-	S3871	-	hypothetical protein
3321	 53.17	0	3769659..3770162	-	167	30064898	-	S3874	-	IS1 orfB
3322	 53.26	0	3770081..3770356	-	91	30064899	-	S3875	-	IS1 orfA
3323	 53.58	0	3770885..3771205	+	106	30064900	cyaY	S3876	-	frataxin-like protein
3324	 52.30	0	3771245..3773791	-	848	30064901	cyaA	S3878	-	adenylate cyclase
3325	 55.94	+1	3774178..3775119	+	313	30064902	hemC	S3879	-	porphobilinogen deaminase
3326	 53.04	0	3775116..3775856	+	246	30064903	hemD	S3880	-	uroporphyrinogen-III synthase
3327	 53.42	0	3775878..3777077	+	399	30064904	hemX	S3881	-	putative uroporphyrinogen III C-methyltransferase
3328	 54.30	0	3777080..3778276	+	398	30064905	hemY	S3882	-	putative protoheme IX biogenesis protein
3329	 53.01	0	3779138..3779503	+	121	161486404	-	S3883	-	insertion sequence 2 OrfA protein
3330	 55.19	0	3779461..3780366	+	301	161486403	-	S3884	-	insertion element IS2 transposase InsD
3331	 51.21	0	3780536..3781771	-	411	30064908	aslB	S3885	-	putative arylsulfatase regulator
3332	 53.25	0	3782457..3783842	-	461	30064909	yifK	S3890	-	putative transport protein YifK
3333	 53.31	0	3784033..3784773	-	246	30064910	wecG	S3891	-	putative UDP-N-acetyl-D-mannosaminuronic acid transferase
3334	 51.88	0	3784776..3786128	-	450	30064911	wecF	S3892	-	putative entero common antigen polymerase
3335	 52.41	0	3786125..3787204	-	359	30064912	yifM	S3893	-	4-alpha-L-fucosyltransferase
3336	 53.24	0	3787201..3788451	-	416	30064913	wzxE	S3894	-	putative cytochrome
3337	 54.47	0	3788453..3789583	-	376	30064914	wecE	S3895	-	TDP-4-oxo-6-deoxy-D-glucose transaminase
3338	 54.76	0	3789588..3790133	-	181	30064915	wecD	S3896	-	TDP-fucosamine acetyltransferase
3339	 54.99	0	3790240..3791121	-	293	30064916	rffH	S3897	-	glucose-1-phosphate thymidylyltransferase
3340	 53.56	0	3791140..3792207	-	355	30064917	rffG	S3898	-	dTDP-glucose 4,6-dehydratase
3341	 53.76	0	3792207..3793469	-	420	30064918	wecC	S3899	-	UDP-N-acetyl-D-mannosamine dehydrogenase
3342	 52.69	0	3793466..3794638	-	390	30064919	wecB	S3900	-	UDP-N-acetyl glucosamine-2-epimerase
3343	 52.44	0	3794652..3795698	-	348	30064920	wzzE	S3901	-	lipopolysaccharide biosynthesis protein WzzE
3344	 49.28	0	3795710..3796813	-	367	30064921	rfe	S3902	-	UDP-GlcNAc:undecaprenylphosphate GlcNAc-1-phosphate transferase
3345	 50.24	0	3797053..3798312	-	419	30064922	rho	S3903	-	transcription termination factor Rho
3346	 49.02	0	3798397..3798498	-	33	30064923	rhoL	S3904	-	putative Rho operon leader peptide
3347	 50.00	0	3798639..3799022	-	127	30064924	trxA	S3905	-	thioredoxin
3348	 52.45	0	3799099..3800364	+	421	30064925	rhlB	S3906	-	ATP-dependent RNA helicase RhlB
3349	 53.54	0	3800498..3801982	+	494	30064926	gppA	S3907	-	guanosine pentaphosphate phosphohydrolase
3350	 53.56	0	3802029..3804050	-	673	30064927	rep	S3908	-	ATP-dependent DNA helicase Rep
3351	 51.06	0	3804137..3804418	+	93	30064928	ppiC	S3909	-	peptidyl-prolyl cis-trans isomerase C (rotamase C)
3352	 53.52	0	3804464..3805939	-	491	30064929	ilvC	S3910	-	ketol-acid reductoisomerase
3353	 57.58	+1	3806089..3806979	+	296	30064930	ilvY	S3911	-	DNA-binding transcriptional regulator IlvY
3354	 58.64	+1	3806976..3808520	-	514	30064931	ilvA	S3912	-	threonine dehydratase
3355	 56.46	+1	3808523..3810373	-	616	30064932	ilvD	S3913	-	dihydroxy-acid dehydratase
3356	 54.41	0	3810438..3811367	-	309	30064933	ilvE	S3914	-	branched-chain amino acid aminotransferase
3357	 49.43	0	3811387..3811647	-	86	30064934	ilvM	S3915	-	acetolactate synthase 2 regulatory subunit
3358	 54.58	0	3811647..3813293	-	548	30064935	ilvG	S3917	-	acetolactate synthase 2 catalytic subunit
3359	 53.54	0	3813432..3813530	-	32	30064936	ilvL	S3918	-	ilvG operon leader peptide
3360	 48.08	0	3815386..3815724	-	112	30064937	yifE	S3920	-	hypothetical protein
3361	 48.69	0	3815843..3816682	+	279	30064938	yifA	S3921	-	transcriptional regulator HdfR
3362	 49.54	0	3822630..3823178	+	182	30064939	yieP	S3929	-	hypothetical protein
3363	 49.36	0	3823225..3824628	+	467	30064940	yieO	S3930	-	putative transport protein
3364	 50.41	0	3824594..3825577	-	327	30064941	rbsR	S3931	-	transcriptional repressor RbsR
3365	 52.28	0	3825590..3826534	-	314	30064942	rbsK	S3932	-	ribokinase
3366	 53.00	0	3827560..3828525	-	321	30064943	rbsC	S3934	-	ribose ABC transporter permease protein
3367	 52.98	0	3829707..3830210	-	167	30064944	-	S3936	-	IS1 orfB
3368	 52.90	0	3830129..3830404	-	91	30064945	-	S3937	-	IS1 orfA
3369	 46.90	-1	3830819..3831238	-	139	30064946	rbsD	S3939	-	D-ribose pyranase
3370	 51.47	0	3831405..3833273	-	622	30064947	trkD	S3940	-	potassium transport protein Kup
3371	 54.10	0	3833431..3834759	-	442	30064948	-	S3941	-	IS4 orf
3372	 49.24	0	3834909..3836429	+	506	30064949	yieN	S3942	-	regulatory ATPase RavA
3373	 52.55	0	3836423..3837874	+	483	161486402	yieM	S3943	-	hypothetical protein
3374	 56.50	+1	3837879..3838871	-	330	30064951	asnA	S3944	-	asparagine synthetase AsnA
3375	 49.24	0	3839023..3839481	+	152	30064952	asnC	S3945	-	DNA-binding transcriptional regulator AsnC
3376	 49.77	0	3839571..3840014	+	147	30064953	mioC	S3946	-	flavodoxin
3377	 54.50	0	3840393..3842282	+	629	30064954	gidA	S3947	-	tRNA uridine 5-carboxymethylaminomethyl modification enzyme GidA
3378	 48.56	0	3842346..3842969	+	207	30064955	gidB	S3948	-	glucose-inhibited division protein B
3379	 51.97	0	3843586..3843966	+	126	161486401	atpI	S3949	-	F0F1 ATP synthase subunit I
3380	 49.88	0	3843975..3844790	+	271	30064957	atpB	S3950	-	F0F1 ATP synthase subunit A
3381	 54.17	0	3844837..3845076	+	79	30064958	atpE	S3951	-	F0F1 ATP synthase subunit C
3382	 52.65	0	3845138..3845608	+	156	30064959	atpF	S3952	-	F0F1 ATP synthase subunit B
3383	 51.31	0	3845623..3846156	+	177	30064960	atpH	S3953	-	F0F1 ATP synthase subunit delta
3384	 53.37	0	3846169..3847710	+	513	30064961	atpA	S3954	-	F0F1 ATP synthase subunit alpha
3385	 53.47	0	3847761..3848624	+	287	30064962	atpG	S3955	-	F0F1 ATP synthase subunit gamma
3386	 54.95	0	3848651..3850033	+	460	30064963	atpD	S3956	-	F0F1 ATP synthase subunit beta
3387	 55.31	0	3850060..3850473	+	137	30064964	atpC	S3957	-	F0F1 ATP synthase subunit epsilon
3388	 53.10	0	3850824..3852194	+	456	30064965	glmU	S3958	-	bifunctional N-acetylglucosamine-1-phosphate uridyltransferase/glucosamine-1-phosphate acetyltransferase
3389	 53.83	0	3852356..3854185	+	609	30064966	glmS	S3959	-	D-fructose-6-phosphate amidotransferase
3390	 54.10	0	3854306..3855634	+	442	30064967	-	S3960	-	IS4 orf
3391	 47.47	-1	3855926..3856498	+	190	30064968	lpfA	S3961	-	putative major fimbrial subunit
3392	 55.30	0	3857264..3858169	-	301	161486400	-	S3963	-	insertion element IS2 transposase InsD
3393	 53.01	0	3858127..3858492	-	121	161486399	-	S3964	-	insertion sequence 2 OrfA protein
3394	 44.18	-1	3860121..3860627	+	168	30064971	-	S3965	-	putative secreted autotransporter toxin
3395	 52.24	0	3860668..3861381	-	237	30064972	-	S3966	-	IS600 orfB
3396	 46.20	-1	3861522..3861824	-	100	30064973	-	S3967	-	IS600 orfA
3397	 42.52	-2	3862079..3862372	+	97	30064974	-	S3968	-	putative transport protein
3398	 52.90	0	3862413..3863603	-	396	161486398	nepI	S3969	-	ribonucleoside transporter
3399	 51.88	0	3863814..3864293	-	159	30064976	yicN	S3970	-	hypothetical protein
3400	 47.20	-1	3864319..3865731	-	470	30064977	yicO	S3971	-	hypothetical protein
3401	 54.67	0	3865828..3867594	+	588	30064978	yicP	S3972	-	cryptic adenine deaminase
3402	 52.73	0	3867640..3869031	-	463	30064979	uhpT	S3973	-	sugar phosphate antiporter
3403	 55.15	0	3869169..3870488	-	439	30064980	uhpC	S3974	-	regulatory protein UhpC
3404	 56.95	+1	3870498..3872000	-	500	30064981	uhpB	S3975	-	sensory histidine kinase UhpB
3405	 59.05	+1	3872000..3872590	-	196	30064982	uhpA	S3976	-	DNA-binding transcriptional activator UhpA
3406	 48.45	0	3872665..3872955	-	96	30064983	ilvN	S3977	-	acetolactate synthase 1 regulatory subunit
3407	 56.07	+1	3872959..3874647	-	562	30064984	ilvB	S3978	-	acetolactate synthase catalytic subunit
3408	 57.58	+1	3874753..3874851	-	32	30064985	ivbL	S3979	-	ilvB operon leader peptide
3409	 57.47	+1	3875818..3876969	+	383	30064986	emrD	S3980	-	multidrug resistance protein D
3410	 53.82	0	3876977..3877474	-	165	30064987	yidF	S3981	-	putative transcriptional regulator
3411	 50.69	0	3877471..3877833	-	120	30064988	yidG	S3982	-	hypothetical protein
3412	 52.01	0	3877823..3878170	-	115	30064989	yidH	S3983	-	hypothetical protein
3413	 47.34	-1	3878279..3878692	+	137	30064990	yidI	S3984	-	hypothetical protein
3414	 52.91	0	3880216..3881931	-	571	30064991	yidK	S3986	-	putative symporter YidK
3415	 43.40	-2	3882098..3882991	+	297	30064992	yidL	S3987	-	putative ARAC-type regulatory protein
51.60	MEAN

4.04	STD DEV
