IslandPath Analysis: Shigella flexneri 2a str. 2457T

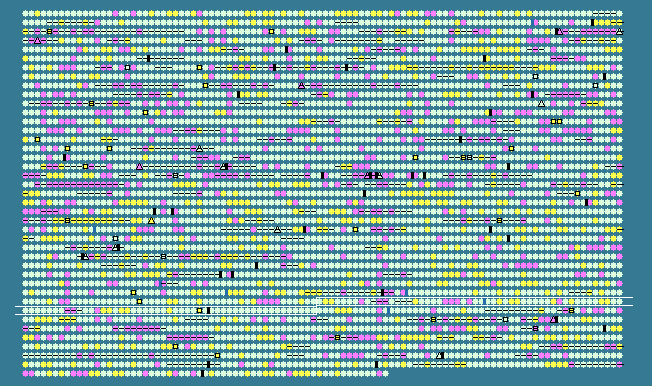

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 51.60 STD DEV: 4.04
Shigella flexneri 2a str. 2457T, complete genome - 1..4599354
4061 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
3250	 52.29	0	3685120..3685905	-	261	30064827	yihW	S3790	-	putative DEOR-type transcriptional regulator
3251	 55.74	+1	3685939..3686835	-	298	30064828	yihV	S3791	-	putative kinase
3252	 55.30	0	3687003..3687899	+	298	30064829	yihU	S3792	-	putative dehydrogenase
3253	 53.70	0	3687923..3688801	+	292	30064830	yihT	S3793	-	putative aldolase
3254	 53.22	0	3688818..3690059	+	413	30064831	yihS	S3794	-	hypothetical protein
3255	 48.17	0	3690197..3691099	+	300	30064832	yihR	S3795	-	putative aldose-1-epimerase
3256	 53.22	0	3691298..3693334	+	678	30064833	yihQ	S3796	-	alpha-glucosidase
3257	 44.73	-1	3694797..3696200	+	467	30064834	yihO	S3798	-	putative permease
3258	 53.17	0	3696613..3697116	-	167	30064835	-	S3800	-	IS1 orfB
3259	 52.90	0	3697035..3697310	-	91	30064836	-	S3801	-	IS1 orfA
3260	 44.85	-1	3697339..3698397	-	352	30064837	yihN	S3802	-	putative resistance protein
3261	 43.53	-1	3698499..3699479	-	326	30064838	yihM	S3803	-	hypothetical protein
3262	 48.95	0	3699487..3700197	-	236	30064839	yihL	S3804	-	putative transcriptional regulator
3263	 53.12	0	3700414..3702237	-	607	30064840	yihK	S3805	-	GTP-binding protein
3264	 52.84	0	3702610..3704019	+	469	30064841	glnA	S3806	-	glutamine synthetase
3265	 54.48	0	3704192..3705241	+	349	30064842	glnL	S3807	-	nitrogen regulation protein NR(II)
3266	 56.45	+1	3705253..3706662	+	469	30064843	glnG	S3808	-	nitrogen regulation protein NR(I)
3267	 52.84	0	3707113..3708486	-	457	30064844	hemN	S3809	-	coproporphyrinogen III oxidase
3268	 52.35	0	3708675..3709184	-	169	30064845	yihI	S3810	-	hypothetical protein
3269	 51.34	0	3709766..3710398	+	210	161486407	yihA	S3811	-	GTPase EngB
3270	 51.85	0	3710780..3713566	-	928	30064847	polA	S3813	-	DNA polymerase I
3271	 45.44	-1	3713930..3714862	+	310	30064848	yihG	S3814	-	putative endonuclease
3272	 41.28	-2	3714903..3716375	-	490	30064849	yihF	S3815	-	hypothetical protein
3273	 48.01	0	3716488..3717114	-	208	30064850	dsbA	S3816	-	periplasmic protein disulfide isomerase I
3274	 48.23	0	3717131..3718117	-	328	30064851	yihE	S3817	-	serine/threonine protein kinase
3275	 45.19	-1	3718194..3718463	-	89	30064852	yihD	S3818	-	hypothetical protein
3276	 50.94	0	3718533..3719117	+	194	30064853	mobA	S3819	-	molybdopterin-guanine dinucleotide biosynthesis protein A
3277	 48.48	0	3719099..3719626	+	175	30064854	mobB	S3820	-	molybdopterin-guanine dinucleotide biosynthesis protein B
3278	 51.47	0	3725208..3725753	-	181	30064855	hemG	S3826	-	protoporphyrinogen oxidase
3279	 52.62	0	3725765..3727216	-	483	30064856	trkH	S3827	-	potassium transporter
3280	 55.61	0	3727255..3727869	-	204	30064857	yigZ	S3828	-	hypothetical protein
3281	 53.53	0	3727869..3729200	-	443	30064858	pepQ	S3829	-	proline dipeptidase
3282	 55.11	0	3729390..3731579	+	729	30064859	fadB	S3830	-	multifunctional fatty acid oxidation complex subunit alpha
3283	 58.25	+1	3731589..3732752	+	387	30064860	fadA	S3831	-	3-ketoacyl-CoA thiolase
3284	 52.71	0	3732944..3733645	-	233	30064861	fre	S3832	-	FMN reductase
3285	 53.61	0	3733691..3735184	-	497	30064862	yigC	S3833	-	3-octaprenyl-4-hydroxybenzoate decarboxylase
3286	 49.90	0	3735351..3735839	+	162	30064863	rfaH	S3834	-	transcriptional activator RfaH
3287	 54.92	0	3735836..3736618	-	260	30064864	yigW	S3836	-	DNase TatD
3288	 51.35	0	3736660..3737436	-	258	30064865	yigU	S3837	-	TatABCE protein translocation system subunit
3289	 55.43	0	3737439..3737954	-	171	30064866	-	S3838	-	sec-independent translocase
3290	 44.87	-1	3737958..3738269	-	103	30064867	tatA	S3840	-	twin argininte translocase protein A
3291	 50.09	0	3738306..3739946	-	546	30064868	ubiB	S3841	-	putative ubiquinone biosynthesis protein UbiB
3292	 55.61	0	3739943..3740548	-	201	30064869	yigP	S3842	-	hypothetical protein
3293	 51.98	0	3740562..3741317	-	251	30064870	ubiE	S3843	-	ubiquinone/menaquinone biosynthesis methyltransferase
3294	 52.87	0	3741412..3742824	-	470	30064871	yigN	S3844	-	DNA recombination protein RmuC
3295	 53.67	0	3742980..3743741	-	253	30064872	udp	S3845	-	uridine phosphorylase
3296	 54.69	0	3744111..3744419	-	102	30064873	-	S3847	-	hypothetical protein
3297	 55.75	+1	3744856..3747117	-	753	30064874	metE	S3848	-	5-methyltetrahydropteroyltriglutamate--homocysteine methyltransferase
3298	 56.39	+1	3747353..3748306	+	317	30064875	metR	S3849	-	regulator for metE and metH
3299	 54.89	0	3748194..3749093	-	299	30064876	yigM	S3850	-	hypothetical protein
3300	 51.56	0	3749169..3749969	-	266	30064877	yigL	S3851	-	putative sugar phosphatase
3301	 53.67	0	3749977..3750999	-	340	30064878	pldB	S3852	-	lysophospholipase L2
3302	 50.36	0	3751314..3751730	+	138	30064879	yigK	S3853	-	hypothetical protein
3303	 50.95	0	3751792..3752160	-	122	30064880	yigJ	S3854	-	hypothetical protein
3304	 54.85	0	3752476..3754311	-	611	30064881	recQ	S3855	-	ATP-dependent DNA helicase RecQ
3305	 51.15	0	3754438..3755307	-	289	30064882	pldA	S3856	-	phospholipase A
3306	 53.21	0	3755472..3755939	+	155	161486406	yigI	S3857	-	hypothetical protein
3307	 50.73	0	3755991..3756881	+	296	30064884	rarD	S3858	-	hypothetical protein
3308	 32.85	-2	3756940..3757356	+	138	30064885	yigG	S3859	-	hypothetical protein
3309	 34.12	-2	3757370..3757750	+	126	30064886	yigF	S3860	-	hypothetical protein
3310	 52.68	0	3757791..3758741	-	316	30064887	corA	S3861	-	magnesium/nickel/cobalt transporter CorA
3311	 49.85	0	3759111..3759449	+	112	30064888	yigE	S3862	-	hypothetical protein
3312	 54.18	0	3759460..3760788	-	442	30064889	-	S3863	-	IS4 orf
3313	 45.33	-1	3761014..3761313	+	99	30064890	-	S3864	-	hypothetical protein
3314	 57.47	+1	3761460..3763622	-	720	30064891	uvrD	S3865	-	DNA-dependent helicase II
3315	 55.09	0	3763706..3764422	-	238	30064892	yigB	S3866	-	flavin mononucleotide phosphatase
3316	 54.07	0	3764422..3765318	-	298	30064893	xerC	S3867	-	site-specific tyrosine recombinase XerC
3317	 55.93	+1	3765315..3766022	-	235	30064894	yigA	S3868	-	hypothetical protein
3318	 55.15	0	3766019..3766843	-	274	161486405	dapF	S3869	-	diaminopimelate epimerase
3319	 52.45	0	3766880..3767083	-	67	30064896	yifL	S3870	-	putative outer membrane lipoprotein
3320	 50.48	0	3767386..3768423	+	345	30064897	-	S3871	-	hypothetical protein
3321	 53.17	0	3769659..3770162	-	167	30064898	-	S3874	-	IS1 orfB
3322	 53.26	0	3770081..3770356	-	91	30064899	-	S3875	-	IS1 orfA
3323	 53.58	0	3770885..3771205	+	106	30064900	cyaY	S3876	-	frataxin-like protein
3324	 52.30	0	3771245..3773791	-	848	30064901	cyaA	S3878	-	adenylate cyclase
3325	 55.94	+1	3774178..3775119	+	313	30064902	hemC	S3879	-	porphobilinogen deaminase
3326	 53.04	0	3775116..3775856	+	246	30064903	hemD	S3880	-	uroporphyrinogen-III synthase
3327	 53.42	0	3775878..3777077	+	399	30064904	hemX	S3881	-	putative uroporphyrinogen III C-methyltransferase
3328	 54.30	0	3777080..3778276	+	398	30064905	hemY	S3882	-	putative protoheme IX biogenesis protein
3329	 53.01	0	3779138..3779503	+	121	161486404	-	S3883	-	insertion sequence 2 OrfA protein
3330	 55.19	0	3779461..3780366	+	301	161486403	-	S3884	-	insertion element IS2 transposase InsD
3331	 51.21	0	3780536..3781771	-	411	30064908	aslB	S3885	-	putative arylsulfatase regulator
3332	 53.25	0	3782457..3783842	-	461	30064909	yifK	S3890	-	putative transport protein YifK
3333	 53.31	0	3784033..3784773	-	246	30064910	wecG	S3891	-	putative UDP-N-acetyl-D-mannosaminuronic acid transferase
3334	 51.88	0	3784776..3786128	-	450	30064911	wecF	S3892	-	putative entero common antigen polymerase
3335	 52.41	0	3786125..3787204	-	359	30064912	yifM	S3893	-	4-alpha-L-fucosyltransferase
3336	 53.24	0	3787201..3788451	-	416	30064913	wzxE	S3894	-	putative cytochrome
3337	 54.47	0	3788453..3789583	-	376	30064914	wecE	S3895	-	TDP-4-oxo-6-deoxy-D-glucose transaminase
3338	 54.76	0	3789588..3790133	-	181	30064915	wecD	S3896	-	TDP-fucosamine acetyltransferase
3339	 54.99	0	3790240..3791121	-	293	30064916	rffH	S3897	-	glucose-1-phosphate thymidylyltransferase
3340	 53.56	0	3791140..3792207	-	355	30064917	rffG	S3898	-	dTDP-glucose 4,6-dehydratase
3341	 53.76	0	3792207..3793469	-	420	30064918	wecC	S3899	-	UDP-N-acetyl-D-mannosamine dehydrogenase
3342	 52.69	0	3793466..3794638	-	390	30064919	wecB	S3900	-	UDP-N-acetyl glucosamine-2-epimerase
3343	 52.44	0	3794652..3795698	-	348	30064920	wzzE	S3901	-	lipopolysaccharide biosynthesis protein WzzE
3344	 49.28	0	3795710..3796813	-	367	30064921	rfe	S3902	-	UDP-GlcNAc:undecaprenylphosphate GlcNAc-1-phosphate transferase
3345	 50.24	0	3797053..3798312	-	419	30064922	rho	S3903	-	transcription termination factor Rho
3346	 49.02	0	3798397..3798498	-	33	30064923	rhoL	S3904	-	putative Rho operon leader peptide
3347	 50.00	0	3798639..3799022	-	127	30064924	trxA	S3905	-	thioredoxin
3348	 52.45	0	3799099..3800364	+	421	30064925	rhlB	S3906	-	ATP-dependent RNA helicase RhlB
3349	 53.54	0	3800498..3801982	+	494	30064926	gppA	S3907	-	guanosine pentaphosphate phosphohydrolase
51.60	MEAN

4.04	STD DEV
