IslandPath Analysis: Shigella flexneri 2a str. 2457T

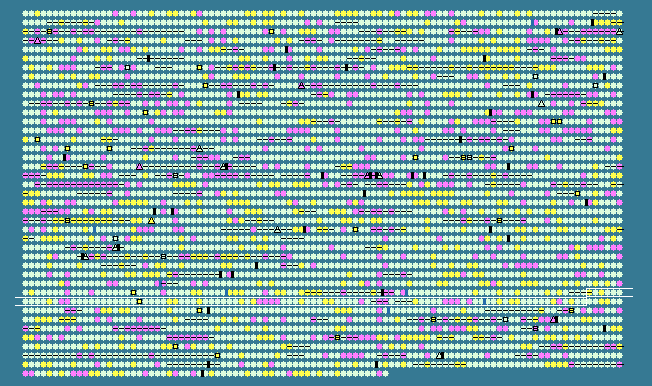

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 51.60 STD DEV: 4.04
Shigella flexneri 2a str. 2457T, complete genome - 1..4599354
4061 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
3195	 57.39	+1	3631330..3633528	+	732	30064772	priA	S3734	-	primosome assembly protein PriA
3196	 51.56	0	3633684..3634709	+	341	30064773	cytR	S3735	-	DNA-binding transcriptional regulator CytR
3197	 57.81	+1	3634801..3635760	+	319	30064774	ftsN	S3736	-	essential cell division protein
3198	 52.54	0	3635853..3636383	+	176	30064775	hslV	S3737	-	ATP-dependent protease peptidase subunit
3199	 52.33	0	3636393..3637724	+	443	30064776	hslU	S3738	-	ATP-dependent protease ATP-binding subunit
3200	 53.40	0	3637791..3638717	+	308	30064777	menA	S3739	-	1,4-dihydroxy-2-naphthoate octaprenyltransferase
3201	 52.26	0	3638810..3639295	+	161	30064778	menG	S3740	-	ribonuclease activity regulator protein RraA
3202	 48.37	0	3639380..3639625	-	81	30064779	yiiU	S3741	-	hypothetical protein
3203	 50.39	0	3640051..3640695	+	214	30064780	glpF	S3742	-	glycerol diffusion facilitator protein
3204	 54.21	0	3640919..3642427	+	502	30064781	glpK	S3743	-	glycerol kinase
3205	 56.58	+1	3642657..3643667	+	336	30064782	glpX	S3744	-	fructose 1,6-bisphosphatase II
3206	 53.41	0	3643764..3644510	+	248	30064783	fpr	S3745	-	ferredoxin-NADP reductase
3207	 43.12	-2	3644515..3644943	-	142	30064784	yiiT	S3746	-	universal stress protein UspD
3208	 46.67	-1	3644970..3645269	-	99	30064785	yiiS	S3747	-	hypothetical protein
3209	 49.00	0	3646022..3646621	+	199	30064786	yiiQ	S3749	-	hypothetical protein
3210	 52.86	0	3646729..3647496	+	255	30064787	tpiA	S3750	-	triosephosphate isomerase
3211	 48.68	0	3647551..3648306	-	251	30064788	cdh	S3751	-	CDP-diacylglycerol pyrophosphatase
3212	 51.11	0	3648413..3649402	-	329	30064789	sbp	S3752	-	sulfate transporter subunit
3213	 54.07	0	3649722..3650666	-	314	30064790	pfkA	S3753	-	6-phosphofructokinase
3214	 52.27	0	3650865..3651767	-	300	30064791	fieF	S3754	-	ferrous iron efflux protein F
3215	 50.10	0	3651915..3652415	-	166	161486410	cpxP	S3755	-	periplasmic repressor CpxP
3216	 51.22	0	3652565..3653263	+	232	30064793	cpxR	S3757	-	DNA-binding transcriptional regulator CpxR
3217	 54.51	0	3653260..3654633	+	457	30064794	cpxA	S3758	-	two-component sensor protein
3218	 53.48	0	3654739..3655413	-	224	30064795	yiiM	S3759	-	hypothetical protein
3219	 53.28	0	3655640..3656005	+	121	161486409	-	S3760	-	insertion sequence 2 OrfA protein
3220	 55.19	0	3655963..3656868	+	301	161486408	-	S3761	-	insertion element IS2 transposase InsD
3221	 52.74	0	3656898..3657881	-	327	30064798	kdgT	S3762	-	2-keto-3-deoxygluconate permease
3222	 53.62	0	3658141..3658761	-	206	30064799	sodA	S3763	-	superoxide dismutase
3223	 49.84	0	3660077..3661015	-	312	30064800	rhaR	S3765	-	transcriptional activator RhaR
3224	 51.73	0	3660999..3661835	-	278	30064801	rhaS	S3766	-	transcriptional activator RhaS
3225	 55.24	0	3662123..3663592	+	489	30064802	rhaB	S3767	-	rhamnulokinase
3226	 56.27	+1	3663589..3664848	+	419	30064803	rhaA	S3768	-	L-rhamnose isomerase
3227	 54.52	0	3665273..3665914	+	213	30064804	rhaD	S3769	-	rhamnulose-1-phosphate aldolase
3228	 49.84	0	3665924..3666238	+	104	30064805	yiiL	S3770	-	hypothetical protein
3229	 50.34	0	3666539..3666985	+	148	30064806	frvA	S3771	-	putative fructose-like phosphotransferase system subunit EIIA
3230	 55.79	+1	3666996..3668447	+	483	30064807	frvB	S3772	-	putative PTS transporter components IIBC
3231	 52.66	0	3668437..3669507	+	356	30064808	frvX	S3773	-	putative fructose-specific phosphotransferase system protein FrvX
3232	 52.84	0	3669507..3670157	+	216	30064809	frvR	S3774	-	putative frv operon regulatory protein
3233	 52.54	0	3670191..3670466	+	91	30064810	-	S3775	-	IS1 orfA
3234	 52.98	0	3670385..3670888	+	167	30064811	-	S3776	-	IS1 orfB
3235	 53.12	0	3670960..3671793	-	277	30064812	fdhD	S3777	-	formate dehydrogenase accessory protein
3236	 55.03	0	3671987..3675037	+	1016	30064813	fdoG	S3778	-	formate dehydrogenase-O, major subunit
3237	 55.59	0	3675050..3675952	+	300	30064814	fdoH	S3779	-	formate dehydrogenase-O, iron-sulfur subunit
3238	 52.36	0	3675949..3676584	+	211	30064815	fdoI	S3780	-	formate dehydrogenase-O subunit gamma
3239	 55.38	0	3676581..3677510	+	309	30064816	fdhE	S3781	-	formate dehydrogenase accessory protein FdhE
3240	 45.68	-1	3677840..3678082	-	80	30064817	yiiF	S3782	-	hypothetical protein
3241	 45.93	-1	3678300..3678545	-	81	30064818	yiiE	S3783	-	hypothetical protein
3242	 39.79	-2	3679197..3680342	-	381	30064819	-	S4827	-	hypothetical protein
3243	 35.71	-2	3680500..3680751	-	83	30064820	-	S4828	-	hypothetical protein
3244	 52.90	0	3680897..3681172	+	91	30064821	-	S3784	-	IS1 orfA
3245	 53.37	0	3681091..3681594	+	167	30064822	-	S3785	-	IS1 orfB
3246	 54.95	0	3682136..3683125	-	329	30064823	yiiD	S3786	-	putative acetyltransferase
3247	 55.25	0	3683122..3683559	-	145	30064824	yihZ	S3787	-	D-tyrosyl-tRNA deacylase
3248	 50.74	0	3683556..3684428	-	290	30064825	rbn	S3788	-	ribonuclease BN
3249	 50.17	0	3684422..3685021	-	199	30064826	yihX	S3789	-	phosphatase
3250	 52.29	0	3685120..3685905	-	261	30064827	yihW	S3790	-	putative DEOR-type transcriptional regulator
3251	 55.74	+1	3685939..3686835	-	298	30064828	yihV	S3791	-	putative kinase
3252	 55.30	0	3687003..3687899	+	298	30064829	yihU	S3792	-	putative dehydrogenase
3253	 53.70	0	3687923..3688801	+	292	30064830	yihT	S3793	-	putative aldolase
3254	 53.22	0	3688818..3690059	+	413	30064831	yihS	S3794	-	hypothetical protein
3255	 48.17	0	3690197..3691099	+	300	30064832	yihR	S3795	-	putative aldose-1-epimerase
3256	 53.22	0	3691298..3693334	+	678	30064833	yihQ	S3796	-	alpha-glucosidase
3257	 44.73	-1	3694797..3696200	+	467	30064834	yihO	S3798	-	putative permease
3258	 53.17	0	3696613..3697116	-	167	30064835	-	S3800	-	IS1 orfB
3259	 52.90	0	3697035..3697310	-	91	30064836	-	S3801	-	IS1 orfA
3260	 44.85	-1	3697339..3698397	-	352	30064837	yihN	S3802	-	putative resistance protein
3261	 43.53	-1	3698499..3699479	-	326	30064838	yihM	S3803	-	hypothetical protein
3262	 48.95	0	3699487..3700197	-	236	30064839	yihL	S3804	-	putative transcriptional regulator
3263	 53.12	0	3700414..3702237	-	607	30064840	yihK	S3805	-	GTP-binding protein
3264	 52.84	0	3702610..3704019	+	469	30064841	glnA	S3806	-	glutamine synthetase
3265	 54.48	0	3704192..3705241	+	349	30064842	glnL	S3807	-	nitrogen regulation protein NR(II)
3266	 56.45	+1	3705253..3706662	+	469	30064843	glnG	S3808	-	nitrogen regulation protein NR(I)
3267	 52.84	0	3707113..3708486	-	457	30064844	hemN	S3809	-	coproporphyrinogen III oxidase
3268	 52.35	0	3708675..3709184	-	169	30064845	yihI	S3810	-	hypothetical protein
3269	 51.34	0	3709766..3710398	+	210	161486407	yihA	S3811	-	GTPase EngB
3270	 51.85	0	3710780..3713566	-	928	30064847	polA	S3813	-	DNA polymerase I
3271	 45.44	-1	3713930..3714862	+	310	30064848	yihG	S3814	-	putative endonuclease
3272	 41.28	-2	3714903..3716375	-	490	30064849	yihF	S3815	-	hypothetical protein
3273	 48.01	0	3716488..3717114	-	208	30064850	dsbA	S3816	-	periplasmic protein disulfide isomerase I
3274	 48.23	0	3717131..3718117	-	328	30064851	yihE	S3817	-	serine/threonine protein kinase
3275	 45.19	-1	3718194..3718463	-	89	30064852	yihD	S3818	-	hypothetical protein
3276	 50.94	0	3718533..3719117	+	194	30064853	mobA	S3819	-	molybdopterin-guanine dinucleotide biosynthesis protein A
3277	 48.48	0	3719099..3719626	+	175	30064854	mobB	S3820	-	molybdopterin-guanine dinucleotide biosynthesis protein B
3278	 51.47	0	3725208..3725753	-	181	30064855	hemG	S3826	-	protoporphyrinogen oxidase
3279	 52.62	0	3725765..3727216	-	483	30064856	trkH	S3827	-	potassium transporter
3280	 55.61	0	3727255..3727869	-	204	30064857	yigZ	S3828	-	hypothetical protein
3281	 53.53	0	3727869..3729200	-	443	30064858	pepQ	S3829	-	proline dipeptidase
3282	 55.11	0	3729390..3731579	+	729	30064859	fadB	S3830	-	multifunctional fatty acid oxidation complex subunit alpha
3283	 58.25	+1	3731589..3732752	+	387	30064860	fadA	S3831	-	3-ketoacyl-CoA thiolase
3284	 52.71	0	3732944..3733645	-	233	30064861	fre	S3832	-	FMN reductase
3285	 53.61	0	3733691..3735184	-	497	30064862	yigC	S3833	-	3-octaprenyl-4-hydroxybenzoate decarboxylase
3286	 49.90	0	3735351..3735839	+	162	30064863	rfaH	S3834	-	transcriptional activator RfaH
3287	 54.92	0	3735836..3736618	-	260	30064864	yigW	S3836	-	DNase TatD
3288	 51.35	0	3736660..3737436	-	258	30064865	yigU	S3837	-	TatABCE protein translocation system subunit
3289	 55.43	0	3737439..3737954	-	171	30064866	-	S3838	-	sec-independent translocase
3290	 44.87	-1	3737958..3738269	-	103	30064867	tatA	S3840	-	twin argininte translocase protein A
3291	 50.09	0	3738306..3739946	-	546	30064868	ubiB	S3841	-	putative ubiquinone biosynthesis protein UbiB
3292	 55.61	0	3739943..3740548	-	201	30064869	yigP	S3842	-	hypothetical protein
3293	 51.98	0	3740562..3741317	-	251	30064870	ubiE	S3843	-	ubiquinone/menaquinone biosynthesis methyltransferase
3294	 52.87	0	3741412..3742824	-	470	30064871	yigN	S3844	-	DNA recombination protein RmuC
51.60	MEAN

4.04	STD DEV
