IslandPath Analysis: Shigella flexneri 2a str. 2457T

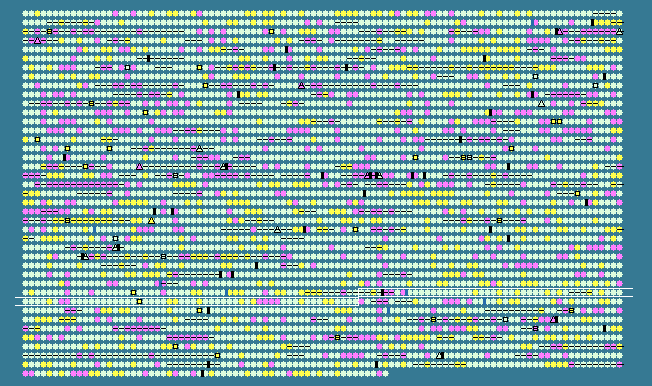

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 51.60 STD DEV: 4.04
Shigella flexneri 2a str. 2457T, complete genome - 1..4599354
4061 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
3157	 52.21	0	3574591..3575019	-	142	30064734	rplK	S3679	-	50S ribosomal protein L11
3158	 51.47	0	3575178..3575723	-	181	30064735	nusG	S3680	-	transcription antitermination protein NusG
3159	 55.21	0	3575725..3576108	-	127	30064736	secE	S3681	-	preprotein translocase subunit SecE
3160	 53.25	0	3576338..3577522	-	394	30064737	tuf	S3682	-	elongation factor Tu
3161	 39.10	-2	3578098..3578253	+	51	30064738	-	S3687	-	hypothetical protein
3162	 44.55	-1	3578464..3579390	+	308	30064739	coaA	S3688	-	pantothenate kinase
3163	 49.48	0	3579419..3580384	-	321	30064740	birA	S3689	-	biotin--protein ligase
3164	 46.45	-1	3580381..3581409	-	342	30064741	murB	S3690	-	UDP-N-acetylenolpyruvoylglucosamine reductase
3165	 51.63	0	3586922..3587779	-	285	161486412	murI	S3695	-	glutamate racemase
3166	 50.03	0	3587724..3589568	-	614	30064743	btuB	S3696	-	vitamin B12/cobalamin outer membrane transporter
3167	 51.04	0	3589937..3591037	+	366	30064744	trmA	S3697	-	tRNA (uracil-5-)-methyltransferase
3168	 49.17	0	3591077..3591436	-	119	30064745	yijD	S3698	-	hypothetical protein
3169	 52.48	0	3591436..3592140	-	234	30064746	yijC	S3699	-	DNA-binding transcriptional repressor FabR
3170	 51.96	0	3592407..3593807	+	466	161486411	udhA	S3700	-	soluble pyridine nucleotide transhydrogenase
3171	 54.90	0	3593790..3594707	-	305	30064748	oxyR	S3701	-	DNA-binding transcriptional regulator OxyR
3172	 52.98	0	3595902..3596405	-	167	30064749	-	S3704	-	IS1 orfB
3173	 53.26	0	3596324..3596599	-	91	30064750	-	S3705	-	IS1 orfA
3174	 50.04	0	3597087..3598301	-	404	30064751	-	S3707	-	putative sensor protein
3175	 54.10	0	3598709..3600037	-	442	30064752	-	S3708	-	IS4 orf
3176	 56.04	+1	3600239..3601612	-	457	30064753	argH	S3709	-	argininosuccinate lyase
3177	 55.04	0	3601673..3602446	-	257	30064754	argB	S3710	-	acetylglutamate kinase
3178	 53.43	0	3602457..3603461	-	334	30064755	argC	S3711	-	N-acetyl-gamma-glutamyl-phosphate reductase
3179	 51.39	0	3603615..3604766	+	383	30064756	argE	S3712	-	acetylornithine deacetylase
3180	 55.66	+1	3605118..3607769	+	883	30064757	ppc	S3713	-	phosphoenolpyruvate carboxylase
3181	 50.69	0	3607952..3609685	+	577	30064758	yijP	S3714	-	hypothetical protein
3182	 52.93	0	3609834..3610685	+	283	30064759	yijO	S3715	-	putative ARAC-type regulatory protein
3183	 56.43	+1	3610672..3611013	-	113	30064760	frwD	S3716	-	putative fructose-like phosphotransferase EIIB subunit 3
3184	 54.84	0	3611015..3611893	-	292	30064761	pflC	S3717	-	pyruvate formate lyase II activase
3185	 52.87	0	3611859..3614156	-	765	30064762	pflD	S3718	-	putative formate acetyltransferase 2
3186	 49.53	0	3614207..3614527	-	106	30064763	frwB	S3719	-	putative fructose-like phosphotransferase EIIB subunit 2
3187	 53.80	0	3614542..3615621	-	359	30064764	frwC	S3720	-	putative fructose-like permease EIIC subunit 2
3188	 55.80	+1	3622125..3624305	-	726	30064765	katG	S3727	-	catalase; hydroperoxidase HPI(I)
3189	 52.30	0	3624634..3625524	-	296	30064766	metF	S3728	-	5,10-methylenetetrahydrofolate reductase
3190	 58.12	+1	3625873..3628305	-	810	30064767	metL	S3729	-	bifunctional aspartate kinase II/homoserine dehydrogenase II
3191	 54.95	0	3628308..3629468	-	386	30064768	metB	S3730	-	cystathionine gamma-synthase
3192	 51.89	0	3629745..3630062	+	105	30064769	metJ	S3731	-	transcriptional repressor protein MetJ
3193	 51.89	0	3630246..3630854	+	202	30064770	yiiX	S3732	-	putative peptidoglycan peptidase
3194	 48.83	0	3630915..3631127	-	70	30064771	rpmE	S3733	-	50S ribosomal protein L31
3195	 57.39	+1	3631330..3633528	+	732	30064772	priA	S3734	-	primosome assembly protein PriA
3196	 51.56	0	3633684..3634709	+	341	30064773	cytR	S3735	-	DNA-binding transcriptional regulator CytR
3197	 57.81	+1	3634801..3635760	+	319	30064774	ftsN	S3736	-	essential cell division protein
3198	 52.54	0	3635853..3636383	+	176	30064775	hslV	S3737	-	ATP-dependent protease peptidase subunit
3199	 52.33	0	3636393..3637724	+	443	30064776	hslU	S3738	-	ATP-dependent protease ATP-binding subunit
3200	 53.40	0	3637791..3638717	+	308	30064777	menA	S3739	-	1,4-dihydroxy-2-naphthoate octaprenyltransferase
3201	 52.26	0	3638810..3639295	+	161	30064778	menG	S3740	-	ribonuclease activity regulator protein RraA
3202	 48.37	0	3639380..3639625	-	81	30064779	yiiU	S3741	-	hypothetical protein
3203	 50.39	0	3640051..3640695	+	214	30064780	glpF	S3742	-	glycerol diffusion facilitator protein
3204	 54.21	0	3640919..3642427	+	502	30064781	glpK	S3743	-	glycerol kinase
3205	 56.58	+1	3642657..3643667	+	336	30064782	glpX	S3744	-	fructose 1,6-bisphosphatase II
3206	 53.41	0	3643764..3644510	+	248	30064783	fpr	S3745	-	ferredoxin-NADP reductase
3207	 43.12	-2	3644515..3644943	-	142	30064784	yiiT	S3746	-	universal stress protein UspD
3208	 46.67	-1	3644970..3645269	-	99	30064785	yiiS	S3747	-	hypothetical protein
3209	 49.00	0	3646022..3646621	+	199	30064786	yiiQ	S3749	-	hypothetical protein
3210	 52.86	0	3646729..3647496	+	255	30064787	tpiA	S3750	-	triosephosphate isomerase
3211	 48.68	0	3647551..3648306	-	251	30064788	cdh	S3751	-	CDP-diacylglycerol pyrophosphatase
3212	 51.11	0	3648413..3649402	-	329	30064789	sbp	S3752	-	sulfate transporter subunit
3213	 54.07	0	3649722..3650666	-	314	30064790	pfkA	S3753	-	6-phosphofructokinase
3214	 52.27	0	3650865..3651767	-	300	30064791	fieF	S3754	-	ferrous iron efflux protein F
3215	 50.10	0	3651915..3652415	-	166	161486410	cpxP	S3755	-	periplasmic repressor CpxP
3216	 51.22	0	3652565..3653263	+	232	30064793	cpxR	S3757	-	DNA-binding transcriptional regulator CpxR
3217	 54.51	0	3653260..3654633	+	457	30064794	cpxA	S3758	-	two-component sensor protein
3218	 53.48	0	3654739..3655413	-	224	30064795	yiiM	S3759	-	hypothetical protein
3219	 53.28	0	3655640..3656005	+	121	161486409	-	S3760	-	insertion sequence 2 OrfA protein
3220	 55.19	0	3655963..3656868	+	301	161486408	-	S3761	-	insertion element IS2 transposase InsD
3221	 52.74	0	3656898..3657881	-	327	30064798	kdgT	S3762	-	2-keto-3-deoxygluconate permease
3222	 53.62	0	3658141..3658761	-	206	30064799	sodA	S3763	-	superoxide dismutase
3223	 49.84	0	3660077..3661015	-	312	30064800	rhaR	S3765	-	transcriptional activator RhaR
3224	 51.73	0	3660999..3661835	-	278	30064801	rhaS	S3766	-	transcriptional activator RhaS
3225	 55.24	0	3662123..3663592	+	489	30064802	rhaB	S3767	-	rhamnulokinase
3226	 56.27	+1	3663589..3664848	+	419	30064803	rhaA	S3768	-	L-rhamnose isomerase
3227	 54.52	0	3665273..3665914	+	213	30064804	rhaD	S3769	-	rhamnulose-1-phosphate aldolase
3228	 49.84	0	3665924..3666238	+	104	30064805	yiiL	S3770	-	hypothetical protein
3229	 50.34	0	3666539..3666985	+	148	30064806	frvA	S3771	-	putative fructose-like phosphotransferase system subunit EIIA
3230	 55.79	+1	3666996..3668447	+	483	30064807	frvB	S3772	-	putative PTS transporter components IIBC
3231	 52.66	0	3668437..3669507	+	356	30064808	frvX	S3773	-	putative fructose-specific phosphotransferase system protein FrvX
3232	 52.84	0	3669507..3670157	+	216	30064809	frvR	S3774	-	putative frv operon regulatory protein
3233	 52.54	0	3670191..3670466	+	91	30064810	-	S3775	-	IS1 orfA
3234	 52.98	0	3670385..3670888	+	167	30064811	-	S3776	-	IS1 orfB
3235	 53.12	0	3670960..3671793	-	277	30064812	fdhD	S3777	-	formate dehydrogenase accessory protein
3236	 55.03	0	3671987..3675037	+	1016	30064813	fdoG	S3778	-	formate dehydrogenase-O, major subunit
3237	 55.59	0	3675050..3675952	+	300	30064814	fdoH	S3779	-	formate dehydrogenase-O, iron-sulfur subunit
3238	 52.36	0	3675949..3676584	+	211	30064815	fdoI	S3780	-	formate dehydrogenase-O subunit gamma
3239	 55.38	0	3676581..3677510	+	309	30064816	fdhE	S3781	-	formate dehydrogenase accessory protein FdhE
3240	 45.68	-1	3677840..3678082	-	80	30064817	yiiF	S3782	-	hypothetical protein
3241	 45.93	-1	3678300..3678545	-	81	30064818	yiiE	S3783	-	hypothetical protein
3242	 39.79	-2	3679197..3680342	-	381	30064819	-	S4827	-	hypothetical protein
3243	 35.71	-2	3680500..3680751	-	83	30064820	-	S4828	-	hypothetical protein
3244	 52.90	0	3680897..3681172	+	91	30064821	-	S3784	-	IS1 orfA
3245	 53.37	0	3681091..3681594	+	167	30064822	-	S3785	-	IS1 orfB
3246	 54.95	0	3682136..3683125	-	329	30064823	yiiD	S3786	-	putative acetyltransferase
3247	 55.25	0	3683122..3683559	-	145	30064824	yihZ	S3787	-	D-tyrosyl-tRNA deacylase
3248	 50.74	0	3683556..3684428	-	290	30064825	rbn	S3788	-	ribonuclease BN
3249	 50.17	0	3684422..3685021	-	199	30064826	yihX	S3789	-	phosphatase
3250	 52.29	0	3685120..3685905	-	261	30064827	yihW	S3790	-	putative DEOR-type transcriptional regulator
3251	 55.74	+1	3685939..3686835	-	298	30064828	yihV	S3791	-	putative kinase
3252	 55.30	0	3687003..3687899	+	298	30064829	yihU	S3792	-	putative dehydrogenase
3253	 53.70	0	3687923..3688801	+	292	30064830	yihT	S3793	-	putative aldolase
3254	 53.22	0	3688818..3690059	+	413	30064831	yihS	S3794	-	hypothetical protein
3255	 48.17	0	3690197..3691099	+	300	30064832	yihR	S3795	-	putative aldose-1-epimerase
3256	 53.22	0	3691298..3693334	+	678	30064833	yihQ	S3796	-	alpha-glucosidase
51.60	MEAN

4.04	STD DEV
