IslandPath Analysis: Shigella flexneri 2a str. 2457T

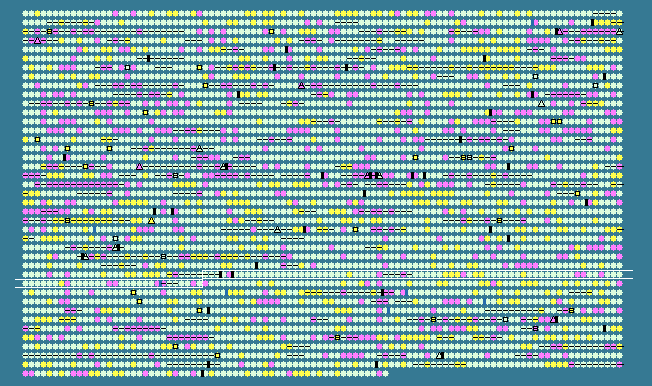

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 51.60 STD DEV: 4.04
Shigella flexneri 2a str. 2457T, complete genome - 1..4599354
4061 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2931	 53.45	0	3296665..3299313	-	882	30064508	infB	S3426	-	translation initiation factor IF-2
2932	 52.69	0	3299338..3300825	-	495	30064509	nusA	S3427	-	transcription elongation factor NusA
2933	 48.57	0	3300853..3301305	-	150	161486428	yhbC	S3428	-	hypothetical protein
2934	 52.31	0	3301936..3303279	+	447	30064511	argG	S3430	-	argininosuccinate synthase
2935	 47.62	0	3303287..3303769	-	160	30064512	yhbX	S3431	-	putative alkaline phosphatase I
2936	 50.15	0	3305473..3305805	-	110	30064513	secG	S3433	-	preprotein translocase subunit SecG
2937	 54.48	0	3306033..3307370	-	445	30064514	glmM	S3434	-	phosphoglucosamine mutase
2938	 51.59	0	3307363..3308211	-	282	161486427	folP	S3435	-	dihydropteroate synthase
2939	 53.44	0	3308301..3310235	-	644	30064516	hflB	S3436	-	ATP-dependent metalloprotease
2940	 50.16	0	3310335..3310964	-	209	30064517	rrmJ	S3437	-	23S rRNA methyltransferase J
2941	 48.64	0	3311090..3311383	+	97	30064518	yhbY	S3438	-	RNA-binding protein YhbY
2942	 48.64	0	3311539..3312015	-	158	30064519	greA	S3439	-	transcription elongation factor GreA
2943	 53.14	0	3312263..3313696	+	477	30064520	dacB	S3440	-	D-alanyl-D-alanine carboxypeptidase/endopeptidase
2944	 52.77	0	3313882..3315054	-	390	30064521	obgE	S3441	-	GTPase ObgE
2945	 52.69	0	3315070..3316035	-	321	30064522	yhbE	S3442	-	hypothetical protein
2946	 49.61	0	3316162..3316419	-	85	30064523	rpmA	S3443	-	50S ribosomal protein L27
2947	 48.40	0	3316440..3316751	-	103	30064524	rplU	S3444	-	50S ribosomal protein L21
2948	 52.67	0	3317009..3317980	+	323	30064525	ispB	S3445	-	octaprenyl diphosphate synthase
2949	 49.46	0	3318207..3318485	+	92	30064526	nlp	S3446	-	DNA-binding transcriptional regulator Nlp
2950	 53.33	0	3318533..3319792	-	419	30064527	murA	S3447	-	UDP-N-acetylglucosamine 1-carboxyvinyltransferase
2951	 50.00	0	3319847..3320116	-	89	30064528	yrbA	S3448	-	hypothetical protein
2952	 52.56	0	3320261..3320650	-	129	30064529	yrbB	S3449	-	hypothetical protein
2953	 52.04	0	3320554..3321189	-	211	30064530	yrbC	S3450	-	hypothetical protein
2954	 49.82	0	3321208..3321759	-	183	30064531	vpsC	S3451	-	cytoplasmic membrane protein
2955	 55.43	0	3321764..3322546	-	260	30064532	vpsB	S3452	-	integral membrane protein
2956	 54.32	0	3322554..3323363	-	269	30064533	vpsA	S3453	-	putative ABC transporter ATP-binding protein YrbF
2957	 51.86	0	3323573..3324538	+	321	30064534	yrbG	S3454	-	putative calcium/sodium:proton antiporter
2958	 52.18	0	3324552..3325538	+	328	30064535	yrbH	S3455	-	D-arabinose 5-phosphate isomerase
2959	 52.38	0	3325559..3326125	+	188	30064536	yrbI	S3456	-	3-deoxy-D-manno-octulosonate 8-phosphate phosphatase
2960	 46.35	-1	3326122..3326697	+	191	30064537	yrbK	S3457	-	hypothetical protein
2961	 49.64	0	3326666..3327223	+	185	30064538	yhbN	S3458	-	hypothetical protein
2962	 54.27	0	3327230..3327955	+	241	30064539	yhbG	S3459	-	putative ABC transporter ATP-binding protein YhbG
2963	 53.00	0	3328003..3329436	+	477	30064540	rpoN	S3460	-	RNA polymerase factor sigma-54
2964	 44.44	-1	3329459..3329746	+	95	30064541	yhbH	S3461	-	putative sigma(54) modulation protein
2965	 51.83	0	3329864..3330355	+	163	30064542	ptsN	S3462	-	sugar-specific enzyme IIA component of PTS
2966	 52.05	0	3330401..3331255	+	284	30064543	yhbJ	S3463	-	hypothetical protein
2967	 49.08	0	3331252..3331524	+	90	30064544	ptsO	S3464	-	phosphohistidinoprotein-hexose phosphotransferase component of N-regulated PTS system (Npr)
2968	 51.34	0	3331737..3332369	+	210	30064545	yrbL	S3465	-	hypothetical protein
2969	 52.75	0	3333090..3333743	-	217	30064546	yhbL	S3467	-	isoprenoid biosynthesis protein
2970	 50.62	0	3333973..3336309	-	778	30064547	arcB	S3468	-	aerobic respiration control sensor protein ArcB
2971	 55.70	+1	3336405..3337334	-	309	30064548	yhcC	S3469	-	hypothetical protein
2972	 57.09	+1	3337916..3342469	+	1517	161486426	gltB	S3470	-	glutamate synthase subunit alpha
2973	 55.11	0	3342482..3343900	+	472	30064550	gltD	S3471	-	glutamate synthase subunit beta
2974	 47.90	0	3345046..3346116	+	356	30064551	-	S3473	-	IS600 orf
2975	 48.39	0	3346192..3346656	-	154	30064552	yhcH	S3474	-	hypothetical protein
2976	 57.88	+1	3346653..3347528	-	291	161486425	yhcI	S3475	-	N-acetylmannosamine kinase
2977	 57.97	+1	3347525..3348214	-	229	30064554	yhcJ	S3476	-	N-acetylmannosamine-6-phosphate 2-epimerase
2978	 54.93	0	3348262..3349752	-	496	161486424	nanT	S3477	-	putative sialic acid transporter
2979	 52.13	0	3349862..3350755	-	297	30064556	nanA	S3478	-	N-acetylneuraminate lyase
2980	 52.11	0	3350877..3351659	-	260	30064557	yhcK	S3479	-	transcriptional regulator NanR
2981	 52.54	0	3352106..3352381	+	91	30064558	-	S3480	-	IS1 orfA
2982	 52.78	0	3352300..3352803	+	167	30064559	-	S3481	-	IS1 orfB
2983	 50.95	0	3352824..3354191	+	455	30064560	yhcL	S3482	-	putative cryptic C4-dicarboxylate transporter DcuD
2984	 55.22	0	3354234..3354731	-	165	30064561	sspB	S3483	-	ClpXP protease specificity-enhancing factor
2985	 53.68	0	3354737..3355375	-	212	30064562	sspA	S3484	-	stringent starvation protein A
2986	 52.42	0	3355770..3356162	-	130	30064563	rpsI	S3485	-	30S ribosomal protein S9
2987	 50.35	0	3356178..3356606	-	142	30064564	rplM	S3486	-	50S ribosomal protein L13
2988	 52.30	0	3356825..3357952	-	375	30064565	yhcM	S3487	-	hypothetical protein
2989	 54.64	0	3358146..3358544	+	132	30064566	yhcB	S3488	-	cytochrome d ubiquinol oxidase subunit III
2990	 52.53	0	3360135..3361202	+	355	30064567	degS	S3490	-	serine endoprotease
2991	 52.08	0	3361264..3362202	-	312	30064568	mdh	S3491	-	malate dehydrogenase
2992	 48.83	0	3362637..3363107	+	156	30064569	argR	S3492	-	arginine repressor
2993	 46.98	-1	3363421..3363735	+	104	30064570	yhcN	S3493	-	hypothetical protein
2994	 42.86	-2	3363791..3364063	-	90	30064571	yhcO	S3494	-	hypothetical protein
2995	 52.49	0	3364155..3366122	-	655	30064572	yhcP	S3495	-	p-hydroxybenzoic acid efflux subunit AaeB
2996	 53.70	0	3366128..3367060	-	310	30064573	yhcQ	S3496	-	p-hydroxybenzoic acid efflux subunit AaeA
2997	 47.55	-1	3367068..3367271	-	67	161486423	yhcR	S3497	-	hypothetical protein
2998	 53.07	0	3367472..3368383	+	303	30064575	yhcS	S3498	-	putative DNA-binding transcriptional regulator
2999	 54.70	0	3368511..3369956	-	481	30064576	tldD	S3499	-	protease TldD
3000	 52.41	0	3370112..3373072	-	986	30064577	yhdP	S3500	-	hypothetical protein
3001	 52.11	0	3373980..3375449	-	489	30064578	cafA	S3502	-	ribonuclease G
3002	 53.70	0	3375439..3376032	-	197	30064579	maf	S3503	-	Maf-like protein
3003	 50.92	0	3376041..3376529	-	162	30064580	mreD	S3504	-	rod shape-determining protein MreD
3004	 53.96	0	3376736..3377632	-	298	30064581	mreC	S3505	-	cell wall structural complex MreBCD transmembrane component MreC
3005	 53.99	0	3377698..3378801	-	367	30064582	mreB	S3506	-	regulator of ftsI, penicillin binding protein 3
3006	 50.49	0	3379046..3380986	-	646	30064583	yhdA	S3507	-	regulatory protein CsrD
3007	 55.28	0	3381138..3382112	+	324	30064584	yhdH	S3508	-	putative dehydrogenase
3008	 47.06	-1	3382170..3382271	-	33	30064585	-	S3509	-	hypothetical protein
3009	 51.80	0	3383090..3383560	+	156	30064586	accB	S3510	-	acetyl-CoA carboxylase biotin carboxyl carrier protein subunit
3010	 53.41	0	3383571..3384920	+	449	30064587	accC	S3511	-	acetyl-CoA carboxylase biotin carboxylase subunit
3011	 53.91	0	3385029..3385271	+	80	30064588	yhdT	S3512	-	hypothetical protein
3012	 54.13	0	3385261..3386712	+	483	30064589	panF	S3513	-	sodium/panthothenate symporter
3013	 54.42	0	3386724..3387605	+	293	30064590	prmA	S3514	-	ribosomal protein L11 methyltransferase
3014	 52.08	0	3388057..3388899	+	280	30064591	yhdG	S3515	-	putative dehydrogenase
3015	 47.14	-1	3388925..3389221	+	98	30064592	fis	S3516	-	DNA-binding protein Fis
3016	 47.57	0	3389307..3390191	+	294	30064593	yhdJ	S3517	-	putative methyltransferase
3017	 53.17	0	3390469..3390972	-	167	30064594	-	S3519	-	IS1 orfB
3018	 53.26	0	3390891..3391166	-	91	30064595	-	S3520	-	IS1 orfA
3019	 48.91	0	3391510..3392427	+	305	30064596	yhdW	S3521	-	putative periplasmic binding transport protein
3020	 52.78	0	3393056..3393559	-	167	30064597	-	S3523	-	IS1 orfB
3021	 52.90	0	3393478..3393753	-	91	30064598	-	S3524	-	IS1 orfA
3022	 51.72	0	3394451..3395554	+	367	30064599	yhdY	S3526	-	putative transport system permease protein
3023	 46.77	-1	3395562..3396320	+	252	30064600	yhdZ	S3527	-	putative ATP-binding component of a transport system
3024	 45.91	-1	3401985..3402755	+	256	30064601	yrdA	S3535	-	putative transferase
3025	 49.22	0	3402731..3402988	-	85	30064602	yrdB	S3536	-	hypothetical protein
3026	 49.21	0	3402985..3403803	-	272	30064603	aroE	S3537	-	shikimate 5-dehydrogenase
3027	 52.36	0	3403808..3404380	-	190	30064604	yrdC	S3538	-	putative ribosome maturation factor
3028	 49.71	0	3404385..3404903	-	172	30064605	yrdD	S3539	-	putative DNA topoisomerase
3029	 46.62	-1	3404956..3405414	-	152	30064606	smg	S3540	-	hypothetical protein
3030	 51.02	0	3405401..3406525	-	374	30064607	smf	S3542	-	hypothetical protein
51.60	MEAN

4.04	STD DEV
