IslandPathversion 1.0

IslandPath Analysis: Shigella flexneri 2a str. 2457T

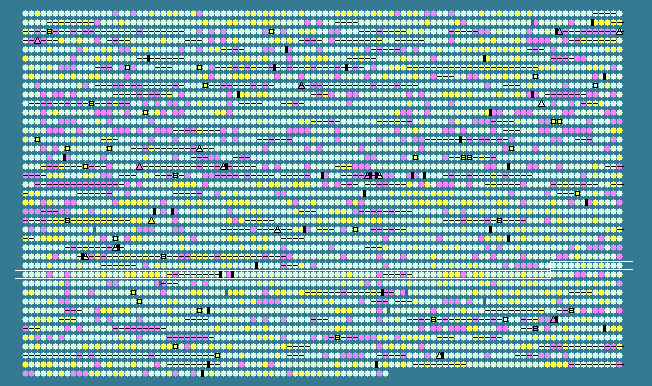

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 51.60 STD DEV: 4.04
Shigella flexneri 2a str. 2457T, complete genome - 1..4599354
4061 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2889	 50.64	0	3256185..3257519	-	444	30064466	yhaU	S3379	-	putative transport protein
2890	 52.93	0	3257894..3259465	+	523	30064467	yhaG	S3380	-	putative hydrolase
2891	 52.24	0	3259517..3260341	-	274	30064468	agaR	S3381	-	DNA-binding transcriptional regulator AgaR
2892	 55.04	0	3260590..3261870	+	426	30064469	agaZ	S3382	-	putative tagatose 6-phosphate kinase 2
2893	 50.39	0	3261857..3262366	+	169	30064470	agaV	S3383	-	N-acetylgalactosamine-specific PTS system transporter subunit IIB
2894	 55.77	+1	3262377..3263156	+	259	30064471	agaW	S3384	-	N-acetylgalactosameine-specific IIC component 2
2895	 52.47	0	3263146..3263955	+	269	30064472	agaE	S3385	-	putative transport enzyme subunit
2896	 53.10	0	3264042..3264476	+	144	30064473	agaF	S3386	-	putative transport enzyme subunit
2897	 57.21	+1	3264473..3264916	+	147	30064474	agaA	S3387	-	N-acetylglucosamine-6-phosphate deacetylase
2898	 52.90	0	3264945..3265220	+	91	30064475	-	S3388	-	IS1 orfA
2899	 52.98	0	3265139..3265642	+	167	30064476	-	S3389	-	IS1 orfB
2900	 51.24	0	3265897..3266700	+	267	30064477	agaC	S3391	-	N-acetylgalactosamine-specific PTS system transporter subunit IIC
2901	 49.49	0	3266690..3267481	+	263	30064478	agaD	S3392	-	N-acetylgalactosamine-specific PTS system transporter subunit IID
2902	 49.74	0	3267482..3268237	+	251	30064479	agaI	S3393	-	galactosamine-6-phosphate isomerase
2903	 52.58	0	3268746..3269249	-	167	30064480	-	S3394	-	IS1 ORF2
2904	 52.90	0	3269168..3269443	-	91	30064481	-	S3395	-	IS1 orfA
2905	 44.83	-1	3270079..3270774	+	231	30064482	yraI	S3397	-	putative chaperone
2906	 52.96	0	3272539..3272961	-	140	30064483	-	S3399	-	IS2 orfB
2907	 53.01	0	3273400..3273765	-	121	161486430	-	S3401	-	insertion sequence 2 OrfA protein
2908	 47.89	0	3274664..3275755	+	363	30064485	yraK	S3403	-	putative fimbrial protein
2909	 54.01	0	3275798..3276658	-	286	30064486	yraL	S3404	-	hypothetical protein
2910	 54.34	0	3276723..3278759	+	678	30064487	yraM	S3405	-	putative glycosylase
2911	 54.80	0	3278717..3279112	+	131	30064488	yraN	S3406	-	hypothetical protein
2912	 50.25	0	3279132..3279722	+	196	30064489	yraO	S3407	-	DnaA initiator-associating protein DiaA
2913	 53.99	0	3279732..3280307	+	191	30064490	yraP	S3408	-	hypothetical protein
2914	 57.25	+1	3280421..3281461	-	346	30064491	yraQ	S3409	-	hypothetical protein
2915	 54.77	0	3281534..3282214	-	226	30064492	yraR	S3410	-	hypothetical protein
2916	 49.38	0	3282255..3282815	+	186	30064493	yhbO	S3411	-	hypothetical protein
2917	 54.05	0	3282795..3283238	-	147	30064494	yhbP	S3412	-	hypothetical protein
2918	 55.45	0	3283289..3283591	+	100	30064495	yhbQ	S3413	-	GIY-YIG nuclease superfamily protein
2919	 55.36	0	3283578..3284081	-	167	30064496	yhbS	S3414	-	hypothetical protein
2920	 51.62	0	3284075..3284599	-	174	30064497	yhbT	S3415	-	hypothetical protein
2921	 57.23	+1	3284808..3285803	+	331	30064498	yhbU	S3416	-	putative collagenase
2922	 55.86	+1	3285812..3286690	+	292	30064499	yhbV	S3417	-	hypothetical protein
2923	 55.36	0	3286771..3287778	+	335	30064500	yhbW	S3418	-	hypothetical protein
2924	 53.49	0	3287896..3289140	-	414	30064501	mtr	S3419	-	tryptophan permease
2925	 55.87	+1	3289294..3291183	-	629	161486429	deaD	S3420	-	ATP-dependent RNA helicase DeaD
2926	 48.02	0	3291363..3292247	-	294	30064503	yhbM	S3421	-	lipoprotein NlpI
2927	 53.51	0	3292356..3294560	-	734	30064504	pnp	S3422	-	polynucleotide phosphorylase/polyadenylase
2928	 51.48	0	3294738..3295007	-	89	30064505	rpsO	S3423	-	30S ribosomal protein S15
2929	 52.06	0	3295156..3296100	-	314	30064506	truB	S3424	-	tRNA pseudouridine synthase B
2930	 52.99	0	3296100..3296501	-	133	30064507	rbfA	S3425	-	ribosome-binding factor A
2931	 53.45	0	3296665..3299313	-	882	30064508	infB	S3426	-	translation initiation factor IF-2
2932	 52.69	0	3299338..3300825	-	495	30064509	nusA	S3427	-	transcription elongation factor NusA
2933	 48.57	0	3300853..3301305	-	150	161486428	yhbC	S3428	-	hypothetical protein
2934	 52.31	0	3301936..3303279	+	447	30064511	argG	S3430	-	argininosuccinate synthase
2935	 47.62	0	3303287..3303769	-	160	30064512	yhbX	S3431	-	putative alkaline phosphatase I
2936	 50.15	0	3305473..3305805	-	110	30064513	secG	S3433	-	preprotein translocase subunit SecG
2937	 54.48	0	3306033..3307370	-	445	30064514	glmM	S3434	-	phosphoglucosamine mutase
2938	 51.59	0	3307363..3308211	-	282	161486427	folP	S3435	-	dihydropteroate synthase
2939	 53.44	0	3308301..3310235	-	644	30064516	hflB	S3436	-	ATP-dependent metalloprotease
2940	 50.16	0	3310335..3310964	-	209	30064517	rrmJ	S3437	-	23S rRNA methyltransferase J
2941	 48.64	0	3311090..3311383	+	97	30064518	yhbY	S3438	-	RNA-binding protein YhbY
2942	 48.64	0	3311539..3312015	-	158	30064519	greA	S3439	-	transcription elongation factor GreA
2943	 53.14	0	3312263..3313696	+	477	30064520	dacB	S3440	-	D-alanyl-D-alanine carboxypeptidase/endopeptidase
2944	 52.77	0	3313882..3315054	-	390	30064521	obgE	S3441	-	GTPase ObgE
2945	 52.69	0	3315070..3316035	-	321	30064522	yhbE	S3442	-	hypothetical protein
2946	 49.61	0	3316162..3316419	-	85	30064523	rpmA	S3443	-	50S ribosomal protein L27
2947	 48.40	0	3316440..3316751	-	103	30064524	rplU	S3444	-	50S ribosomal protein L21
2948	 52.67	0	3317009..3317980	+	323	30064525	ispB	S3445	-	octaprenyl diphosphate synthase
2949	 49.46	0	3318207..3318485	+	92	30064526	nlp	S3446	-	DNA-binding transcriptional regulator Nlp
2950	 53.33	0	3318533..3319792	-	419	30064527	murA	S3447	-	UDP-N-acetylglucosamine 1-carboxyvinyltransferase
2951	 50.00	0	3319847..3320116	-	89	30064528	yrbA	S3448	-	hypothetical protein
2952	 52.56	0	3320261..3320650	-	129	30064529	yrbB	S3449	-	hypothetical protein
2953	 52.04	0	3320554..3321189	-	211	30064530	yrbC	S3450	-	hypothetical protein
2954	 49.82	0	3321208..3321759	-	183	30064531	vpsC	S3451	-	cytoplasmic membrane protein
2955	 55.43	0	3321764..3322546	-	260	30064532	vpsB	S3452	-	integral membrane protein
2956	 54.32	0	3322554..3323363	-	269	30064533	vpsA	S3453	-	putative ABC transporter ATP-binding protein YrbF
2957	 51.86	0	3323573..3324538	+	321	30064534	yrbG	S3454	-	putative calcium/sodium:proton antiporter
2958	 52.18	0	3324552..3325538	+	328	30064535	yrbH	S3455	-	D-arabinose 5-phosphate isomerase
2959	 52.38	0	3325559..3326125	+	188	30064536	yrbI	S3456	-	3-deoxy-D-manno-octulosonate 8-phosphate phosphatase
2960	 46.35	-1	3326122..3326697	+	191	30064537	yrbK	S3457	-	hypothetical protein
2961	 49.64	0	3326666..3327223	+	185	30064538	yhbN	S3458	-	hypothetical protein
2962	 54.27	0	3327230..3327955	+	241	30064539	yhbG	S3459	-	putative ABC transporter ATP-binding protein YhbG
2963	 53.00	0	3328003..3329436	+	477	30064540	rpoN	S3460	-	RNA polymerase factor sigma-54
2964	 44.44	-1	3329459..3329746	+	95	30064541	yhbH	S3461	-	putative sigma(54) modulation protein
2965	 51.83	0	3329864..3330355	+	163	30064542	ptsN	S3462	-	sugar-specific enzyme IIA component of PTS
2966	 52.05	0	3330401..3331255	+	284	30064543	yhbJ	S3463	-	hypothetical protein
2967	 49.08	0	3331252..3331524	+	90	30064544	ptsO	S3464	-	phosphohistidinoprotein-hexose phosphotransferase component of N-regulated PTS system (Npr)
2968	 51.34	0	3331737..3332369	+	210	30064545	yrbL	S3465	-	hypothetical protein
2969	 52.75	0	3333090..3333743	-	217	30064546	yhbL	S3467	-	isoprenoid biosynthesis protein
2970	 50.62	0	3333973..3336309	-	778	30064547	arcB	S3468	-	aerobic respiration control sensor protein ArcB
2971	 55.70	+1	3336405..3337334	-	309	30064548	yhcC	S3469	-	hypothetical protein
2972	 57.09	+1	3337916..3342469	+	1517	161486426	gltB	S3470	-	glutamate synthase subunit alpha
2973	 55.11	0	3342482..3343900	+	472	30064550	gltD	S3471	-	glutamate synthase subunit beta
2974	 47.90	0	3345046..3346116	+	356	30064551	-	S3473	-	IS600 orf
2975	 48.39	0	3346192..3346656	-	154	30064552	yhcH	S3474	-	hypothetical protein
2976	 57.88	+1	3346653..3347528	-	291	161486425	yhcI	S3475	-	N-acetylmannosamine kinase
2977	 57.97	+1	3347525..3348214	-	229	30064554	yhcJ	S3476	-	N-acetylmannosamine-6-phosphate 2-epimerase
2978	 54.93	0	3348262..3349752	-	496	161486424	nanT	S3477	-	putative sialic acid transporter
2979	 52.13	0	3349862..3350755	-	297	30064556	nanA	S3478	-	N-acetylneuraminate lyase
2980	 52.11	0	3350877..3351659	-	260	30064557	yhcK	S3479	-	transcriptional regulator NanR
2981	 52.54	0	3352106..3352381	+	91	30064558	-	S3480	-	IS1 orfA
2982	 52.78	0	3352300..3352803	+	167	30064559	-	S3481	-	IS1 orfB
2983	 50.95	0	3352824..3354191	+	455	30064560	yhcL	S3482	-	putative cryptic C4-dicarboxylate transporter DcuD
2984	 55.22	0	3354234..3354731	-	165	30064561	sspB	S3483	-	ClpXP protease specificity-enhancing factor
2985	 53.68	0	3354737..3355375	-	212	30064562	sspA	S3484	-	stringent starvation protein A
2986	 52.42	0	3355770..3356162	-	130	30064563	rpsI	S3485	-	30S ribosomal protein S9
2987	 50.35	0	3356178..3356606	-	142	30064564	rplM	S3486	-	50S ribosomal protein L13
2988	 52.30	0	3356825..3357952	-	375	30064565	yhcM	S3487	-	hypothetical protein
51.60	MEAN

4.04	STD DEV
